ED 31 Trusses with bus bar
Products Overview

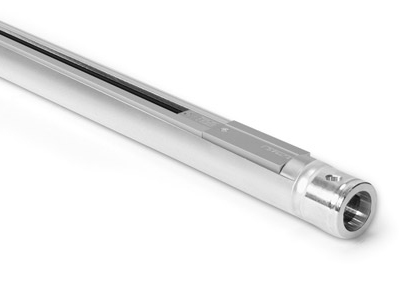

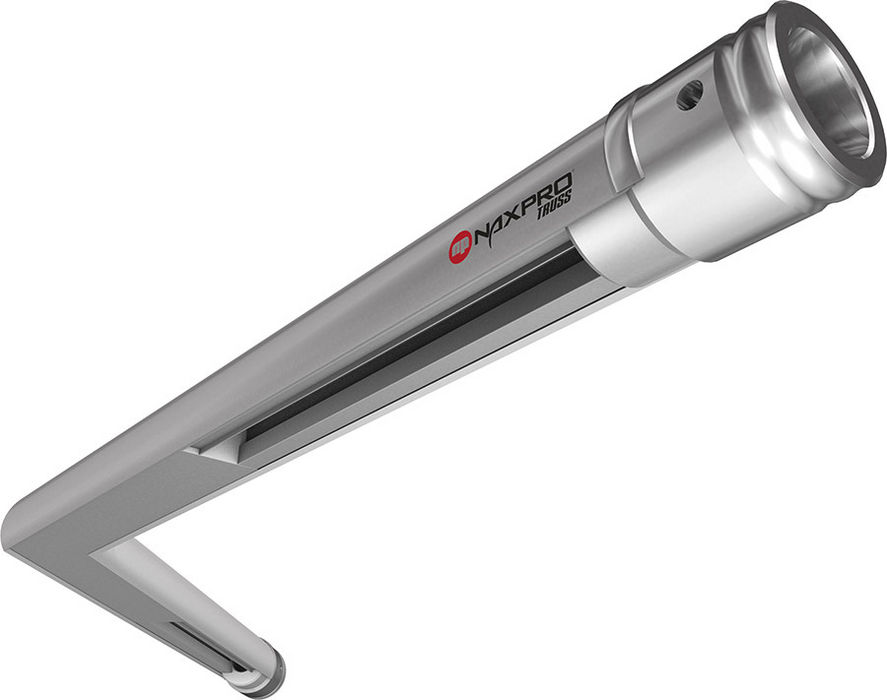

The ED31 trusses are based on the FD31 series, but in contrast to the standard model they are equipped with an additional bus bar, which allows a clean and flexible connection of various lighting and event technology.
In the assembly of truss structures, bus bar trusses offer clear advantages: no additional cables must be installed, faster mounting and demounting and unattractive cable clutter is avoided. Because all installed devices can be flexibly positioned, bus bar trusses are especially suited for situations where spotlights must be reassigned regularly, e.g. in furniture stores, car dealerships and hardware stores.
Certified Safety
Dimensions
Specifications
| Tube: | 50 x 2 mm |
| Alloy: | EN-AW 6082 T6 |
| Bus bar: | EN-AW 6060 T66 |
Load Chart ED 31
| Aluminium profile with clamp | Aluminium profile with adapter for bus bar | |||||
| Span | Uniformly distributed load |
Deflection | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg/m | mm | kg | mm |
| 1,0 | 60,4 | 4,8 | 30,0 | 1,4 | 30,2 | 2,2 |
| 1,5 | 26,3 | 10,8 | 26,3 | 6,3 | 19,8 | 5,1 |
| 2,0 | 14,4 | 19,2 | 14,4 | 11,2 | 14,4 | 9,1 |
| 2,5 | 8,9 | 30,0 | 8,9 | 17,5 | 11,1 | 14,4 |
| 3,0 | 5,9 | 43,2 | 5,9 | 25,3 | 8,8 | 21,0 |
| 3,5 | 4,1 | 59,0 | 4,1 | 34,6 | 7,2 | 29,1 |
| 4,0 | 2,9 | 77,1 | 2,9 | 45,5 | 5,8 | 38,8 |
| 4,5 | 2,1 | 58,0 | 2,1 | 58,0 | 4,8 | 50,2 |
| 5,0 | 1,5 | 72,2 | 1,5 | 72,2 | 3,8 | 63,5 |
The load values are calculated using 10.9 bolts.
The mechanical capacities of the power rail must be considered! They can be limited.
Straights, Corners and Elements ED 31
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||

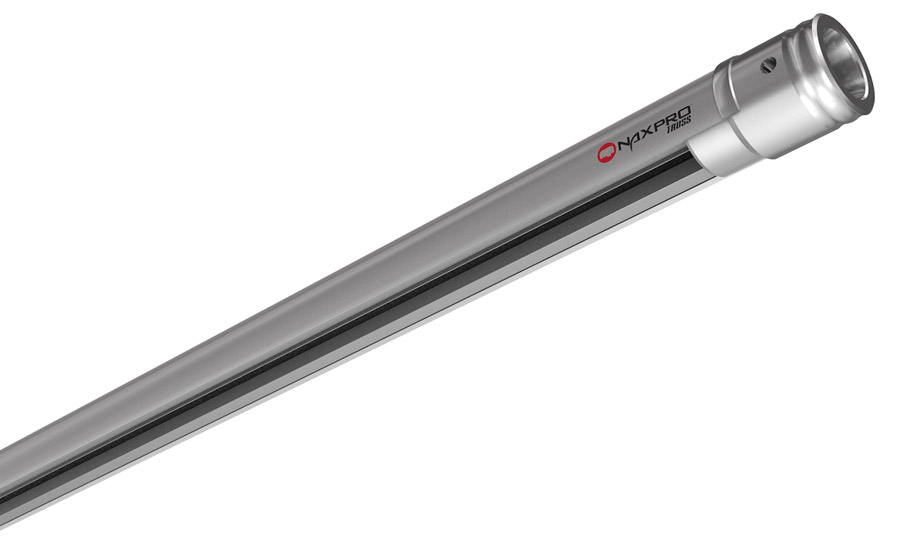

| 25 | 0,50 | 311310250 | 250 | 5,00 | 311312500 |
| 50 | 1,00 | 311310500 | 300 | 6,00 | 311313000 |
| 100 | 2,00 | 311311000 | 350 | 7,00 | 311313500 |
| 150 | 3,00 | 311311500 | 400 | 8,00 | 311314000 |
| 200 | 4,00 | 311312000 |
 |

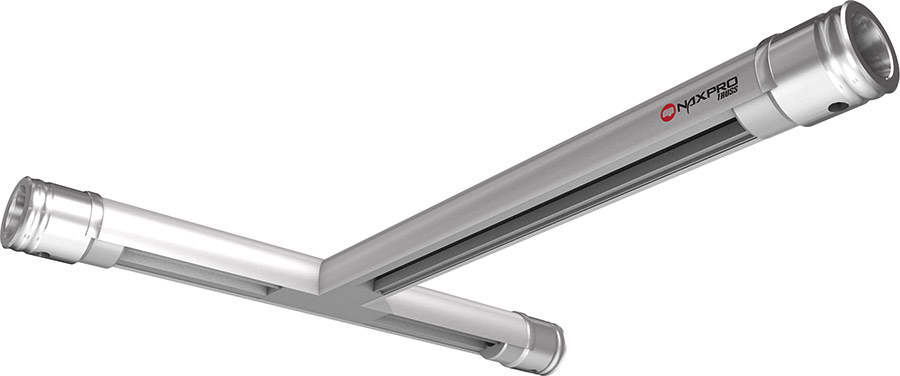

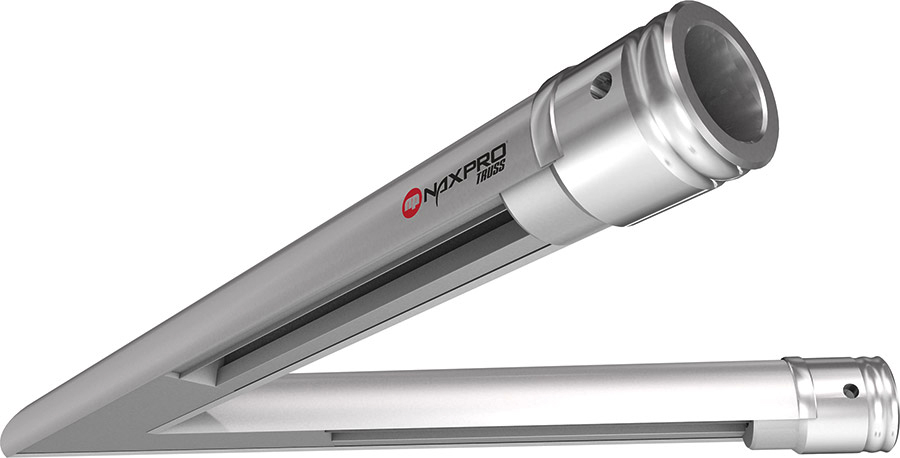

2 Way Corner 45°
Side length: 500 mm
 |

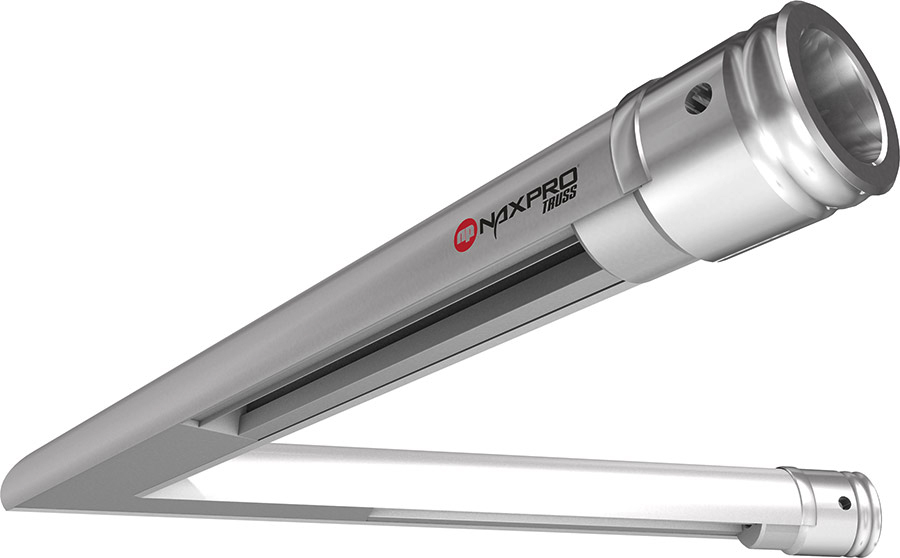

2 Way Corner 60°
Side length: 500 mm
 |
2 Way Corner 90°
Side length: 500 mm
 |

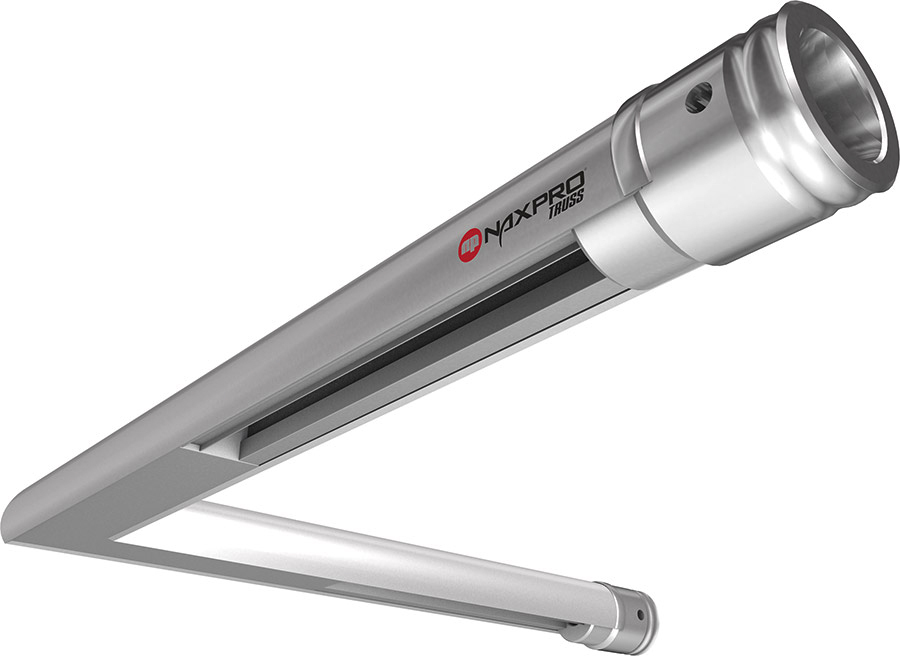

2 Way Corner 120°
Side length: 500 mm
 |

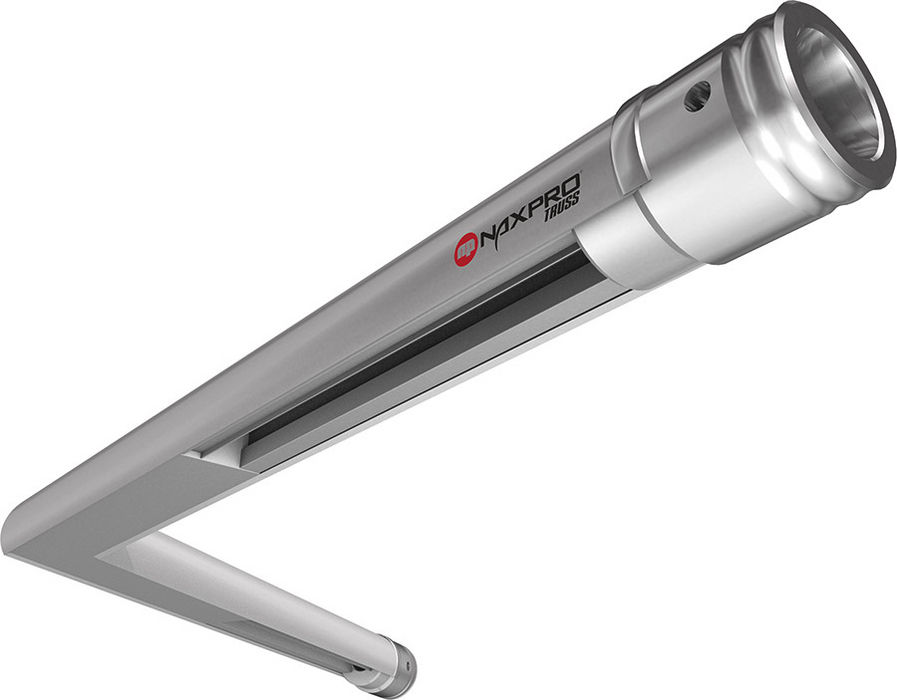

2 Way Corner 135°
Side length: 500 mm
 |
3 Way T-Piece 90°
Side length: 500 mm
 |

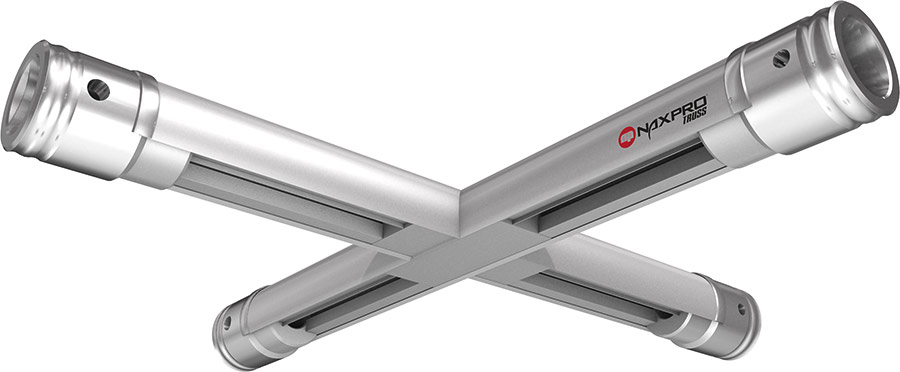

4 Way Cross 90°
Side length: 500 mm
Truss Circles ED 31
