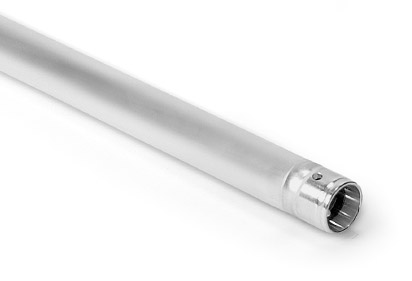

FD 21 Trusses
Products Overview
The outstanding strength of this truss system in 1-point version is its light weight, flexibility and small size. You can combine all FD 21 elements with components from the Naxpro truss-systems FD 22, FD 23 & FD 24. Therefore the Naxpro FD 21 truss-system is the perfect choice for decorative constructions of display holders, geometric shapes like cubes and cuboids, advertising frames and balustrades. Due to the high flexibility of this system, the application versatility knows no boundaries.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro FD 21 truss system is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Tube: | 35 x 2 mm |
| Alloy: | EN-AW 6060 T66 |
Load Chart FD 21
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 63,2 | 4,1 | 31,6 | 3,3 |
| 1,5 | 27,7 | 9,3 | 20,8 | 7,5 |
| 2,0 | 15,3 | 16,5 | 15,3 | 13,4 |
| 2,5 | 9,6 | 25,9 | 12,0 | 21,1 |
High uniformly distributed loads are to be understood ideally distributed. The load application
has to be made in the knot.

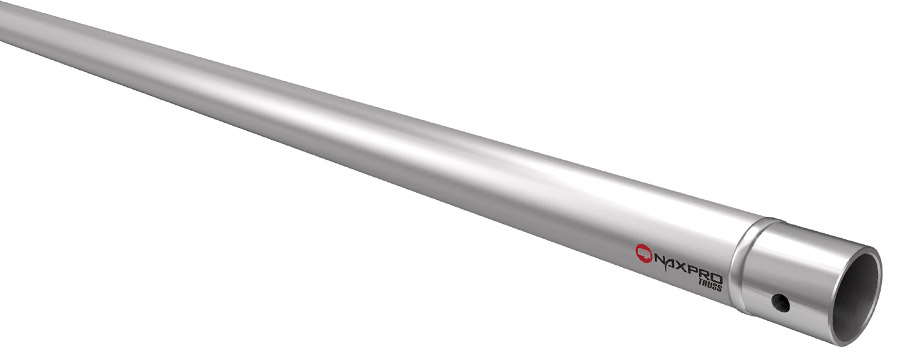

Straights, Corners and Elements FD 21
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 25 | 0,30 | 300210250 | 175 | 1,20 | 300211750 |
| 50 | 0,40 | 300210500 | 200 | 1,30 | 300212000 |
| 75 | 0,60 | 300210750 | 250 | 1,60 | 300212500 |
| 100 | 0,70 | 300211000 | 300 | 2,10 | 300213000 |
| 125 | 0,90 | 300211250 | 350 | 2,20 | 300213500 |
| 150 | 1,00 | 300211500 | 400 | 2,40 | 300211400 |
 |

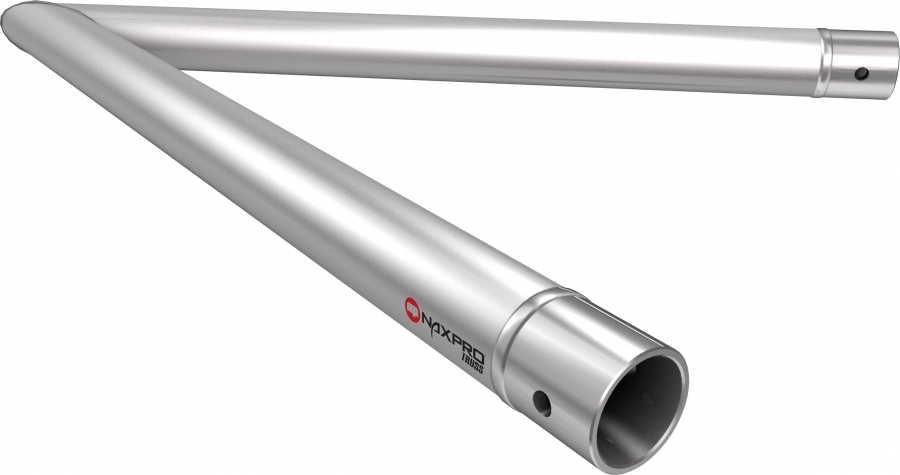

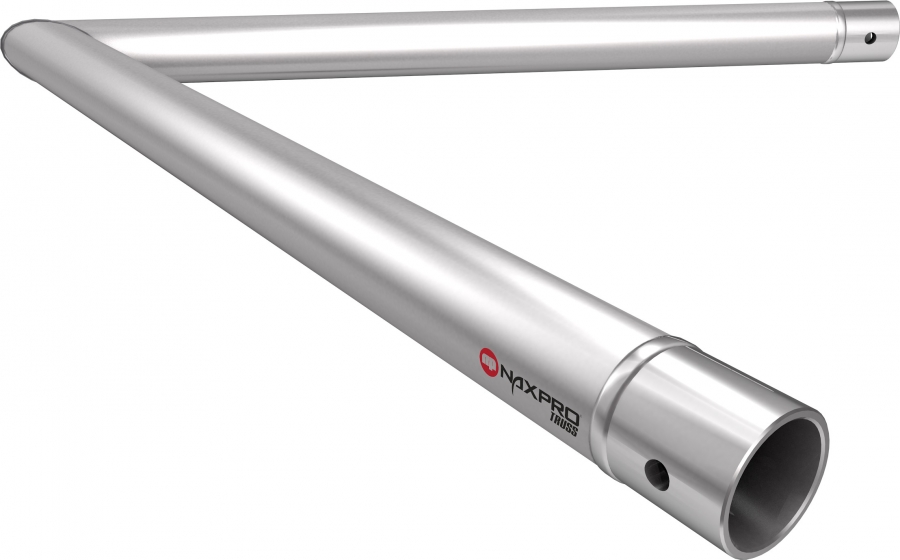

2 Way Corner 45°
Side length: 500 mm
Weight: 1.5 kg
 |

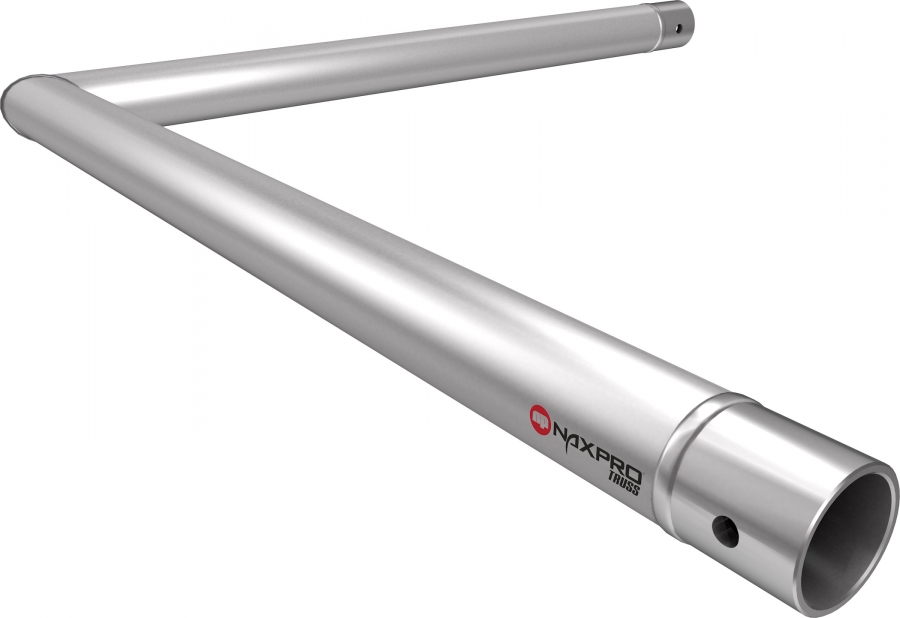

2 Way Corner 60°
Side length: 500 mm
Weight: 1.5 kg
 |

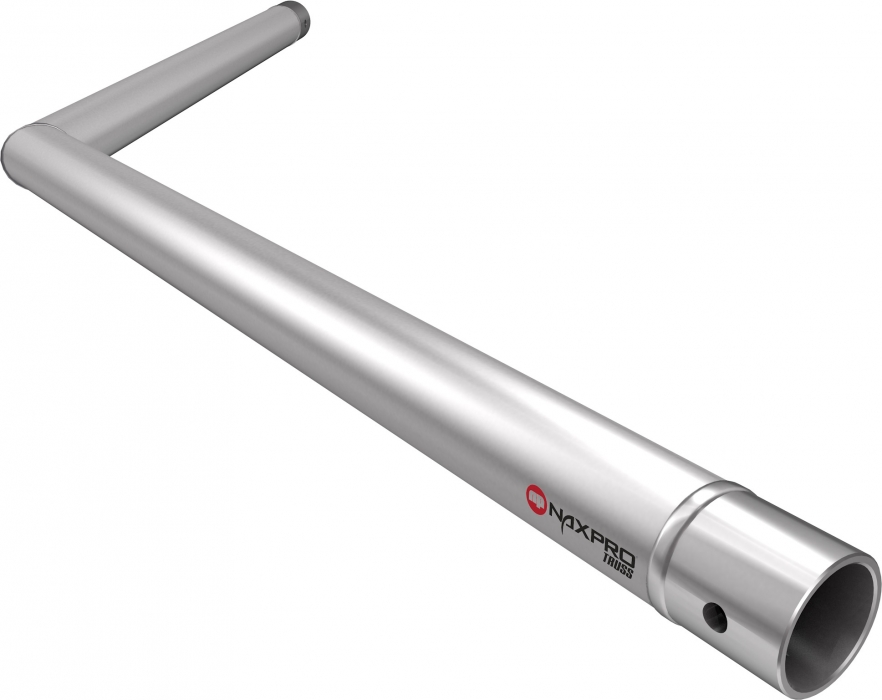

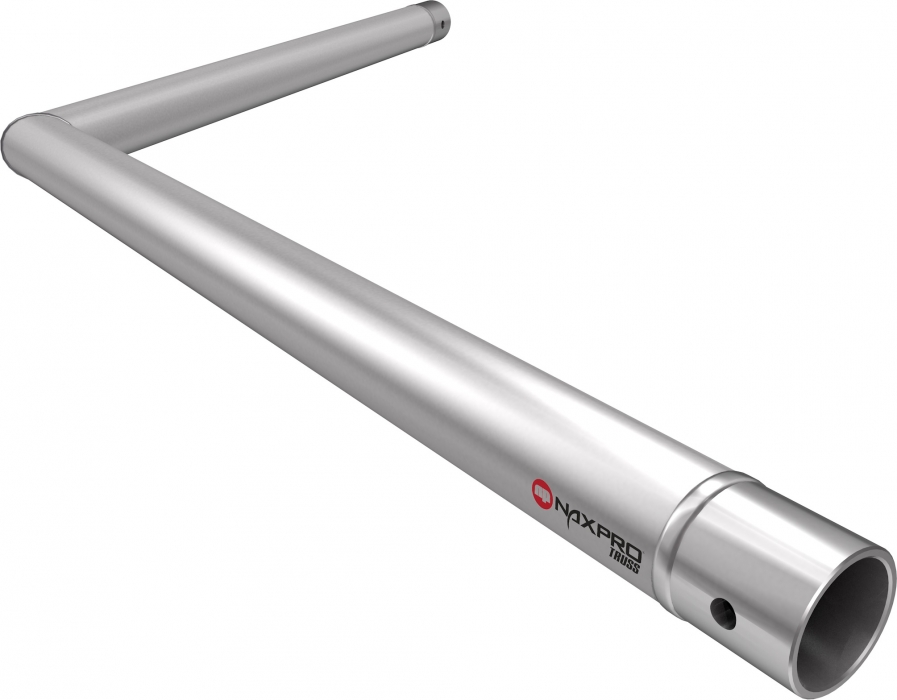

2 Way Corner 90°
Side length: 500 mm
Weight: 1.5 kg
 |
2 Way Corner 120°
Side length: 500 mm
Weight: 1.5 kg
 |
2 Way Corner 135°
Side length: 500 mm
Weight: 1.5 kg
 |

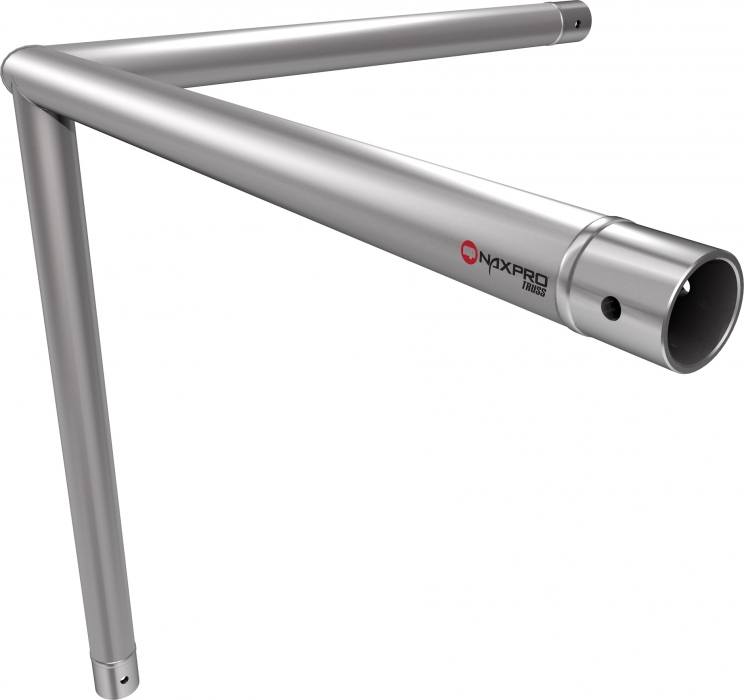

3 Way Corner 90°
Side length: 500 mm
Weight: 2.0 kg
 |

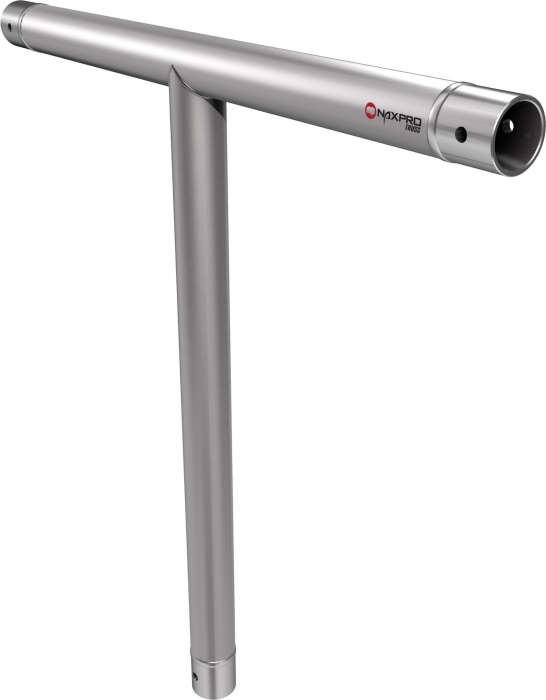

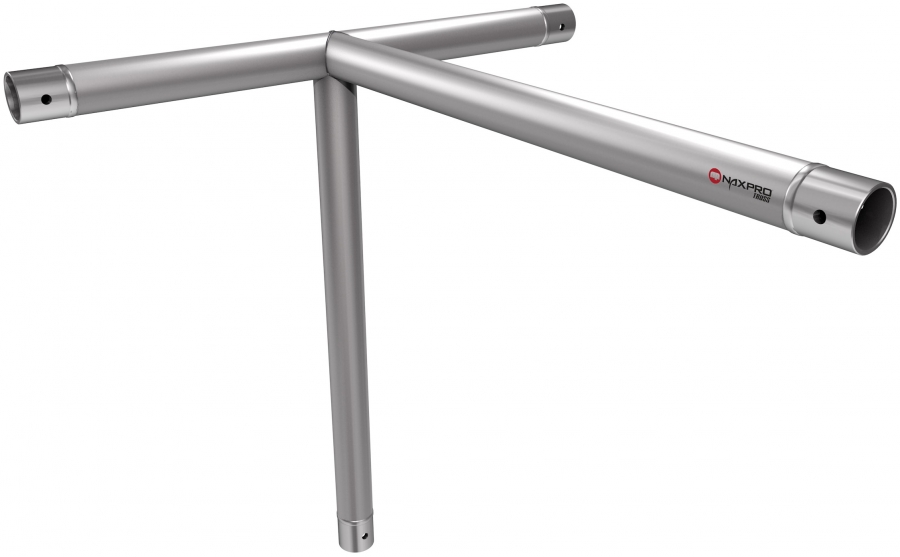

3 Way T-Piece 90°
Side length: 500 mm
Weight: 2.0 kg
 |
4 Way T-Piece 90°
Side length: 500 mm
Weight: 2.5 kg
 |

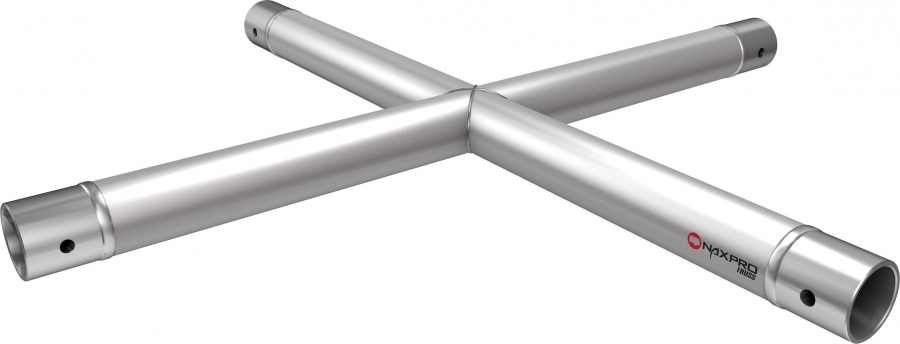

4 Way Cross 90°
Side length: 500 mm
Weight: 2.5 kg
 |

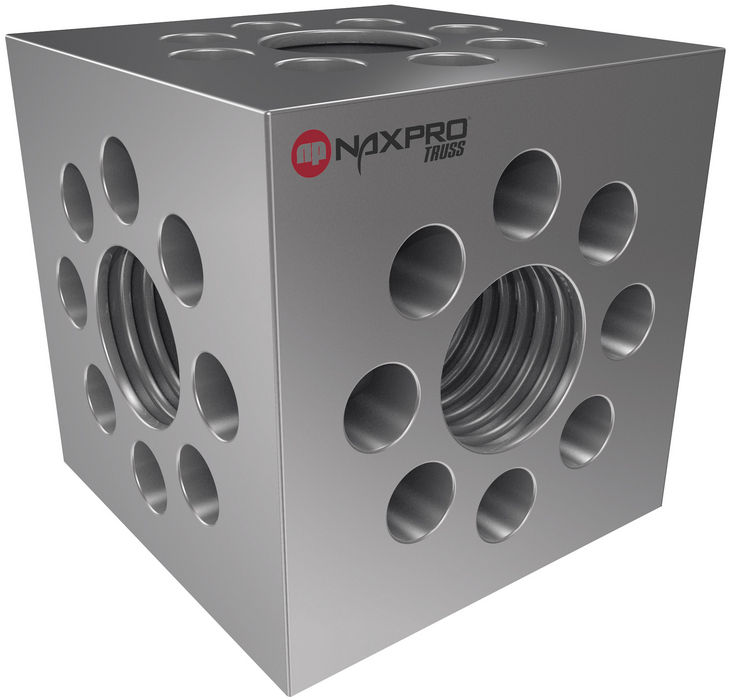

Boxcorner for FD 21 truss incl. 2 connectors

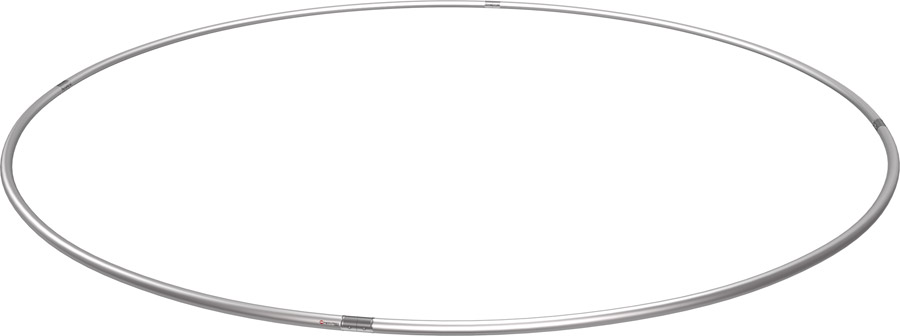

Truss Circles FD 21
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||
| FD 21 per running circular meter | 0,70 | 301210001 | |
| FD 21 (4 x 90°) | 200 | 4,40 | 301210020 |
| FD 21 (4 x 90°) | 300 | 6,59 | 301210030 |
| FD 21 (4 x 90°) | 400 | 8,79 | 301210040 |
| FD 21 (8 x 45°) | 500 | 10,99 | 301210050 |
| FD 21 (8 x 45°) | 600 | 13,19 | 301210060 |
| FD 21 (8 x 45°) | 700 | 15,40 | 301210070 |
| FD 21 (8 x 45°) | 800 | 17,58 | 301210080 |
| FD 21 (12 x 30°) | 900 | 19,78 | 301210090 |
| FD 21 (12 x 30°) | 1000 | 21,98 | 301210100 |
