HD 31 Trusses
Products Overview

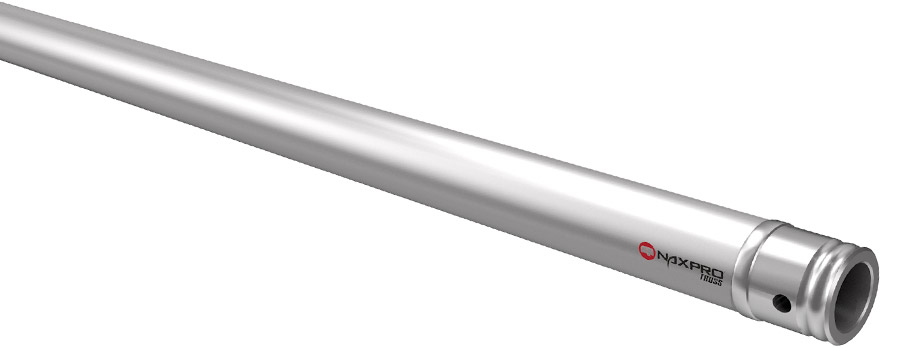

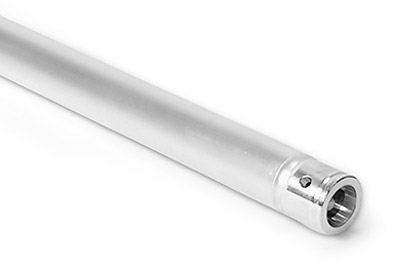

The HD 31 truss system by Naxpro-Truss in 1-point heavy duty design, convinces with its strength, lightness, small size and flexibility. HD 31 trusses can be combined with all components of the Naxpro-Truss systems FD 31 - HD 34 and FD 42 - HD 44, taking into account the respective load table. Excellent suitable for the decorative construction of display fixtures, geometric bodies such as cubes and cuboids, advertising frames and rigging systems. There are no limits to the variety of applications due to the high flexibility system. The system is by means of conical connection connected force fit. The connectors are included. To connect the trusses, you only need a lightweight Riggatec aluminum hammer as a tool. Special constructions and powder coatings can be realized in a short time.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro HD 31 truss system is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Tube: | 50 x 2 mm |
| Alloy: | EN-AW 6082 T6 |
Load Chart HD 31
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 323,4 | 4,8 | 161,7 | 3,9 |
| 1,5 | 143,0 | 10,9 | 107,2 | 8,7 |
| 2,0 | 79,8 | 19,3 | 79,8 | 15,5 |
| 2,5 | 50,6 | 30,3 | 63,2 | 24,4 |
| 3,0 | 34,7 | 43,6 | 52,1 | 35,3 |
| 3,5 | 25,1 | 59,5 | 44,0 | 48,3 |
| 4,0 | 18,9 | 77,8 | 37,8 | 63,4 |
| 4,5 | 14,7 | 98,7 | 33,0 | 80,8 |
| 5,0 | 11,6 | 122,1 | 29,0 | 100,5 |
| 5,5 | 9,4 | 148,1 | 25,7 | 122,6 |
| 6,0 | 7,6 | 176,7 | 22,9 | 147,2 |
The load values are calculated using 10.9 bolts.
Straights, Corners and Elements HD 31
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 50 | 0,84 | 304310500 | 250 | 3,54 | 304312500 |
| 75 | 1,14 | 304310750 | 300 | 3,84 | 304313000 |
| 100 | 1,44 | 304311000 | 350 | 4,44 | 304313500 |
| 125 | 1,74 | 304311250 | 400 | 5,04 | 304314000 |
| 150 | 2,04 | 304311500 | 450 | 5,64 | 304314500 |
| 175 | 2,34 | 304311750 | 500 | 6,24 | 304315000 |
Truss Circles HD 31
