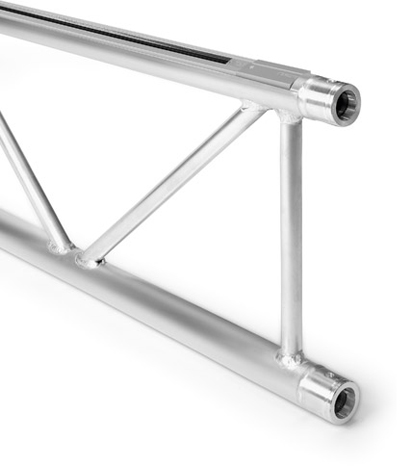

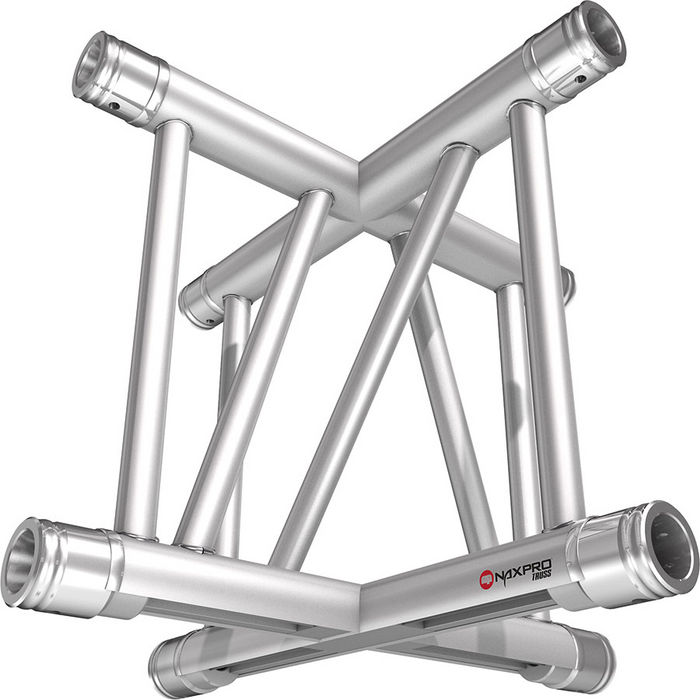

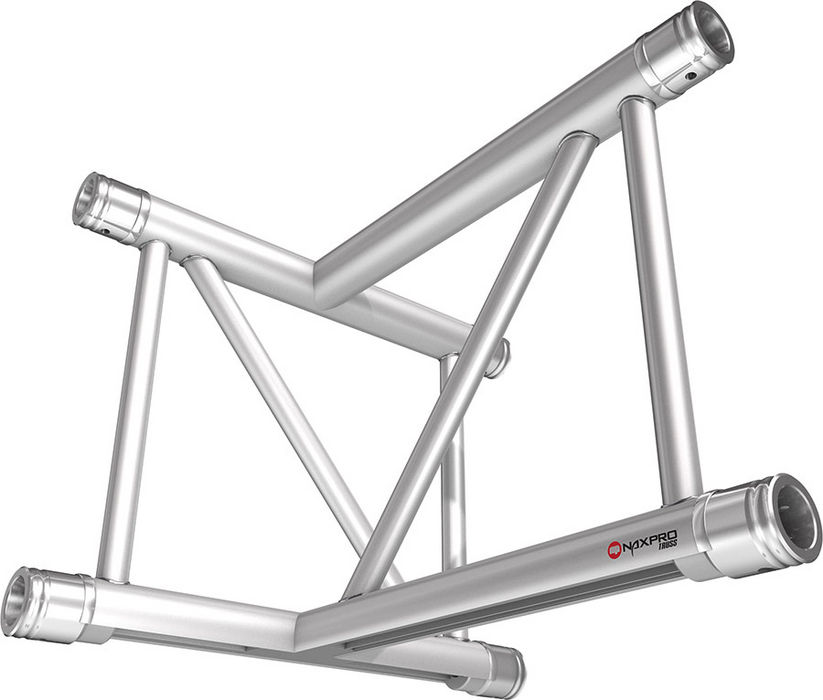

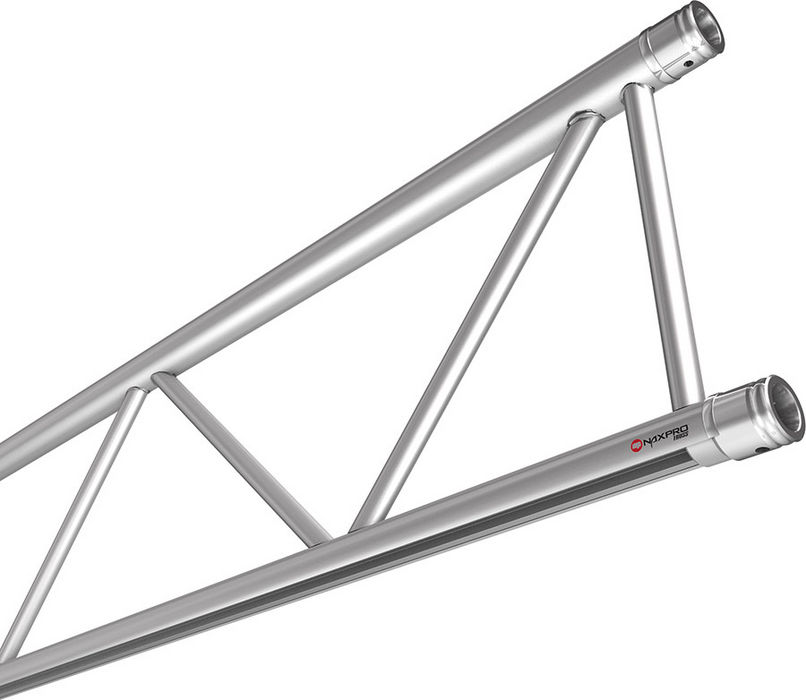

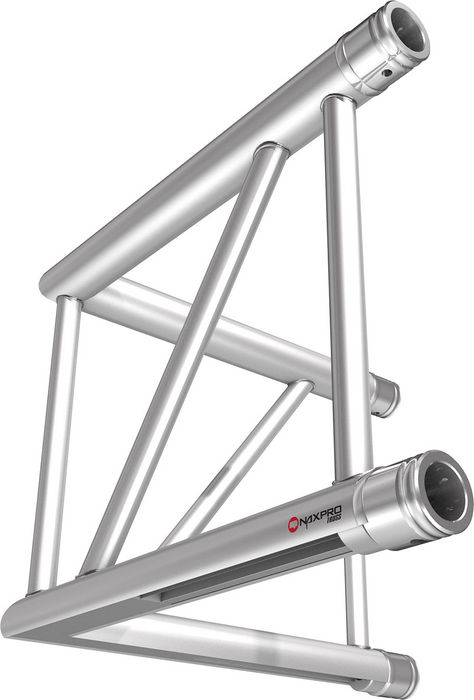

ED 42 Trusses with bus bar
Products Overview
The ED42 trusses are based on the FD42 series, but in contrast to the standard model they are equipped with an additional bus bar, which allows a clean and flexible connection of various lighting and event technology.
In the assembly of truss structures, bus bar trusses offer clear advantages: no additional cables must be installed, faster mounting and demounting and unattractive cable clutter is avoided. Because all installed devices can be flexibly positioned, bus bar trusses are especially suited for situations where spotlights must be reassigned regularly, e.g. in furniture stores, car dealerships and hardware stores.
Certified Safety
Dimensions
Specifications
Width: | 400 mm |
Tube: | 50 x 2 mm |
Diagonals: | 25 x 3 mm |
Alloy: | EN-AW 6082 T6 |
Bus bar: | EN-AW 6060 T66 |
Load Chart ED 42
Aluminium profile with clamp | Aluminium profile with adapter for bus bar | |||||
Span | Uniformly distributed load |
Deflection | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
m | kg/m | mm | kg/m | mm | kg | mm |
1,0 | 633,0* | 0,1 | 30,0 | 0,0 | 380,0* | 0,1 |
2,0 | 316,0* | 0,5 | 30,0 | 0,1 | 334,0* | 0,4 |
3,0 | 206,0* | 1,6 | 30,0 | 0,3 | 296,0* | 1,2 |
4,0 | 150,0* | 3,7 | 30,0 | 0,8 | 267,0* | 2,7 |
5,0 | 124,0* | 7,6 | 30,0 | 2,0 | 238,0* | 4,7 |
6,0 | 100,8 | 12,8 | 30,0 | 4,1 | 212,0* | 7,3 |
7,0 | 73,3 | 17,4 | 30,0 | 7,5 | 195,0* | 10,9 |
8,0 | 55,5 | 22,8 | 30,0 | 12,9 | 178,0* | 15,0 |
9,0 | 43,3 | 28,9 | 30,0 | 20,6 | 162,0* | 19,8 |
10,0 | 34,5 | 35,7 | 30,0 | 31,4 | 148,0* | 25,5 |
11,0 | 28,0 | 43,3 | 28,0 | 43,3 | 136,0* | 31,7 |
12,0 | 23,1 | 51,6 | 23,1 | 51,6 | 125,0* | 38,9 |
13,0 | 19,3 | 60,7 | 19,3 | 60,7 | 115,0* | 46,9 |
14,0 | 16,3 | 70,6 | 16,3 | 70,6 | 106,0* | 55,4 |
15,0 | 13,8 | 81,2 | 13,8 | 81,2 | 97,0* | 64,7 |
16,0 | 11,8 | 92,6 | 11,8 | 92,6 | 90,0* | 75,0 |
Loads are only valid for vertical use!
* limited by interaction with offset / decisive is the offset on the connector
High uniformly distributed loads are to be understood ideally distributed. The load application has to be made in
the knot. The upper main pipe must be held sideways min. every 112,10 cm! The load values are calculated using
10.9 bolts.
