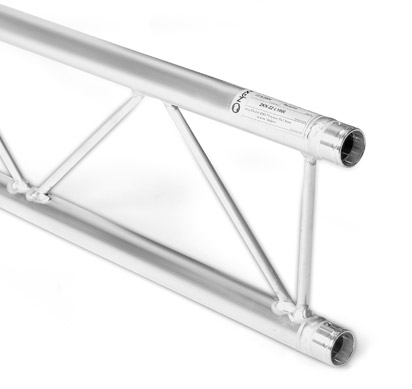

FD 22 Trusses

Certified Safety

Dimensions

Specifications

Width:	220 mm
Tube:	35 x 2 mm
Diagonals:	10 x 2 mm
Alloy:	EN-AW 6060 T66

Products Overview

Truss system in 2-point version, which despite of its small tube-diameter of only 35 mm finds professional use in the event industry as well as in exhibition stands and store constructions. Even though the dimensions are small, there is enough space for lighting and advertising.

The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro FD 22 truss system is available in all RAL-colours and custom constructions.

Download
Data Sheet

Download
TÜV-Certificate

Load Chart FD 22

Span	Uniformly distributed load	Deflection	Centered single load	Deflection
m	kg/m	mm	kg	mm
1,0	289,0	0,1	289,0	0,2
2,0	143,8	1,2	287,6	1,9
3,0	95,4	4,0	242,6	5,4
4,0	71,2	9,4	180,8	9,6
5,0	56,7	18,4	143,4	15,0
6,0	39,4	26,9	118,2	21,7
7,0	28,6	36,6	100,1	29,7
8,0	21,6	47,9	86,3	38,9
9,0	16,7	60,7	75,4	49,6
10,0	13,3	75,1	66,5	61,6

Loads are only valid for vertical use!

High uniformly distributed loads are to be understood ideally distributed. The load application
has to be made in the knot. The upper main pipe must be held sideways min. every 120 cm!

Download
Detailed Load Chart

Straights, Corners and Elements FD 22

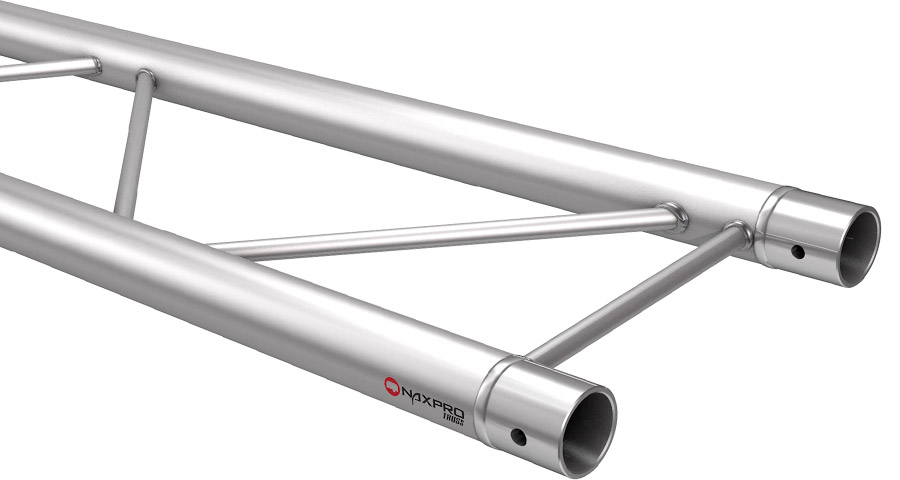

Straights FD 22

Length	Weight	Art.-No.	Length	Weight	Art.-No.
cm	kg		cm	kg
25	0,70	300220250	175	2,70	300221750
50	1,00	300220500	200	3,00	300222000
75	1,30	300220750	250	3,70	300222500
100	1,60	300221000	300	4,30	300223000
125	2,00	300221250	350	4,80	300223500
150	2,40	300221500	400	5,60	300224000

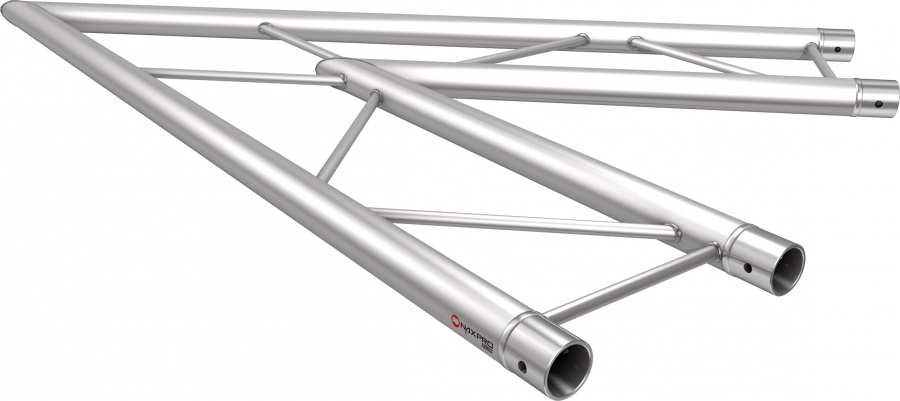

Truss Corner FD22 / C19H

Art.-No.: 300220194

2 Way Cornerl 45° horizontal
Side length: 1000 mm
Weight: 2.0 kg

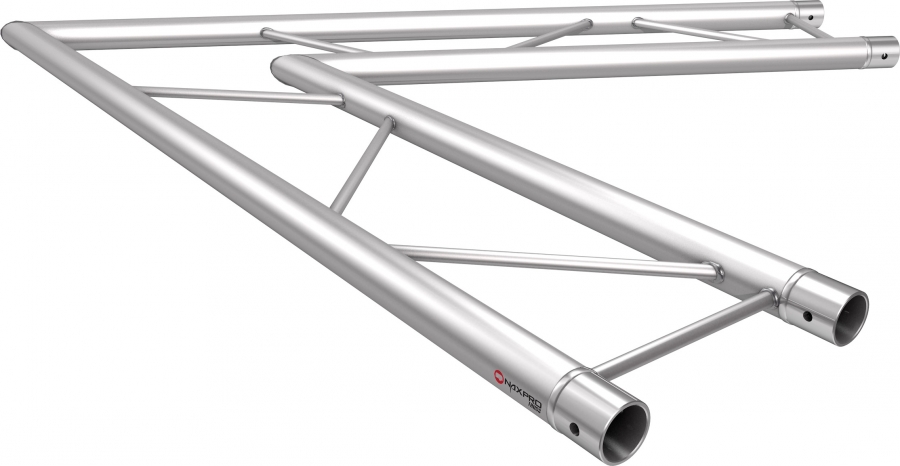

Truss Corner FD22 / C20H

Art.-No.: 300220204

2 Way Corner 60° horizontal
Side length: 1000 mm
Weight: 1.8 kg

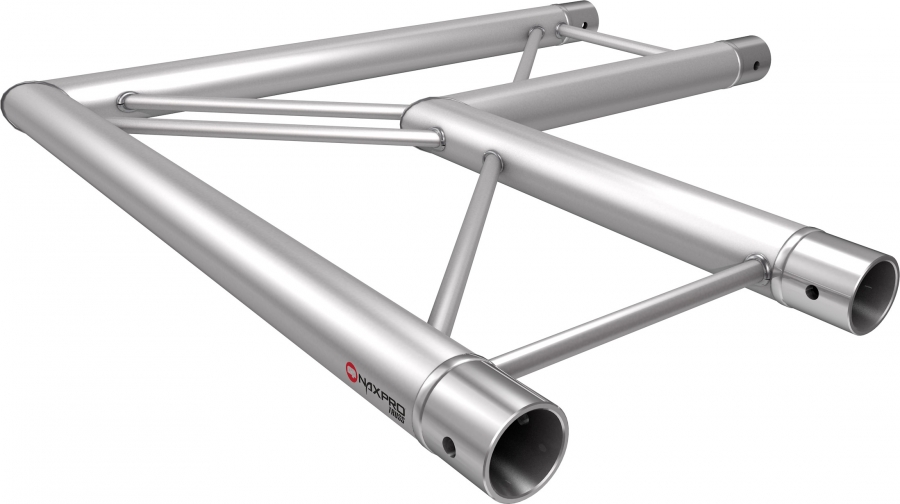

Truss Corner FD22 / C21H

Art.-No.: 300220214

2 Way Corner 90° horizontal
Side length: 500 mm
Weight: 1.6 kg

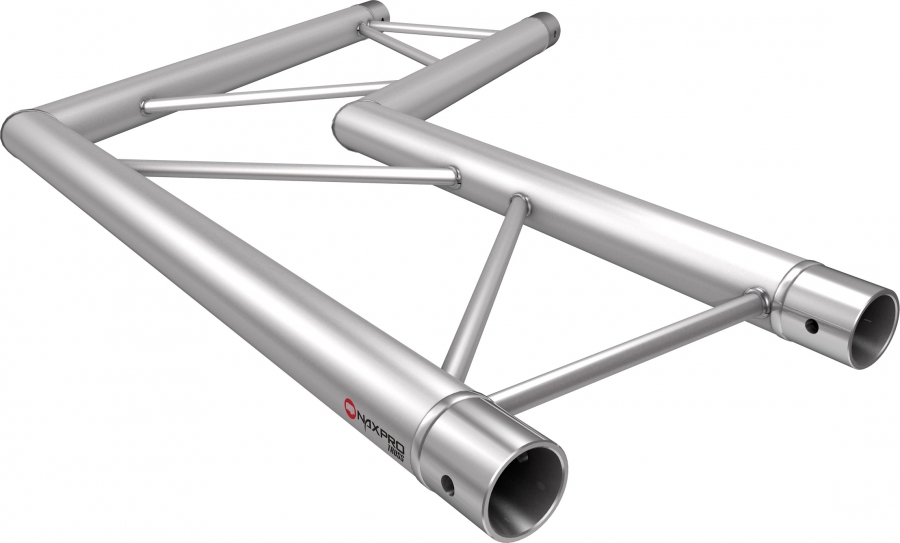

Truss Corner FD22 / C22H

Art.-No.: 300220224

2 Way Corner 120° horizontal
Side length: 500 mm
Weight: 1.6 kg

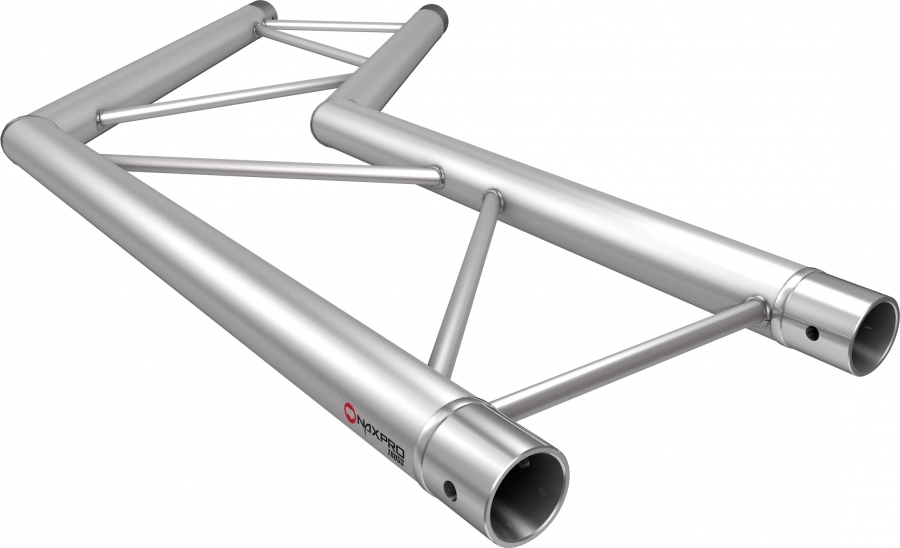

Truss Corner FD22 / C23H

Art.-No.: 300220234

2 Way Corner 135° horizontal
Side length: 500 mm
Weight: 1.6 kg

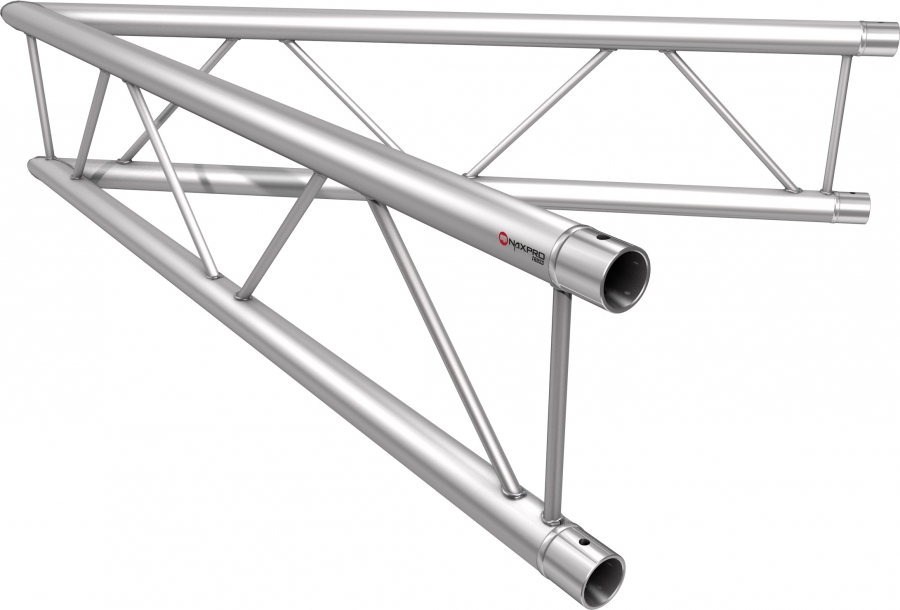

Truss Corner FD22 / C19V

Art.-No.: 300220195

2 Way Corner 45° vertical
Side length: 1000 mm
Weight: 2.0 kg

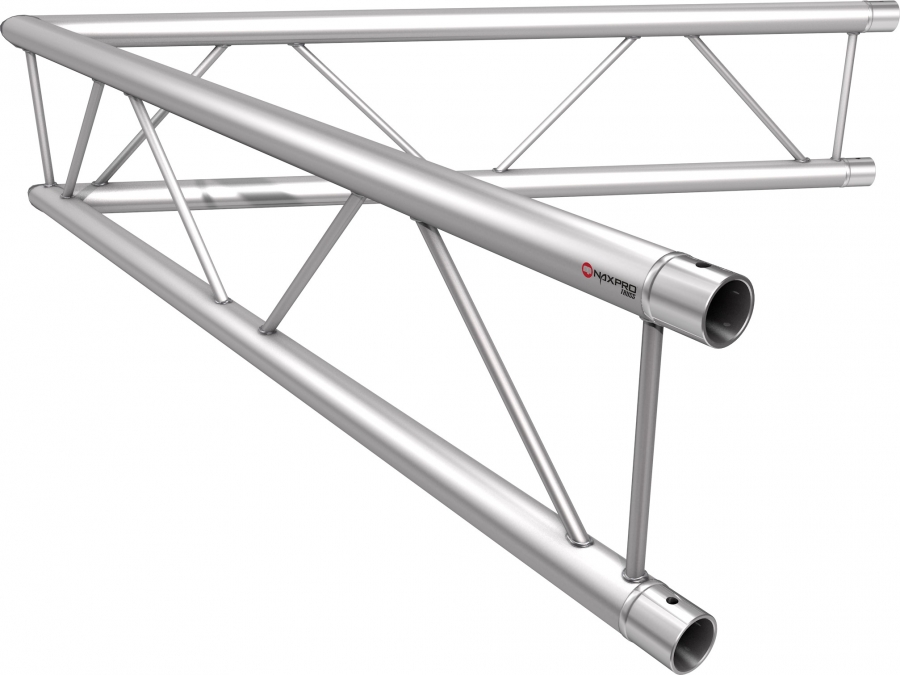

Truss Corner FD22 / C20V

Art.-No.: 300220205

2 Way Corner 60° vertical
Side length: 1000 mm
Weight: 1.8 kg

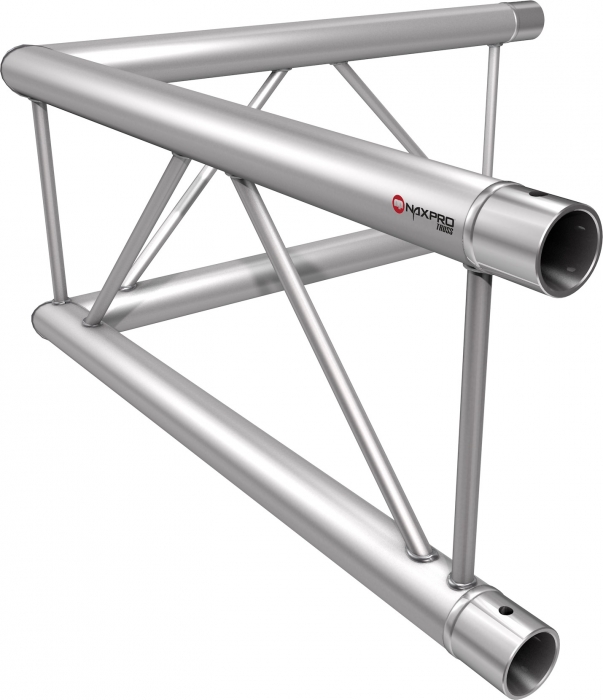

Truss Corner FD22 / C21V

Art.-No.: 300220215

2 Way Corner 90° vertical
Side length: 500 mm
Weight: 1.6 kg

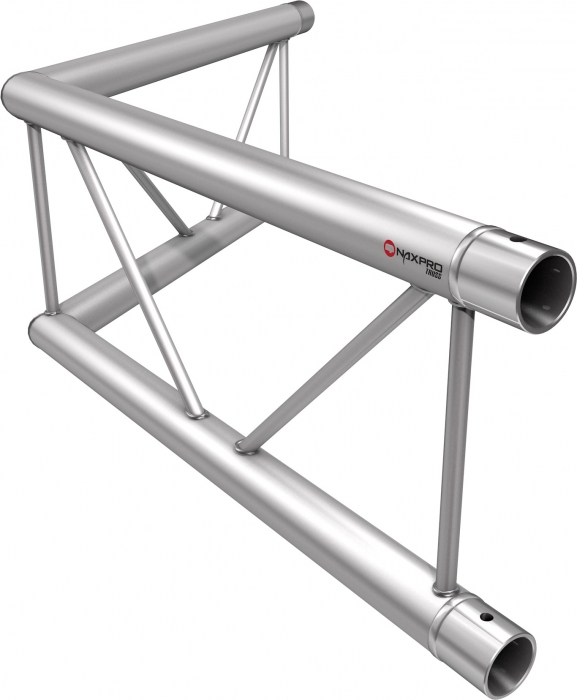

Truss Corner FD22 / C22V

Art.-No.: 300220225

2 Way Corner 120° vertical
Side length: 500 mm
Weight: 1.6 kg

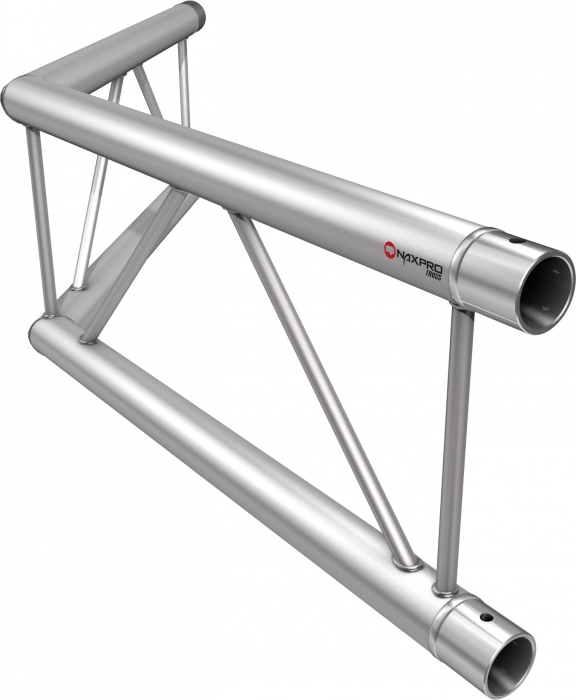

Truss Corner FD22 / C23V

Art.-No.: 300220235

2 Way Corner 135° vertical
Side length: 500 mm
Weight: 1.6 kg

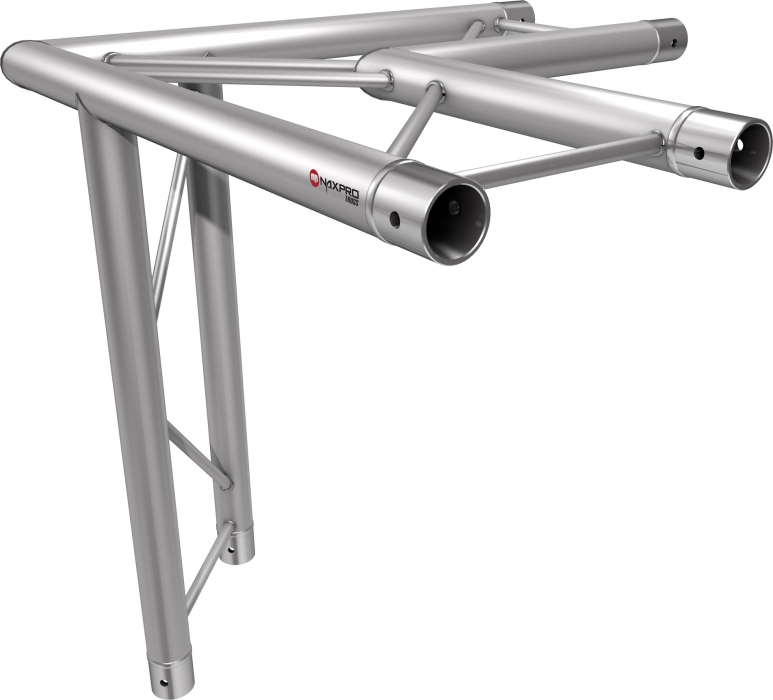

Truss Corner FD22 / C31H

Art.-No.: 300220314

3 Way Corner 90° horizontal
Side length: 500 mm
Weight: 2.0 kg

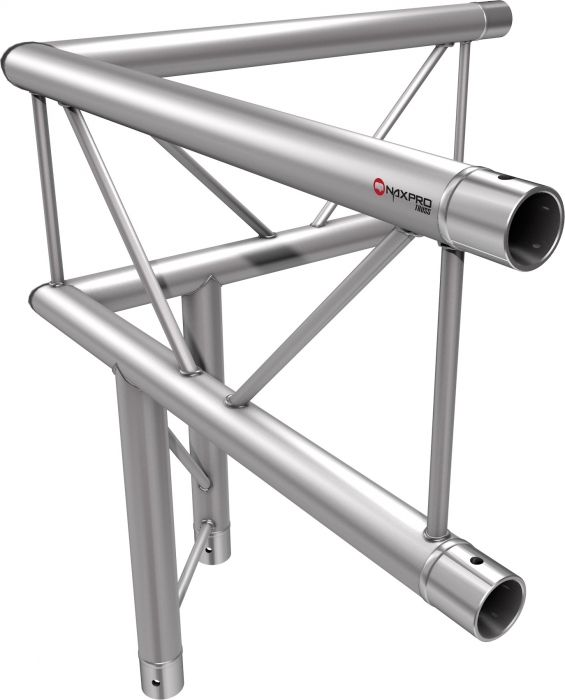

Truss Corner FD22 / C31V

Art.-No.: 300220315

3 Way Corner 90° vertical
Side length: 500 mm
Weight: 2.0 kg

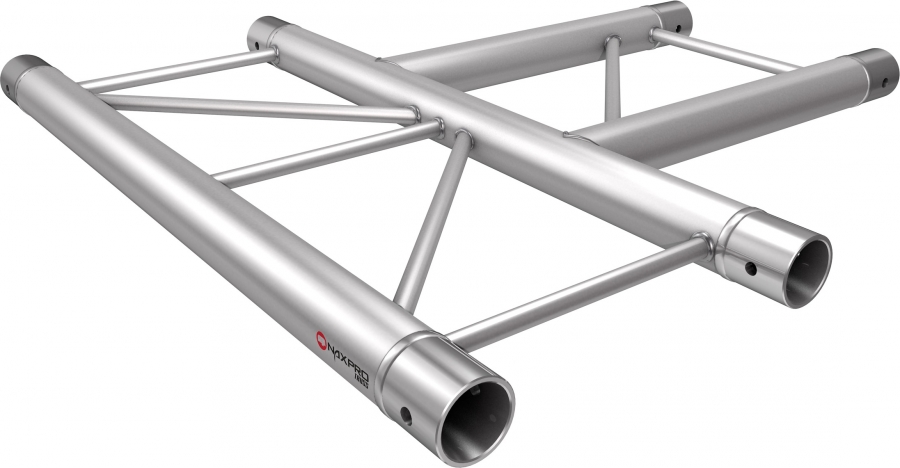

Truss T-Piece FD22 / C35H

Art.-No.: 300220354

3 Way T-Piece 90° horizontal
Side length: 500 mm
Weight: 2.0 kg

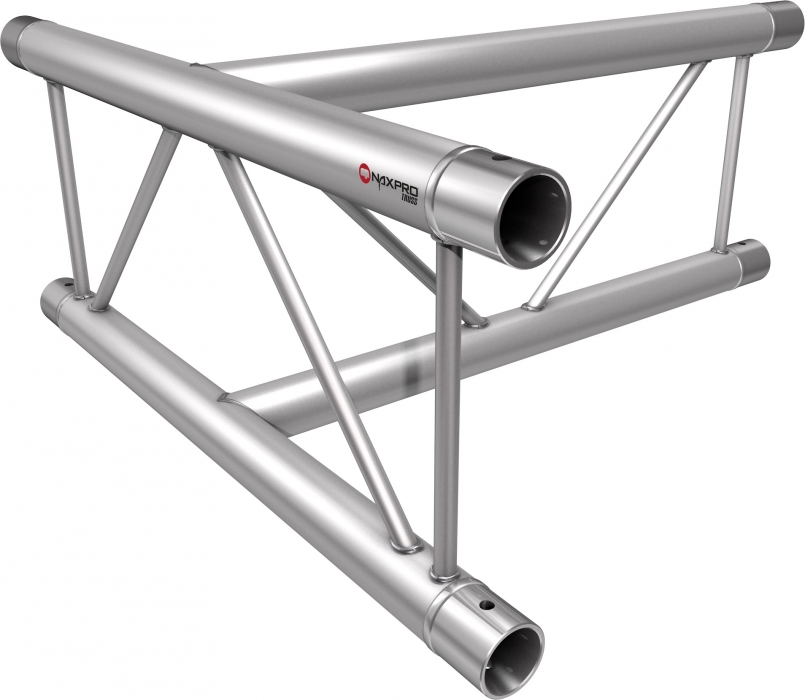

Truss T-Piece FD22 / C35V

Art.-No.: 300220355

3 Way T-Piece 90° vertical
Side length: 500 mm
Weight: 2.0 kg

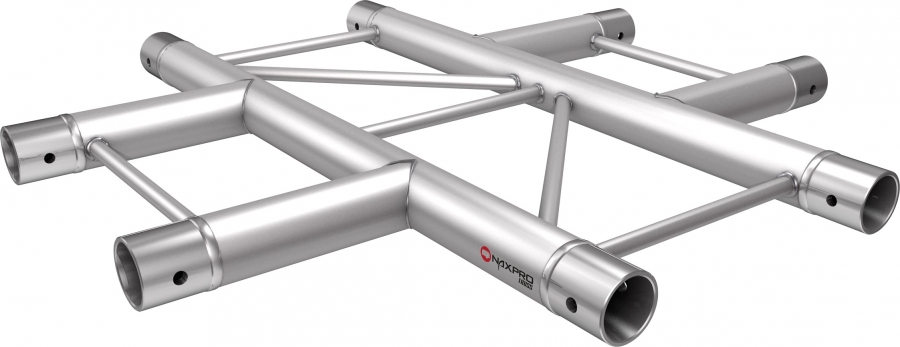

Truss Cross FD 22 / C41H

Art.-No.: 300220414

4 Way Cross 90° horizontal
Side length: 500 mm
Weight: 2.3 kg

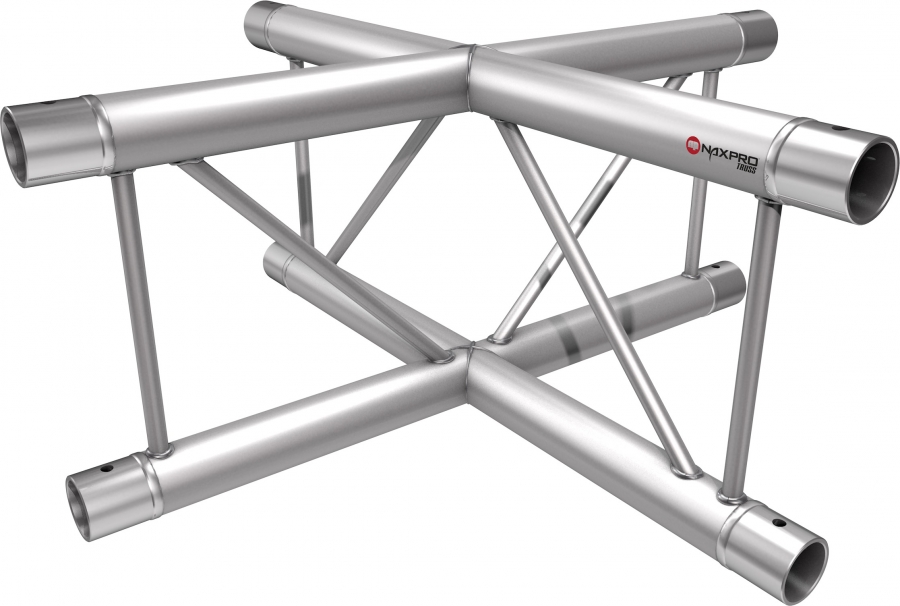

Truss Cross FD22 / C41V

Art.-No.: 300220415

4 Way Cross 90° vertical
Side length: 500 mm
Weight: 2.3 kg

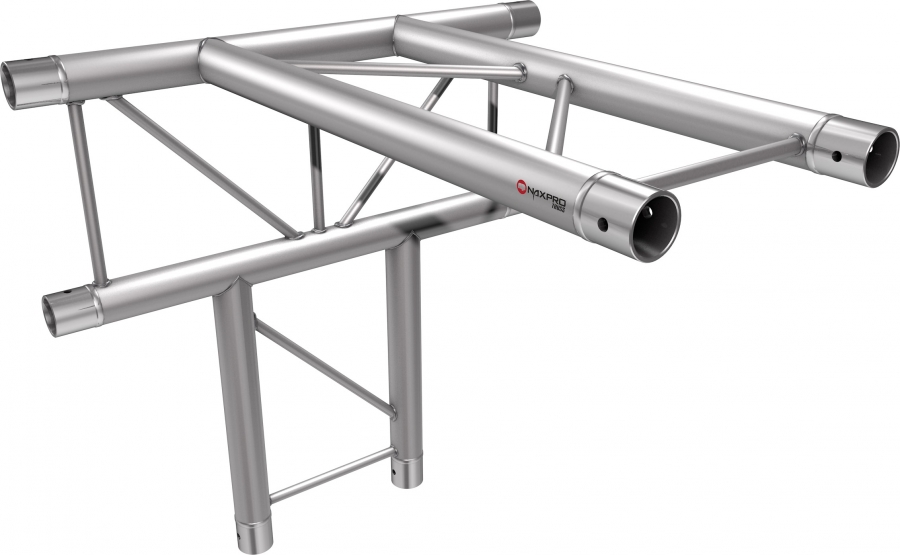

Truss T-Piece FD22 / C42H

Art.-No.: 300220424

4 Way T-Piece 90° horizontal
Side length: 500 mm
Weight: 2.3 kg

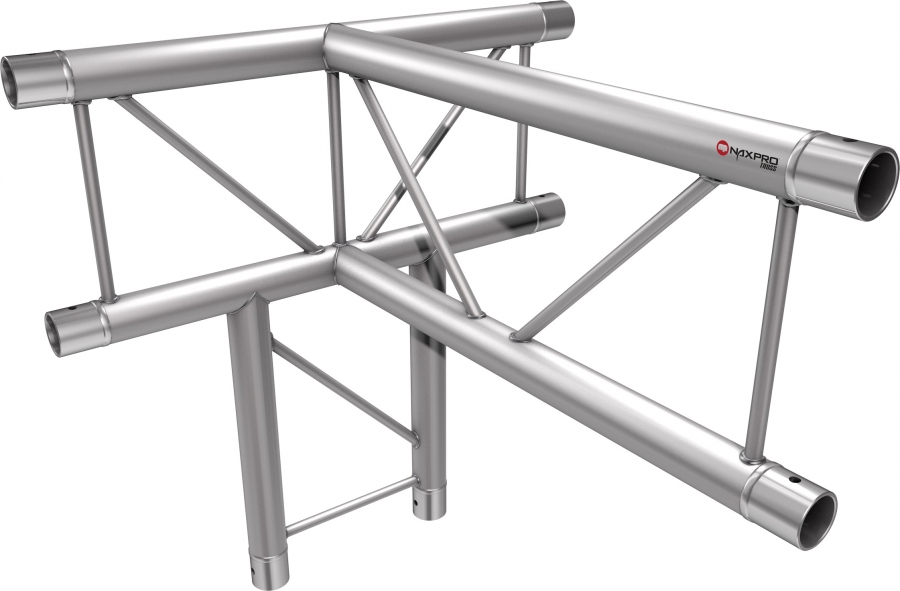

Truss T-Piece FD22 / C42V

Art.-No.: 300220425

Way T-Piece 90° vertical
Side length: 500 mm
Weight: 2.3 kg

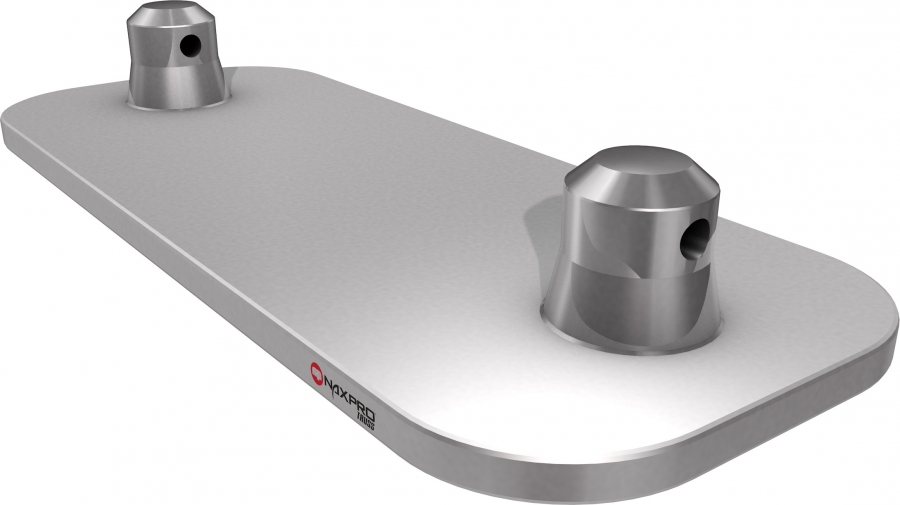

Baseplate FD22

Art.-No.: 300220000

Dimensions: 100 x 250 x 5 mm
Weight: 0.8 kg

Adapter Boxcorner FD 22

Art.-No.: 300226670

Boxcorner for FD 22 to FD 24 incl. 6 halfconnectors M12

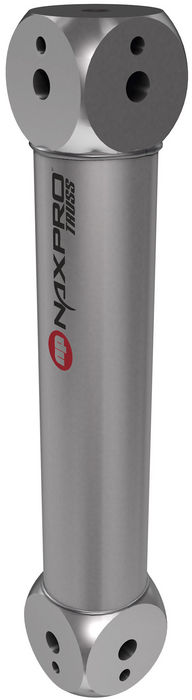

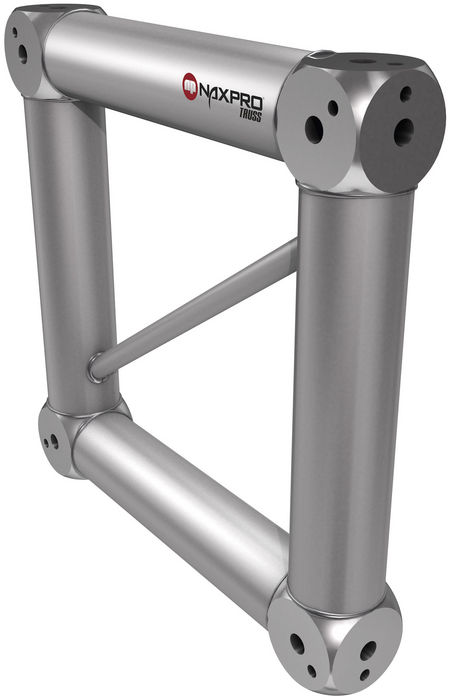

Boxcorner FD 22

Art.-No.: 300226666

Boxcorner for FD 22 truss incl. 4 halfconnectors M8

Truss Circles FD 22

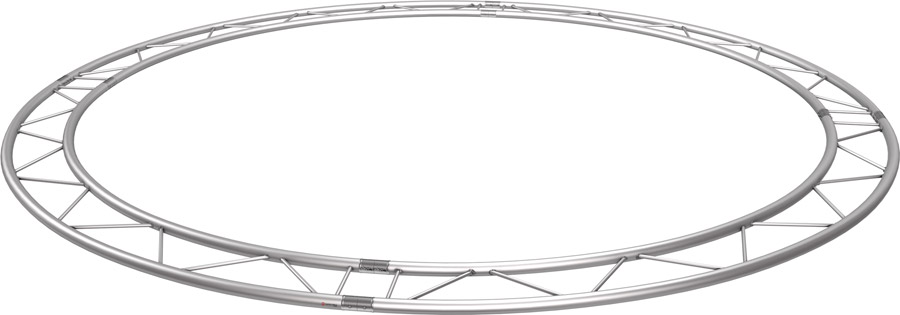

Circle FD 22 Horizontal

Description	Length	Weight	Art.-No.
	cm	kg
FD 22 Horizontal per running circular meter		1,50	301224001
FD 22 Horizontal (4 x 90°)	200	9,42	301224020
FD 22 Horizontal (4 x 90°)	300	14,13	301224030
FD 22 Horizontal (4 x 90°)	400	18,84	301224040
FD 22 Horizontal (8 x 45°)	500	23,55	301224050
FD 22 Horizontal (8 x 45°)	600	28,26	301224060
FD 22 Horizontal (8 x 45°)	700	33,00	301224070
FD 22 Horizontal (8 x 45°)	800	37,68	301224080
FD 22 Horizontal (12 x 30°)	900	42,39	301224090
FD 22 Horizontal (12 x 30°)	1000	47,10	301224100

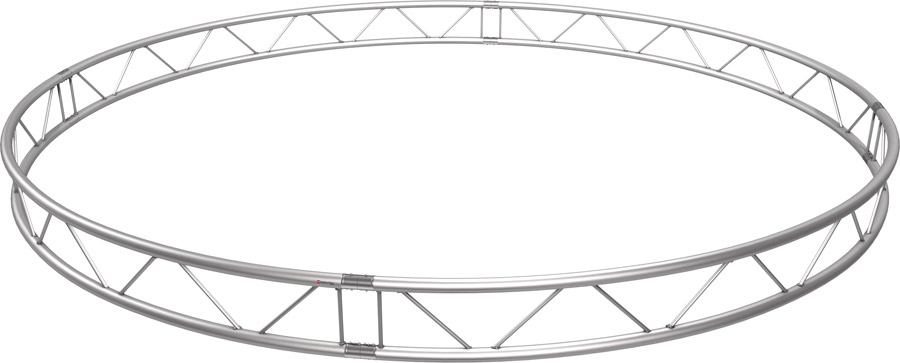

Circle FD 22 Vertical

Description	Length	Weight	Art.-No.
	cm	kg
FD 22 Vertical per running circular meter		1,50	301225001
FD 22 Vertical (4 x 90°)	200	9,42	301225020
FD 22 Vertical (4 x 90°)	300	14,13	301225030
FD 22 Vertical (4 x 90°)	400	18,84	301225040
FD 22 Vertical (8 x 45°)	500	23,55	301225050
FD 22 Vertical (8 x 45°)	600	28,26	301225060
FD 22 Vertical (8 x 45°)	700	33,00	301225070
FD 22 Vertical (8 x 45°)	800	37,68	301225080
FD 22 Vertical (12 x 30°)	900	42,39	301225090
FD 22 Vertical (12 x 30°)	1000	47,10	301225100
