FD 42 Trusses
Products Overview

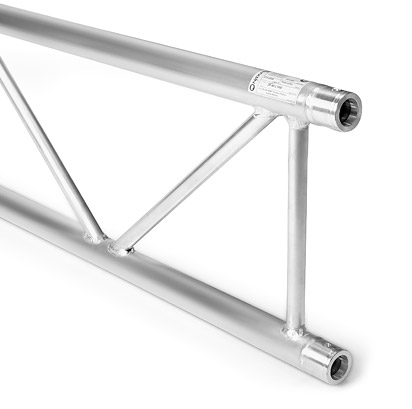

Truss system in 2-point version, particularly suitable for the exhibitions and store constructions, as well as event technology and lighting systems. Through the use of a compact design and a high load capacity, this system is suited from simple exhibition stands up to highly complex rigging structures.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro FD 42 truss system is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Width: | 400 mm |
| Tube: | 50 x 2 mm |
| Diagonals: | 25 x 3 mm |
| Alloy: | EN-AW 6082 T6 |
Load Chart FD 42
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 1910,5 | 0,2 | 1433,0* | 0,2 |
| 2,0 | 953,9 | 1,5 | 1170,0* | 1,5 |
| 3,0 | 635,0 | 5,1 | 993,0* | 4,2 |
| 4,0 | 421,9 | 10,6 | 843,8 | 8,5 |
| 5,0 | 269,0 | 16,6 | 672,6 | 13,4 |
| 6,0 | 186,0 | 24,0 | 558,0 | 19,3 |
| 7,0 | 135,9 | 32,7 | 475,7 | 26,3 |
| 8,0 | 103,4 | 42,7 | 413,7 | 34,4 |
| 9,0 | 81,1 | 54,1 | 365,1 | 43,6 |
| 10,0 | 65,2 | 66,8 | 326,0 | 54,0 |
| 11,0 | 53,4 | 80,9 | 293,7 | 65,6 |
| 12,0 | 44,4 | 96,4 | 266,6 | 78,3 |
Loads are only valid for vertical use!
* limited by interaction with offset / decisive is the offset on the connectorHigh uniformly distributed loads are to be understood ideally distributed. The load applicationhas to be made in the knot. The upper main pipe must be held sideways min. every 112,10 cm!The load values are calculated using 10.9 bolts.

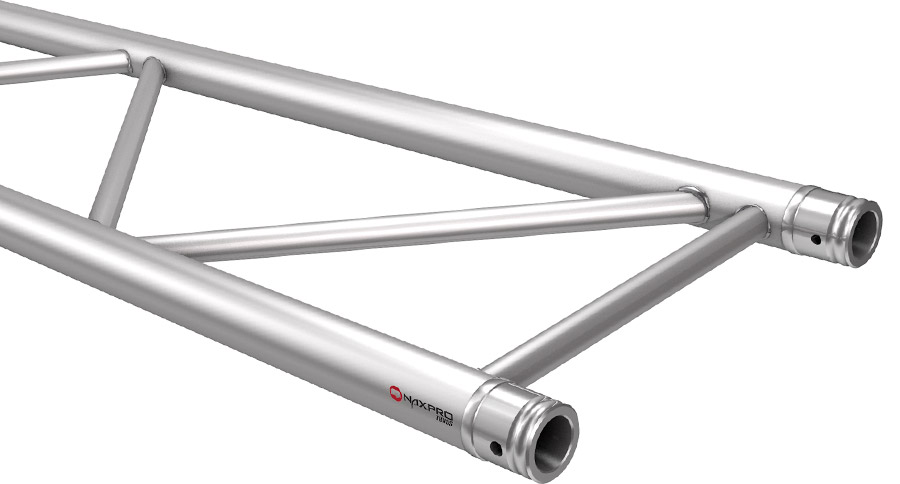

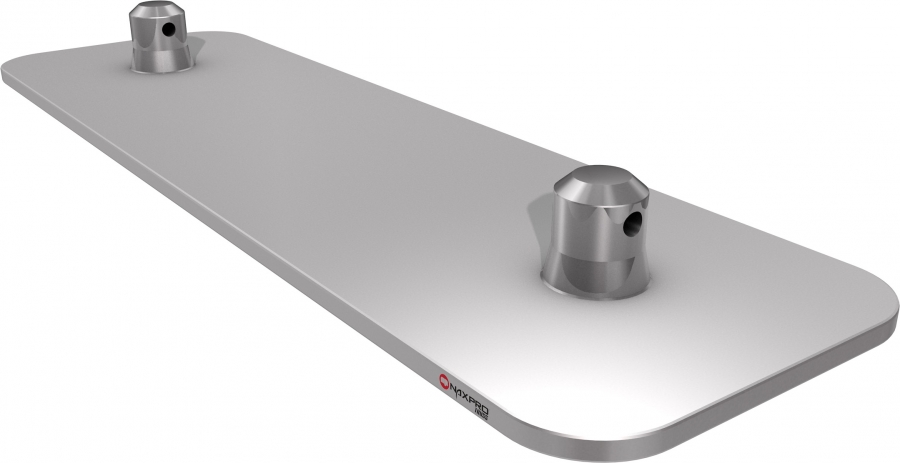

Straights, Corners and Elements FD 42
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 25 | 1,20 | 300420250 | 200 | 5,00 | 300422000 |
| 50 | 1,80 | 300420500 | 250 | 6,10 | 300422500 |
| 75 | 2,40 | 300420750 | 300 | 7,10 | 300423000 |
| 100 | 3,00 | 300421000 | 350 | 8,00 | 300423500 |
| 125 | 3,55 | 300421250 | 400 | 9,10 | 300424000 |
| 150 | 4,10 | 300421500 | 450 | 10,00 | 300424500 |
| 175 | 4,60 | 300421750 | 500 | 11,00 | 300425000 |
 |

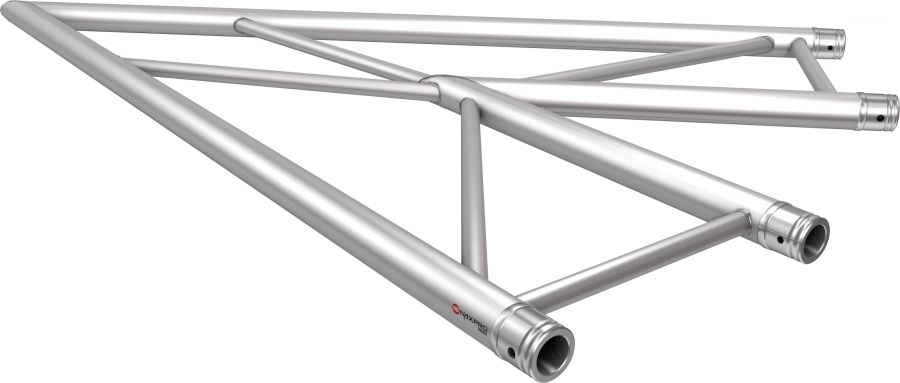

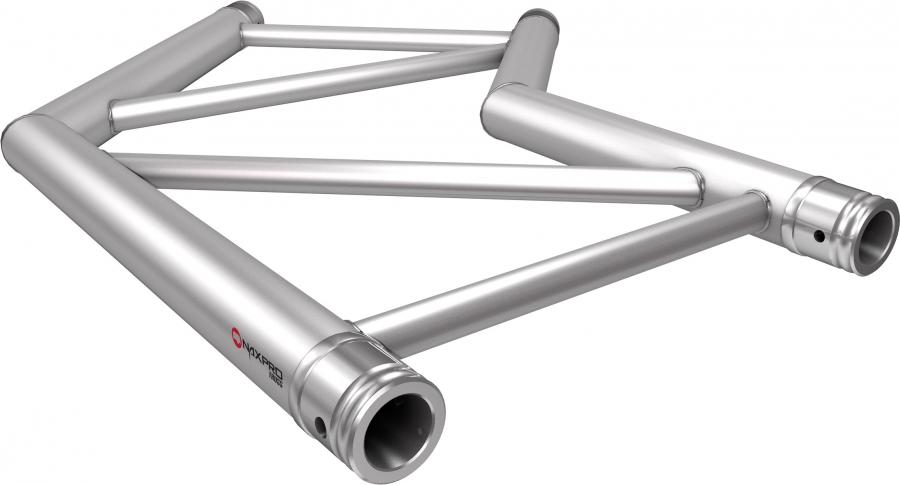

2 Way Corner 45° horizontal
Side length: 1500 mm
Weight: 7.0 kg
 |

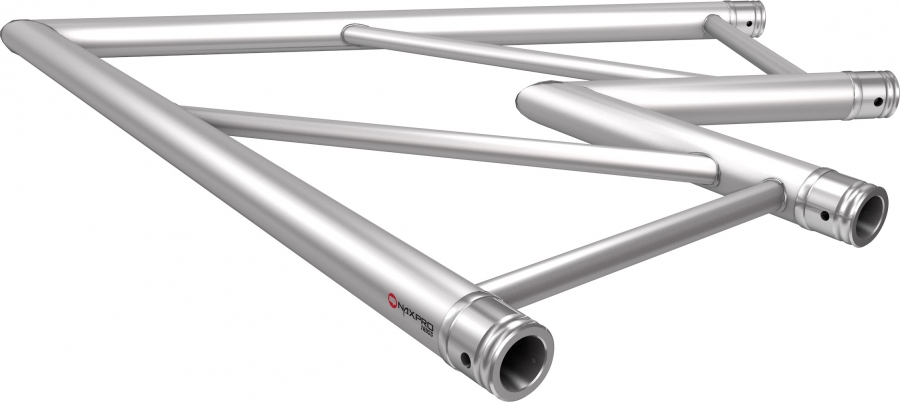

2 Way Corner 60° horizontal
Side length: 1000 mm
Weight: 6.0 kg
 |

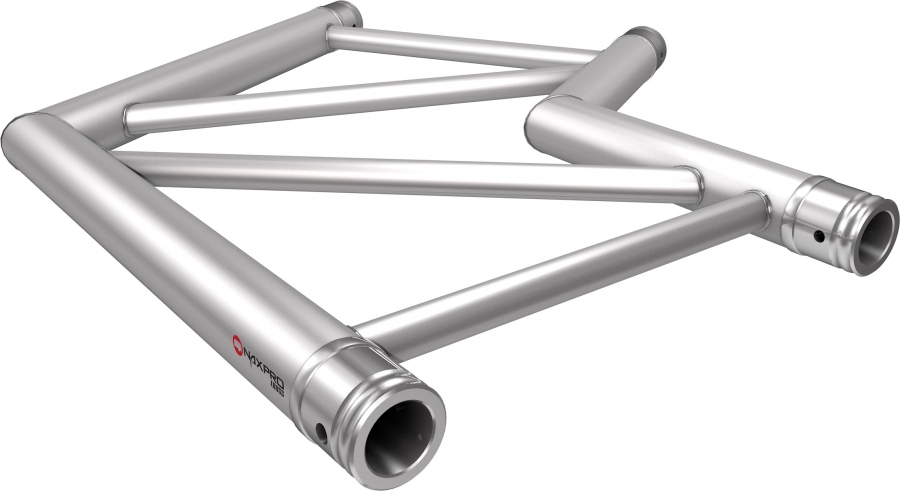

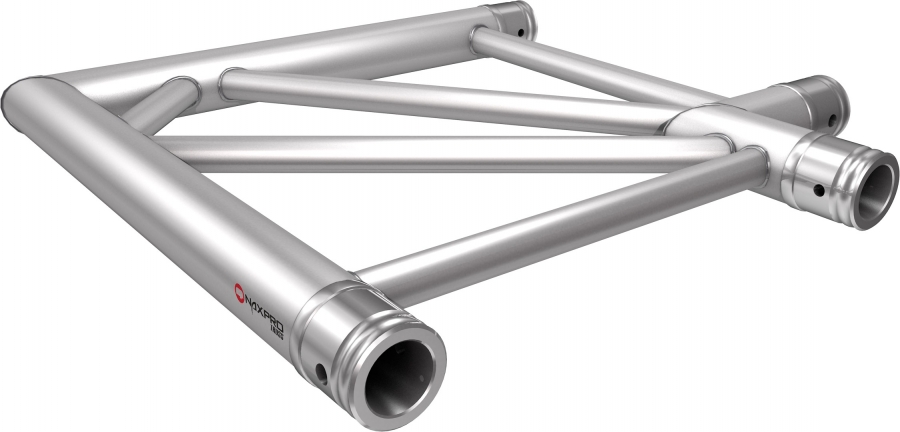

2 Way Corner 90° horizontal
Side length: 500 mm
Weight: 4.0 kg
 |
2 Way Corner 120° horizontal
Side length: 500 mm
Weight: 4.0 kg
 |
2 Way Corner 135° horizontal
Side length: 500 mm
Weight: 4.0 kg
 |

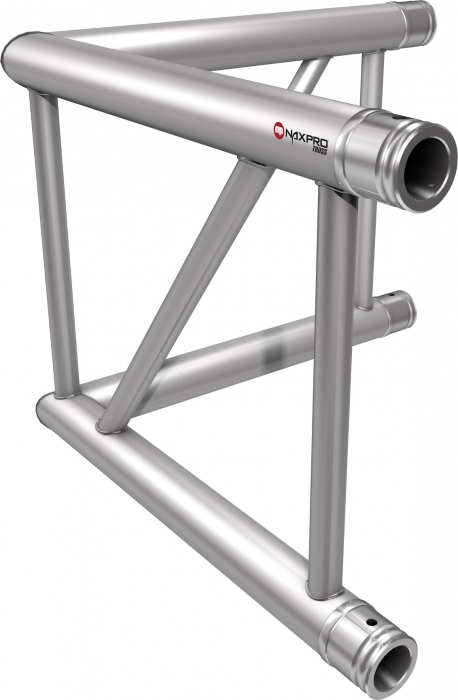

2 Way Corner 45° vertical
Side length: 1250 mm
Weight: 7,0 kg
 |
2 Way Corner 60° vertical
Side length: 1000 mm
Weight: 6.0 kg
 |

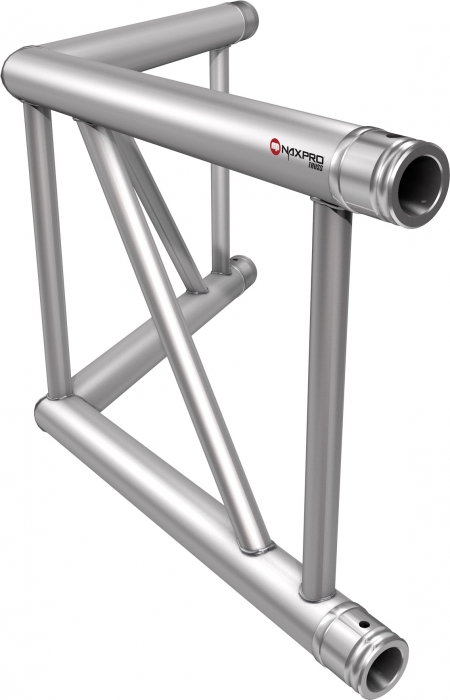

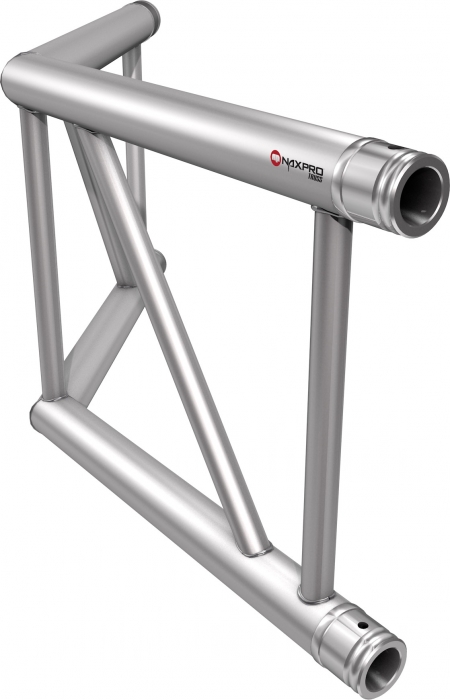

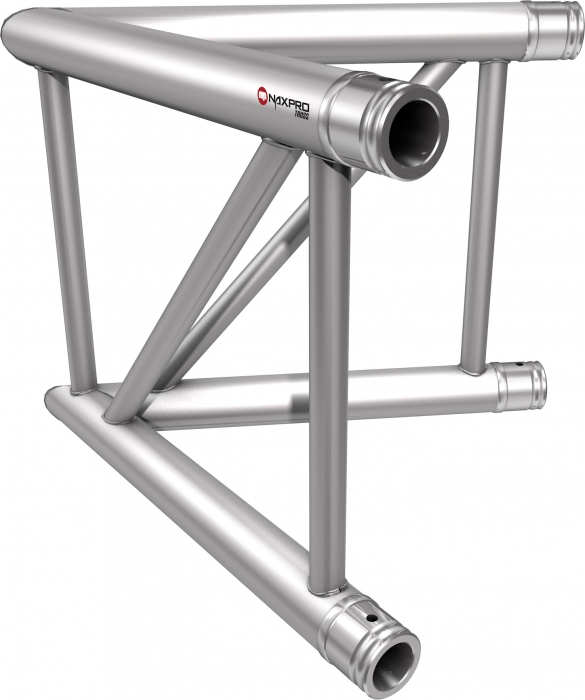

2 Way Corner 90° vertical
Side length: 500 mm
Weight: 4.0 kg
 |
2 Way Corner 120° vertical
Side length: 500 mm
Weight: 4.0 kg
 |
2 Way Corner 135° vertical
Side length: 500 mm
Weight: 4.0 kg
 |
3 Way Corner 90° horizontal
Side length: 500 mm
Weight: 5.5 kg
 |

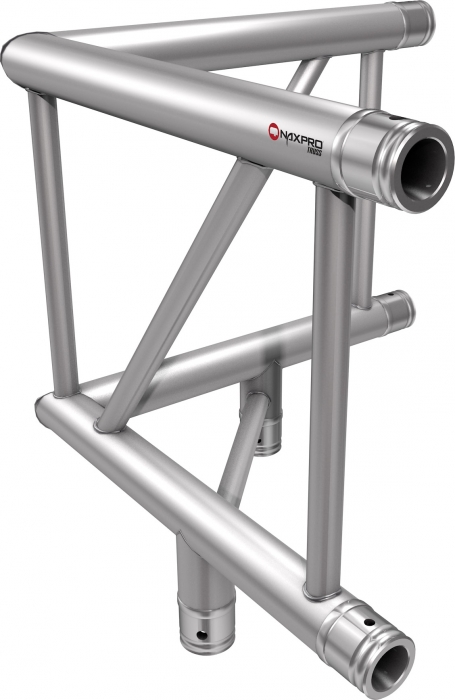

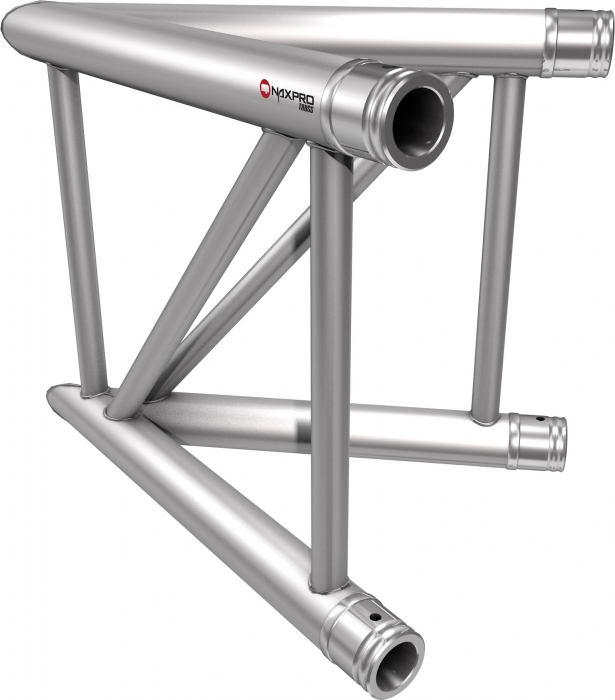

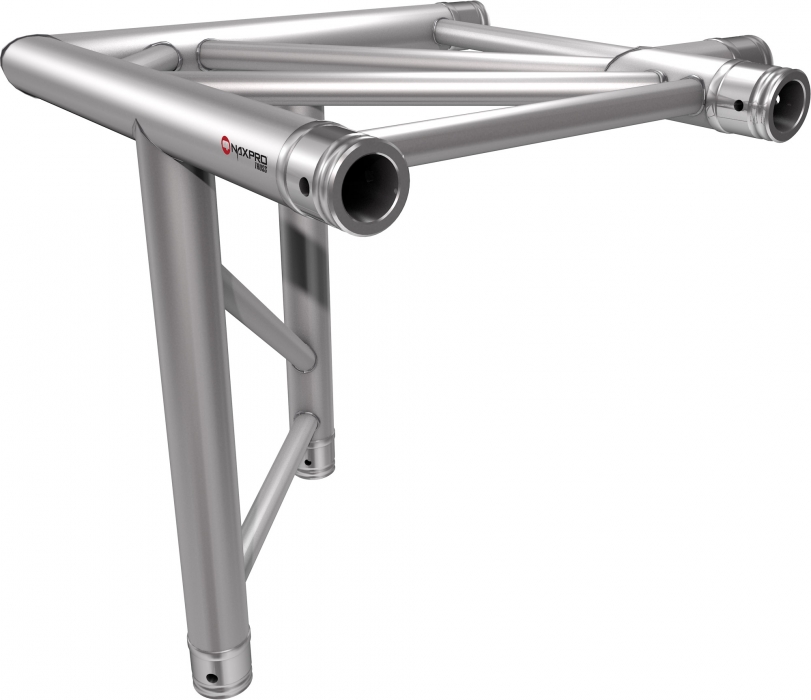

3 Way Corner 90° vertical
Side length: 500 mm
Weight: 5.8 kg
 |

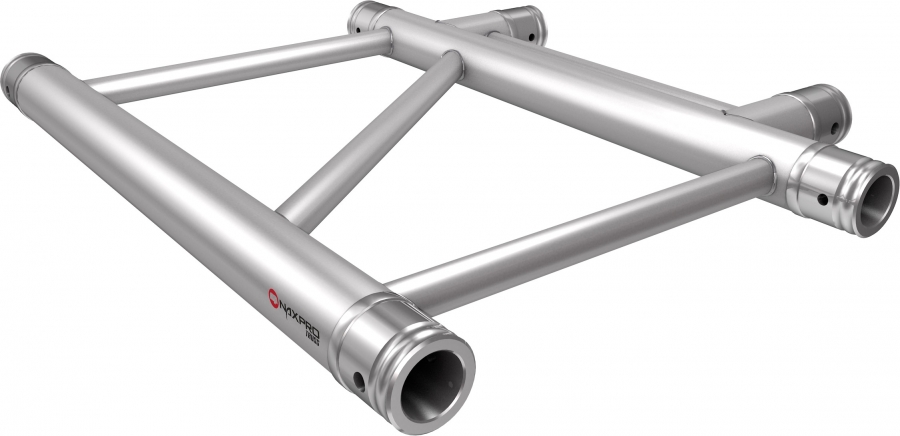

3 Way T-Piece 90° horizontal
Side length: 600/500 mm
Weight: 6.0 kg
 |

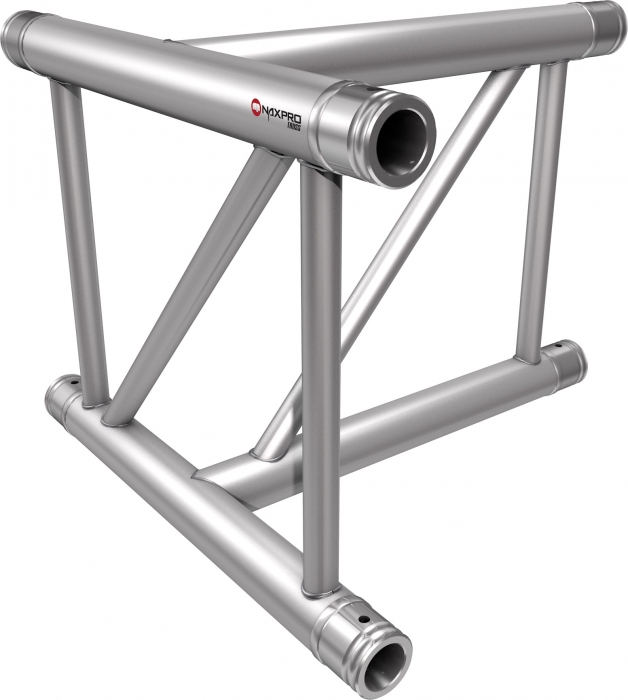

3 Way T-Piece 90° vertical
Side length: 600/500 mm
Weight: 6.0 kg
 |

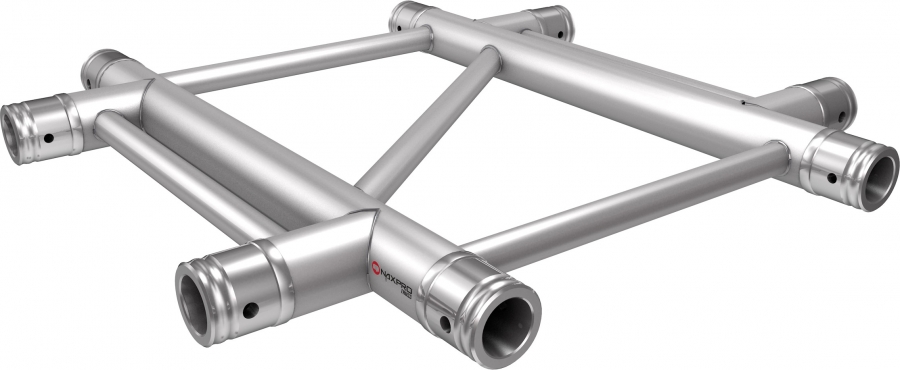

4 Way Cross 90° horizontal
Side length: 600 mm
Weight: 7.5 kg
 |

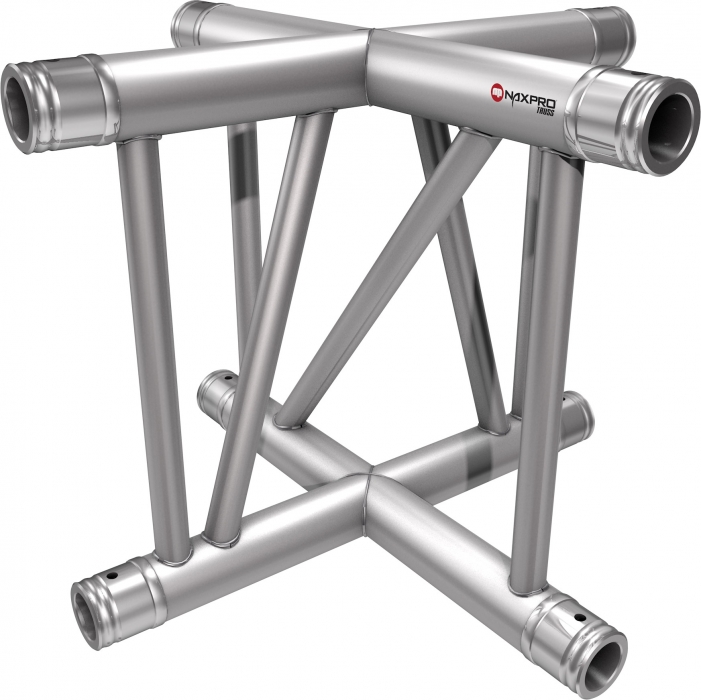

4 Way Cross 90° vertical
Side length: 600 mm
Weight: 6.0 kg
 |

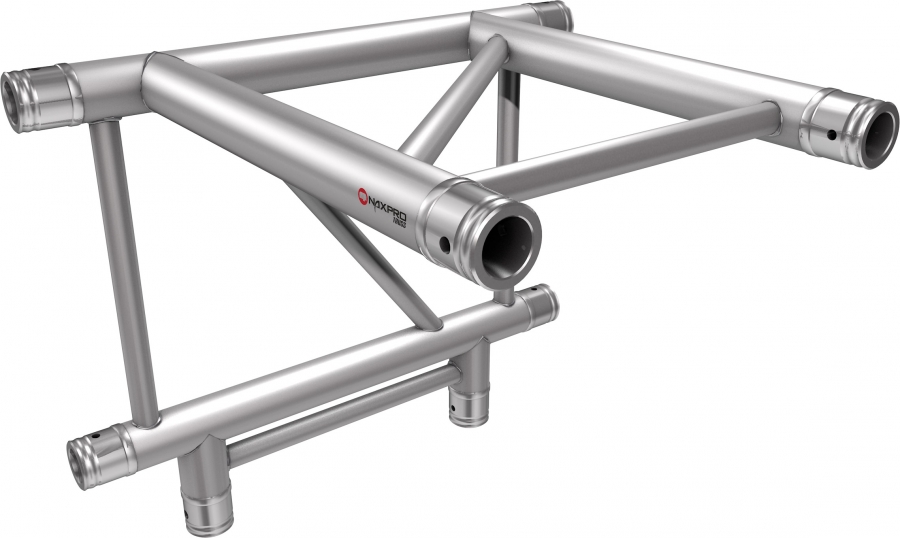

4 Way T-Piece 90° horizontal
Side length: 600/500/500 mm
Weight: 7.5 kg
 |

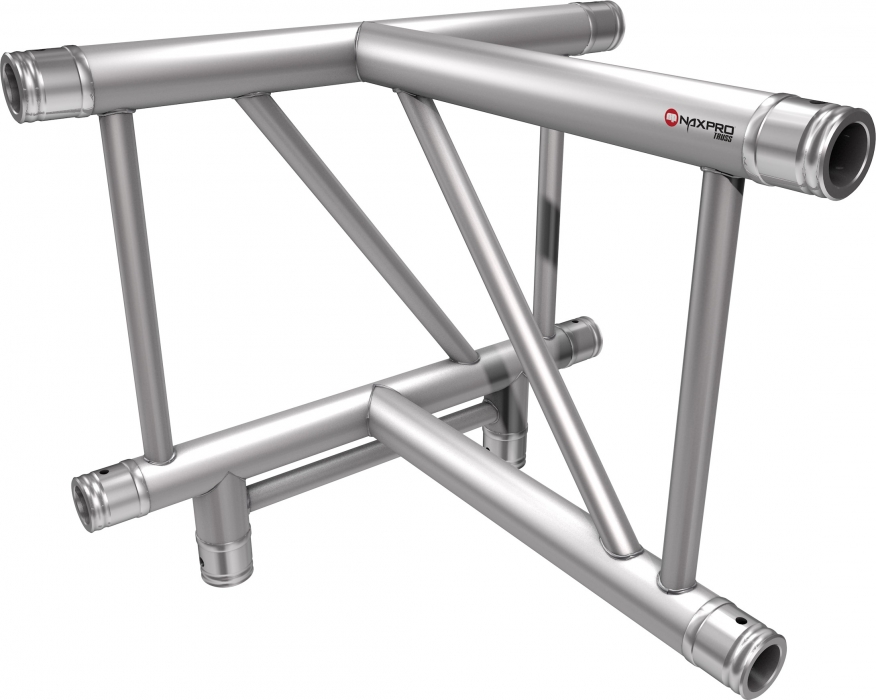

4 Way T-Piece 90° vertical
Side length: 600/500/500 mm
Weight: 6.0 kg
 |

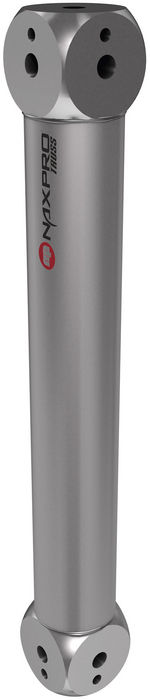

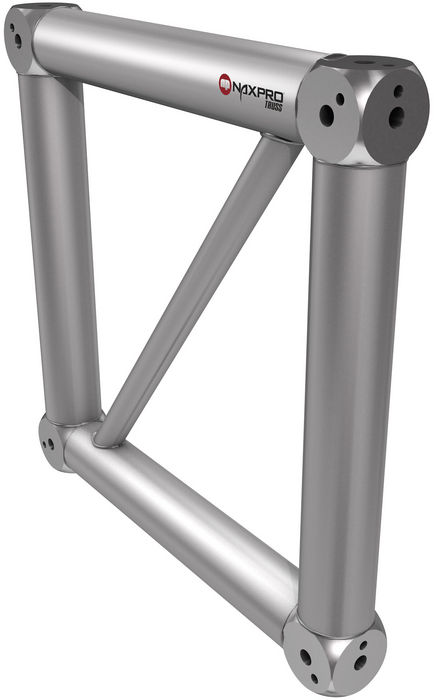

Boxcorner for FD 42 to FD 44 incl. 6 halfconnectors M12
 |
Boxcorner for FD 42 incl. 4 halfconnectors M12
 |
Side length: 420 mm
Weight: 2.0 kg

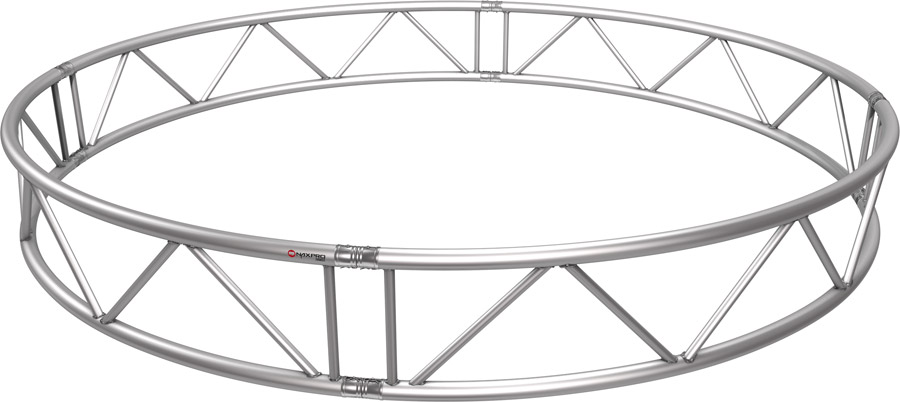

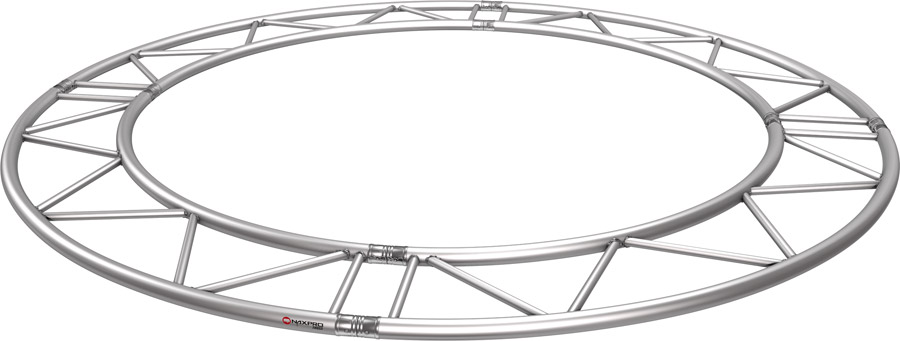

Truss Circles FD 42
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||
| FD 42 Horizontal per running circular meter | 3,00 | 301424001 | |
| FD 42 Horizontal (4 x 90°) | 200 | 18,84 | 301424020 |
| FD 42 Horizontal (4 x 90°) | 300 | 28,26 | 301424030 |
| FD 42 Horizontal (4 x 90°) | 400 | 37,68 | 301424040 |
| FD 42 Horizontal (8 x 45°) | 500 | 47,10 | 301424050 |
| FD 42 Horizontal (8 x 45°) | 600 | 56,52 | 301424060 |
| FD 42 Horizontal (8 x 45°) | 700 | 66,00 | 301424070 |
| FD 42 Horizontal (8 x 45°) | 800 | 75,36 | 301424080 |
| FD 42 Horizontal (12 x 30°) | 900 | 84,78 | 301424090 |
| FD 42 Horizontal (12 x 30°) | 1000 | 94,20 | 301424100 |
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||
| FD 42 Vertical per running circular meter | 3,00 | 301425001 | |
| FD 42 Vertical (4 x 90°) | 200 | 18,84 | 301425020 |
| FD 42 Vertical (4 x 90°) | 300 | 28,26 | 301425030 |
| FD 42 Vertical (4 x 90°) | 400 | 37,68 | 301425040 |
| FD 42 Vertical (8 x 45°) | 500 | 47,10 | 301425050 |
| FD 42 Vertical (8 x 45°) | 600 | 56,52 | 301425060 |
| FD 42 Vertical (8 x 45°) | 700 | 66,00 | 301425070 |
| FD 42 Vertical (8 x 45°) | 800 | 75,36 | 301425080 |
| FD 42 Vertical (12 x 30°) | 900 | 84,78 | 301425090 |
| FD 42 Vertical (12 x 30°) | 1000 | 94,20 | 301425100 |
