HD 32 Trusses
Products Overview
Truss system in 2-point heavy duty version, particularly suitable for the exhibitions and store constructions, as well as event technology and lighting systems. Through the use of a compact design and a high load capacity, this system is suited from simple exhibition stands up to highly complex rigging structures.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro HD 32 truss system is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Width: | 290 mm |
| Tube: | 50 x 3 mm |
| Diagonals: | 20 x 2 mm |
| Alloy: | EN-AW 6082 T6 |
Load Chart HD 32
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 1142,2 | 0,2 | 1142,2 | 0,3 |
| 2,0 | 569,5 | 1,3 | 1138,9 | 2,1 |
| 3,0 | 378,6 | 4,3 | 1135,7 | 6,9 |
| 4,0 | 283,1 | 10,3 | 849,0 | 12,3 |
| 5,0 | 225,9 | 20,1 | 676,3 | 19,3 |
| 6,0 | 186,9 | 34,6 | 560,6 | 27,8 |
| 7,0 | 136,4 | 47,2 | 477,6 | 38,0 |
| 8,0 | 103,7 | 61,7 | 414,9 | 49,7 |
| 9,0 | 81,3 | 78,1 | 365,7 | 63,2 |
| 10,0 | 65,2 | 96,5 | 326,1 | 78,2 |
| 11,0 | 53,3 | 116,9 | 293,4 | 95,0 |
| 12,0 | 44,3 | 139,3 | 265,9 | 113,5 |
| 13,0 | 37,3 | 163,7 | 242,3 | 133,8 |
| 14,0 | 31,7 | 190,2 | 221,9 | 156,0 |
Loads are only valid for vertical use!
High uniformly distributed loads are to be understood ideally distributed. The load application has tobe made in the knot. The upper main pipe must be held sideways min. every 113,23 cm!The load values are calculated using 10.9 bolts.
Straights, Corners and Elements HD 32
|

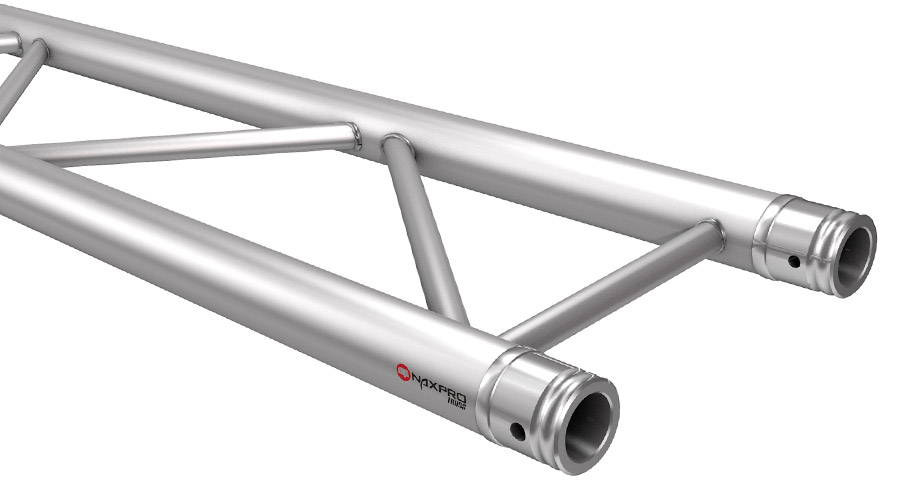

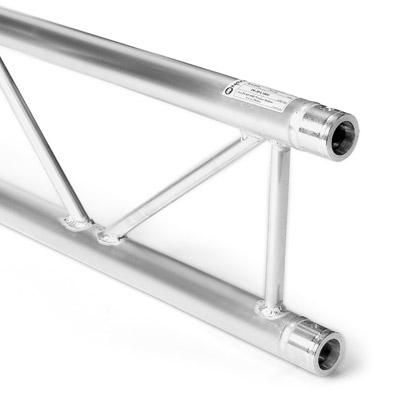

| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 25 | 1,10 | 304320250 | 200 | 6,20 | 304322000 |
| 50 | 2,20 | 304320500 | 250 | 7,20 | 304322500 |
| 75 | 2,60 | 304320750 | 300 | 8,50 | 304323000 |
| 100 | 3,80 | 304321000 | 350 | 9,90 | 304323500 |
| 125 | 4,00 | 304321250 | 400 | 10,90 | 304324000 |
| 150 | 4,90 | 304321500 | 450 | 11,50 | 304324500 |
| 175 | 5,10 | 304321750 | 500 | 12,10 | 304325000 |
 |

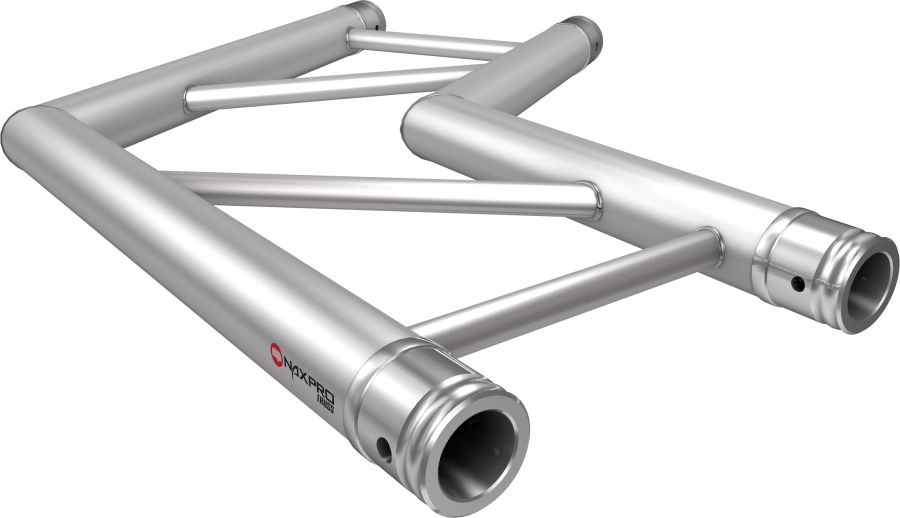

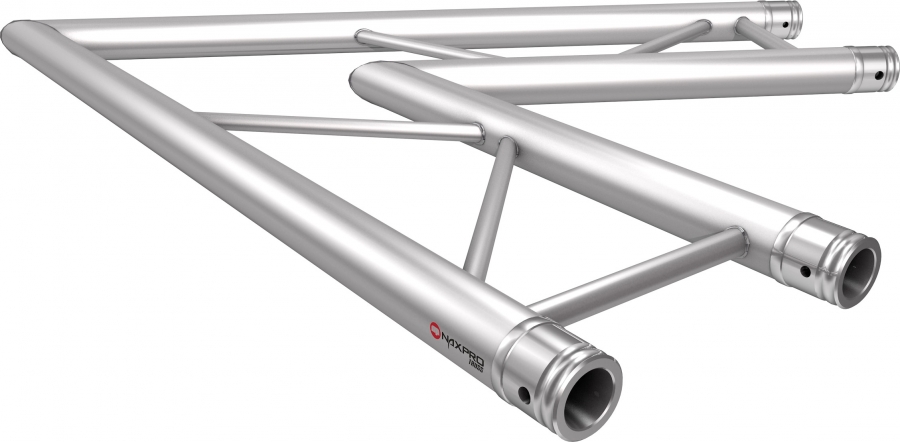

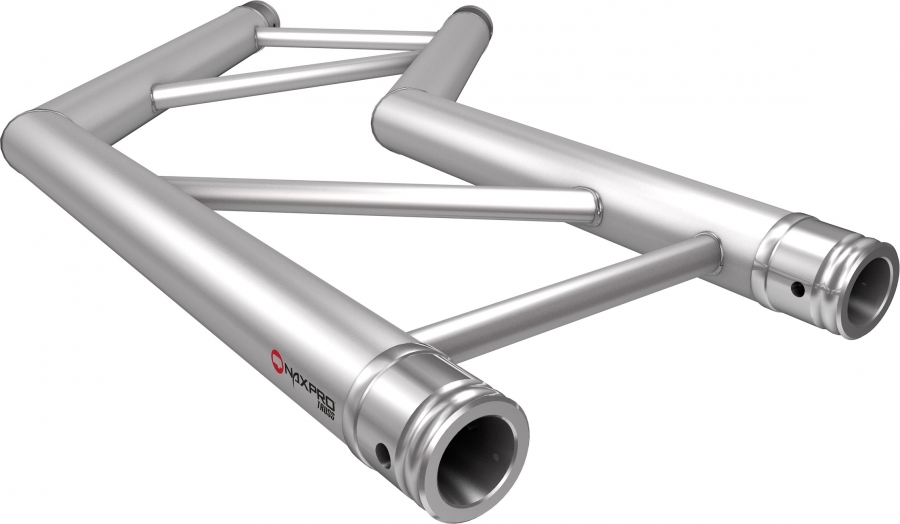

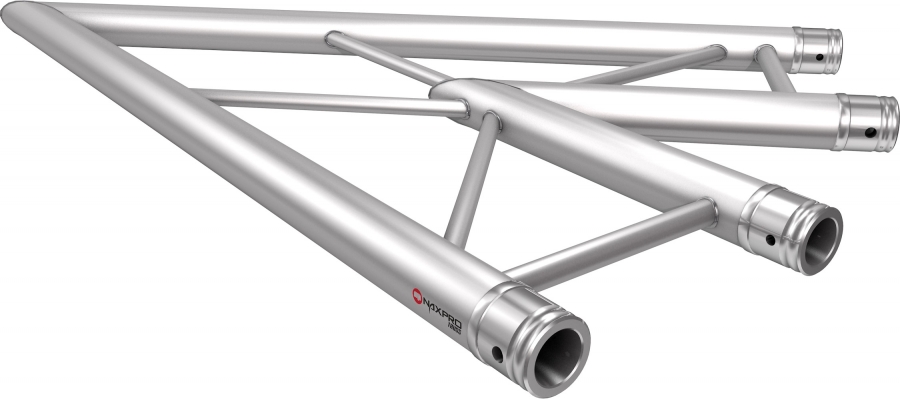

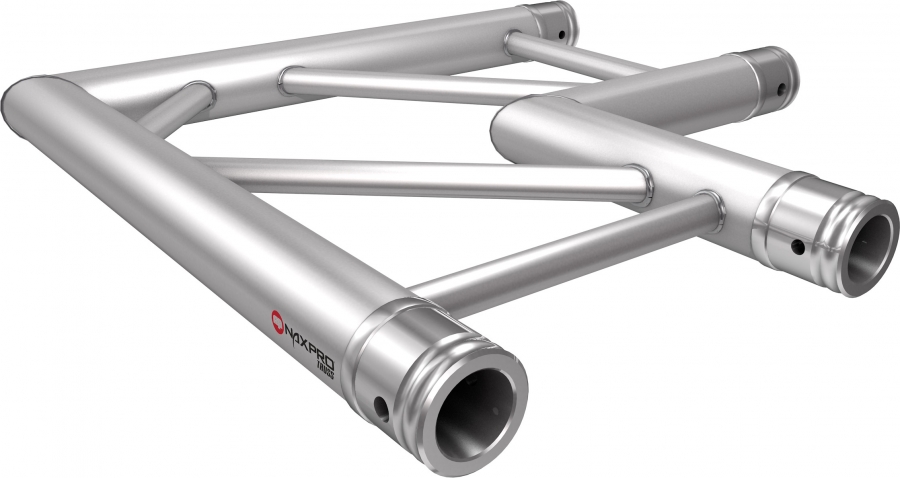

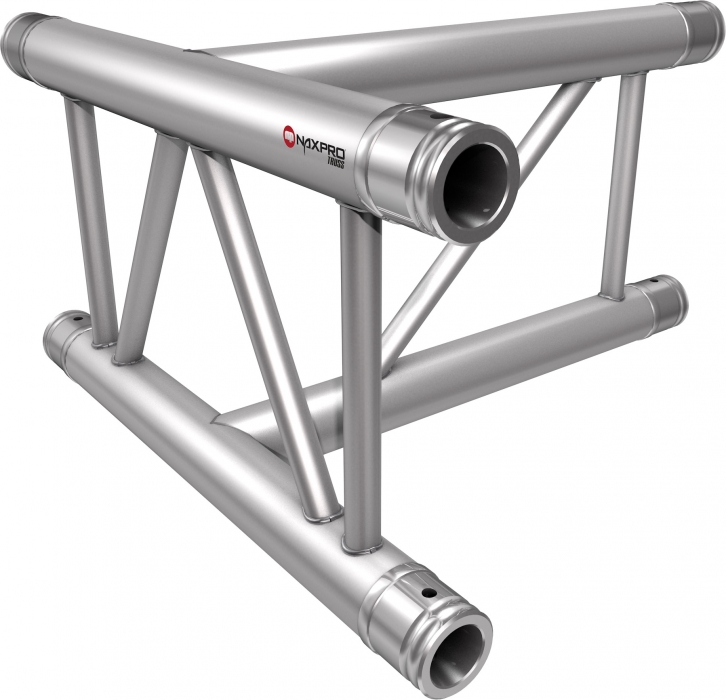

2 Way Corner 45° horizontal
Side length: 1000 mm
Weight: 4.4 kg
 |
2 Way Corner 60° horizontal
Side length: 1000 mm
Weight: 4.4 kg
 |
2 Way Corner 90° horizontal
Side length: 500 mm
Weight: 3.9 kg
 |
2 Way Corner 120° horizontal
Side length: 500 mm
Weight: 4.4 kg
 |
2 Way Corner 135° horizontal
Side length: 500 mm
Weight: 4.4 kg
 |

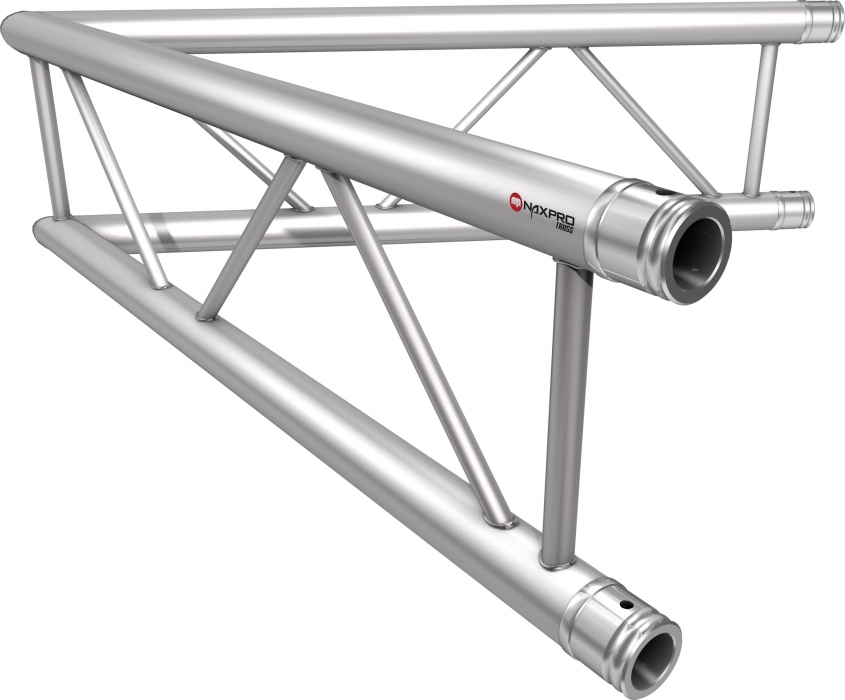

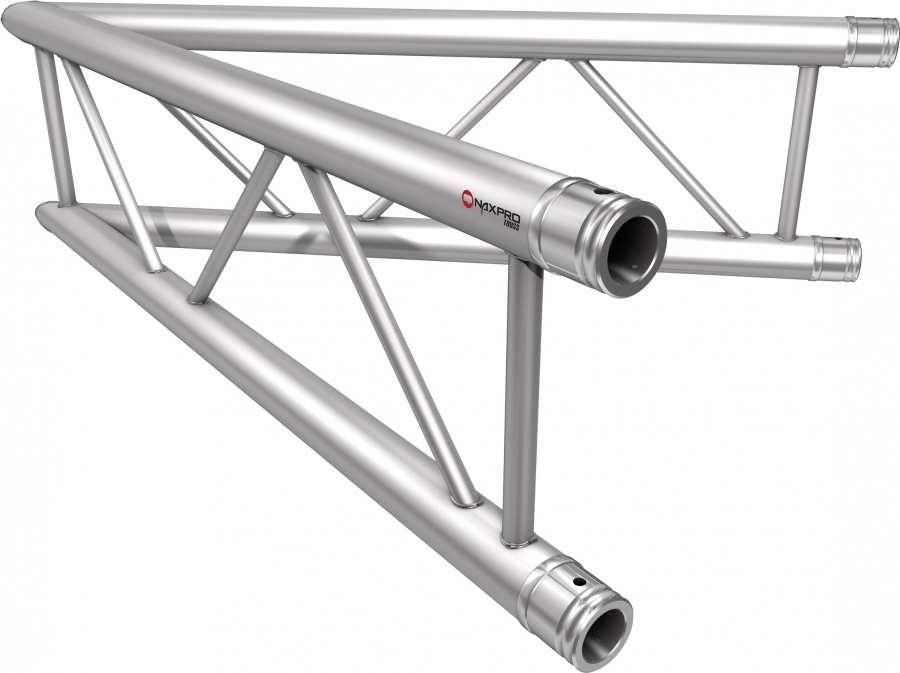

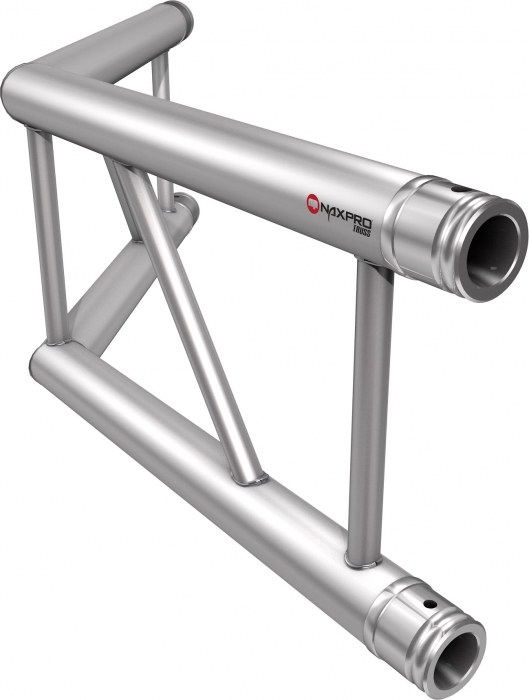

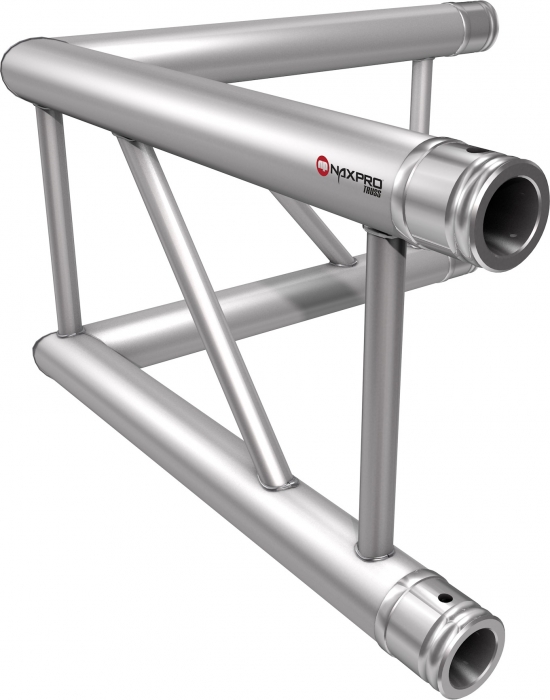

2 Way Corner 45° vertical
Side length: 1000 mm
Weight: 5.5 kg
 |
2 Way Corner 60° vertical
Side length: 1000 mm
Weight: 5.5 kg
 |

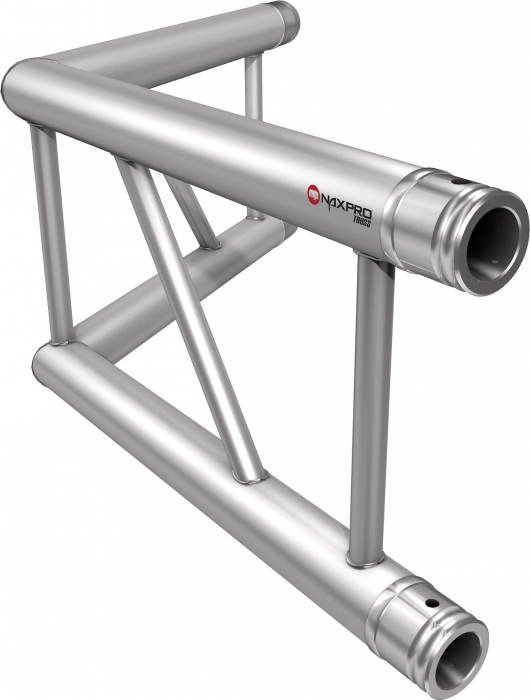

2 Way Corner 90° vertical
Side length: 500 mm
Weight: 4.4 kg
 |
2 Way Corner 120° vertical
Side length: 500 mm
Weight: 4.4 kg
 |
2 Way Corner 135° vertical
Side length: 500 mm
Weight: 4.4 kg
 |
3 Way Corner 90° horizontal
Side length: 500 mm
Weight: 5.5 kg
 |

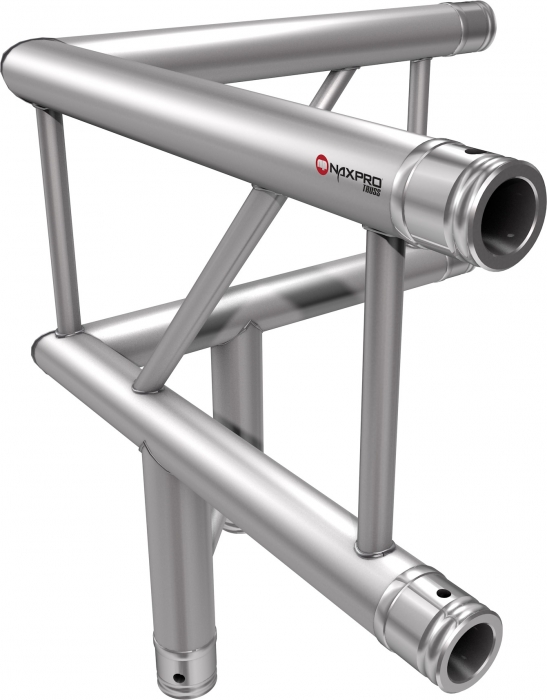

3 Way Corner 90° vertical
Side length: 500 mm
Weight: 5.5 kg
 |

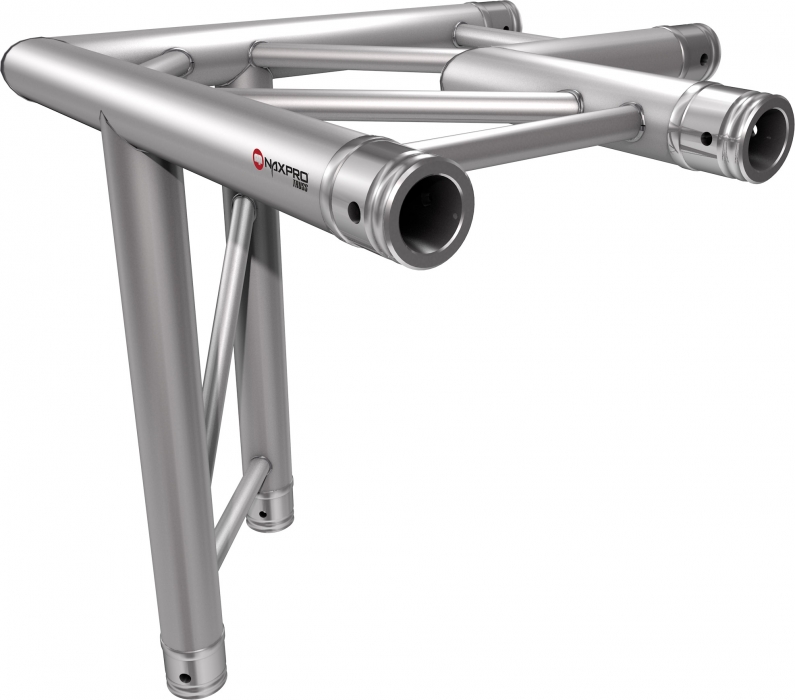

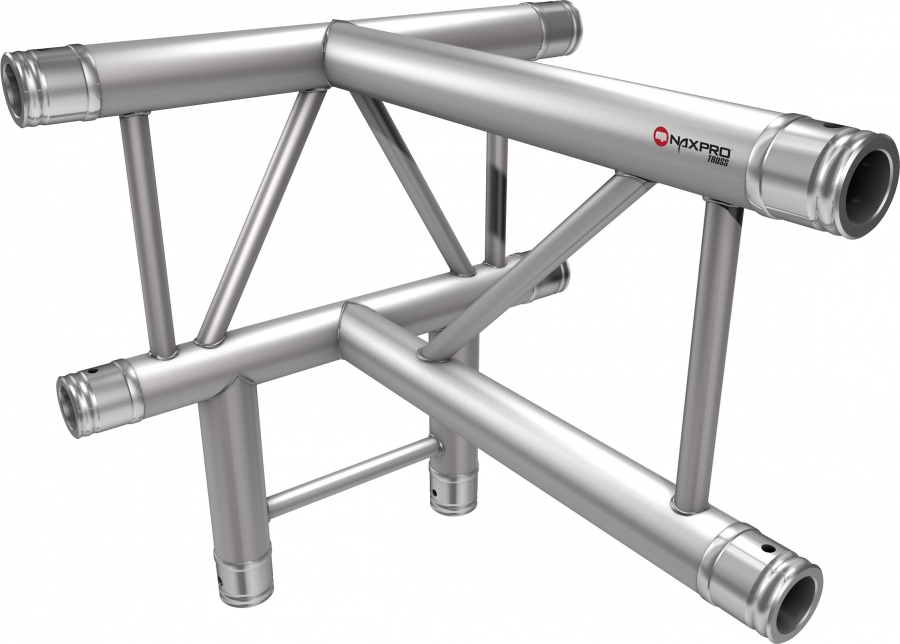

3 Way T-Piece 90° horizontal
Side length: 500 mm
Weight: 5.5 kg
 |
3 Way T-Piece 90° vertical
Side length: 500 mm
Weight: 5.5 kg
 |

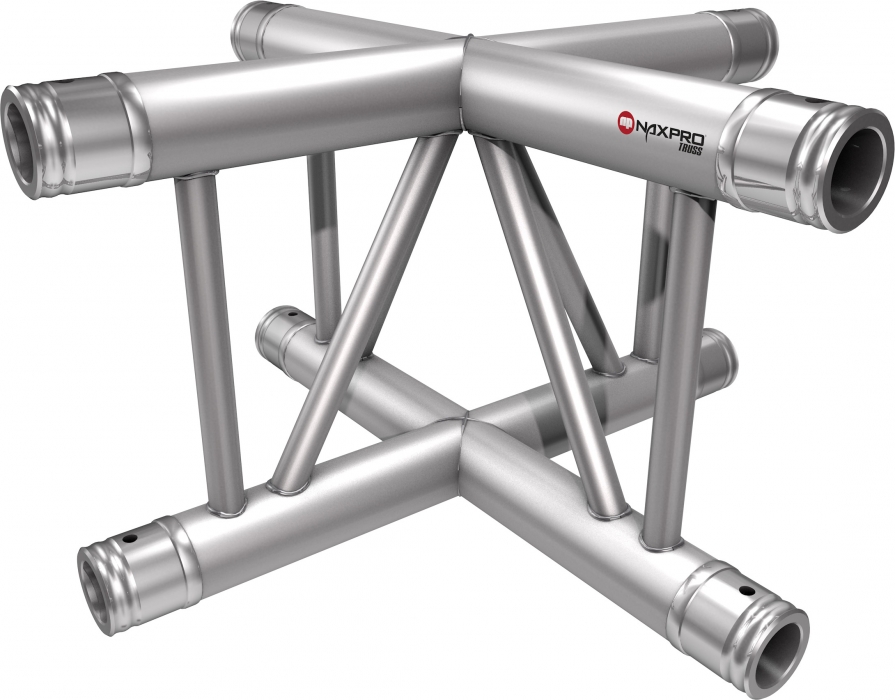

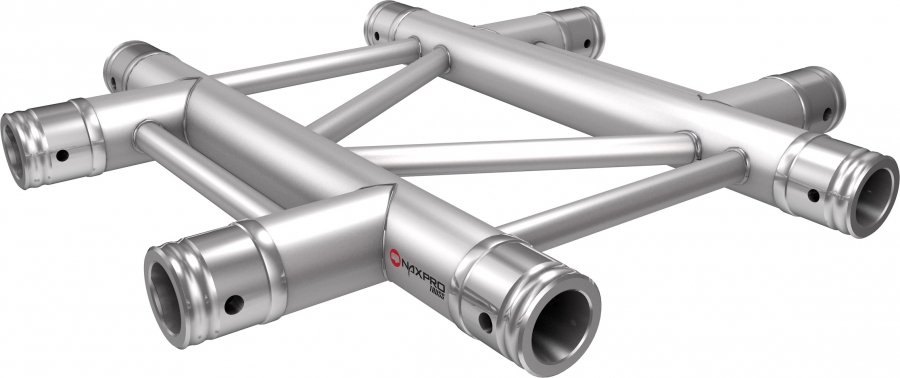

4 Way Cross 90° horizontal
Side length: 500 mm
Weight: 6.6 kg
 |
4 Way Cross 90° vertical
Side length: 500 mm
Weight: 6,6 kg
 |

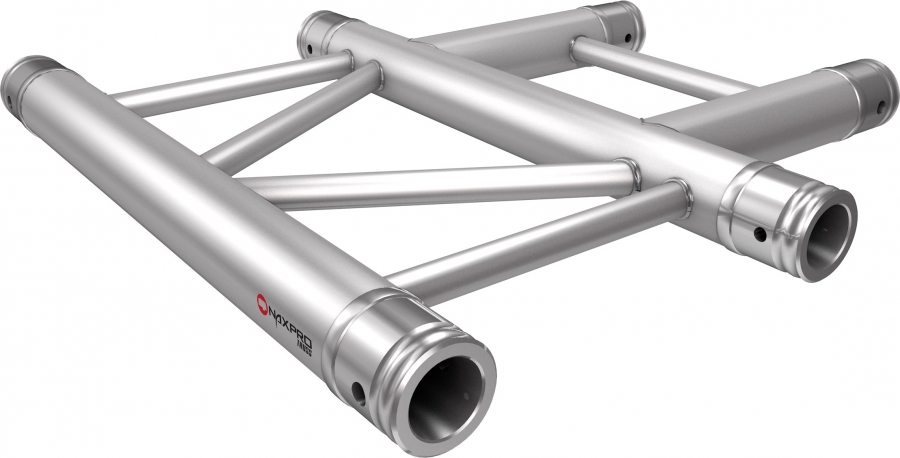

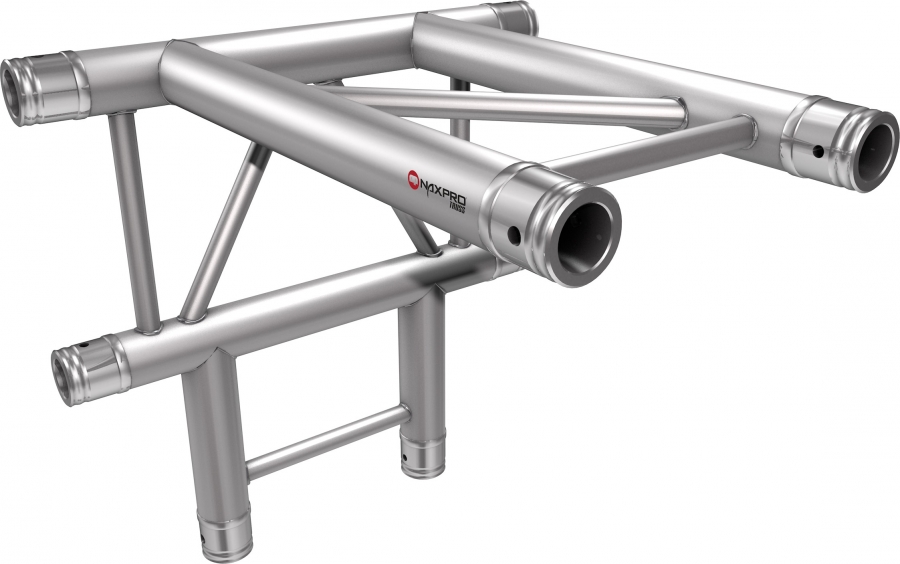

4 Way T-Piece 90° horizontal
Side length: 500 mm
Weight: 6.6 kg
 |
4 Way T-Piece 90° vertical
Side length: 500 mm
Weight: 6.6 kg
 |

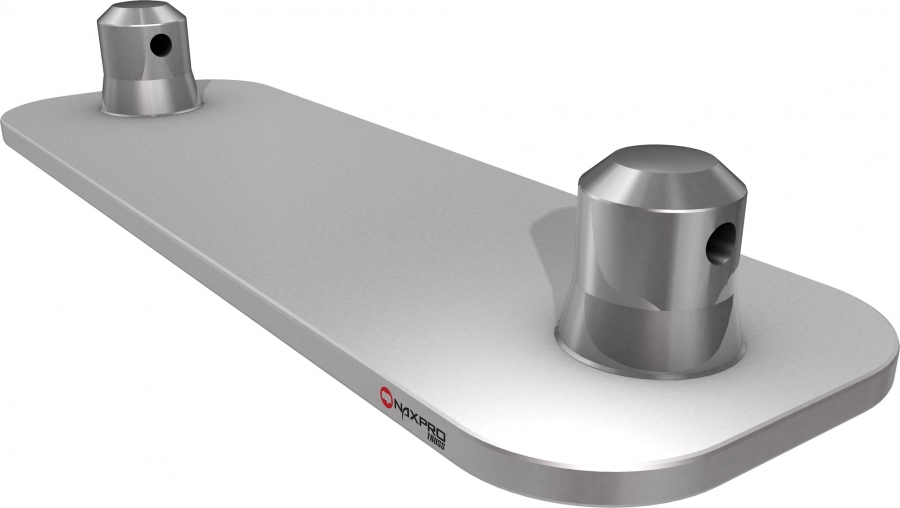

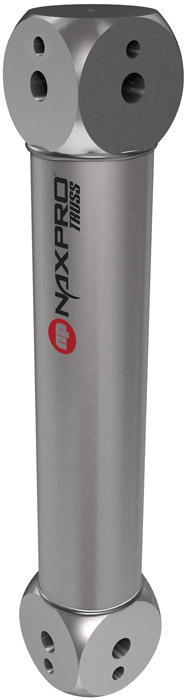

Dimensions: 100 x 310 x 5 mm
Weight: 1.70 kg
 |

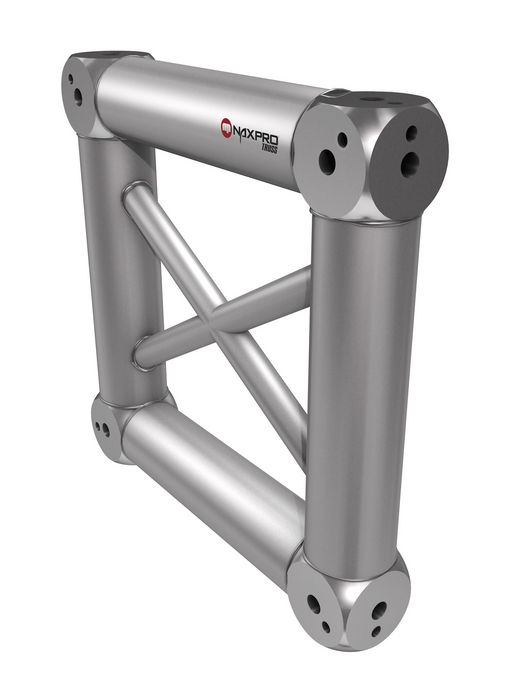

Boxcorner for HD 32 to HD 34 incl. 6 halfconnectors
 |
Boxcorner for HD 32 truss incl. 4 halfconnectors M12

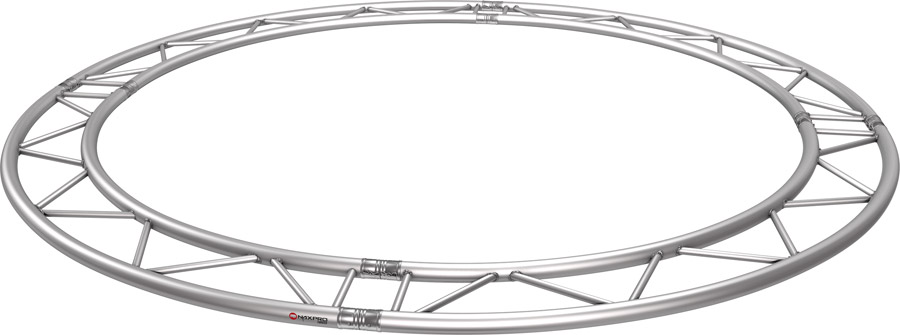

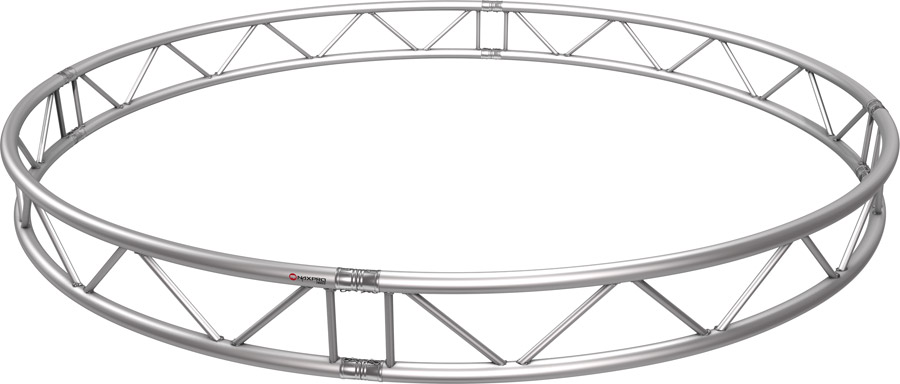

Truss Circles HD 32
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||
| HD 32 Horizontal per running circular meter | 3,30 | 302324001 | |
| HD 32 Horizontal (4 x 90°) | 200 | 20,27 | 302324020 |
| HD 32 Horizontal (4 x 90°) | 300 | 31,09 | 302324030 |
| HD 32 Horizontal (4 x 90°) | 400 | 41,45 | 302324040 |
| HD 32 Horizontal (8 x 45°) | 500 | 51,81 | 302324050 |
| HD 32 Horizontal (8 x 45°) | 600 | 62,17 | 302324060 |
| HD 32 Horizontal (8 x 45°) | 700 | 72,60 | 302324070 |
| HD 32 Horizontal (8 x 45°) | 800 | 82,90 | 302324080 |
| HD 32 Horizontal (12 x 30°) | 900 | 93,26 | 302324090 |
| HD 32 Horizontal (12 x 30°) | 1000 | 103,62 | 302324100 |
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||
| HD 32 Vertical per running circular meter | 3,30 | 302325001 | |
| HD 32 Vertical (4 x 90°) | 200 | 20,72 | 302325020 |
| HD 32 Vertical (4 x 90°) | 300 | 31,09 | 302325030 |
| HD 32 Vertical (4 x 90°) | 400 | 41,45 | 302325040 |
| HD 32 Vertical (8 x 45°) | 500 | 51,81 | 302325050 |
| HD 32 Vertical (8 x 45°) | 600 | 62,17 | 302325060 |
| HD 32 Vertical (8 x 45°) | 700 | 72,60 | 302325070 |
| HD 32 Vertical (8 x 45°) | 800 | 82,90 | 302325080 |
| HD 32 Vertical (8 x 45°) | 900 | 93,26 | 302325090 |
| HD 32 Vertical (12 x 30°) | 1000 | 103,62 | 302325100 |
