ED 33 Trusses with bus bar
Products Overview

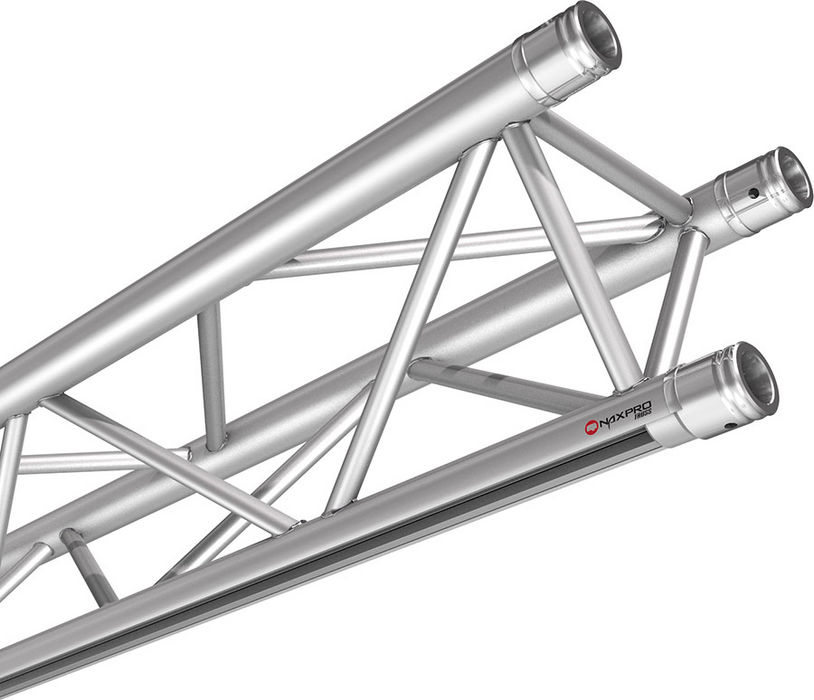

The ED33 trusses are based on the FD33 series, but in contrast to the standard model they are equipped with an additional bus bar, which allows a clean and flexible connection of various lighting and event technology.
In the assembly of truss structures, bus bar trusses offer clear advantages: no additional cables must be installed, faster mounting and demounting and unattractive cable clutter is avoided. Because all installed devices can be flexibly positioned, bus bar trusses are especially suited for situations where spotlights must be reassigned regularly, e.g. in furniture stores, car dealerships and hardware stores.
Certified Safety
Dimensions
Specifications
| Width: | 290 mm |
| Height: | 258 mm |
| Tube: | 50 x 2 mm |
| Diagonals: | 20 x 2 mm |
| Alloy: | EN-AW 6082 T6 |
| Bus bar: | EN-AW 6060 T66 |
Load Chart ED 33
| Aluminium profile with clamp | Aluminium profile with adapter for bus bar | |||||
| Span | Uniformly distributed load |
Deflection | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg/m | mm | kg | mm |
| 1,0 | 1980,1 | 0,4 | 30,0 | 0,0 | 497,0* | 0,2 |
| 2,0 | 988,0 | 3,2 | 30,0 | 0,1 | 379,0* | 1,0 |
| 3,0 | 444,5 | 7,4 | 30,0 | 0,6 | 298,0* | 2,6 |
| 4,0 | 248,2 | 13,2 | 30,0 | 1,8 | 242,0* | 5,2 |
| 5,0 | 157,4 | 20,6 | 30,0 | 4,3 | 201,0* | 8,6 |
| 6,0 | 108,0 | 29,7 | 30,0 | 9,0 | 169,0* | 12,9 |
| 7,0 | 78,3 | 40,5 | 30,0 | 16,6 | 143,8 | 18,0 |
| 8,0 | 59,0 | 53,0 | 30,0 | 28,3 | 121,9 | 23,7 |
| 9,0 | 45,7 | 67,2 | 23,2 | 36,5 | 104,5 | 30,4 |
| 10,0 | 36,3 | 83,2 | 18,0 | 45,2 | 90,1 | 38,0 |
| 11,0 | 29,2 | 100,9 | 14,2 | 55,0 | 78,0 | 46,7 |
| 12,0 | 23,9 | 120,4 | 11,3 | 65,7 | 67,5 | 56,4 |
| 13,0 | 9,0 | 77,5 | 9,0 | 77,5 | 58,4 | 67,3 |
| 14,0 | 7,2 | 90,4 | 7,2 | 90,4 | 50,2 | 79,4 |
| 15,0 | 5,7 | 104,4 | 5,7 | 104,4 | 42,9 | 92,8 |
| 16,0 | 4,5 | 119,5 | 4,5 | 119,5 | 36,2 | 107,6 |
* limited by interaction with offset / decisive is the offset on the connector
High uniformly distributed loads are to be understood ideally distributed. The load application
has to be made in the knot. The load values are calculated using 10.9 bolts.

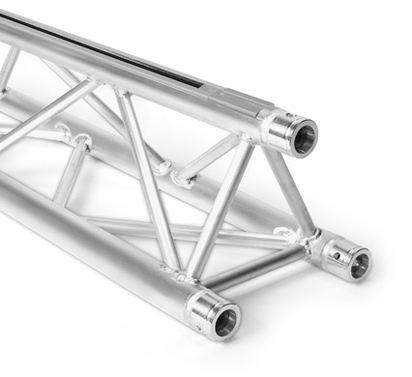

Straights, Corners and Elements ED 33
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 50 | 2,75 | 311330500 | 300 | 16,50 | 311333000 |
| 100 | 5,50 | 311331000 | 350 | 19,30 | 311333500 |
| 150 | 8,25 | 311331500 | 400 | 22,00 | 311334000 |
| 200 | 11,00 | 311332000 | 450 | 24,80 | 311334500 |
| 250 | 13,80 | 311332500 | 500 | 27,50 | 311335000 |
 |

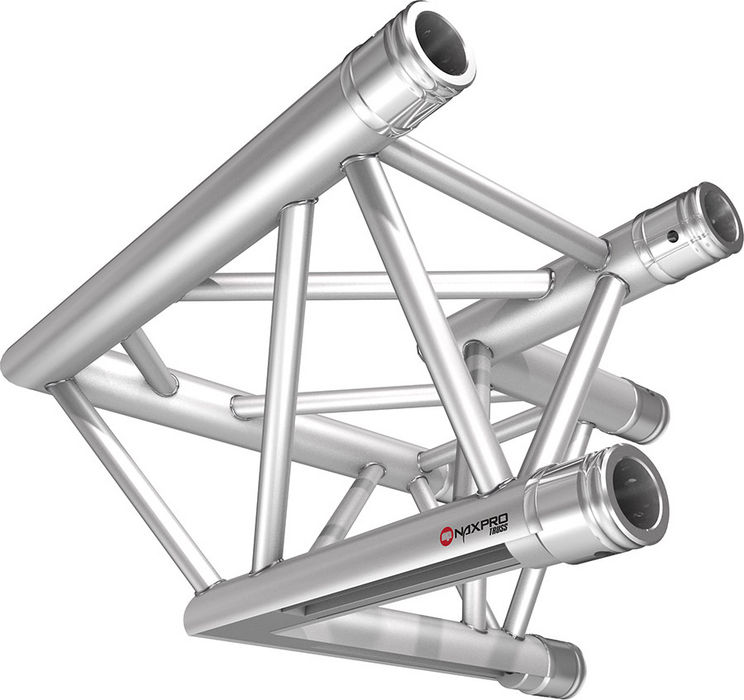

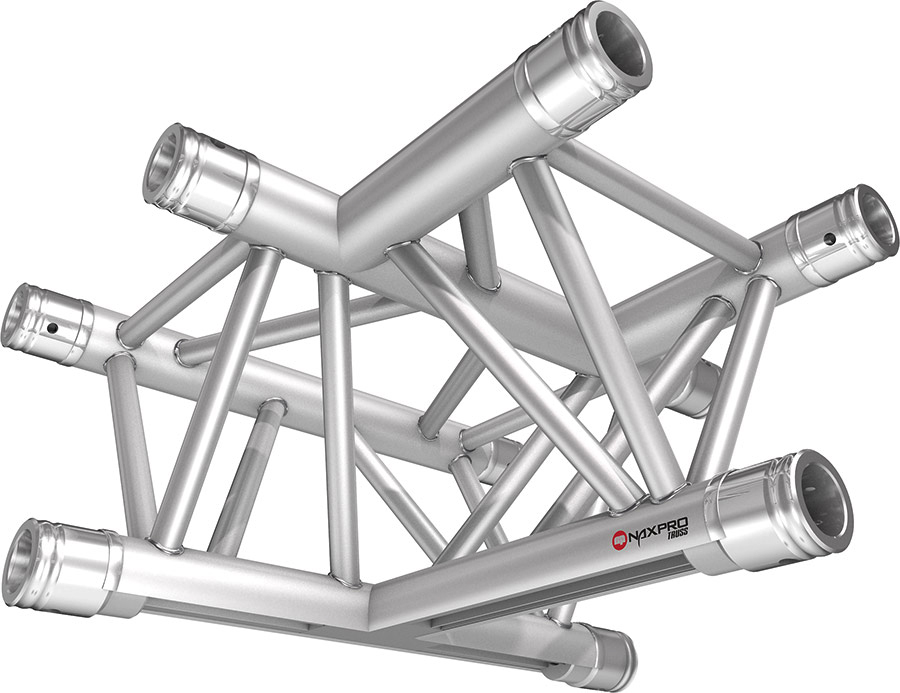

2 Way Corner 90°
Side length: 500 mm
 |

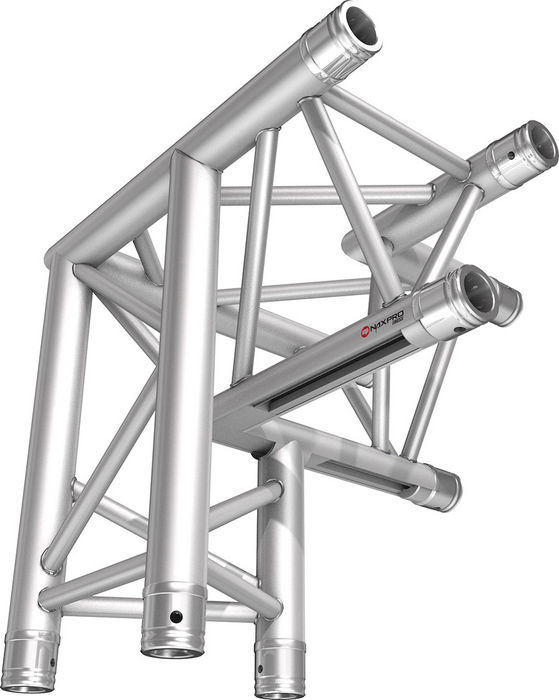

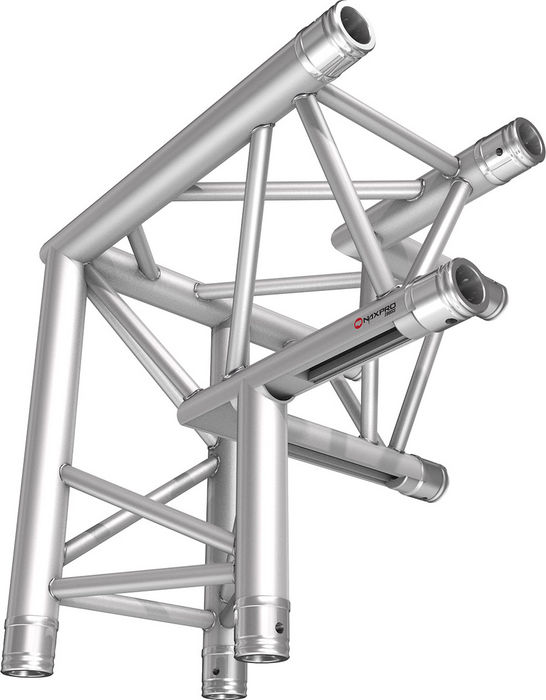

3 Way Corner 90° tip down-left
Side length: 500 mm
 |
3 Way Corner 90° tip down-right
Side length: 500 mm
 |

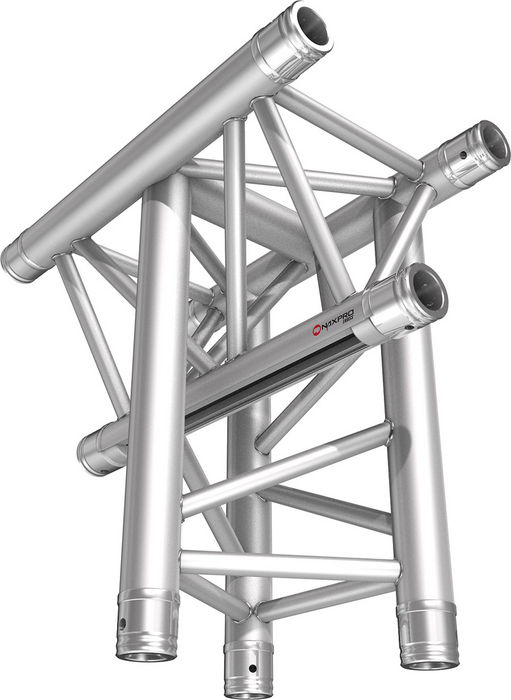

3 Way T-Piece 90° vertical
tip down
Side length: 500 mm
 |
3 Way T-Piece 90° horizontal
Side length: 500 mm
 |

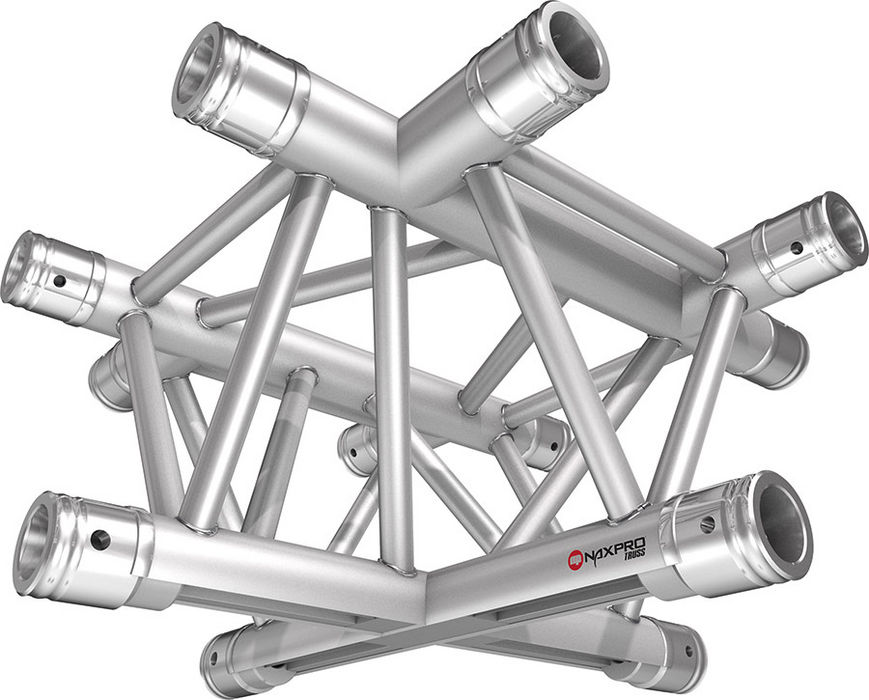

4 Way Cross 90°
Side length: 500 mm
 |

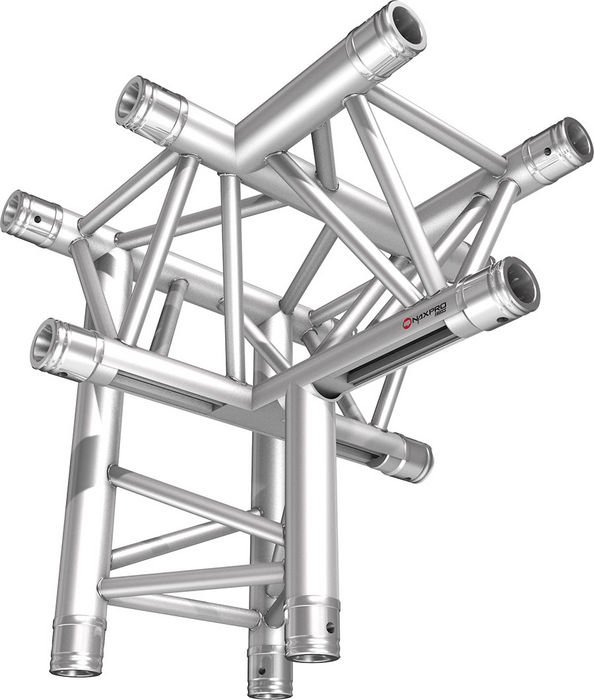

4 Way T-Piece 90° tip down
Side length: 500 mm
Truss Circles ED 33
