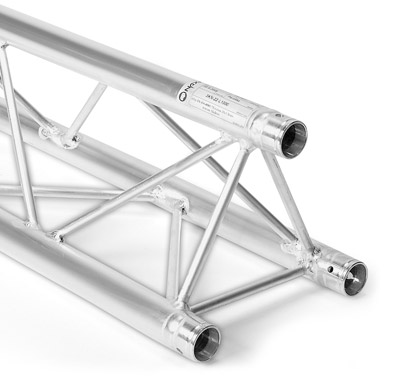

FD 23 Trusses

Products Overview

TÜV tested truss system in 3-point version, which despite of its small tube-diameter of only 35 mm finds professional use in the event industry as well as in exhibition stands and store constructions. Even though the dimensions are small, there is enough space for lighting and advertising.

The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro FD 23 truss system is available in all RAL-colours and custom constructions.

Download
Data Sheet

Download
TÜV-Certificate

Certified Safety

Dimensions

Specifications

Width:	220 mm
Height:	195 mm
Tube:	35 x 2 mm
Diagonals:	10 x 2 mm
Alloy:	EN-AW 6060 T66

Load Chart FD 23

Span	Uniformly distributed load	Deflection	Centered single load	Deflection
m	kg/m	mm	kg	mm
1,0	500,4	0,3	500,4	0,4
2,0	249,1	2,0	315,1	2,1
3,0	138,8	5,8	208,2	4,6
4,0	77,1	10,3	154,1	8,3
5,0	48,5	16,1	121,2	13,0
6,0	33,0	23,2	98,9	18,9
7,0	23,6	31,6	82,7	25,9
8,0	17,5	41,4	70,2	34,2

High uniformly distributed loads are to be understood ideally distributed. The load application
has to be made in the knot.

Download
Detailed Load Chart

Straights, Corners and Elements FD 23

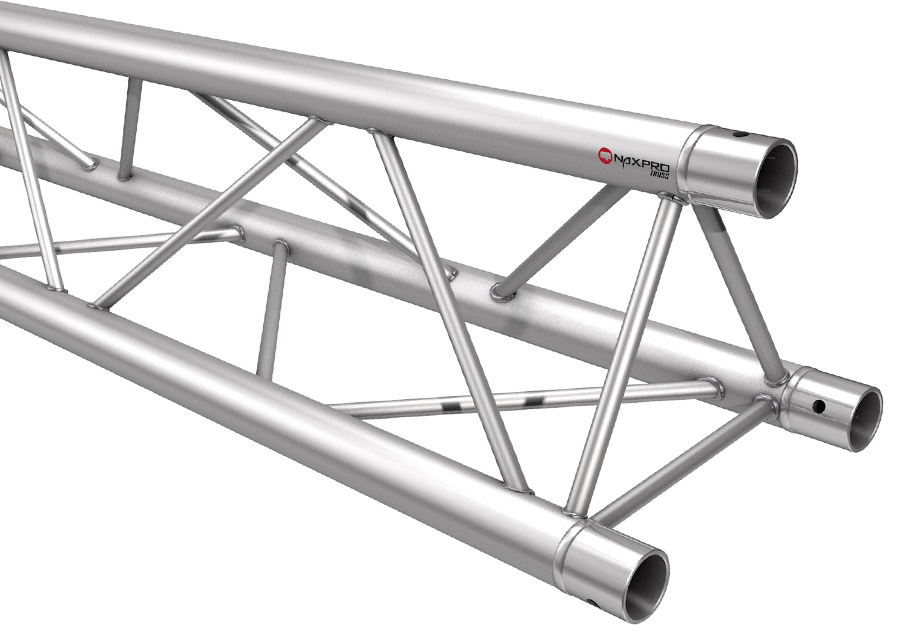

Straights FD 23

Length	Weight	Art.-No.	Length	Weight	Art.-No.
cm	kg		cm	kg
25	1,10	300230250	175	4,50	300231750
50	1,70	300230500	200	4,80	300232000
75	2,20	300230750	250	6,30	300232500
100	2,80	300231000	300	7,30	300233000
125	3,30	300231250	350	8,40	300233500
150	4,00	300231500	400	9,60	300234000

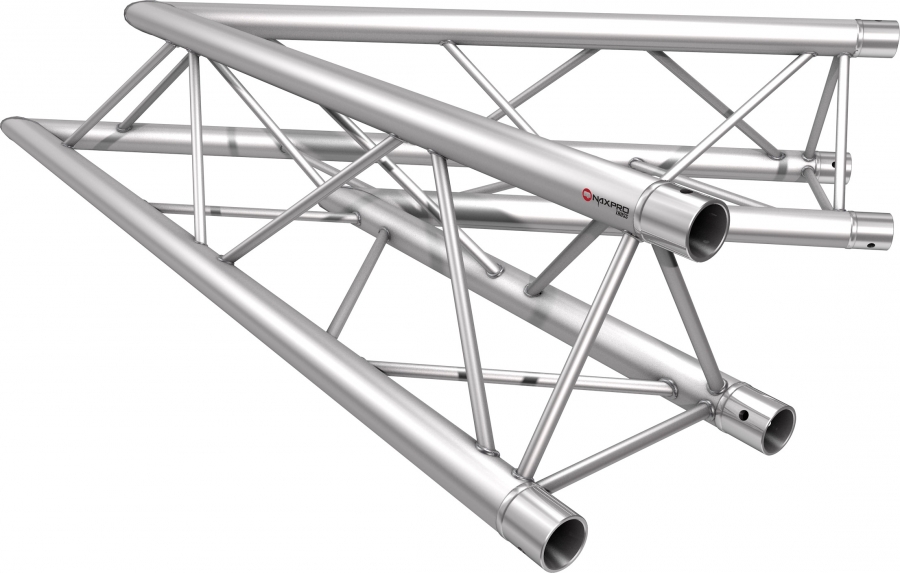

Truss Corner FD23 / C19

Art.-No.: 300230019

2 Way Corner 45°
Side length: 1000 mm
Weight: 3.2 kg

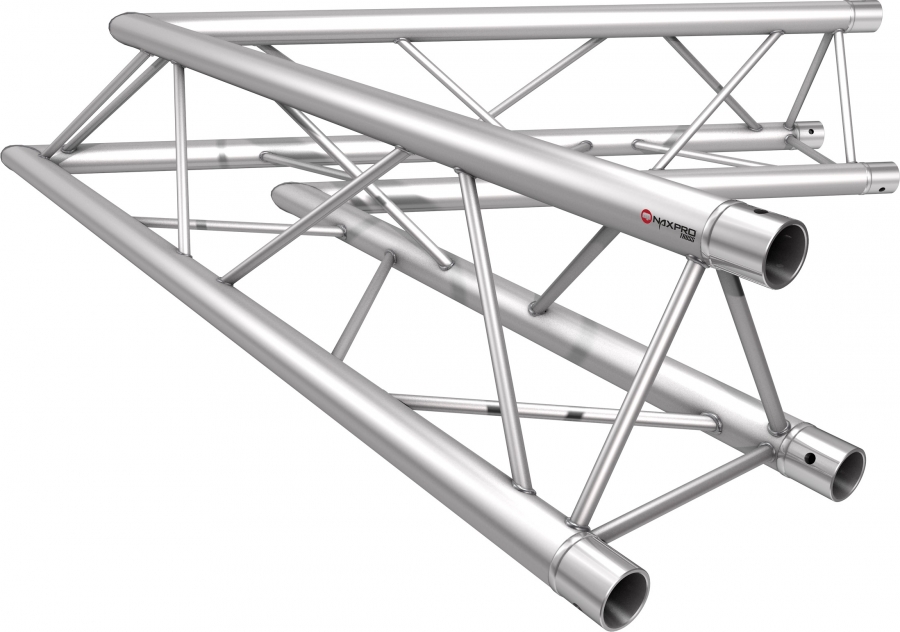

Truss Corner FD23 / C20

Art.-No.: 300230020

2 Way Corner 60°
Side length: 1000 mm
Weight: 3.0 kg

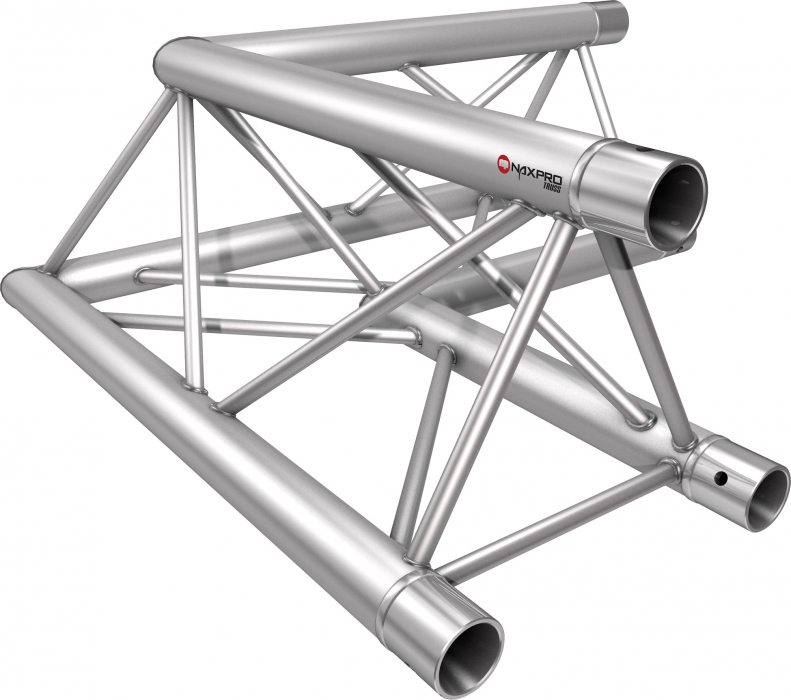

Truss Corner FD23 / C21

Art.-No.: 300230021

2 Way Corner 90°
Side length: 500 mm
Weight: 2.8 kg

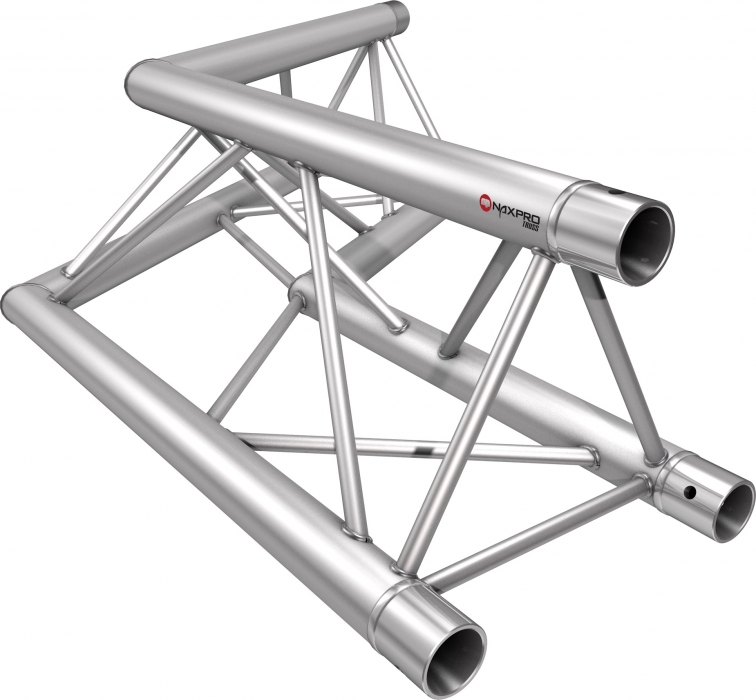

Truss Corner FD23 / C22

Art.-No.: 300230022

2 Way Corner 120°
Side length: 500 mm
Weight: 2.8 kg

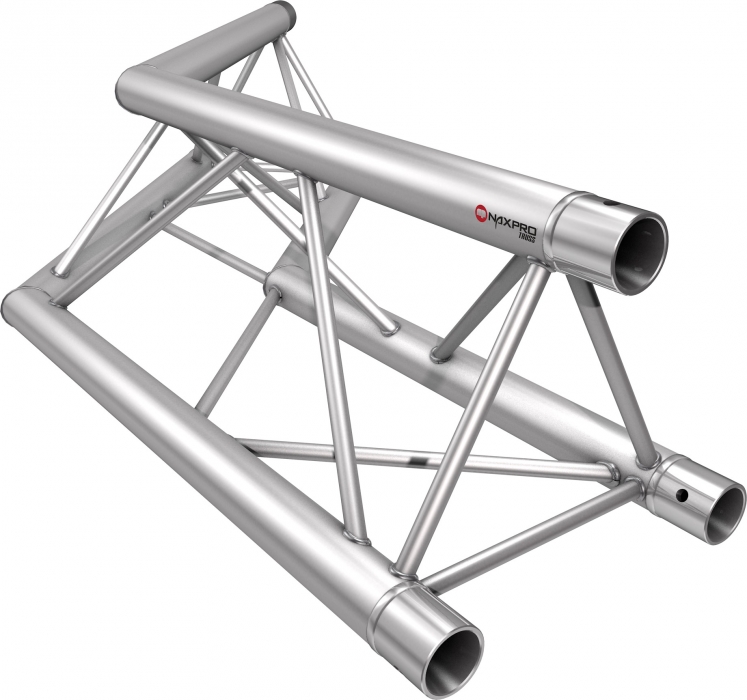

Truss Corner FD23 / C23

Art.-No.: 300230023

2 Way Corner 135°
Side length: 500 mm
Weight: 2.8 kg

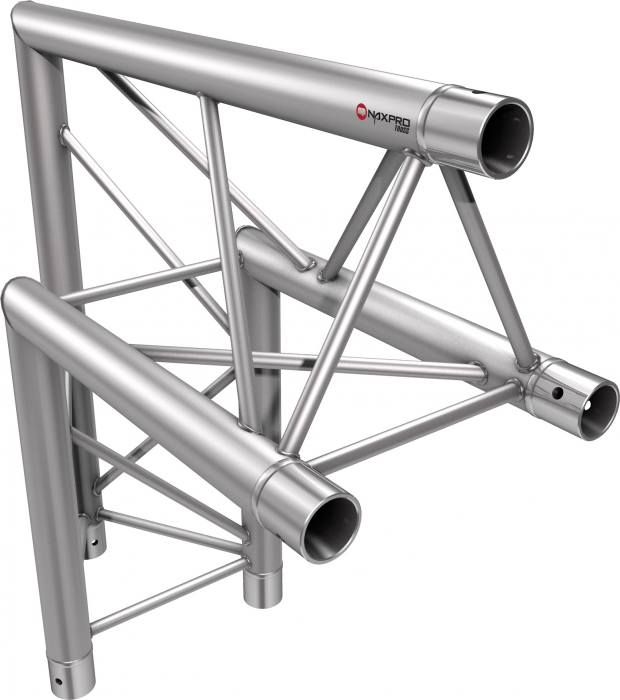

Truss Corner FD23 / C24

Art.-No.: 300230024

2 Way Corner 90° tip up
Side length: 500 mm
Weight: 2.8 kg

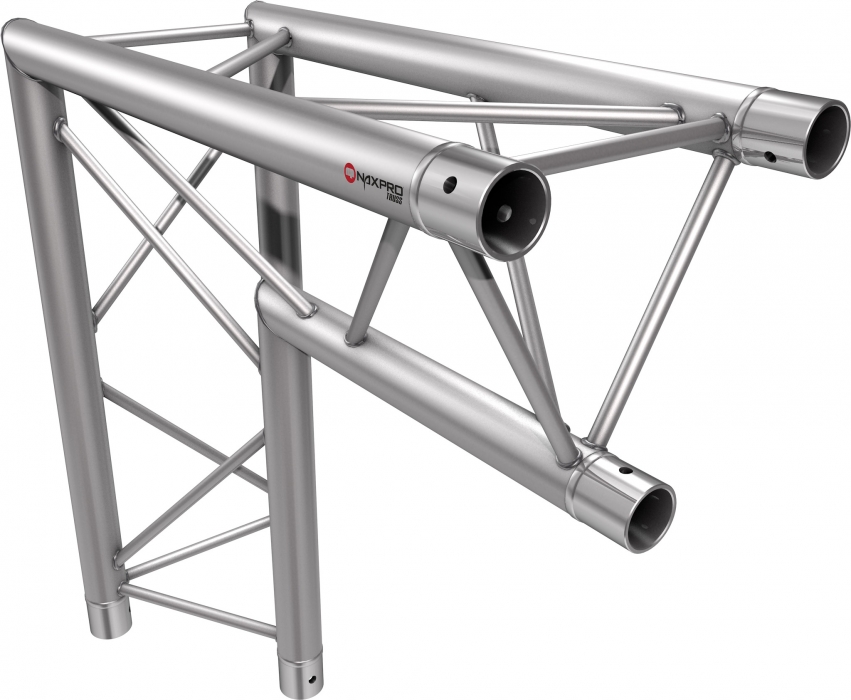

Truss Corner FD23 / C25

Art.-No.: 300230025

2 Way Corner 90° tip down
Side length: 500 mm
Weight: 2.8 kg

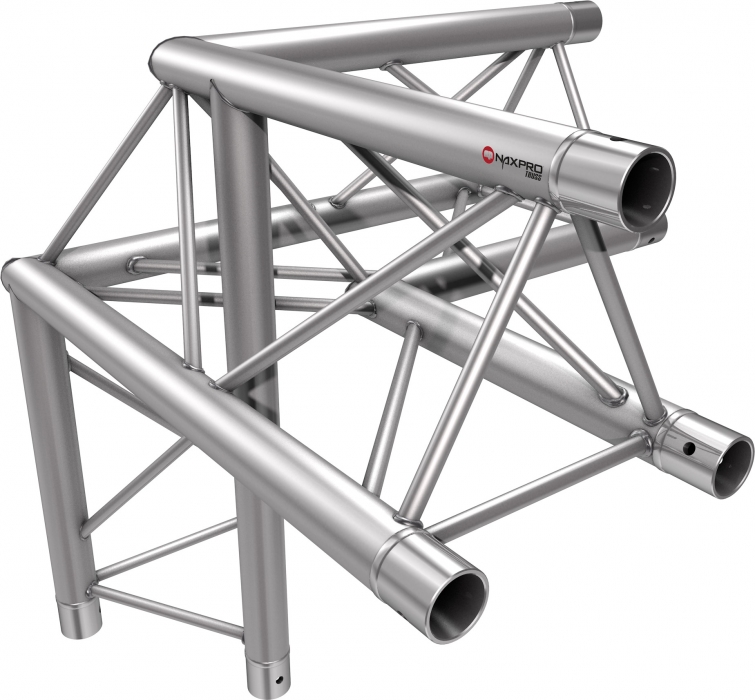

Truss Corner FD23 / C31

Art.-No.: 300230031

3 Way Corner 90° tip up-left

Side length: 500 mm
Weight: 3.8 kg

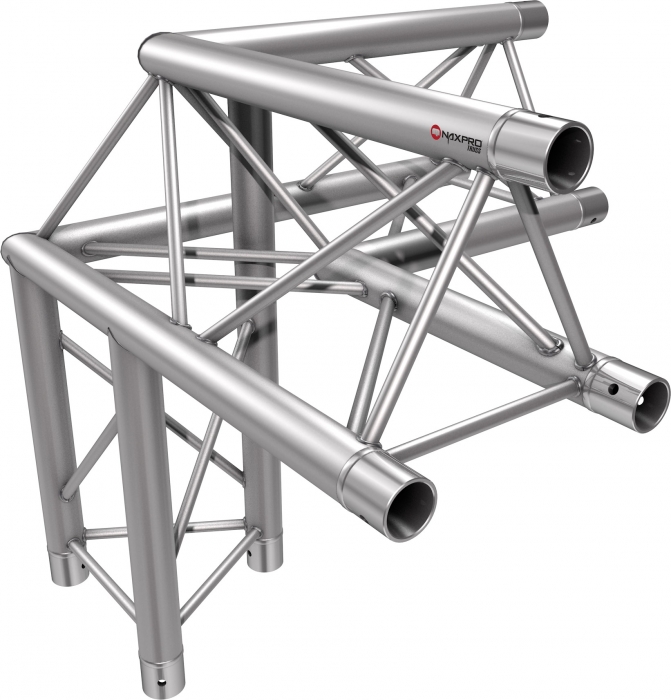

Truss Corner FD23 / C32

Art.-No.: 300230032

3 Way Corner 90° tip up-right
Side length: 500 mm
Weight: 3.8 kg

Truss Corner FD23 / C32

Art.-No.: 300230032

3 Way Corner 120° tip up-right
Side length: 500 mm
Weight: 3.8 kg

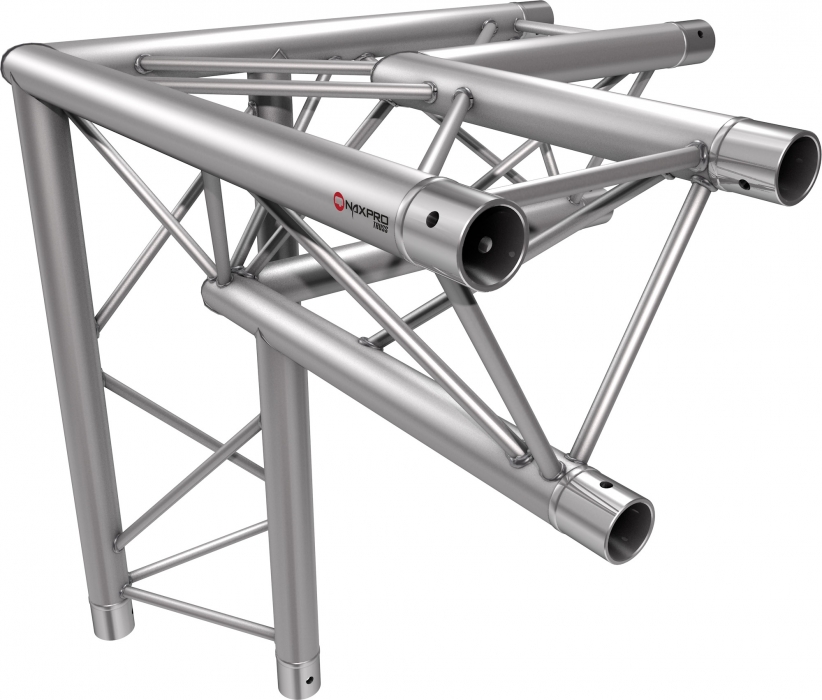

Truss Corner FD23 / C33

Art.-No.: 300230033

3 Way Corner 90° tip down-left
Side length: 500 mm
Weight: 3.8 kg

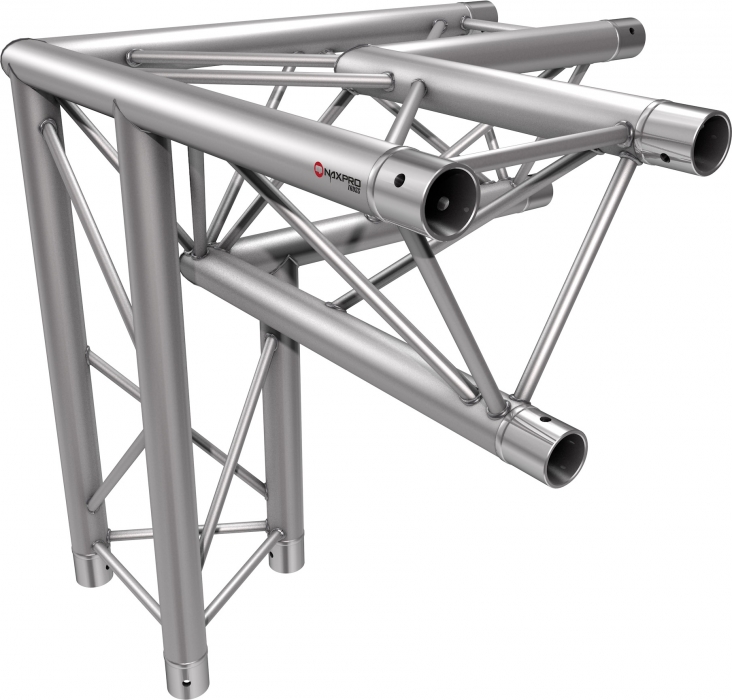

Truss Corner FD23 / C34

Art.-No.: 300230034

3 Way Corner 90° tip down-right
Side length: 500 mm
Weight: 3.8 kg

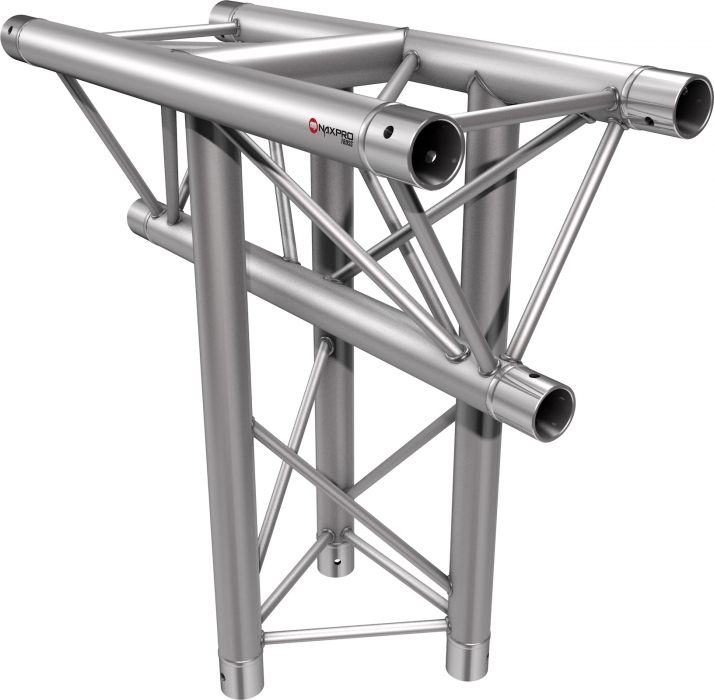

Truss T-Piece FD23 / C35

Art.-No.: 300230035

3 Way T-Piece 90° vertical

tip down
Side length: 500 mm
Weight: 3.5 kg

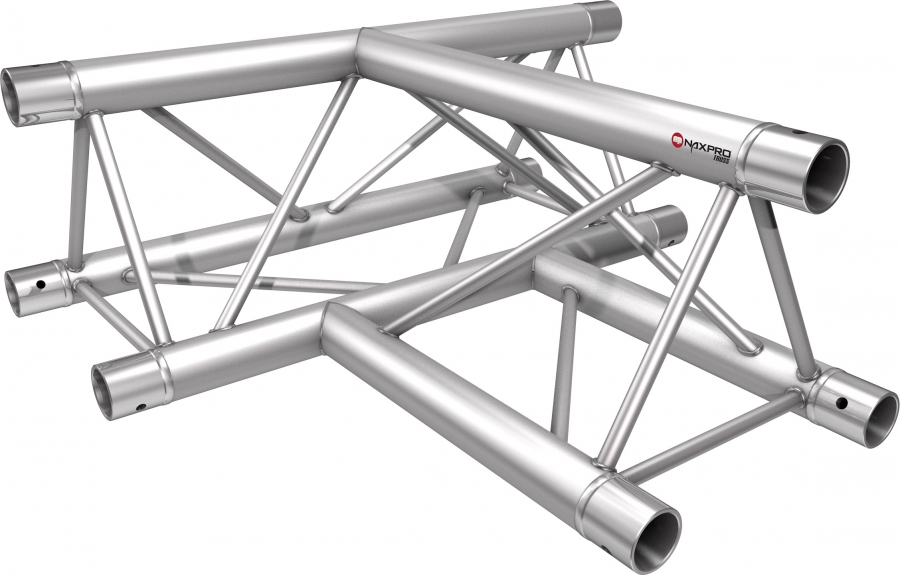

Truss T-Piece FD23 / C36

Art.-No.: 300230036

3 Way T-Piece 90° horizontal
Side length: 500 mm
Weight: 3.4 kg

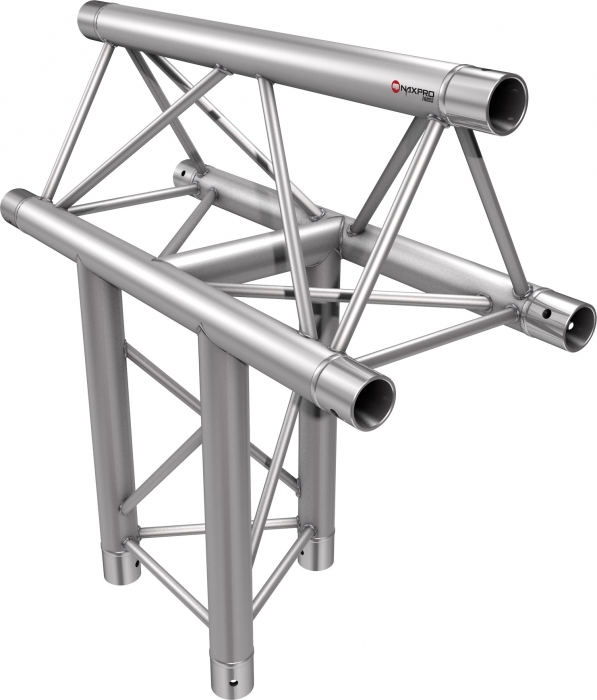

Truss T-Piece FD23 / C37

Art.-No.: 300230037

3 Way T-Piece 90° vertical

tip up
Side length: 500 mm
Weight: 3.5 kg

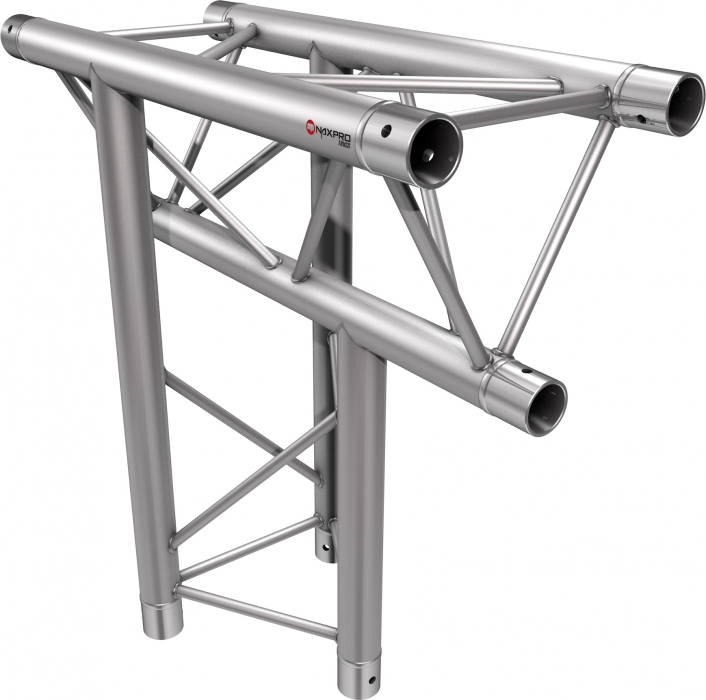

Truss T-Piece FD23 / C38

Art.-No.: 300230038

3 Way T-Piece 90° vertical

tip down
Side length: 500 mm
Weight: 3.5 kg

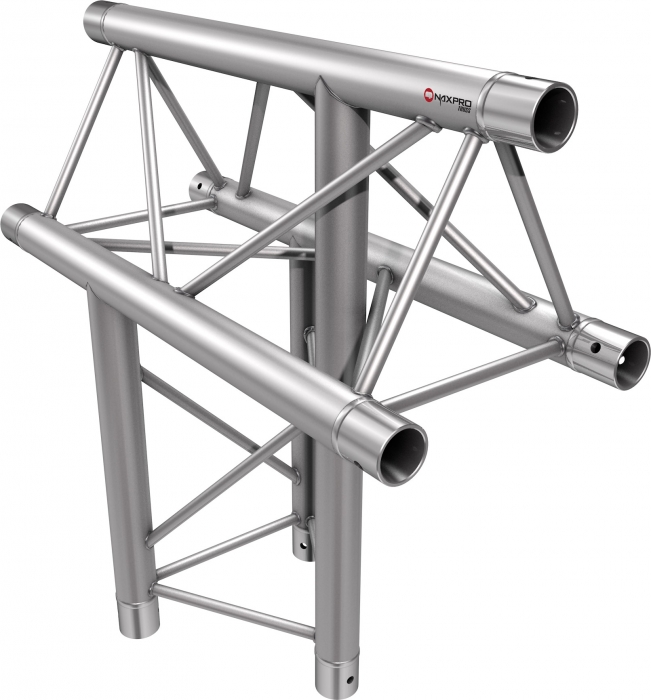

Truss T-Piece FD23 / C39

Art.-No.: 300230039

3 Way T-Piece 90° vertical

tip up
Side length: 500 mm
Weight: 3.5 kg

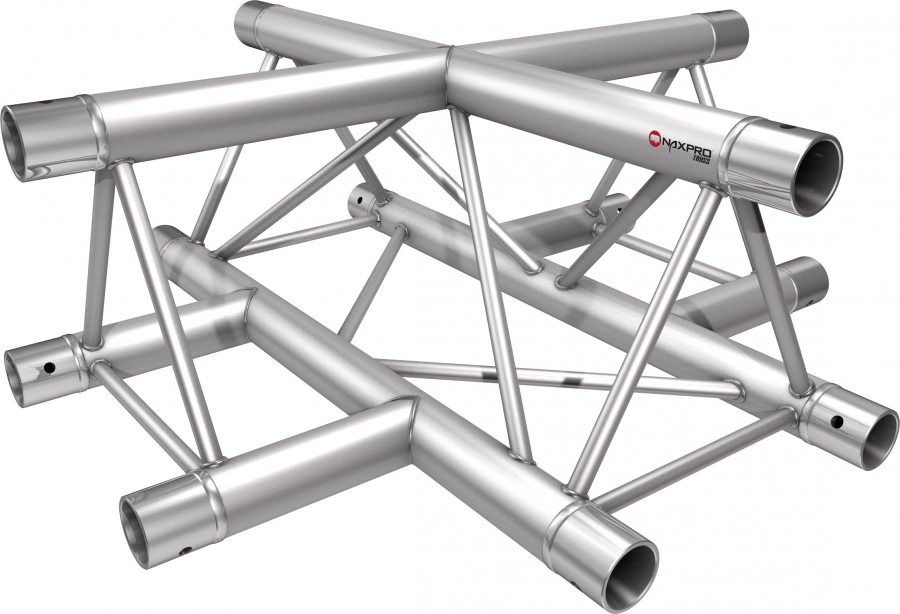

Truss Cross FD23 / C41

Art.-No.: 300230041

4 Way Cross 90°
Side length: 500 mm
Weight: 4.6 kg

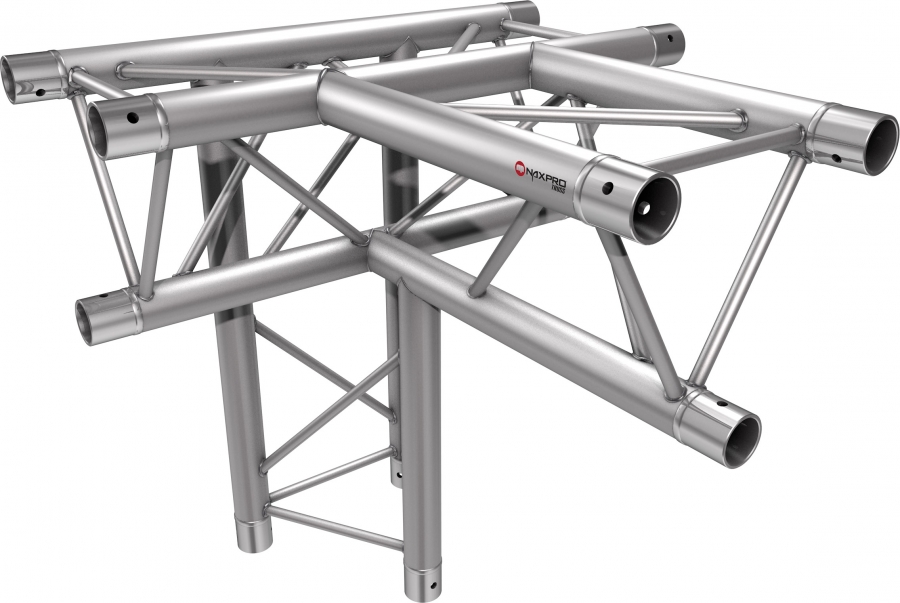

Truss T-Piece FD23 / C42

Art.-No.: 300230042

4 Way T-Piece 90° tip down
Side length: 500 mm
Weight: 4.6 kg

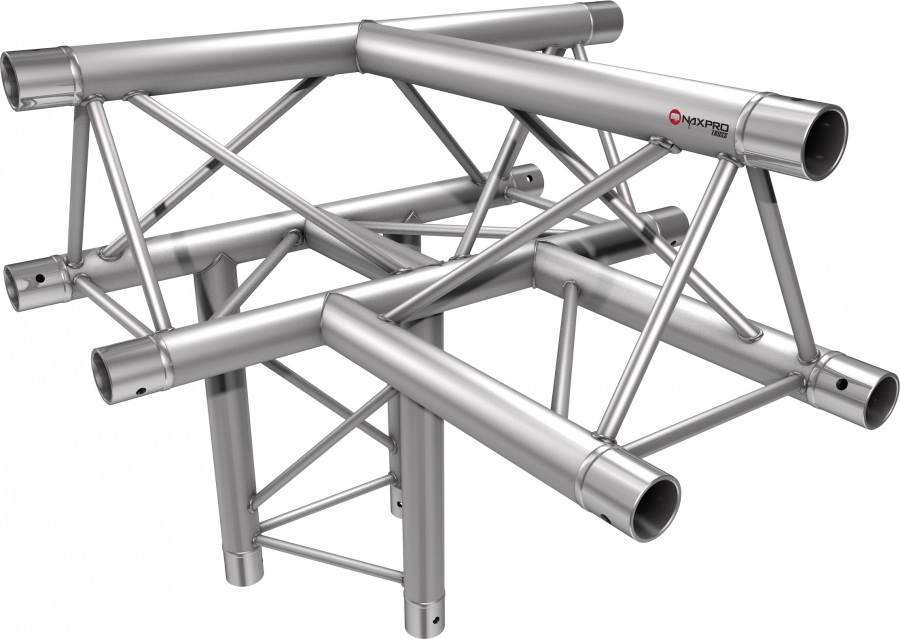

Truss T-Piece FD23 / C43

Art.-No.: 300230043

4 Way T-Piece 90° tip up
Side length: 500 mm
Weight: 4.6 kg

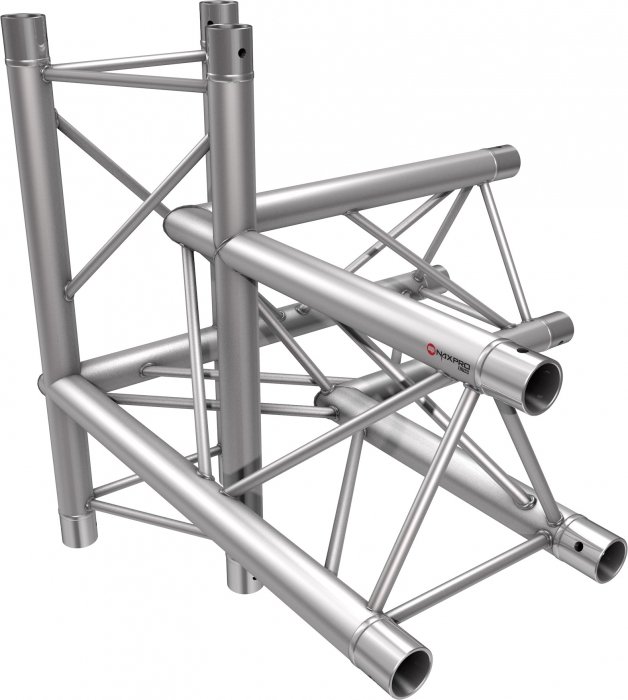

Truss Corner FD23 / C44

Art.-No.: 300230044

4 Way Corner 90° - left
Side length: 500 mm
Weight: 4.6 kg

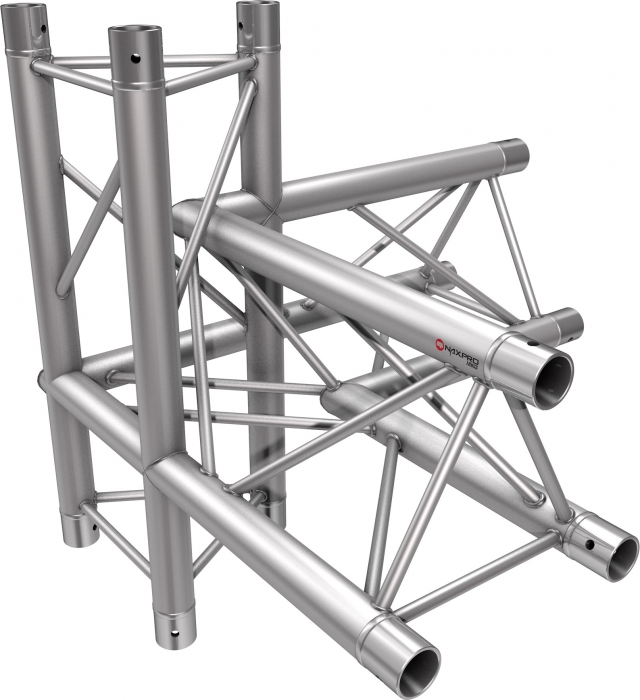

Truss Corner FD23 / C45

Art.-No.: 300230045

4 Way Corner 90° - right
Side length: 500 mm
Weight: 4.6 kg

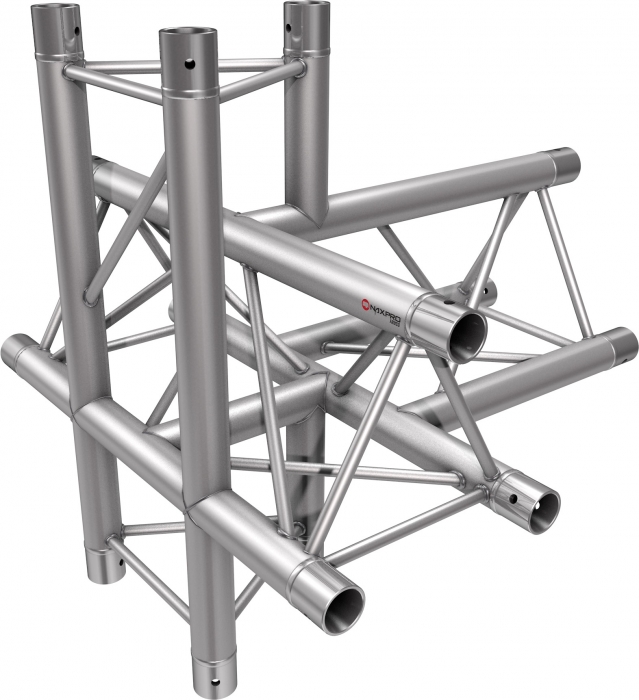

Truss T-Piece FD23 / C51

Art.-No.: 300230051

5 Way T-Piece 90°
Side length: 500 mm
Weight: 5.0 kg

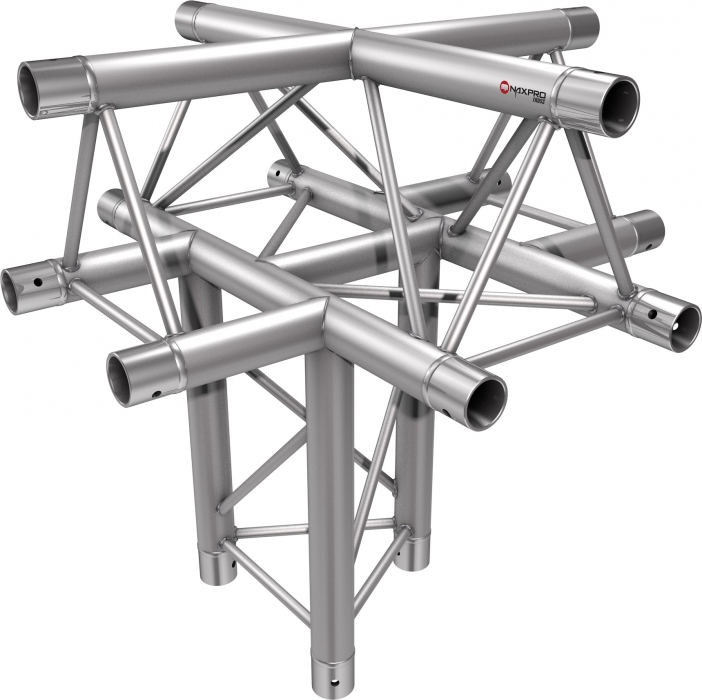

Truss Cross FD23 / C52

Art.-No.: 300230052

5 Way Cross 90° tip up
Side length: 500 mm
Weight: 5.0 kg

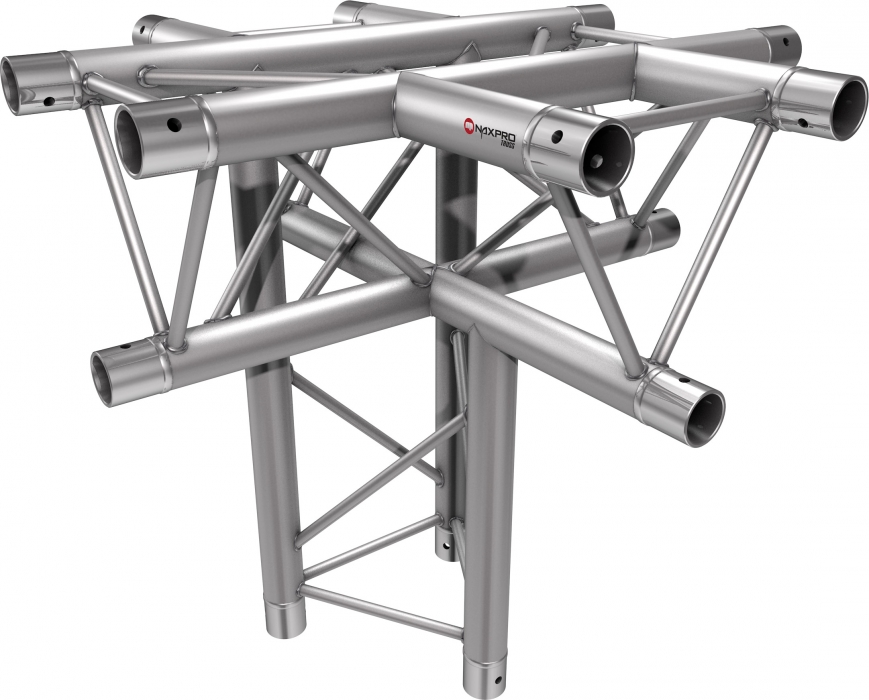

Truss Cross FD23 / C53

Art.-No.: 300230053

5 Way Cross 90° tip down
Side length: 500 mm
Weight: 5.0 kg

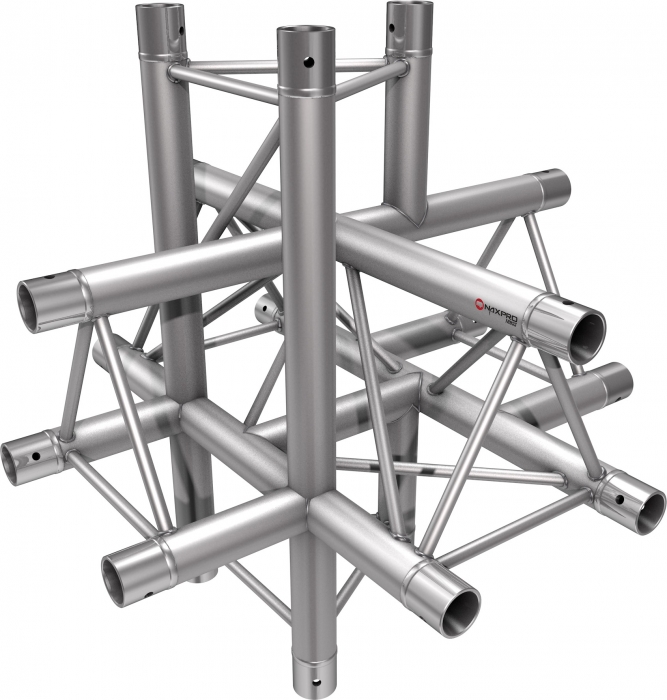

Truss Cross FD23 / C61

Art.-No.: 300230061

6 Way Cross 90°
Side length: 500 mm
Weight: 5.5 kg

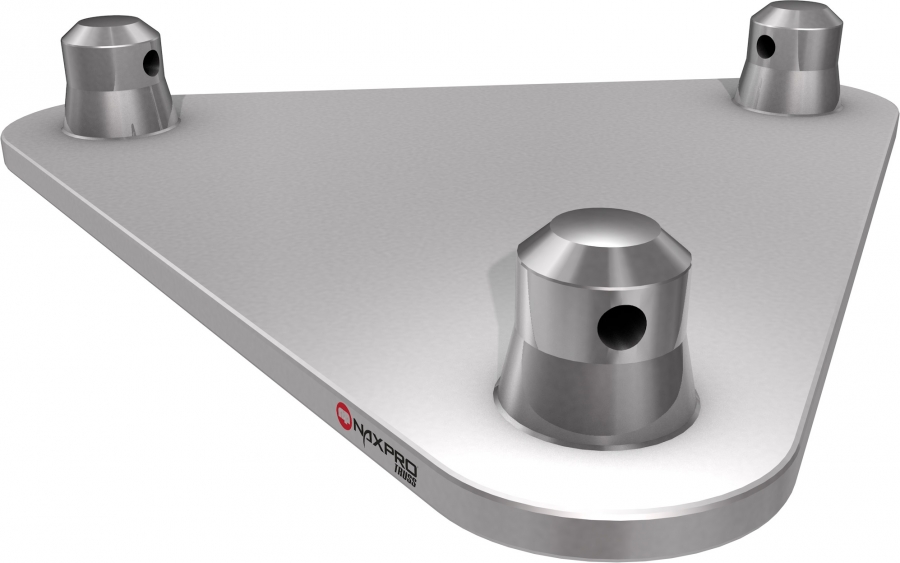

Baseplate FD23

Art.-No.: 300230000

Dimensions: 240 x 219 x 5 mm
Weight: 1.0 kg

Truss Circles FD 23

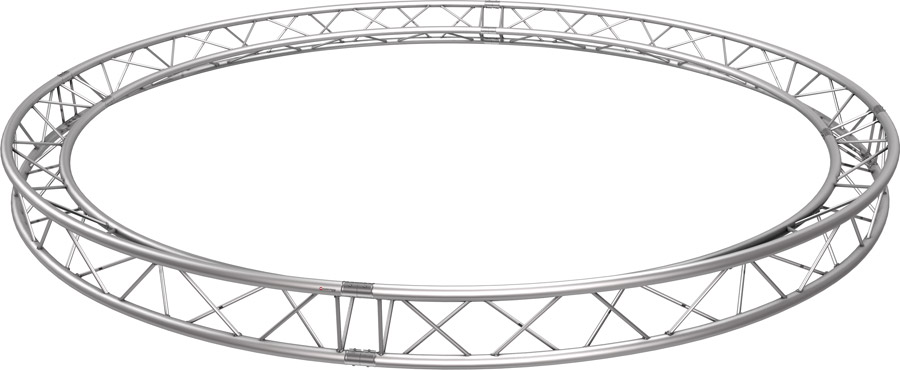

Circle FD 23 Tip Inside

Description	Length	Weight	Art.-No.
	cm	kg
FD 23 Tip Inside per running circular meter		2,10	301231001
FD 23 Tip Inside (4 x 90°)	200	13,19	301231020
FD 23 Tip Inside (4 x 90°)	300	19,78	301231030
FD 23 Tip Inside (4 x 90°)	400	26,38	301231040
FD 23 Tip Inside (8 x 45°)	500	32,97	301231050
FD 23 Tip Inside (8 x 45°)	600	39,56	301231060
FD 23 Tip Inside (8 x 45°)	700	46,20	301231070
FD 23 Tip Inside (8 x 45°)	800	52,75	301231080
FD 23 Tip Inside (12 x 30°)	900	59,35	301231090
FD 23 Tip Inside (12 x 30°)	1000	65,94	301231100

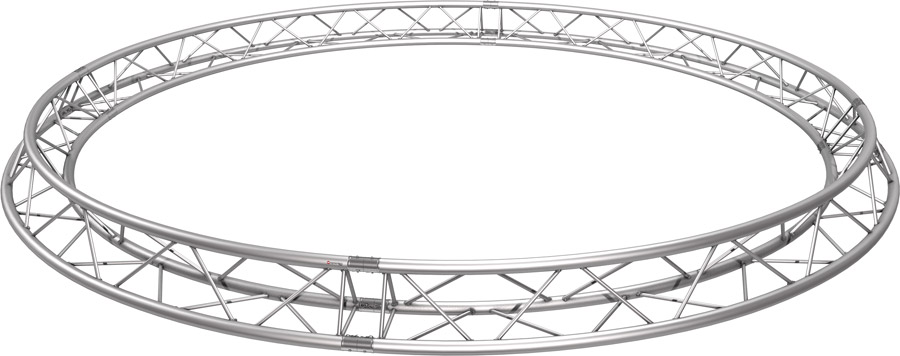

Circle FD 23 Tip Outside

Description	Length	Weight	Art.-or.
	cm	kg
FD 23 Tip Outside per running circular meter		2,10	301232001
FD 23 Tip Outside (4 x 90°)	200	13,19	301232020
FD 23 Tip Outside (4 x 90°)	300	19,78	301232030
FD 23 Tip Outside (4 x 90°)	400	26,38	301232040
FD 23 Tip Outside (8 x 45°)	500	32,97	301232050
FD 23 Tip Outside (8 x 45°)	600	39,56	301232060
FD 23 Tip Outside (8 x 45°)	700	46,20	301232070
FD 23 Tip Outside (8 x 45°)	800	52,75	301232080
FD 23 Tip Outside (12 x 30°)	900	59,35	301232090
FD 23 Tip Outside (12 x 30°)	1000	65,94	301232100

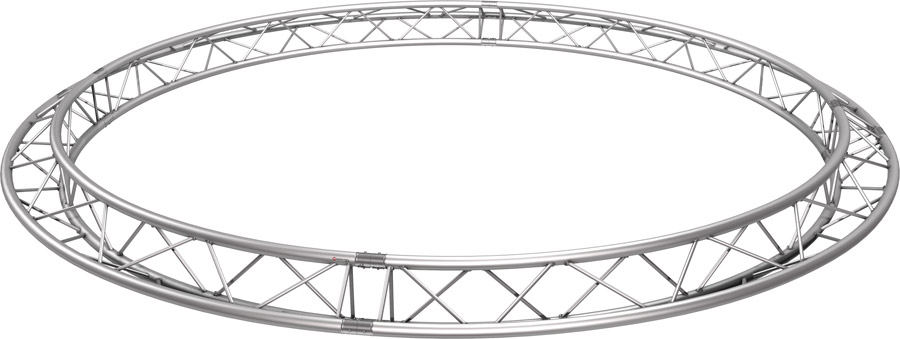

Circle FD 23 Tip Up/Down

Description	Length	Weight	Art.-No.
	cm	kg
FD 23 Tip Up/Down per running circular meter		2,10	301230001
FD 23 Tip Up/Down (4 x 90°)	200	13,19	301230020
FD 23 Tip Up/Down (4 x 90°)	300	19,78	301230030
FD 23 Tip Up/Down (4 x 90°)	400	26,38	301230040
FD 23 Tip Up/Down (8 x 45°)	500	32,97	301230050
FD 23 Tip Up/Down (8 x 45°)	600	39,56	301230060
FD 23 Tip Up/Down (8 x 45°)	700	46,20	301230070
FD 23 Tip Up/Down (8 x 45°)	800	52,75	301230080
FD 23 Tip Up/Down (12 x 30°)	900	59,35	301230090
FD 23 Tip Up/Down (12 x 30°)	1000	65,94	301230100
