FD 33 Trusses
Products Overview

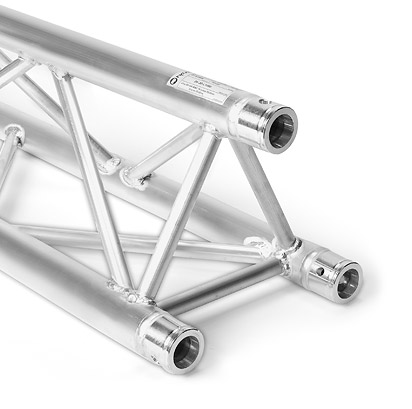

TÜV tested truss system in 3-point version, particularly suitable for the exhibitions and store constructions, as well as event technology and lighting systems. Through the use of a compact design and a high load capacity, this system is suited from simple exhibition stands up to highly complex rigging structures.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro FD 33 truss system is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Width: | 290 mm |
| Height: | 258 mm |
| Tube: | 50 x 2 mm |
| Diagonals: | 20 x 2 mm |
| Alloy: | EN-AW 6082 T6 |
Load Chart FD 33
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 1980,1 | 0,4 | 1584,0* | 0,5 |
| 2,0 | 988,0 | 3,2 | 1005,4 | 2,6 |
| 3,0 | 444,5 | 7,4 | 666,8 | 5,9 |
| 4,0 | 248,2 | 13,2 | 496,5 | 10,6 |
| 5,0 | 157,4 | 20,6 | 393,5 | 16,6 |
| 6,0 | 108,0 | 29,7 | 324,1 | 24,0 |
| 7,0 | 78,3 | 40,5 | 274,0 | 32,9 |
| 8,0 | 59,0 | 53,0 | 235,9 | 43,2 |
| 9,0 | 45,7 | 67,2 | 205,8 | 55,0 |
| 10,0 | 36,3 | 83,2 | 181,3 | 68,4 |
| 11,0 | 29,2 | 100,9 | 160,8 | 83,4 |
| 12,0 | 23,9 | 120,4 | 143,5 | 100,2 |
* limited by interaction with offset / decisive is the offset on the connector
High uniformly distributed loads are to be understood ideally distributed. The load application
has to be made in the knot. The load values are calculated using 10.9 bolts.
Straights, Corners and Elements FD 33
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||

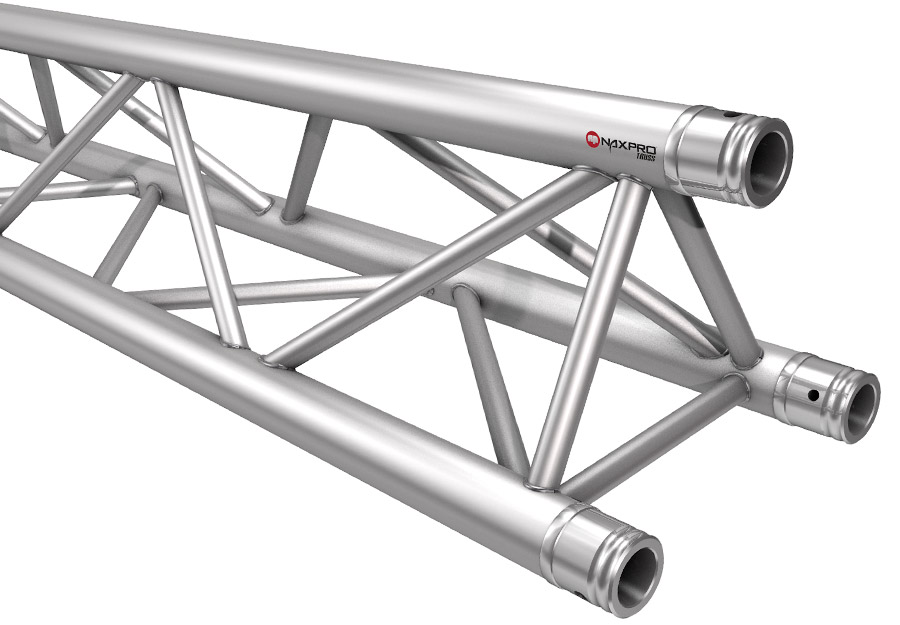

| 21 | 1,90 | 300330210 | 200 | 8,10 | 300332000 |
| 25 | 2,10 | 300330250 | 225 | 9,00 | 300332250 |
| 29 | 2,20 | 300330290 | 250 | 9,80 | 300332500 |
| 50 | 3,10 | 300330500 | 275 | 10,70 | 300332750 |
| 75 | 3,80 | 300330750 | 300 | 11,50 | 300333000 |
| 100 | 4,70 | 300331000 | 350 | 13,30 | 300333500 |
| 125 | 5,60 | 300331250 | 400 | 15,00 | 300334000 |
| 150 | 6,40 | 300331500 | 450 | 16,70 | 300334500 |
| 175 | 7,30 | 300331750 | 500 | 18,40 | 300335000 |
 |

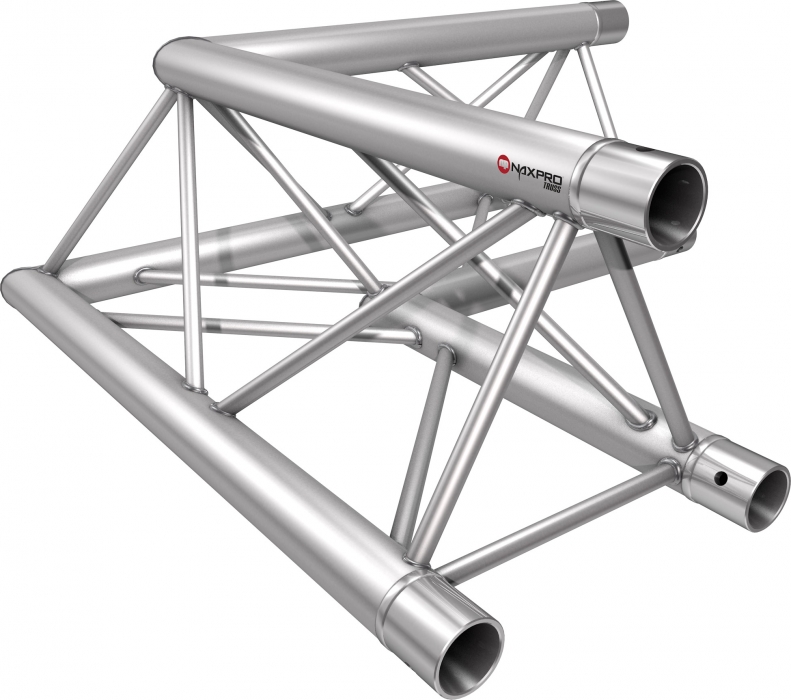

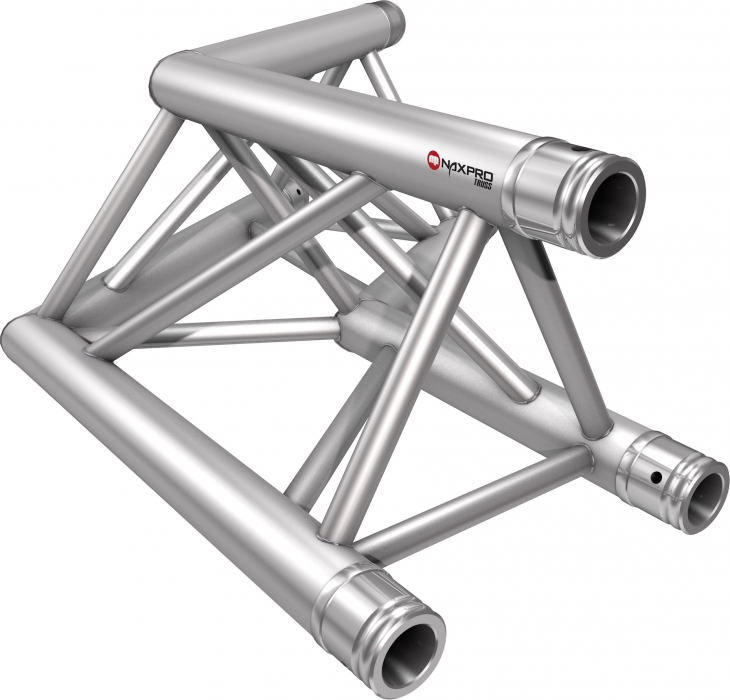

2 Way Corner 45°
Side length: 1000 mm
Weight: 7.2 kg
 |

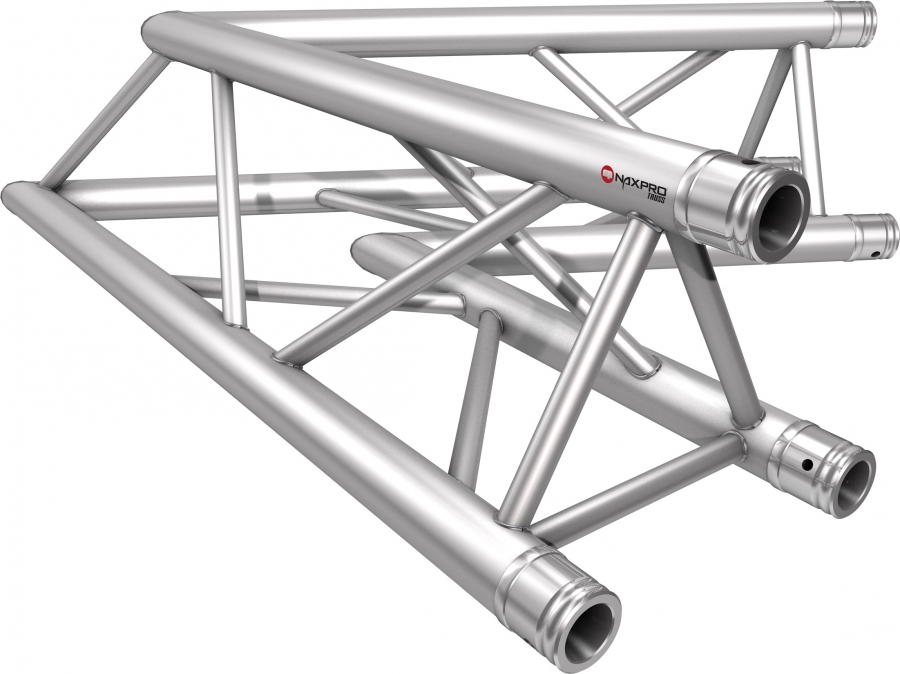

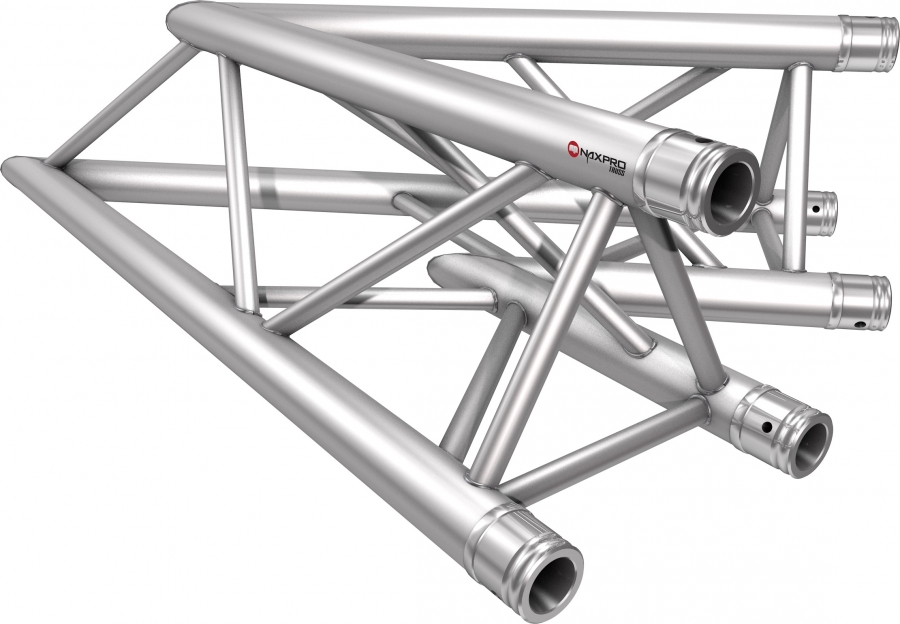

2 Way Corner 60°
Side length: 1000 mm
Weight: 7.2 kg
 |

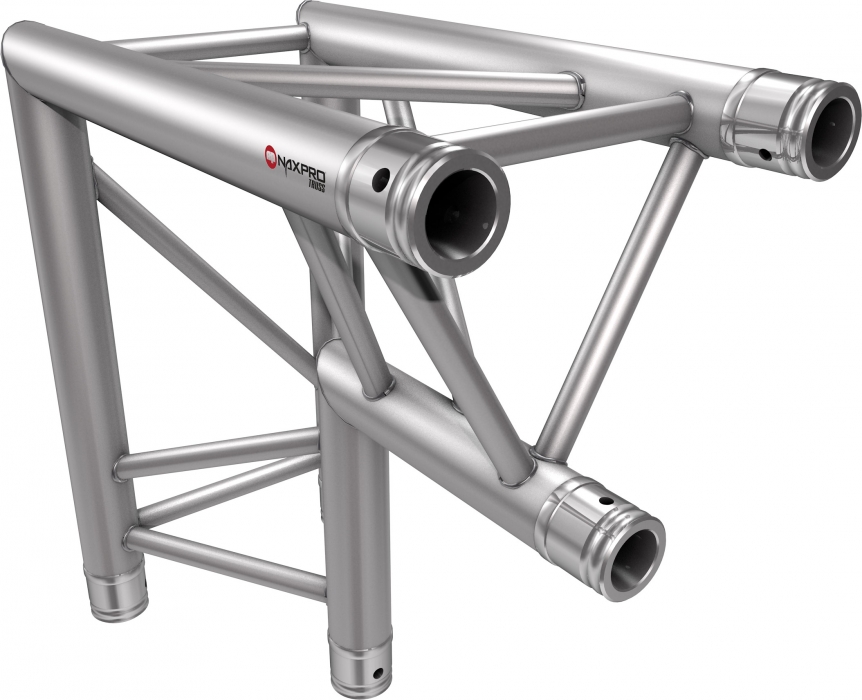

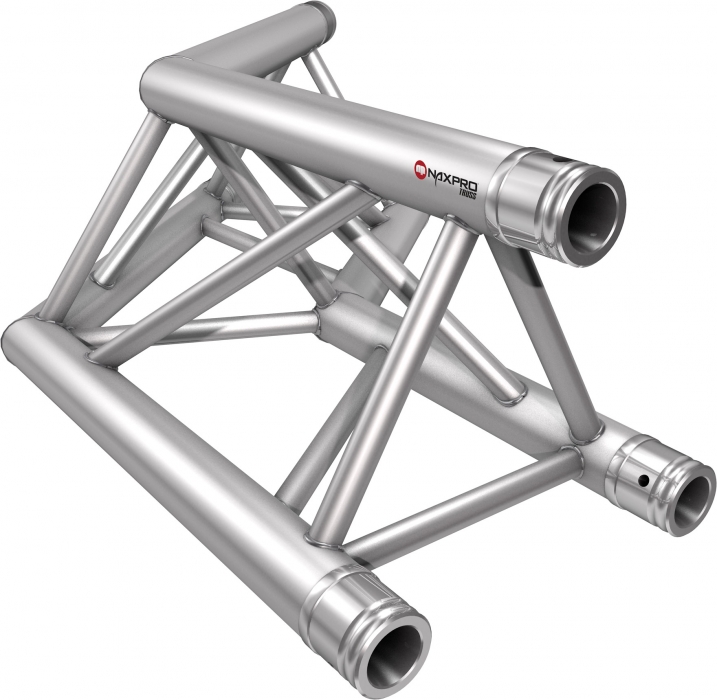

2 Way Corner 90°
Side length: 500 mm
Weight: 5.4 kg
 |
2 Way Corner 120°
Side length: 500 mm
Weight: 5.9 kg
 |
2 Way Corner 135°
Side length: 500 mm
Weight: 5.9 kg
 |

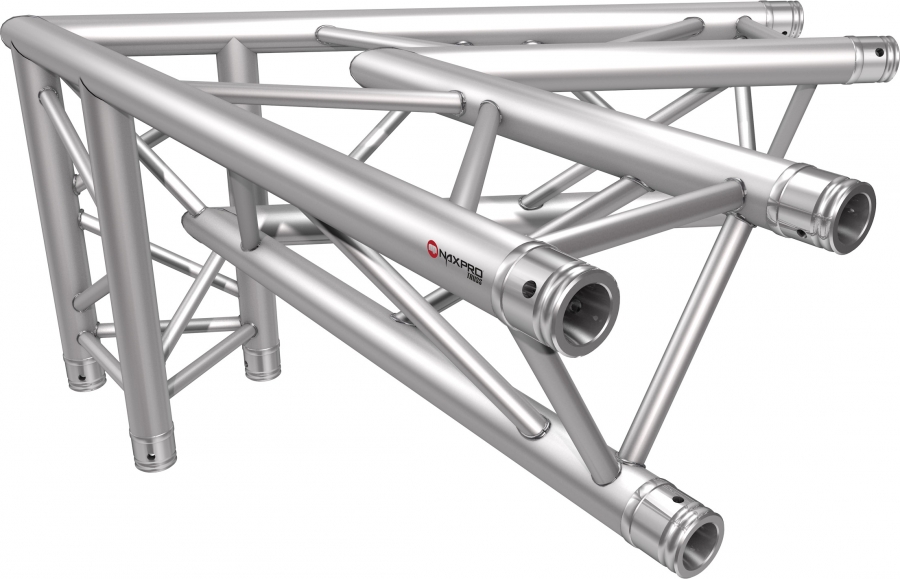

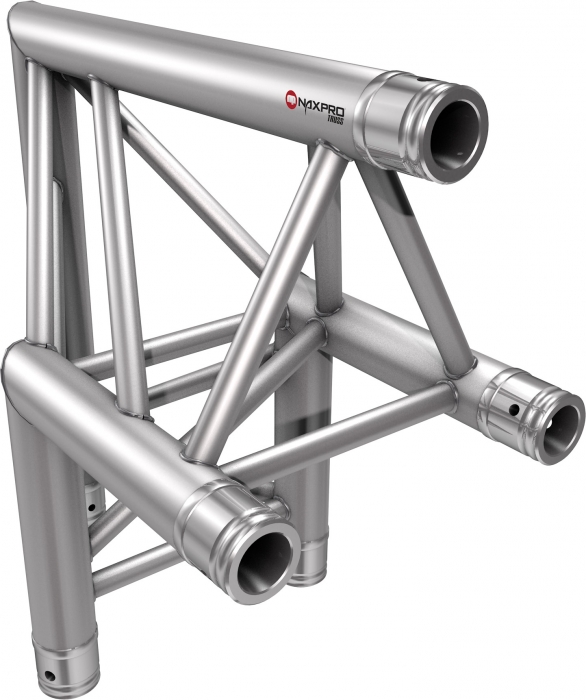

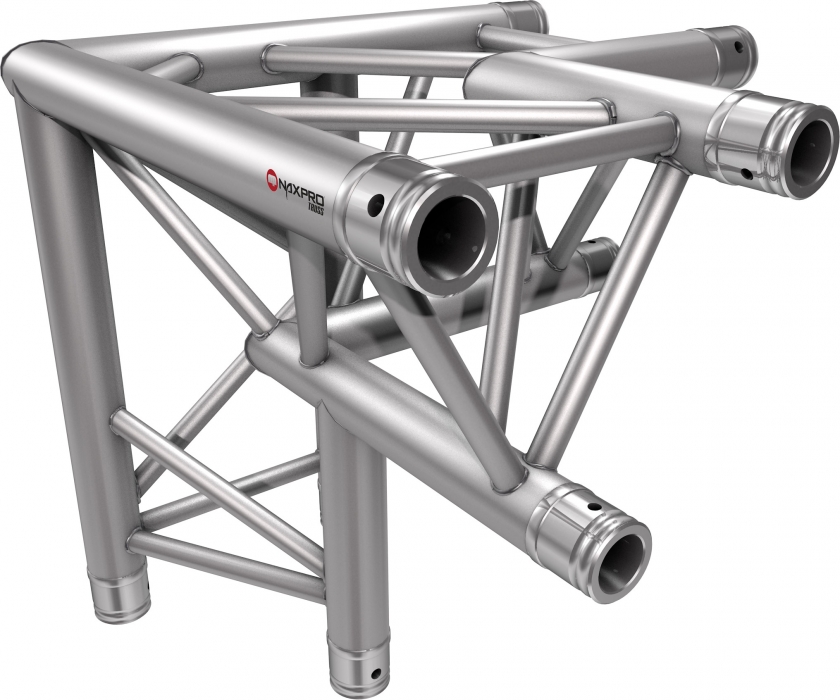

2 Way Corner 90° tip up
Side length: 500 mm
Weight: 5.3 kg
 |
2 Way Corner 90° tip down
Side length: 500 mm
Weight: 5.6 kg
 |
3 Way Corner 60°
Side length: 1000 | 500 mm
Weight: 10.4 kg
 |

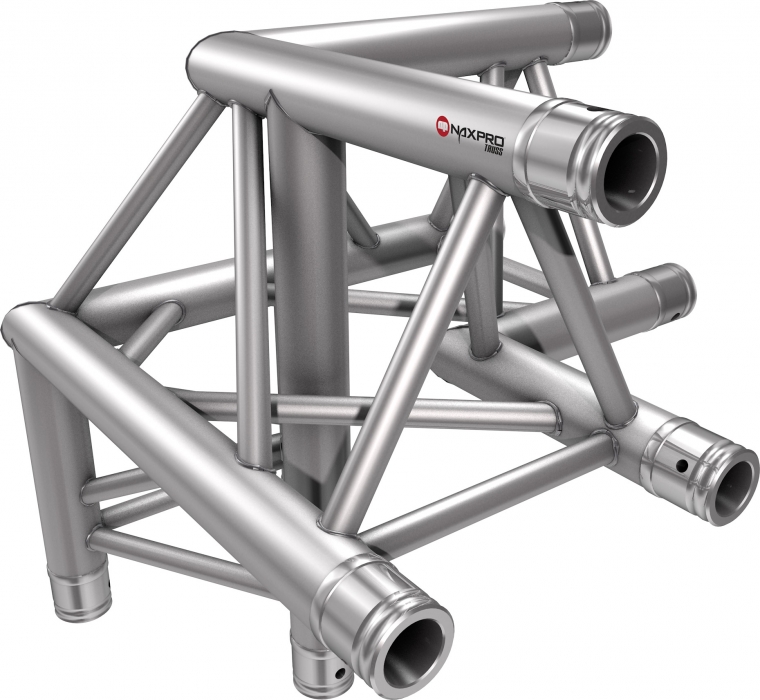

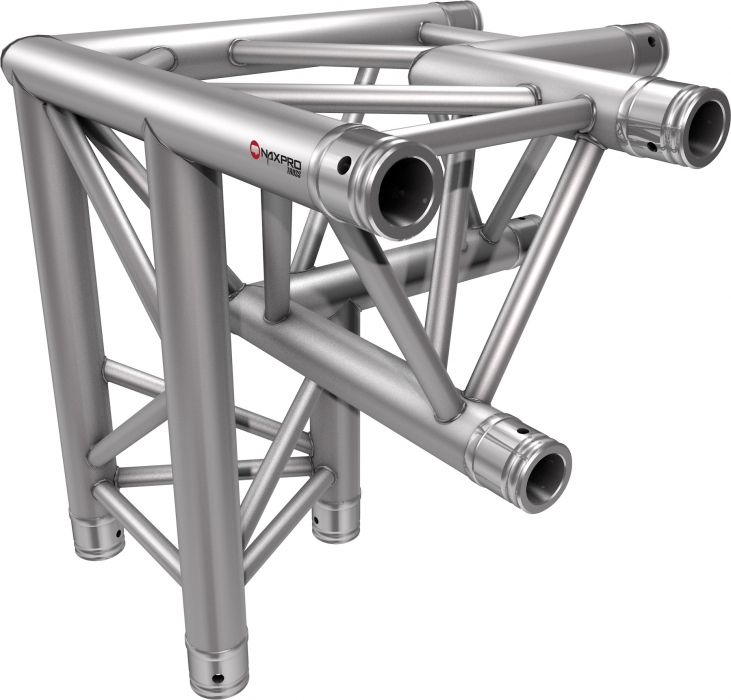

3 Way Corner 90° tip up-left
Side length: 500 mm
Weight: 8.4 kg
 |
3 Way Corner 90° tip up-right
Side length: 500 mm
Weight: 8.4 kg
 |

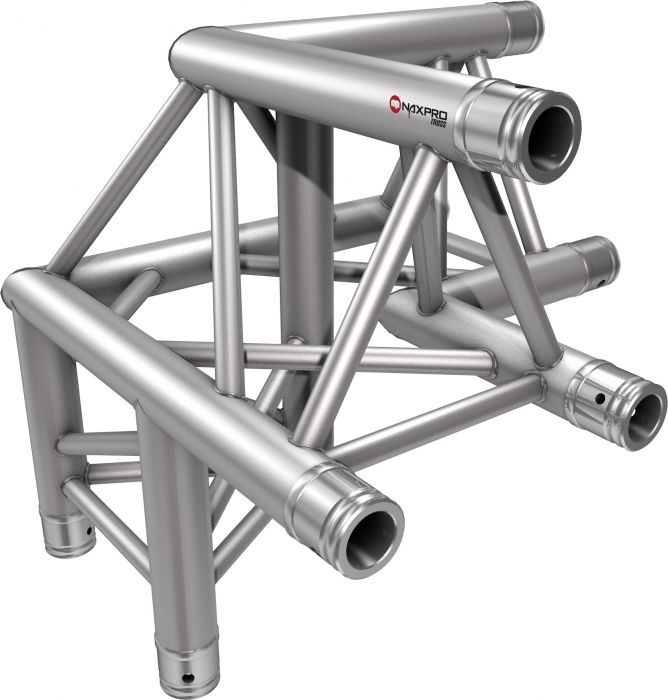

3 Way Corner 90° tip down-left
Side length: 500 mm
Weight: 8.4 kg
 |
3 Way Corner 90° tip down-right
Side length: 500 mm
Weight: 8.4 kg
 |

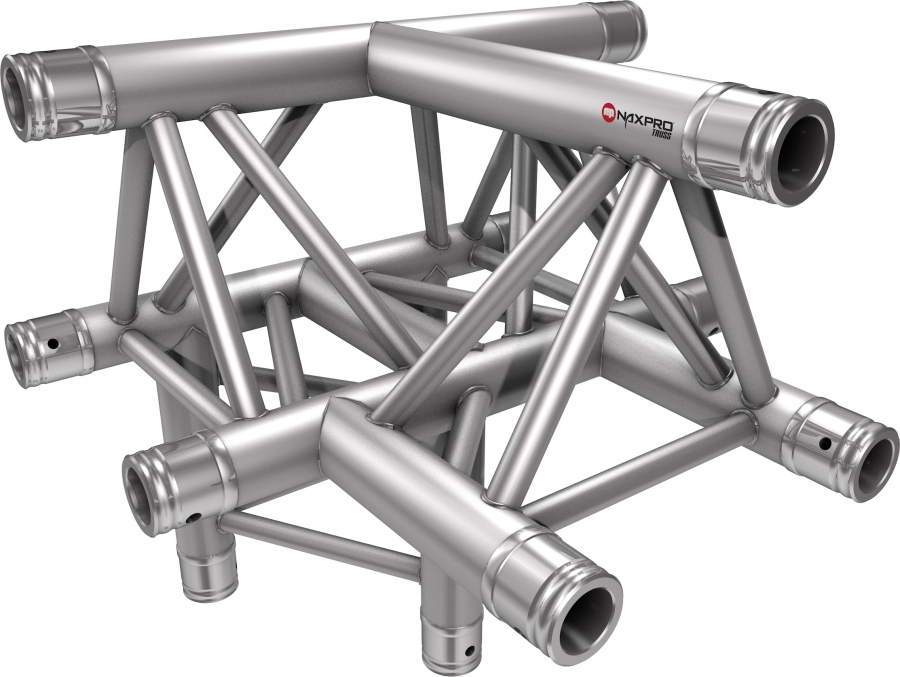

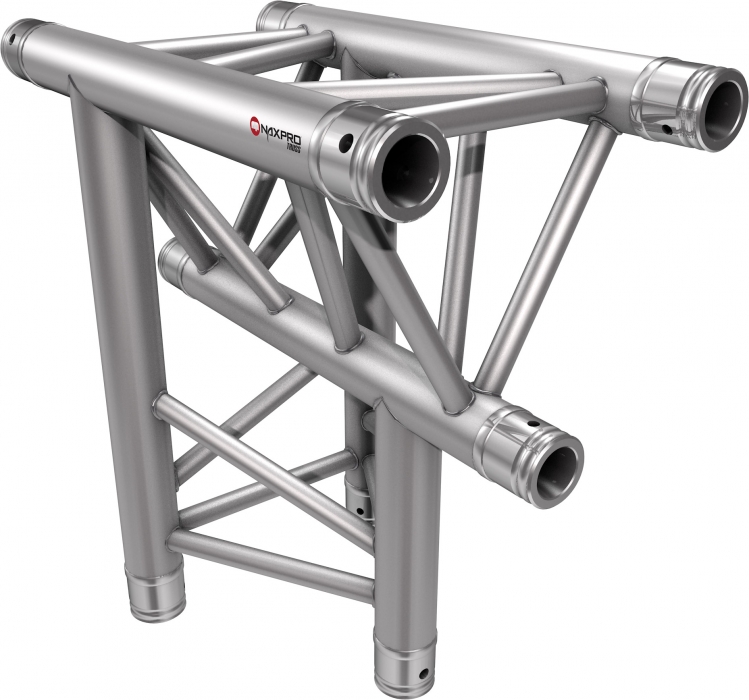

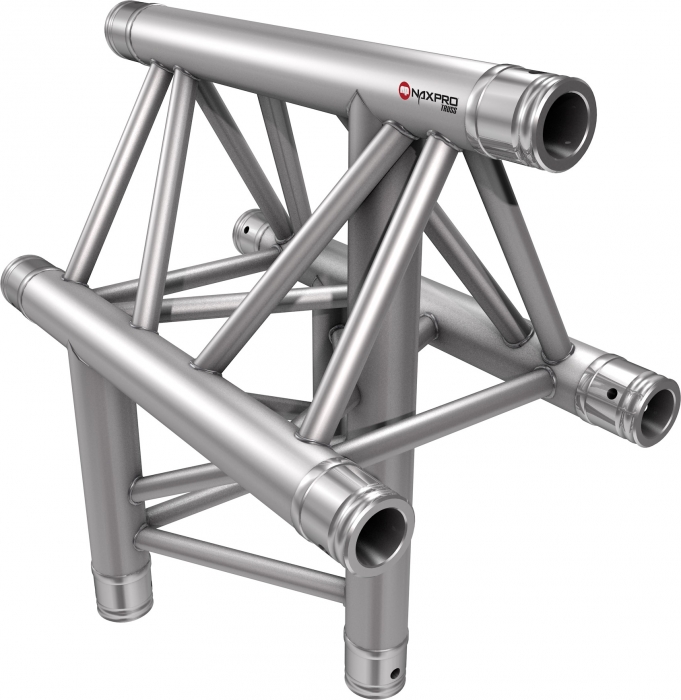

3 Way T-Piece 90° vertical
tip down
Side length: 500 mm
Weight: 7.3 kg
 |

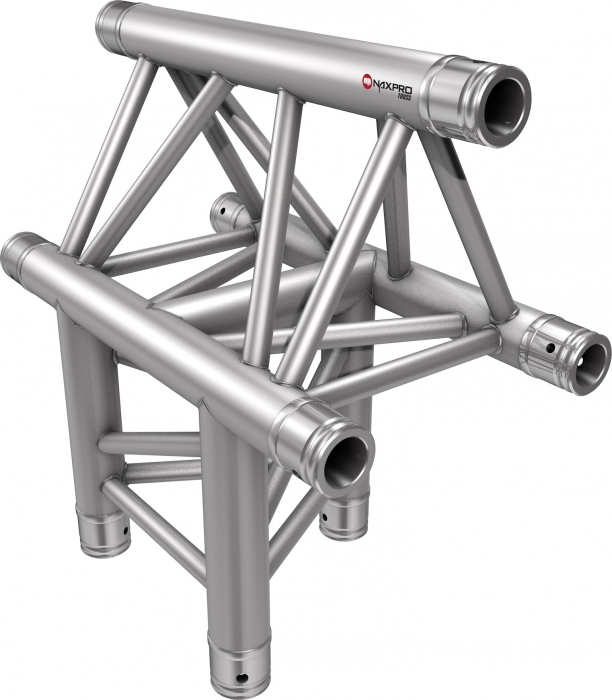

3 Way T-Piece 90° horizontal
Side length: 500 mm
Weight: 6.5 kg
 |

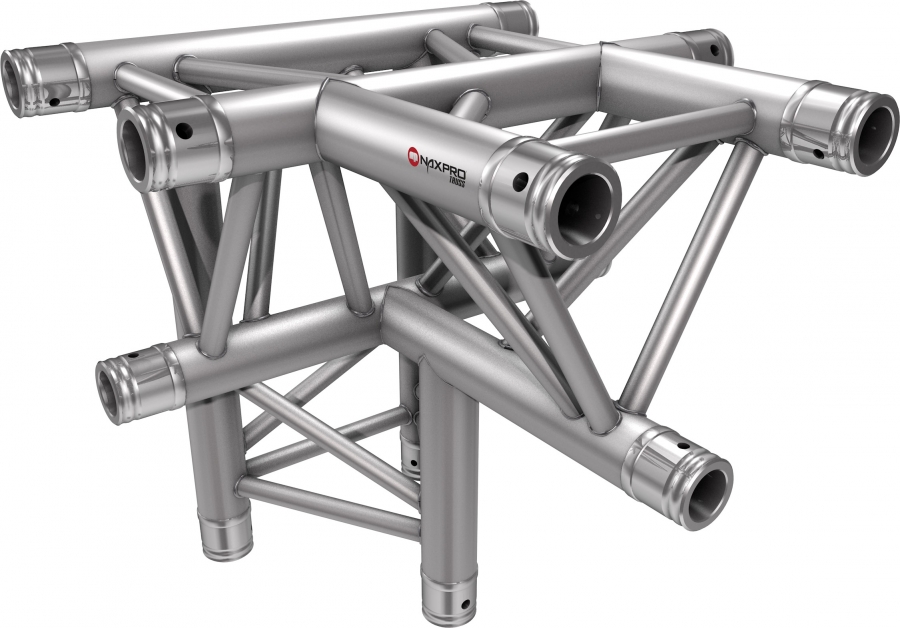

3 Way T-Piece 90° vertical
tip up
Side length: 500 mm
Weight: 7.3 kg
 |
3 Way T-Piece 90° vertical
tip down
Side length: 500 mm
Weight: 7.3 kg
 |
3 Way T-Piece 90° vertical
tip up
Side length: 500 mm
Weight: 7.3 kg
 |
4 Way Corner 60°
Side length: 1000 | 500 mm
Weight: 13.4 kg
 |

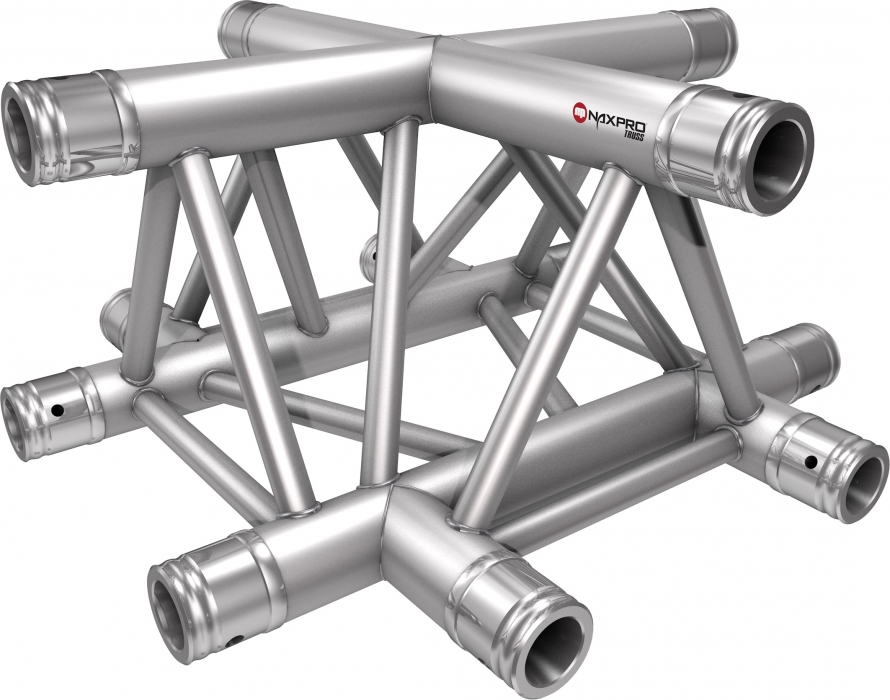

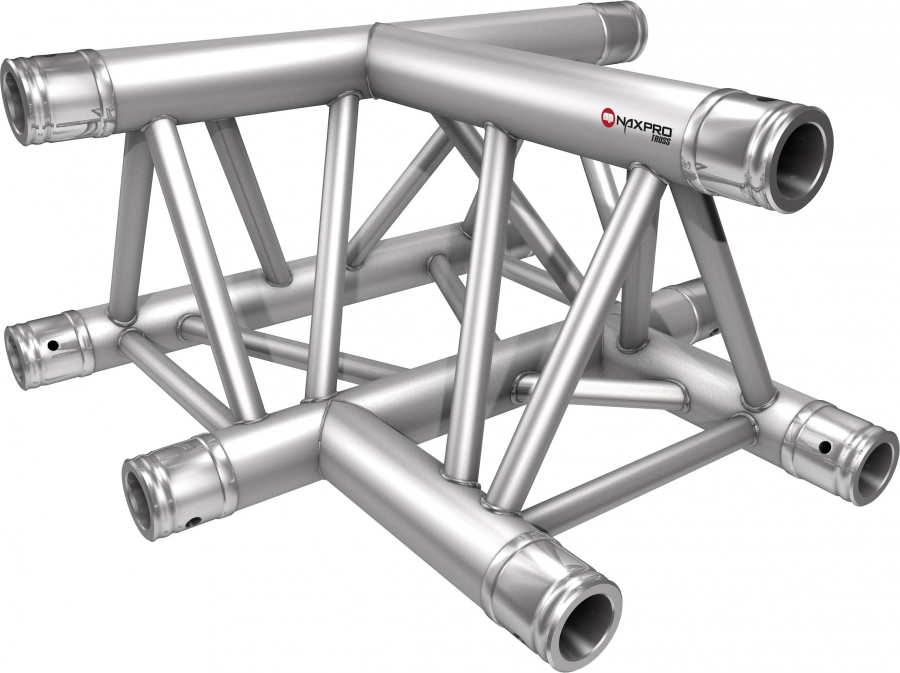

4 Way Cross 90°
Side length: 500 mm
Weight: 7.5 kg
 |

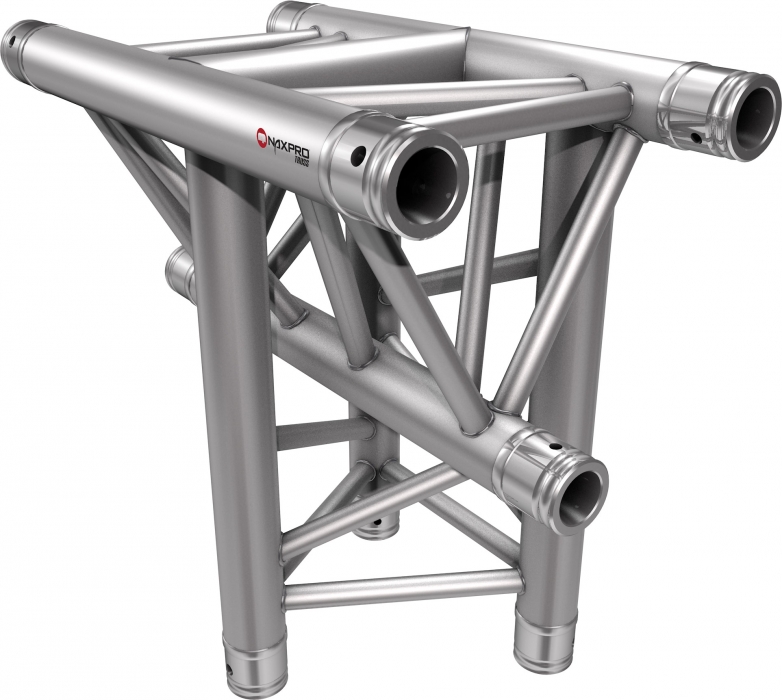

4 Way T-Piece 90° tip down
Side length: 500 mm
Weight: 9.2 kg
 |
4 Way T-Piece 90° tip up
Side length: 500 mm
Weight: 9.0 kg
 |

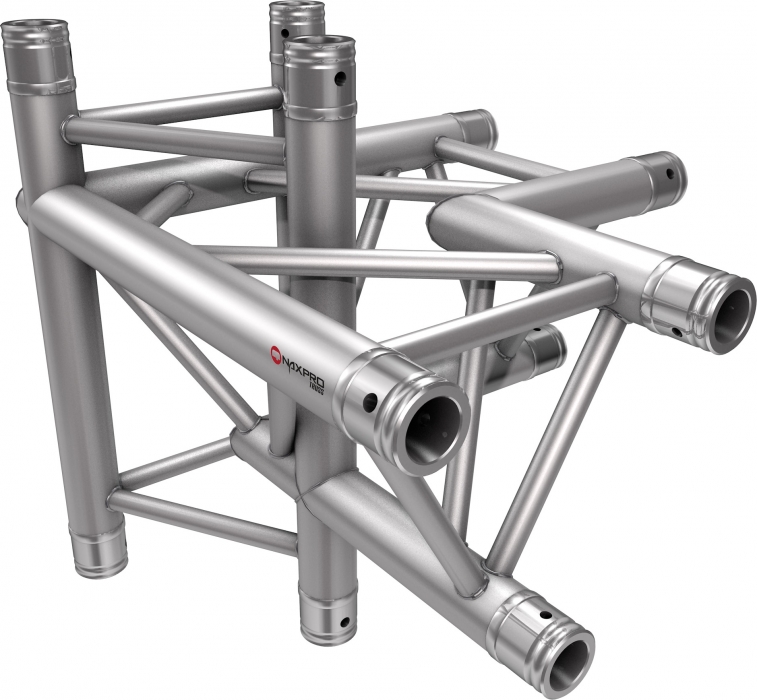

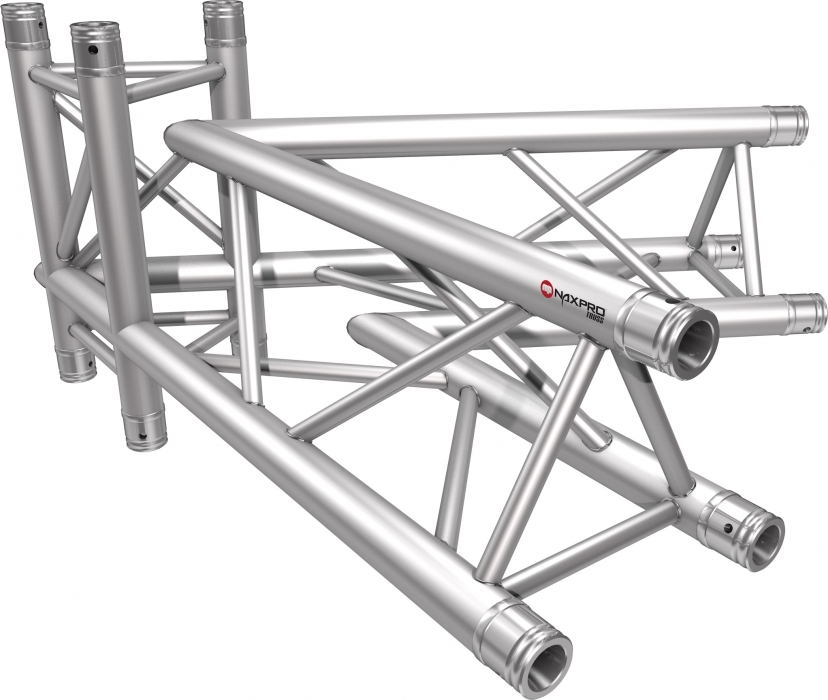

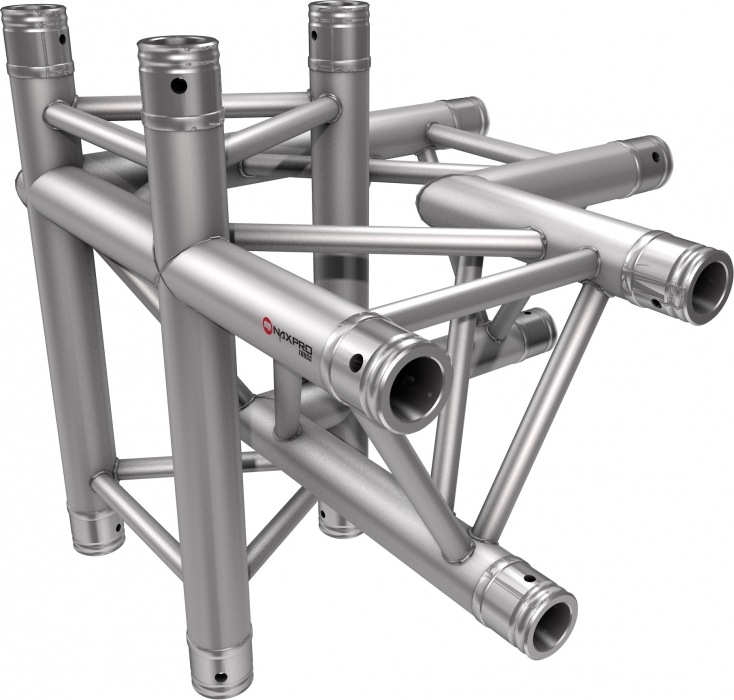

4 Way Corner 90° - left
Side length: 500 mm
Weight: 9.5 kg
 |
4 Way Corner 90° - right
Side length: 500 mm
Weight: 9.5 kg
 |
5 Way T-Piece 90°
Side length: 500 mm
Weight: 11.0 kg
 |

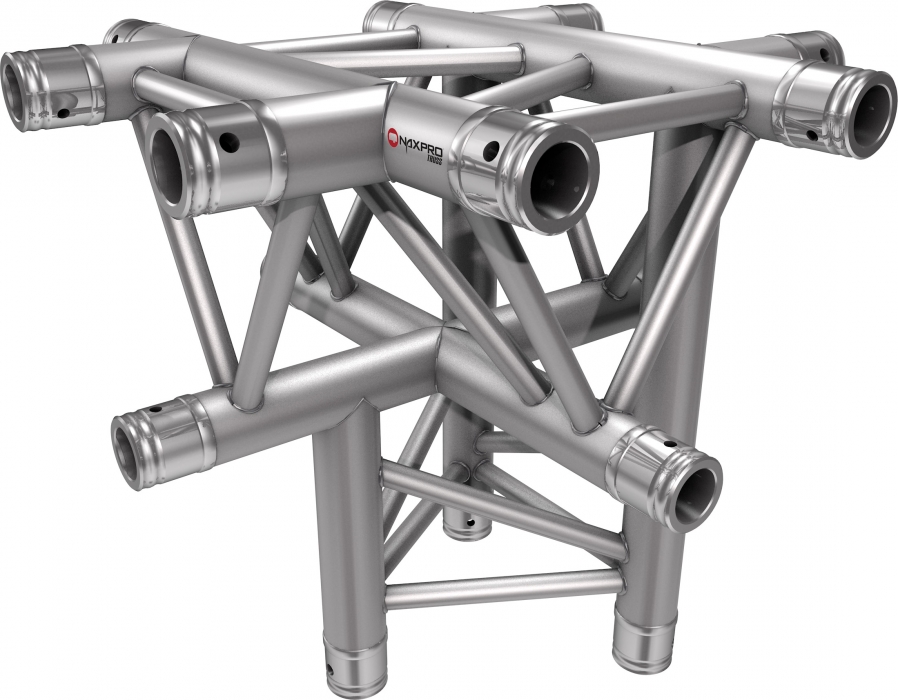

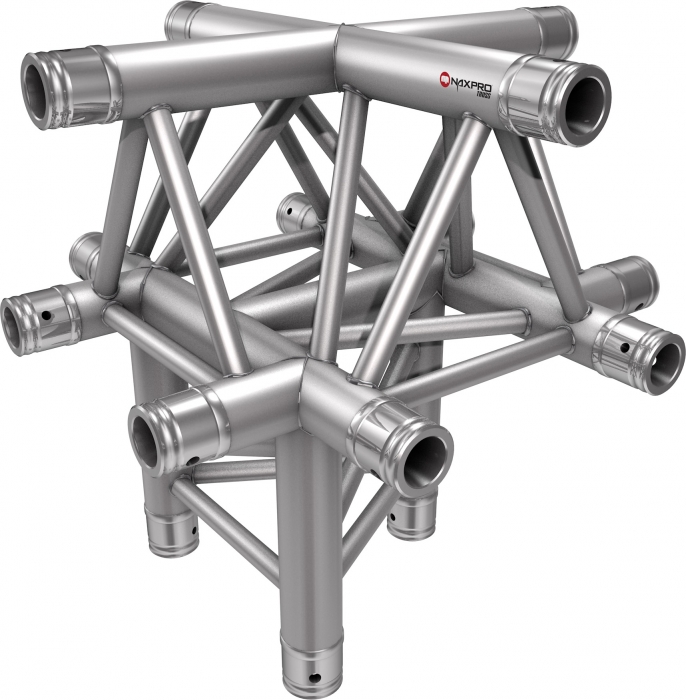

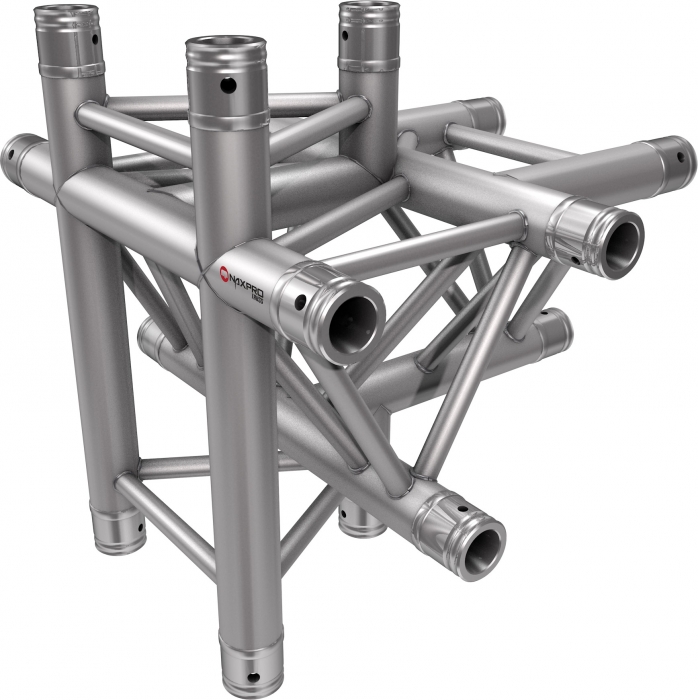

5 Way Cross 90° tip up
Side length: 500 mm
Weight: 11.0 kg
 |
5 Way Cross 90° tip down
Side length: 500 mm
Weight: 11.0 kg
 |

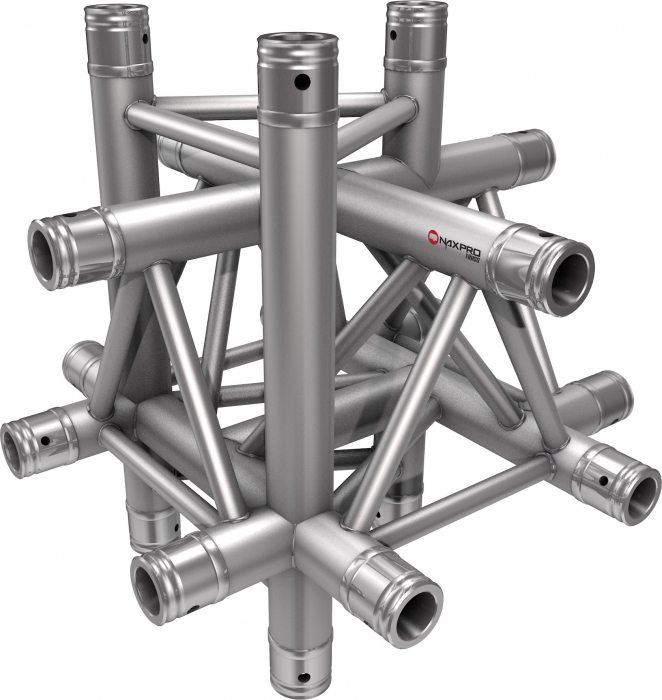

6 Way Cross 90°
Side length: 500 mm
Weight: 13.0 kg
 |

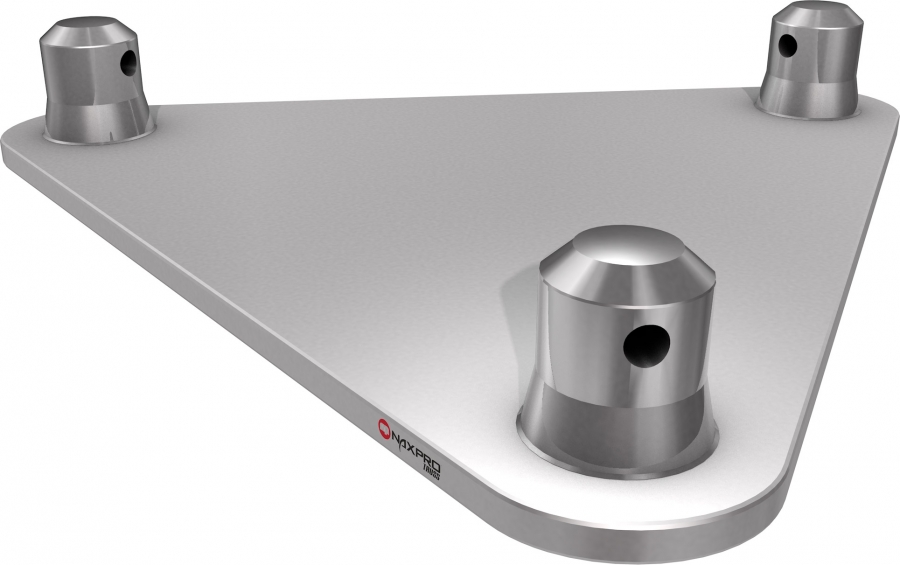

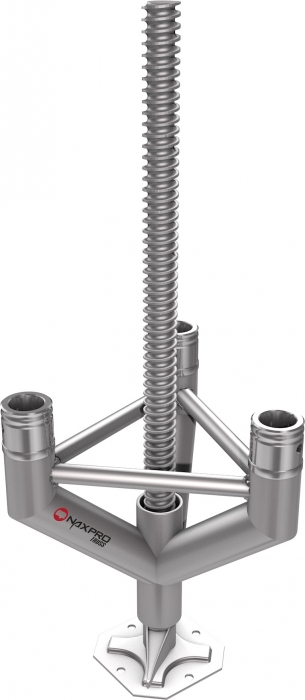

Dimensions: 313 x 280 x 5 mm
Weight: 1.3 kg
 |
Max. load capacity: 200 kg
Max. height: 700 mm
Min. height: 650 mm
Truss Circles FD 33
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||

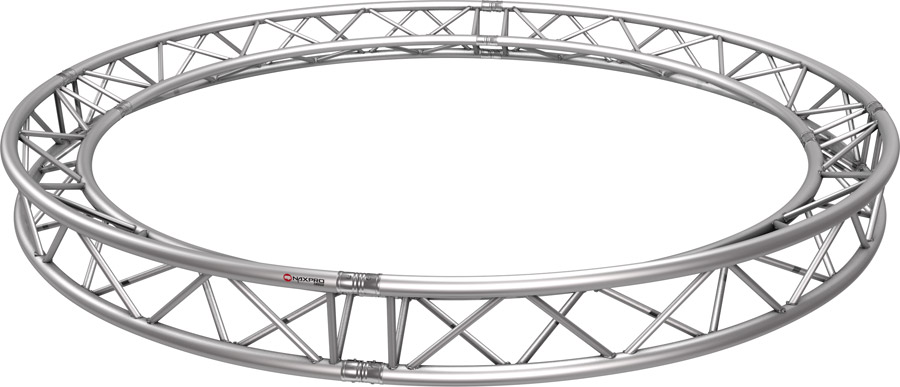

| FD 33 Tip Inside per running circular meter | 4,10 | 301331001 | |
| FD 33 Tip Inside (4 x 90°) | 200 | 25,75 | 301331020 |
| FD 33 Tip Inside (4 x 90°) | 300 | 38,62 | 301331030 |
| FD 33 Tip Inside (4 x 90°) | 400 | 51,50 | 301331040 |
| FD 33 Tip Inside (8 x 45°) | 500 | 64,37 | 301331050 |
| FD 33 Tip Inside (8 x 45°) | 600 | 77,24 | 301331060 |
| FD 33 Tip Inside (8 x 45°) | 700 | 90,20 | 301331070 |
| FD 33 Tip Inside (8 x 45°) | 800 | 102,99 | 301331080 |
| FD 33 Tip Inside (12 x 30°) | 900 | 115,87 | 301331090 |
| FD 33 Tip Inside (12 x 30°) | 1000 | 128,74 | 301331100 |
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||

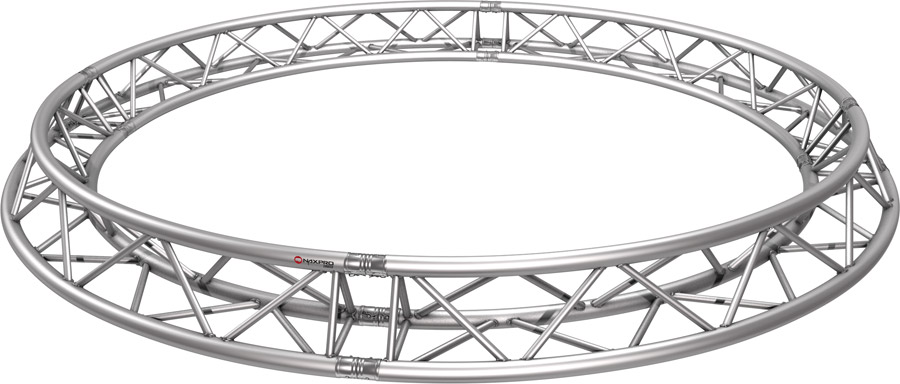

| FD 33 Tip Outside per running circular meter | 4,10 | 301332001 | |
| FD 33 Tip Outside (4 x 90°) | 200 | 25,75 | 301332020 |
| FD 33 Tip Outside (4 x 90°) | 300 | 38,62 | 301332030 |
| FD 33 Tip Outside (4 x 90°) | 400 | 51,50 | 301332040 |
| FD 33 Tip Outside (8 x 45°) | 500 | 64,37 | 301332050 |
| FD 33 Tip Outside (8 x 45°) | 600 | 77,24 | 301332060 |
| FD 33 Tip Outside (8 x 45°) | 700 | 90,20 | 301332070 |
| FD 33 Tip Outside (8 x 45°) | 800 | 102,99 | 301332080 |
| FD 33 Tip Outside (12 x 30°) | 900 | 115,87 | 301332090 |
| FD 33 Tip Outside (12 x 30°) | 1000 | 128,74 | 301332100 |
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||

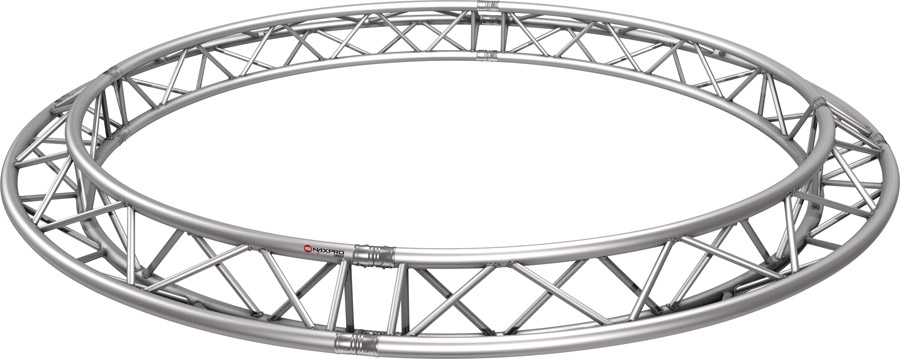

| FD 33 Tip Up/Down per running circular meter | 4,10 | 301330001 | |
| FD 33 Tip Up/Down (4 x 90°) | 200 | 25,75 | 301330020 |
| FD 33 Tip Up/Down (4 x 90°) | 300 | 38,62 | 301330030 |
| FD 33 Tip Up/Down (4 x 90°) | 400 | 51,50 | 301330040 |
| FD 33 Tip Up/Down (8 x 45°) | 500 | 64,37 | 301330050 |
| FD 33 Tip Up/Down (8 x 45°) | 600 | 77,24 | 301330060 |
| FD 33 Tip Up/Down (8 x 45°) | 700 | 90,20 | 301330070 |
| FD 33 Tip Up/Down (8 x 45°) | 800 | 102,99 | 301330080 |
| FD 33 Tip Up/Down (12 x 30°) | 900 | 115,87 | 301330090 |
| FD 33 Tip Up/Down (12 x 30°) | 1000 | 128,74 | 301330100 |
