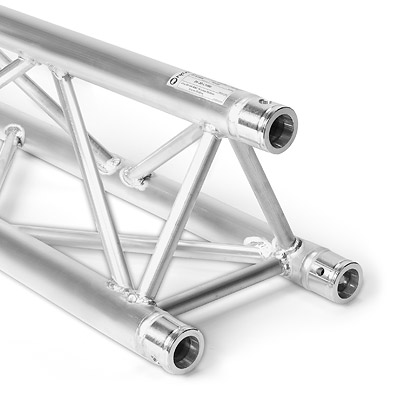

FHD 33+ Trusses

The FHD 33+ truss system is an absolute novelty in the event industry and revolutionizes by its innovative design and the relationship between load and handling.



Contrary to the conventional FD 33 series, which is equipped with three 2 mm-thick main pipes, FHD 33+ offers a main pipe in 4 mm wall thickness. The resulting benefits are obvious: FHD 33+ combines the logistical advantage of a 3-point truss system with the high load values of a 4-point version - savings in transport and cost are the result. But that's not all: Naxpro Truss FHD 33+ remains despite the twice as high load capacity compared to its direct brother FD 33, fully compatible with FD / HD 33 and thus allows unprecedented flexibility at little truckspace.

The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro-Truss FHD 33+ truss system is available in all RAL-colours and custom constructions.

Certified Safety

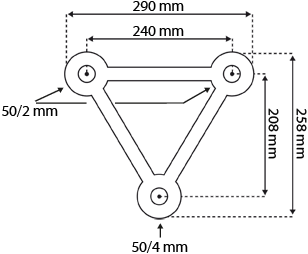

Dimensions

Specifications

Width:	290 mm
Height:	258 mm
Tube:	2 pcs. 50 x 2 mm 1 pcs. 50 x 4 mm
Diagonals:	20 x 2 mm
Alloy:	EN-AW 6082 T6
