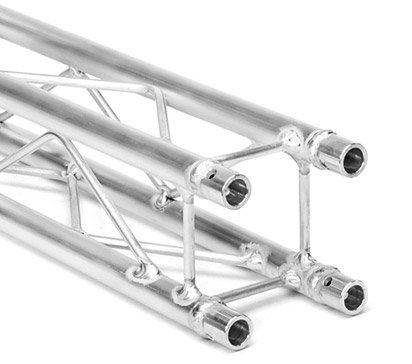

FD 14 Trusses
Products Overview
Small truss system in 4-point version, which is due to its minimized design especially suitable for applications at home and the domestic environment. It enables a creative and modern way to construct frames for canvases, photos, suspensions, lamp carriers, speaker stands and trellises for climbing plants. Also small exhibition stands, display applications and advertising structures are easy to realize with the Naxpro FD 14 truss system.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro FD 14 truss system is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Width: | 100 mm |
| Height: | 100 mm |
| Tube: | 20 x 2 mm |
| Diagonals: | 6 mm |
| Alloy: | EN-AW 6060 T66 |
Load Chart FD 14
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 195,0 | 0,5 | 195,0 | 0,8 |
| 2,0 | 96,7 | 3,9 | 135,2 | 4,3 |
| 3,0 | 59,3 | 12,1 | 88,9 | 9,8 |
| 4,0 | 32,7 | 21,6 | 65,3 | 17,5 |
| 5,0 | 20,4 | 33,9 | 50,9 | 27,6 |
High uniformly distributed loads are to be understood ideally distributed. The load application
has to be made in the knot.

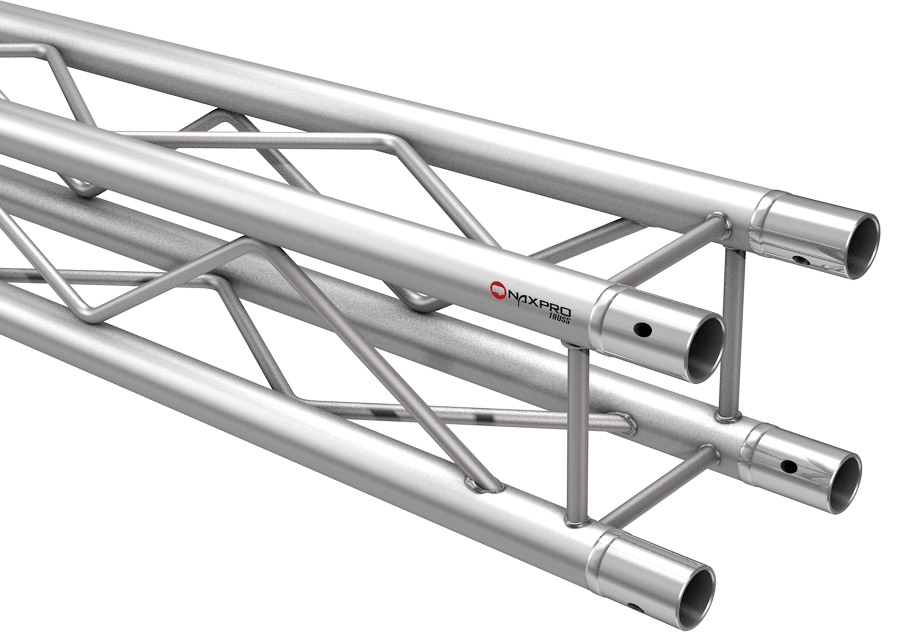

Straights, Corners and Elements FD 14
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 50 | 1,0 | 300140500 | 180 | 3,1 | 300141800 |
| 80 | 1,5 | 300140800 | 200 | 3,5 | 300142000 |
| 100 | 1,8 | 300141000 | 250 | 4,1 | 300142500 |
| 150 | 2,6 | 300141500 | 300 | 4,9 | 300143000 |
 |

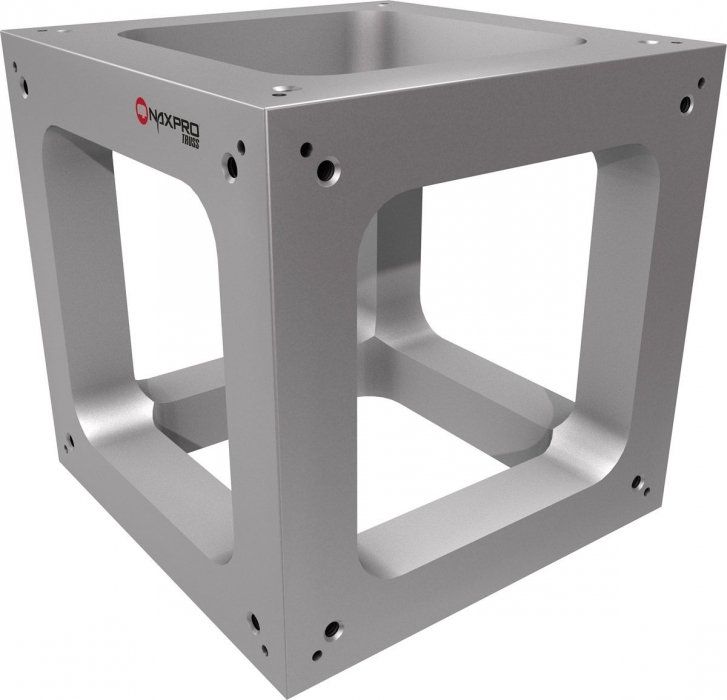

Boxcorner incl. 8 connectors
Side length: 100 mm
Weight: 2.8 kg
 |

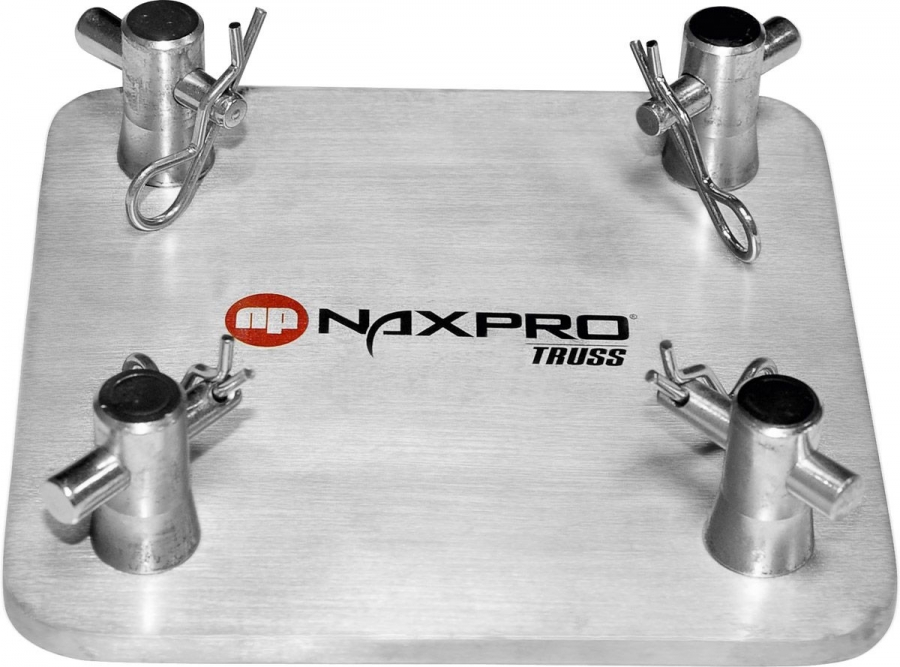

Dimensions: 100 x 100 x 5 mm
Weight: 0.23 kg
Truss Circles FD 14
