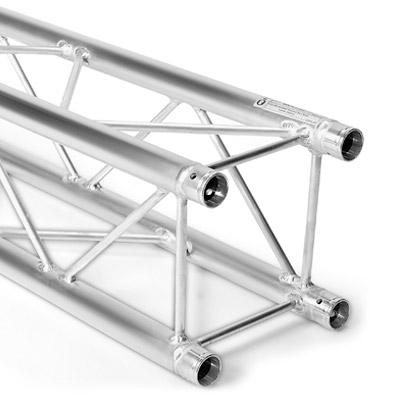

FD 24 Trusses
Products Overview
Truss system in 4-point version, which despite of its small tube-diameter of only 35 mm finds professional use in the event industry as well as in exhibition stands and store constructions. Even though the dimensions are small, there is enough space for lighting and advertising.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro FD 24 truss system is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Width: | 220 mm |
| Height: | 220 mm |
| Tube: | 35 x 2 mm |
| Diagonals: | 10 x 2 mm |
| Alloy: | EN-AW 6060 T66 |
Load Chart FD 24
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 577,6 | 0,1 | 577,6 | 0,2 |
| 2,0 | 287,2 | 1,2 | 574,5 | 1,9 |
| 3,0 | 190,4 | 4,0 | 484,7 | 5,4 |
| 4,0 | 142,1 | 9,4 | 360,8 | 9,6 |
| 5,0 | 113,0 | 18,4 | 285,8 | 15,0 |
| 6,0 | 78,4 | 26,9 | 235,3 | 21,7 |
| 7,0 | 56,8 | 36,6 | 198,8 | 29,7 |
| 8,0 | 42,8 | 47,9 | 171,0 | 39,1 |
| 9,0 | 33,1 | 60,8 | 149,1 | 49,8 |
| 10,0 | 26,2 | 75,2 | 131,2 | 61,9 |
High uniformly distributed loads are to be understood ideally distributed. The load application
has to be made in the knot.

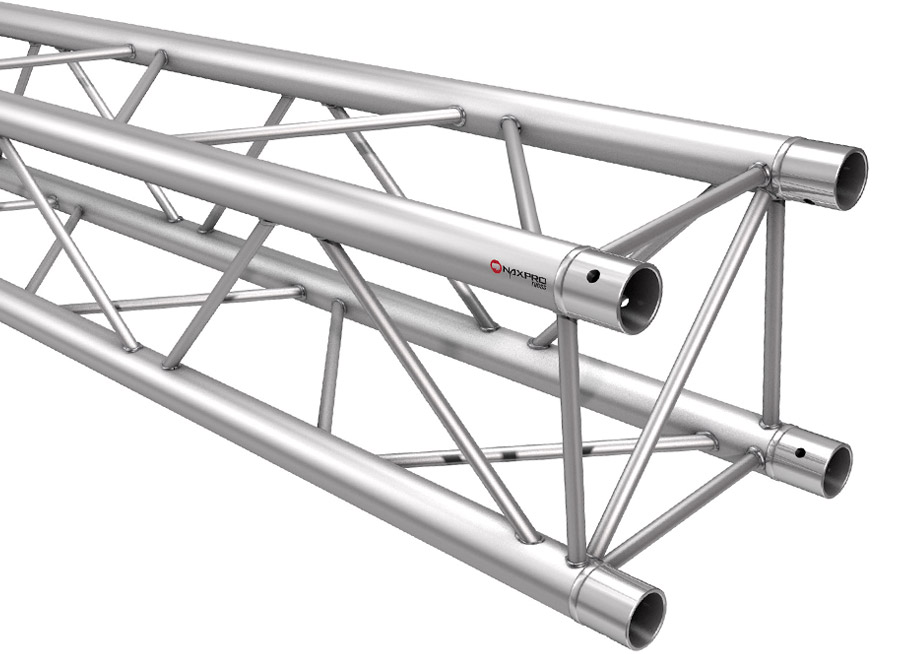

Straights, Corners and Elements FD 24
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 25 | 1,50 | 300240250 | 150 | 5,30 | 300241500 |
| 28 | 1,60 | 300240280 | 175 | 5,70 | 300241750 |
| 50 | 2,30 | 300240500 | 200 | 6,50 | 300242000 |
| 56 | 2,40 | 300240560 | 250 | 8,40 | 300242500 |
| 75 | 3,00 | 300240750 | 300 | 9,80 | 300243000 |
| 100 | 3,90 | 300241000 | 350 | 11,10 | 300243500 |
| 125 | 4,50 | 300241250 | 400 | 12,80 | 300244000 |
 |

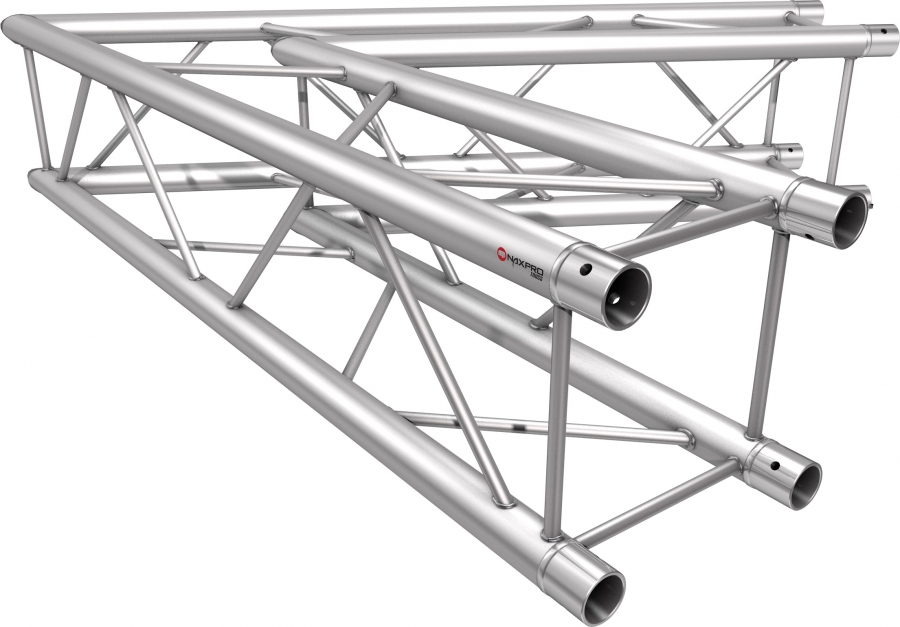

2 Way Corner 45°
Side length: 1000 mm
Weight: 3.5 kg
 |

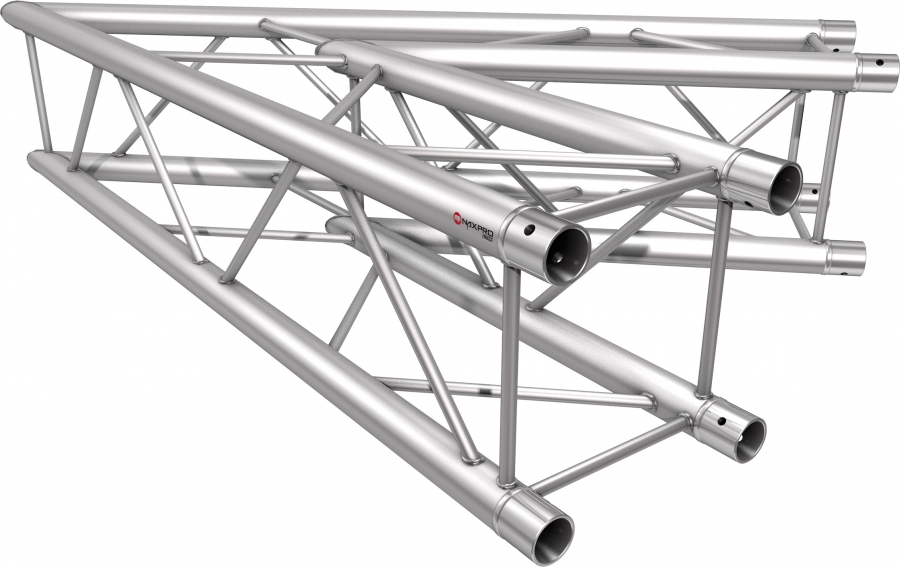

2 Way Corner 60°
Side length: 1000 mm
Weight: 3.3 kg
 |

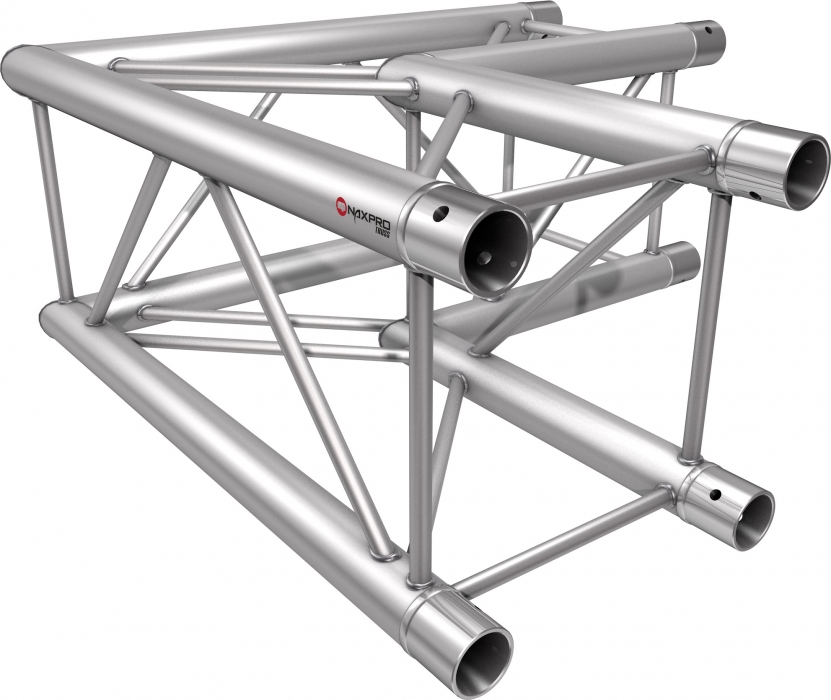

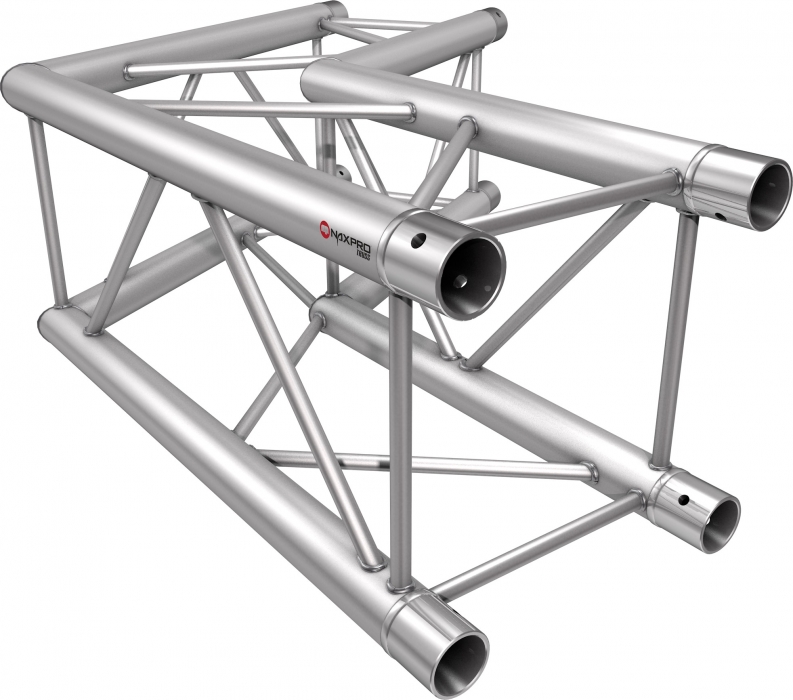

2 Way Corner 90°
Side length: 500 mm
Weight: 2.9 kg
 |
2 Way Corner 120°
Side length: 500 mm
Weight: 2.9 kg
 |

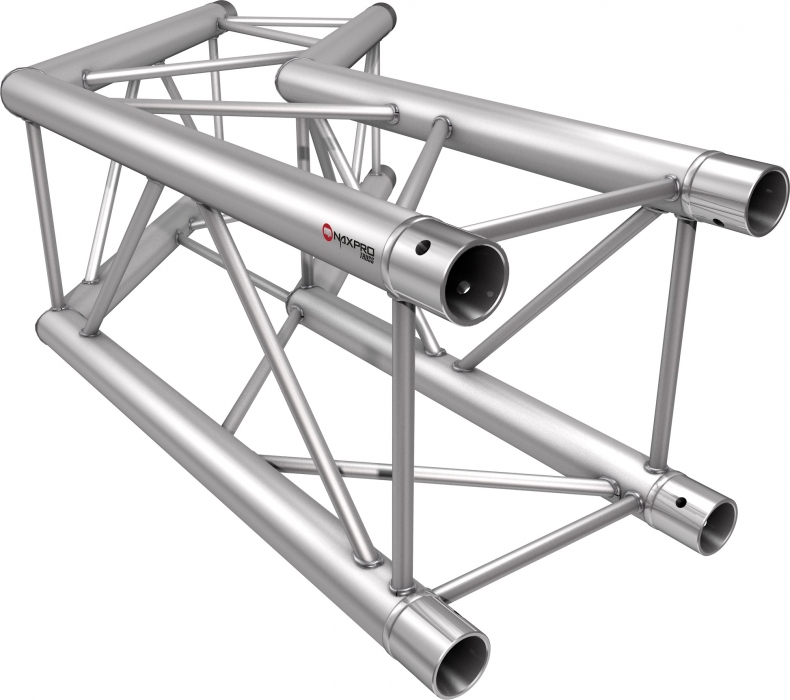

2 Way Corner 135°
Side length: 500 mm
Weight: 2.9 kg
 |

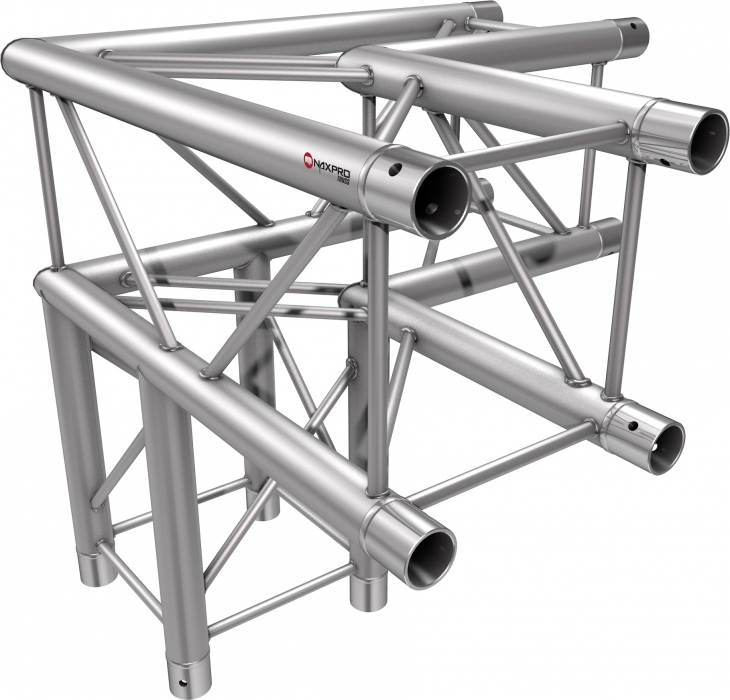

3 Way Corner 90°
Side length: 500 mm
Weight: 4.0 kg
 |
3 Way T-Piece 90°
Side length: 500 mm
Weight: 4.0 kg
 |

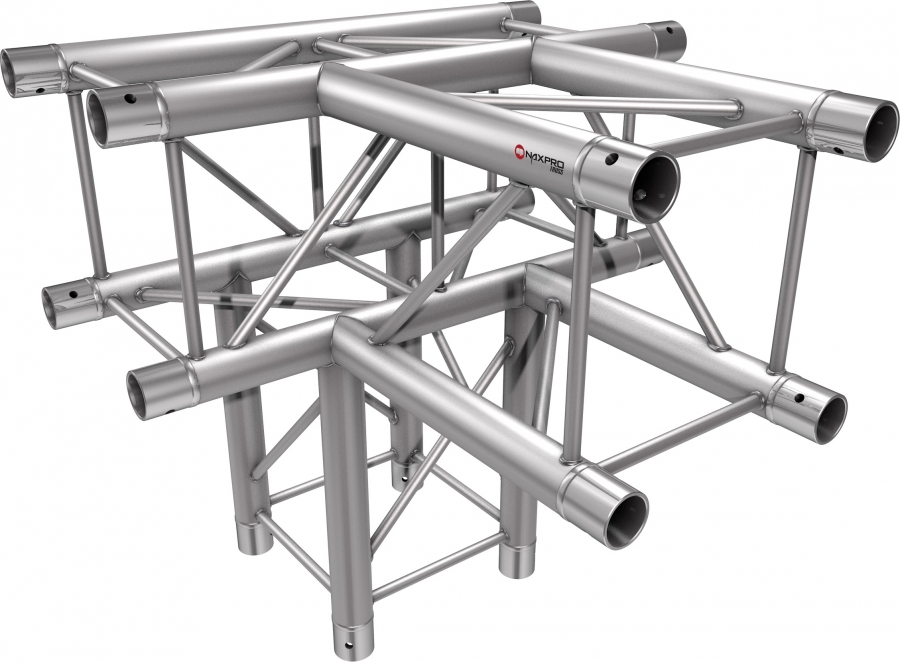

4 Way T-Piece 90°
Side length: 500 mm
Weight: 4.5 kg
 |

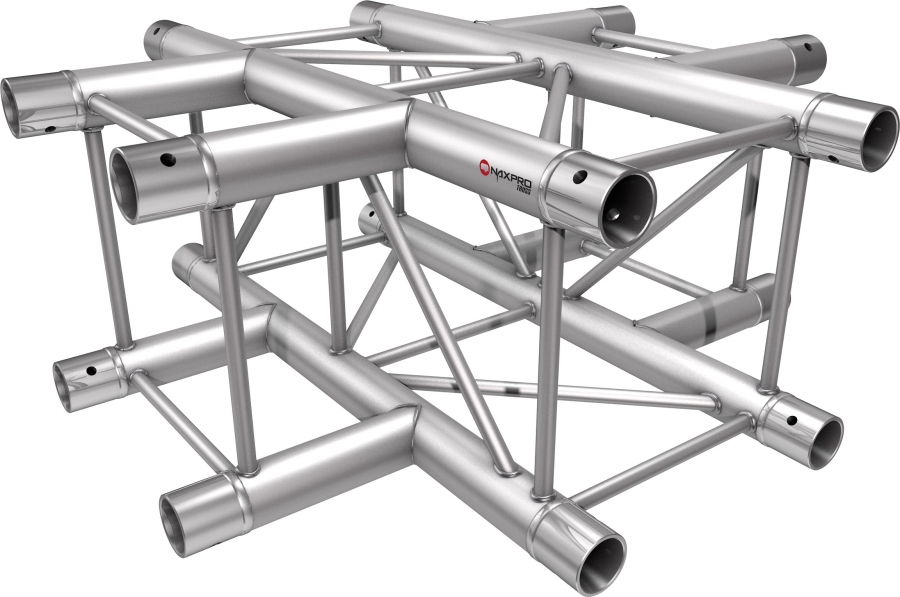

4 Way Cross 90°
Side length: 500 mm
Weight: 4.5 kg
 |

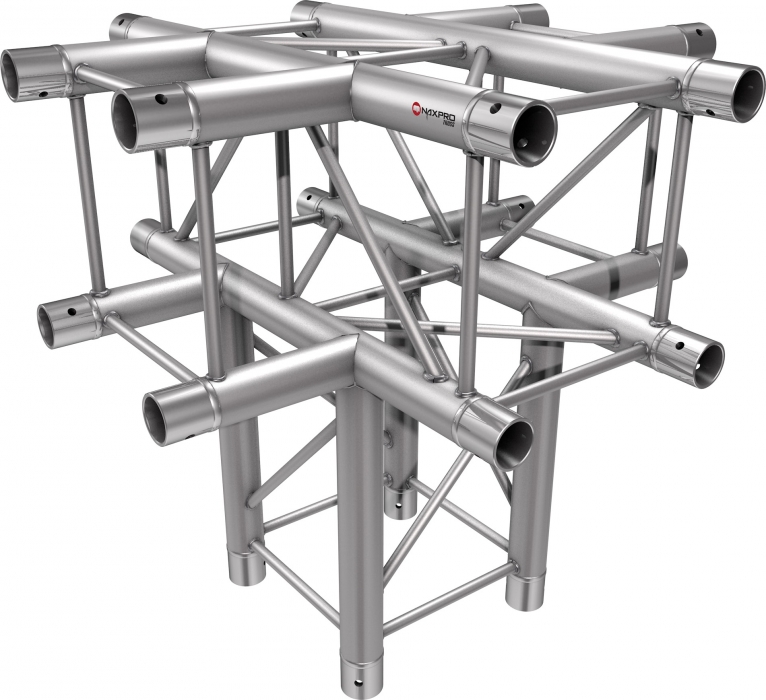

5 Way T-Piece 90°
Side length: 500 mm
Weight: 5.0 kg
 |

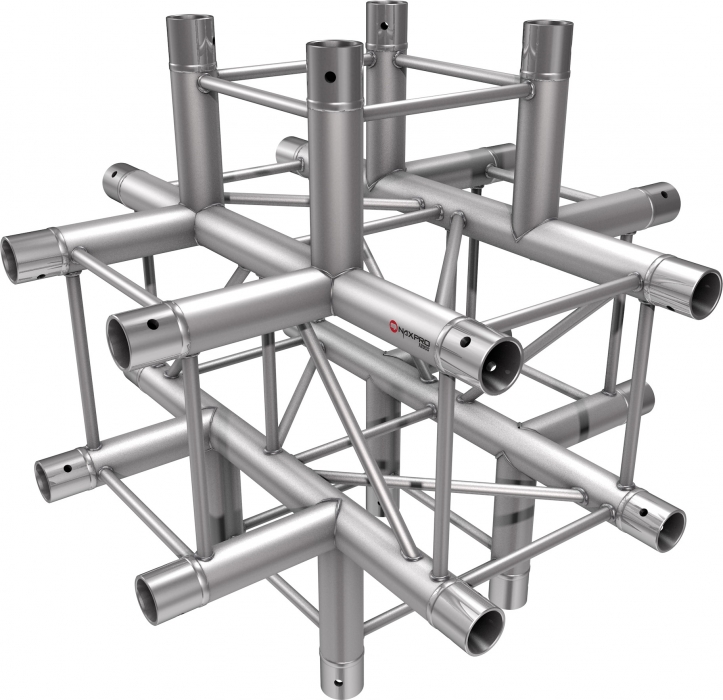

6 Way Cross 90°
Side length: 500 mm
Weight: 5.3 kg
 |

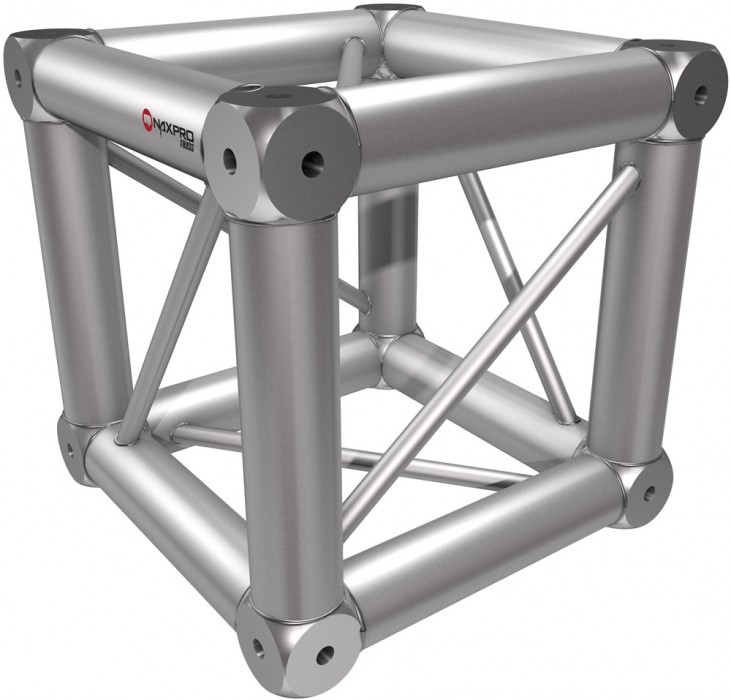

Boxcorner incl. 8 connectors
Side length: 220 mm
Weight: 4.4 kg
 |

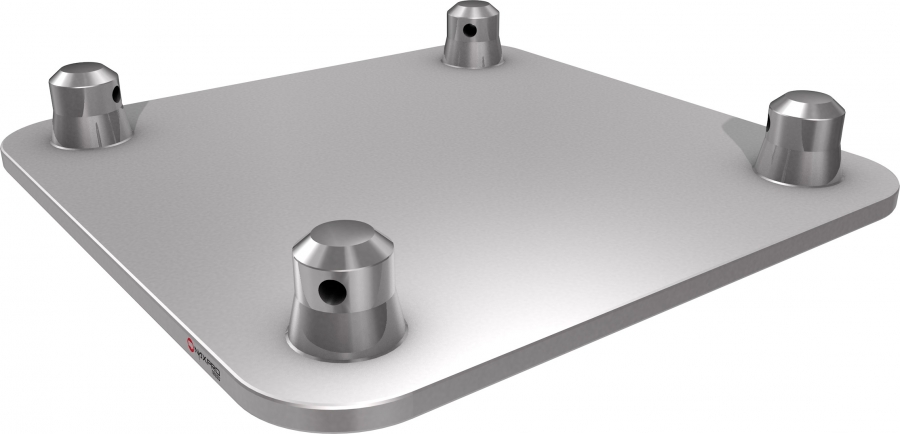

Dimensions: 240 x 240 x 5 mm
Weight: 0.8 kg

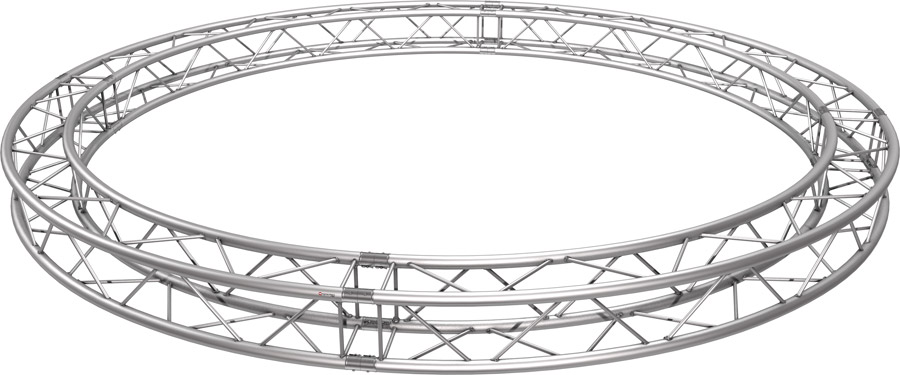

Truss Circles FD 24
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||
| FD 24 per running circular meter | 2,80 | 301240001 | |
| FD 24 (4 x 90°) | 200 | 17,58 | 301240020 |
| FD 24 (4 x 90°) | 300 | 26,38 | 301240030 |
| FD 24 (4 x 90°) | 400 | 35,17 | 301240040 |
| FD 24 (8 x 45°) | 500 | 43,96 | 301240050 |
| FD 24 (8 x 45°) | 600 | 52,75 | 301240060 |
| FD 24 (8 x 45°) | 700 | 61,60 | 301240070 |
| FD 24 (8 x 45°) | 800 | 70,34 | 301240080 |
| FD 24 (12 x 30°) | 900 | 79,13 | 301240090 |
| FD 24 (12 x 30°) | 1000 | 87,92 | 301240100 |
