FD 34 Trusses
Products Overview

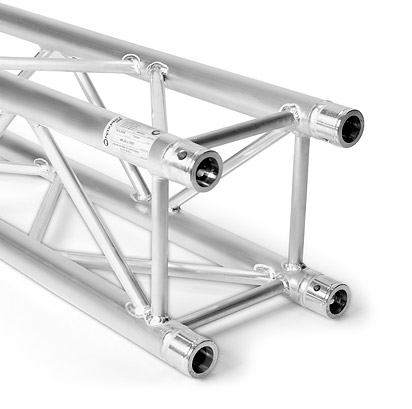

TÜV tested truss system in 4-point version, particularly suitable for the exhibitions and store constructions, as well as event technology and lighting systems. Through the use of a compact design and a high load capacity, this system is suited from simple exhibition stands up to highly complex rigging structures.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro FD 34 truss system is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Width: | 290 mm |
| Height: | 290 mm |
| Tube: | 50 x 2 mm |
| Diagonals: | 20 x 2 mm |
| Alloy: | EN-AW 6082 T6 |
Load Chart FD 34
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 2285,2 | 0,2 | 2262,0* | 0,4 |
| 2,0 | 1139,9 | 1,9 | 1733,0* | 2,3 |
| 3,0 | 758,1 | 6,4 | 1390,0* | 6,2 |
| 4,0 | 567,2 | 15,1 | 1142,0* | 12,2 |
| 5,0 | 367,2 | 24,0 | 918,1 | 19,3 |
| 6,0 | 253,3 | 34,6 | 760,0 | 27,9 |
| 7,0 | 184,7 | 47,2 | 646,3 | 38,0 |
| 8,0 | 140,1 | 61,7 | 560,4 | 49,9 |
| 9,0 | 109,5 | 78,1 | 492,9 | 63,3 |
| 10,0 | 87,7 | 96,6 | 438,4 | 78,5 |
| 11,0 | 71,5 | 117,0 | 393,3 | 95,5 |
| 12,0 | 59,2 | 139,5 | 355,2 | 114,2 |
| 13,0 | 49,6 | 164,0 | 322,6 | 134,8 |
| 14,0 | 42,0 | 190,5 | 294,3 | 157,2 |
| 15,0 | 35,9 | 219,1 | 269,3 | 181,7 |
| 16,0 | 30,9 | 249,8 | 247,2 | 208,1 |
* limited by interaction with offset / decisive is the offset on the connector
High uniformly distributed loads are to be understood ideally distributed. The load application
has to be made in the knot. The load values are calculated using 10.9 bolts.
Straights, Corners and Elements FD 34
|

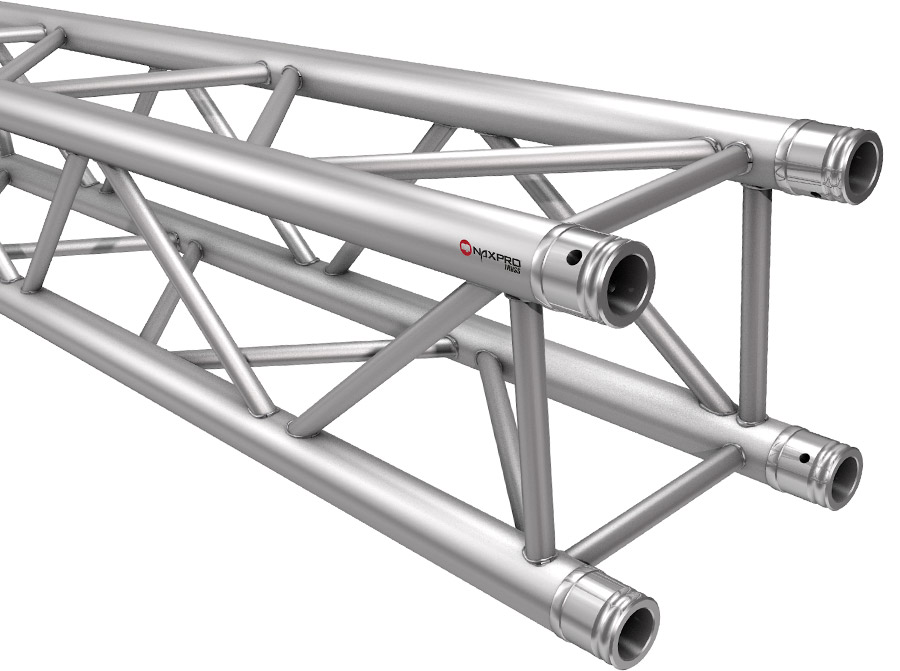

| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 21 | 3,30 | 300340210 | 175 | 10,60 | 300341750 |
| 25 | 3,40 | 300340250 | 200 | 11,70 | 300342000 |
| 29 | 3,60 | 300340290 | 225 | 12,90 | 300342250 |
| 42 | 4,30 | 300340420 | 250 | 14,10 | 300342500 |
| 50 | 4,80 | 300340500 | 300 | 16,20 | 300343000 |
| 75 | 6,00 | 300340750 | 350 | 18,90 | 300343500 |
| 100 | 7,00 | 300341000 | 400 | 21,30 | 300344000 |
| 125 | 8,20 | 300341250 | 450 | 23,70 | 300344500 |
| 150 | 9,30 | 300341500 | 500 | 25,60 | 300345000 |
 |

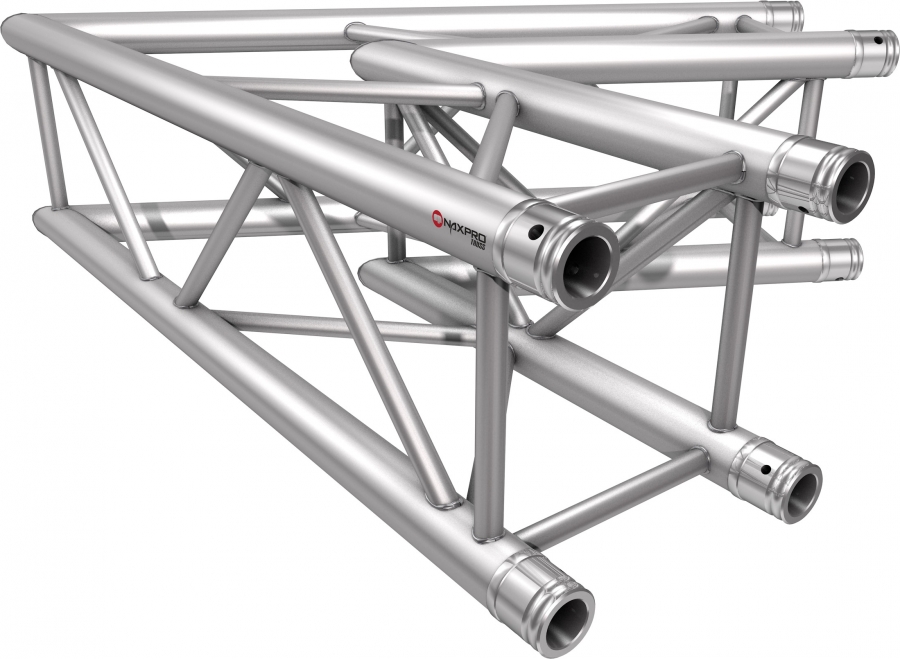

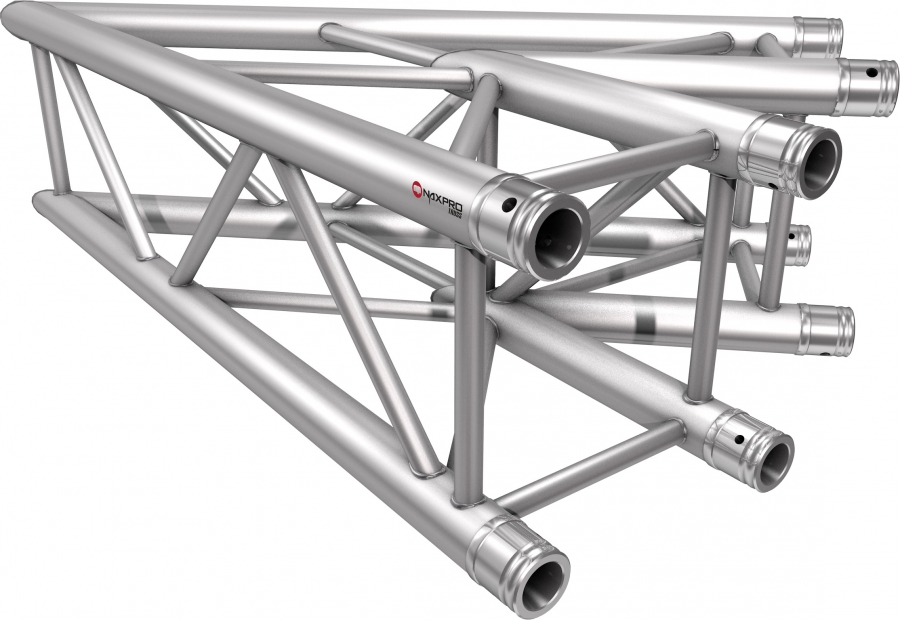

2 Way Corner 45°
Side length: 1000 mm
Weight: 11.5 kg
 |
2 Way Corner 60°
Side length: 1000 mm
Weight: 13.5 kg
 |

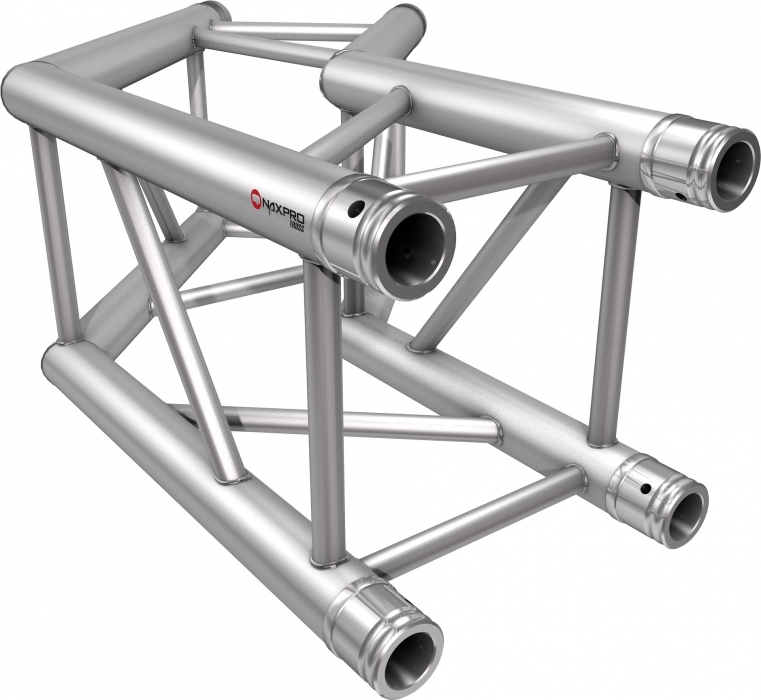

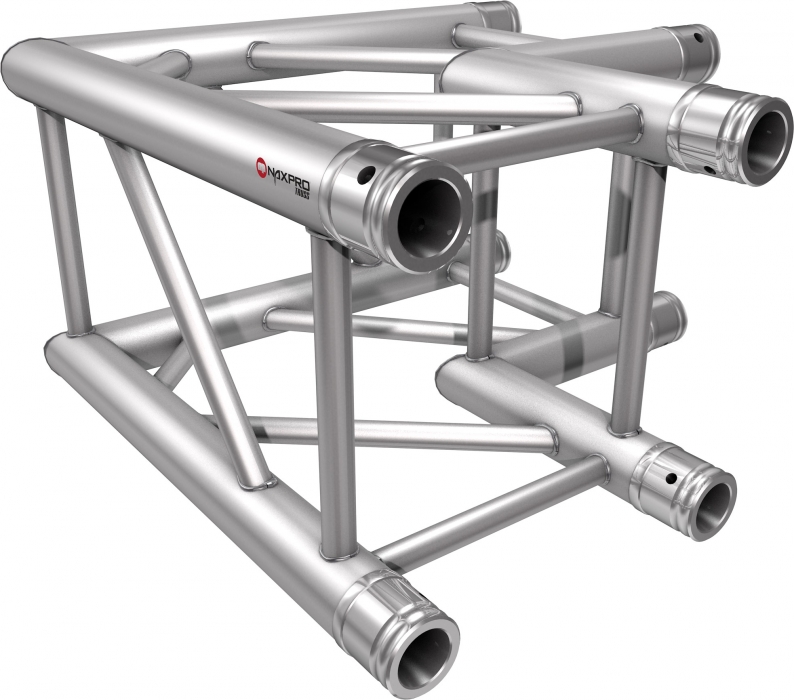

2 Way Corner 90°
Side length: 500 mm
Weight: 6.8 kg
 |

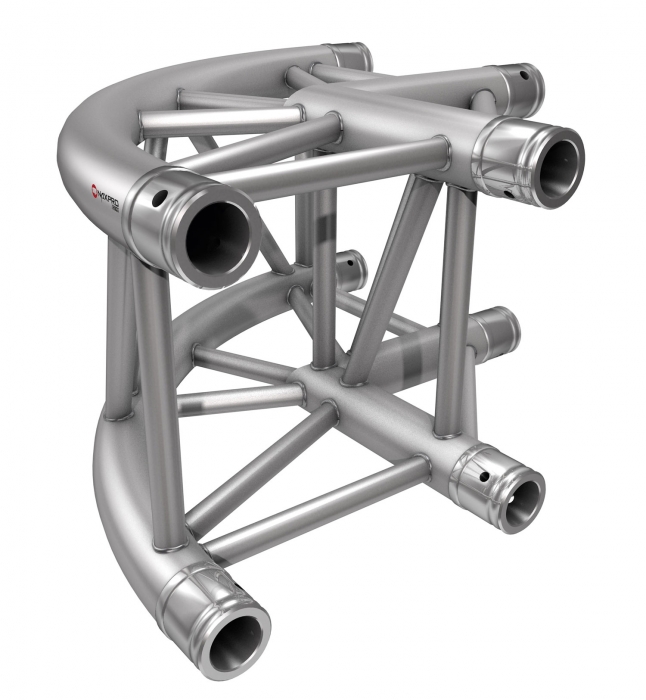

2 Way Corner 90° round
Side length: 500 mm
Weight: 7.8 kg
 |
2 Way Corner 120°
Side length: 500 mm
Weight: 7.8 kg
 |
2 Way Corner 135°
Side length: 500 mm
Weight: 8.0 kg
 |

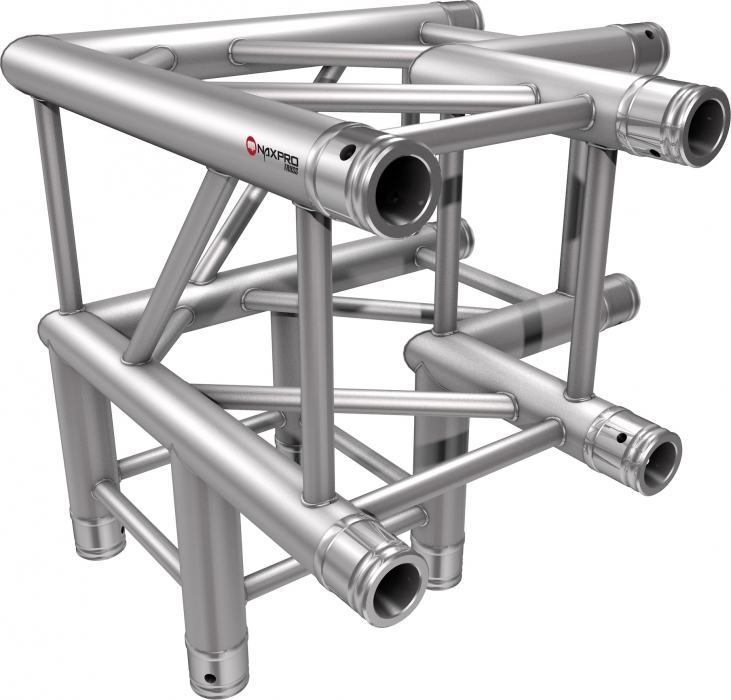

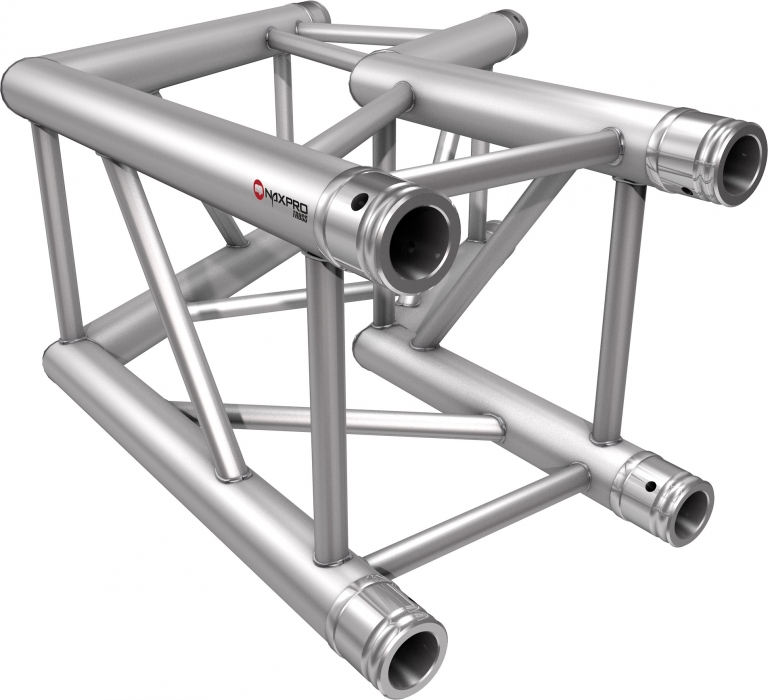

3 Way Corner 90°
Side length: 500 mm
Weight: 8.0 kg
 |

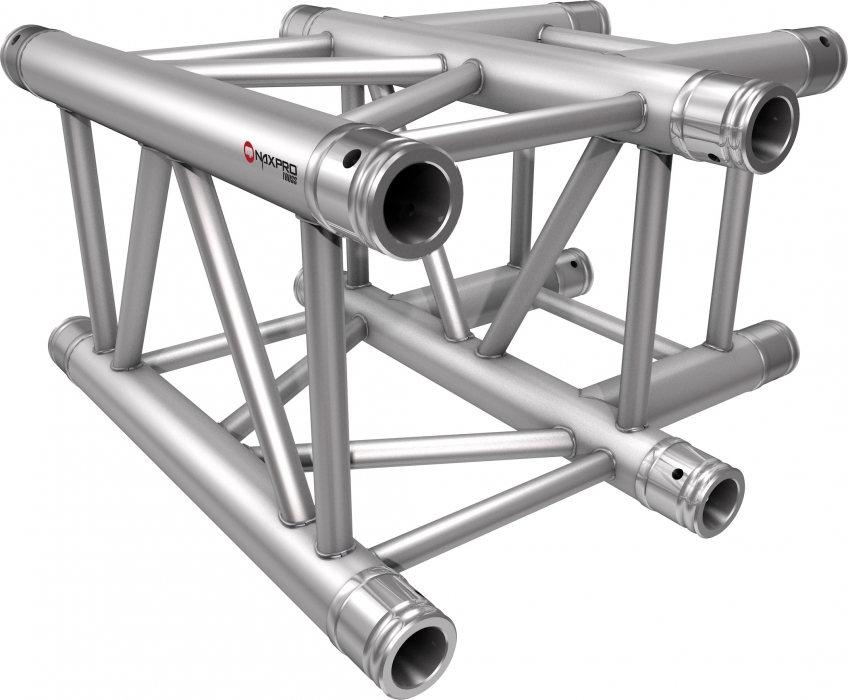

3 Way T-Piece 90°
Side length: 500 mm
Weight: 8,0 kg
 |

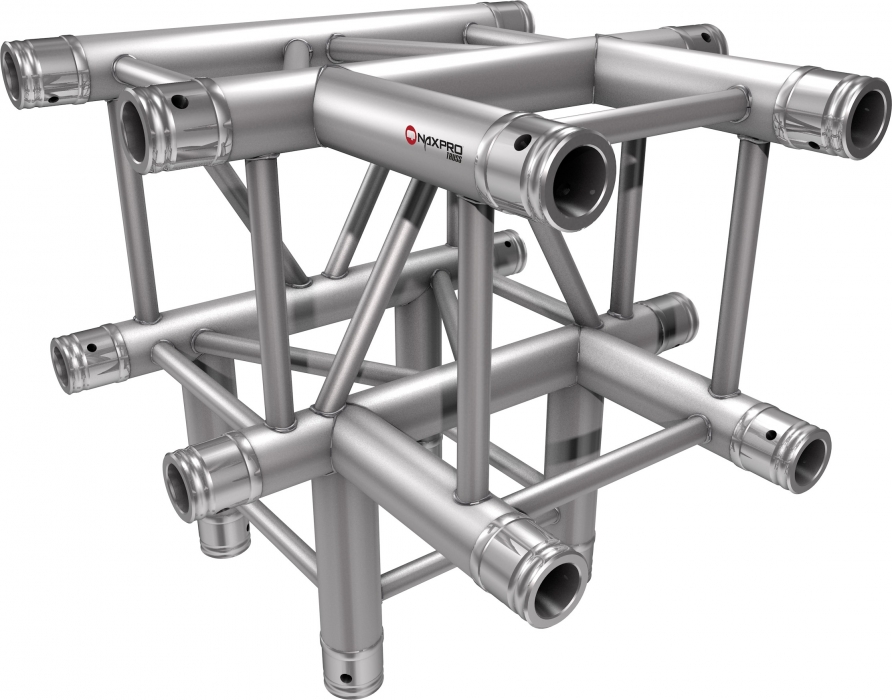

4 Way T-Piece 90°
Side length: 500 mm
Weight: 8.0 kg
 |

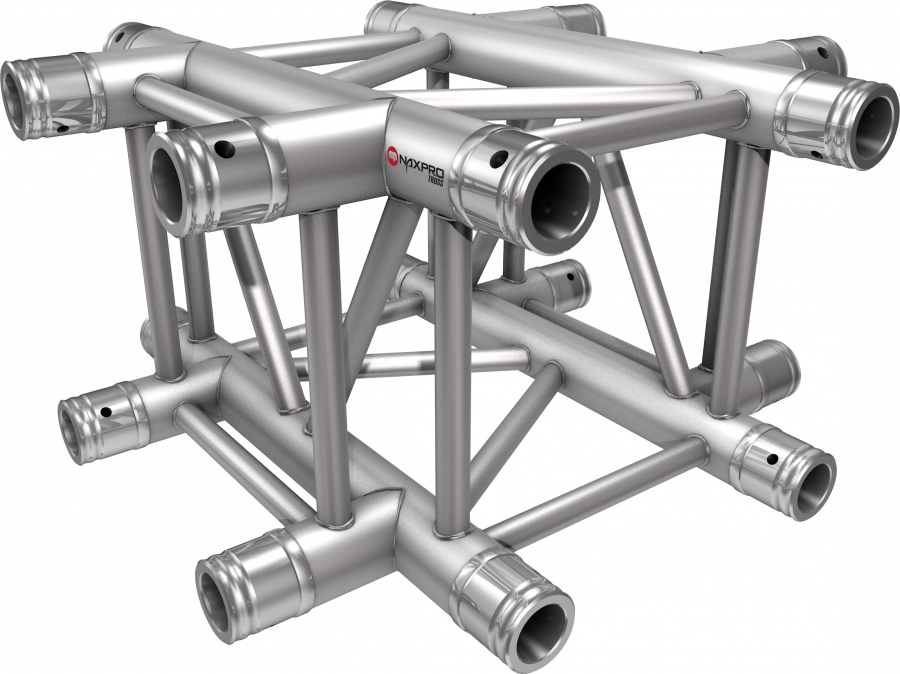

4 Way Cross 90°
Side length: 500 mm
Weight: 9.5 kg
 |

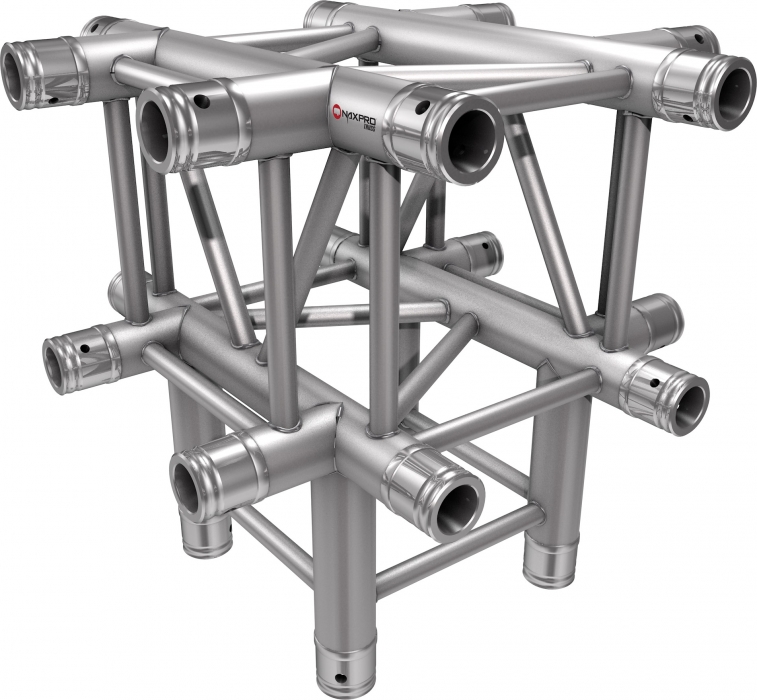

5 Way T-Piece 90°
Side length: 500 mm
Weight: 11.0 kg
 |

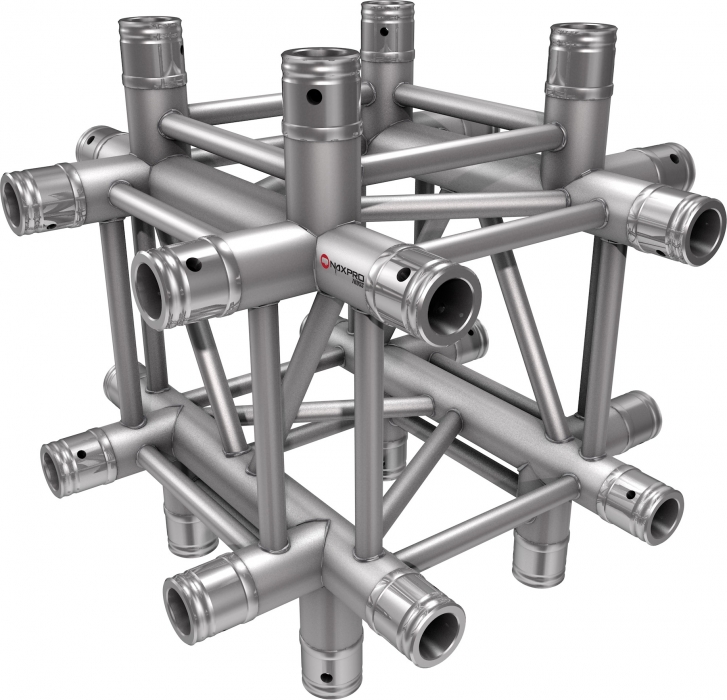

6 Way Cross 90°
Side length: 500 mm
Weight: 12.5 kg
 |
Incl. 8 connectors

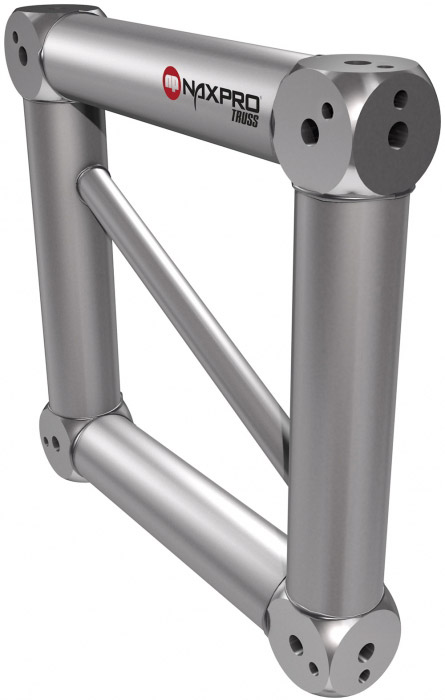

Side length: 290 mm
Weight: 6.5 kg
 |

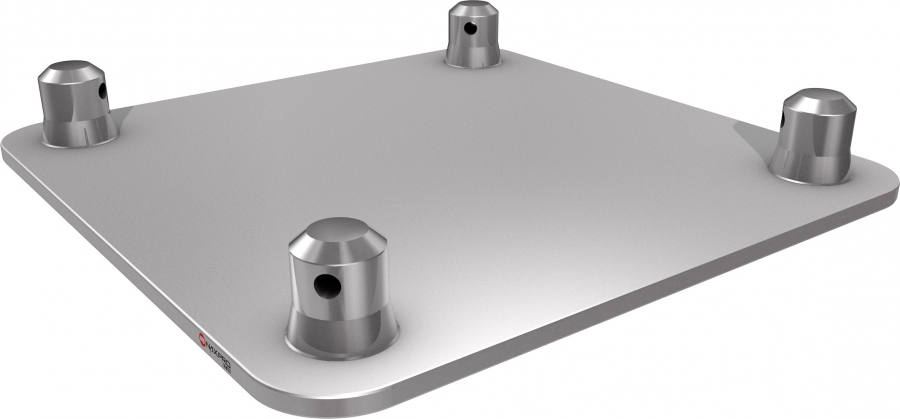

Dimensions: 307 x 307 x 5 mm
Weight: 1.2 kg
 |

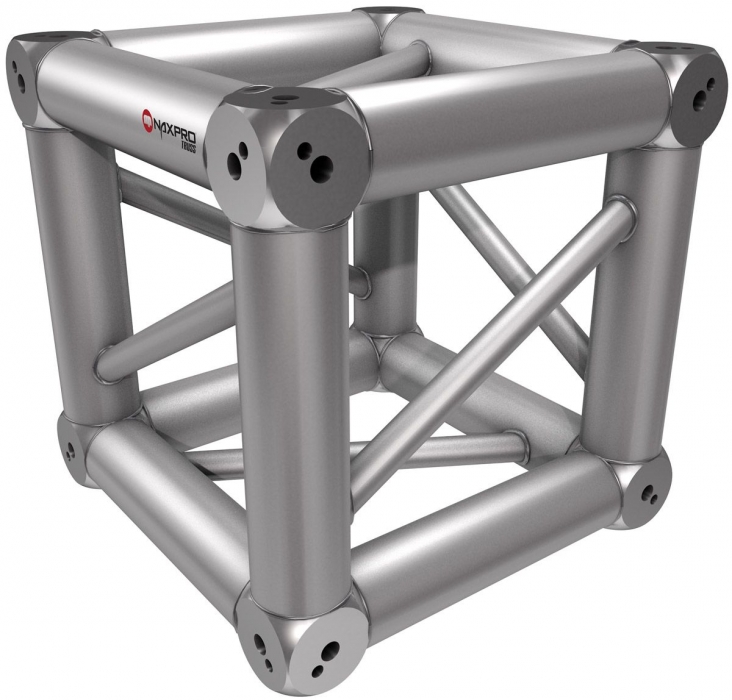

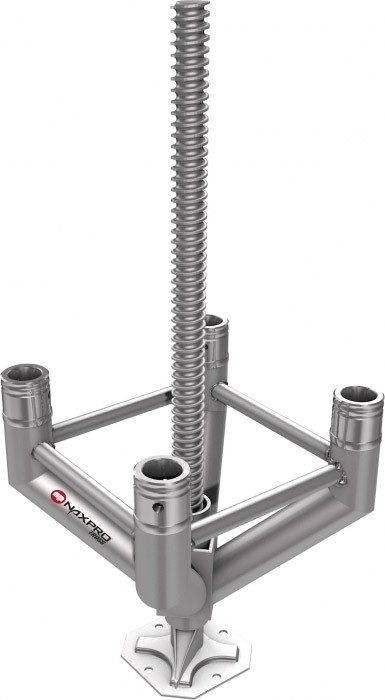

Boxcorner for FD 32 to FD 34 incl. 6 halfconnectors M12
 |
Max. load capacity: 200 kg
Max. height: 700 mm
Min. height: 350 mm

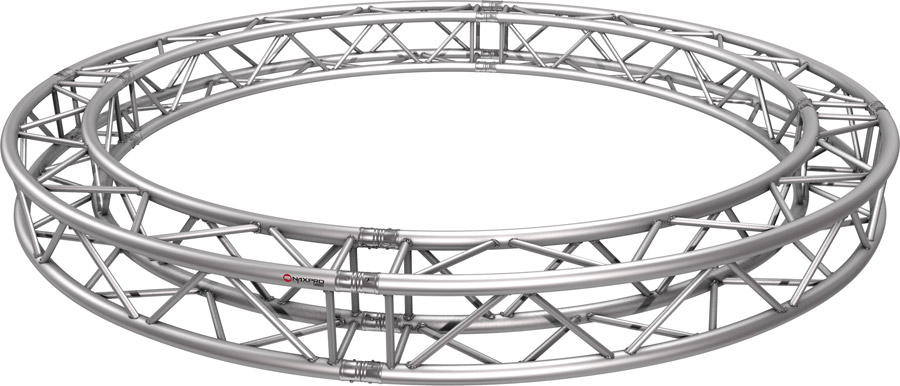

Truss Circles FD 34
|
| Description | Length | Weight | Art.-No. |
| cm | kg | ||
| FD 34 per running circular meter | 5,60 | 301340001 | |
| FD 34 (4 x 90°) | 200 | 35,17 | 301340020 |
| FD 34 (4 x 90°) | 300 | 52,75 | 301340030 |
| FD 34 (4 x 90°) | 400 | 70,34 | 301340040 |
| FD 34 (8 x 45°) | 500 | 87,92 | 301340050 |
| FD 34 (8 x 45°) | 600 | 105,50 | 301340060 |
| FD 34 (8 x 45°) | 700 | 123,20 | 301340070 |
| FD 34 (8 x 45°) | 800 | 140,67 | 301340080 |
| FD 34 (12 x 30°) | 900 | 158,26 | 301340090 |
| FD 34 (12 x 30°) | 1000 | 175,84 | 301340100 |
