GD 44 Trusses
Products Overview

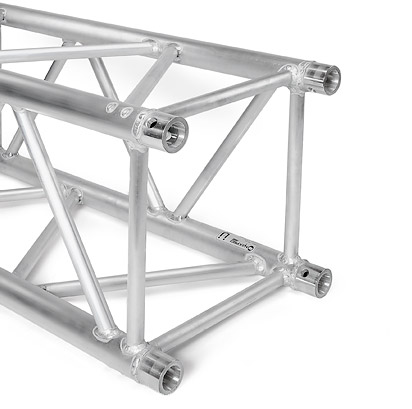

Naxpro Truss GD 44 is a high performance 4 point truss system, which was specially developed for high loads.Through concerted optimization adverse to the standard 40´s trusses, the GD 44 reaches a distinctly higher load at same dimensions. Besides enhanced bracings and cones, additional welding spots impart the system with a high stabilisation for extreme requirements. The Naxpro Truss GD 44 is therefore perfectly suitable for huge exhibition stands, billboards, open-air stage roofs, and radio-, antenna and floodlight poles.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. Naxpro Truss GD 44 is available in all RAL-colours and custom constructions.
Certified Safety
Dimensions
Specifications
| Width: | 400 mm |
| Height: | 400 mm |
| Tube: | 50 x 3 mm |
| Diagonals: | 25 x 3 mm |
| Alloy: | EN-AW 6632 T6 |
Load Chart GD 44
| Span | Uniformly distributed load |
Deflection | Centered single load |
Deflection |
| m | kg/m | mm | kg | mm |
| 1,0 | 4351,9 | 0,1 | 4351,9 | 0,2 |
| 2,0 | 2171,4 | 1,2 | 3474,0* | 1,5 |
| 3,0 | 1444,5 | 3,9 | 2816,0* | 4,1 |
| 4,0 | 1081,1 | 9,3 | 2328,0* | 8,0 |
| 5,0 | 789,2 | 16,7 | 1973,0 | 13,4 |
| 6,0 | 545,3 | 24,0 | 1635,8 | 19,3 |
| 7,0 | 398,2 | 32,7 | 1393,6 | 26,3 |
| 8,0 | 302,7 | 42,7 | 1210,8 | 34,4 |
| 9,0 | 237,2 | 54,1 | 1067,6 | 43,7 |
| 10,0 | 190,4 | 66,9 | 952,1 | 54,2 |
| 11,0 | 155,8 | 81,0 | 856,8 | 65,8 |
| 12,0 | 129,4 | 96,5 | 776,6 | 78,6 |
| 13,0 | 108,9 | 113,4 | 708,0 | 92,6 |
| 14,0 | 92,7 | 131,7 | 648,6 | 108,0 |
| 15,0 | 79,5 | 151,4 | 596,5 | 124,5 |
| 16,0 | 68,8 | 172,5 | 550,3 | 142,5 |
| 17,0 | 59,9 | 195,1 | 509,1 | 161,7 |
| 18,0 | 52,4 | 219,1 | 471,9 | 182,4 |
| 19,0 | 46,1 | 244,6 | 438,1 | 204,5 |
| 20,0 | 40,7 | 271,5 | 407,2 | 228,1 |
* limited by interaction with offset
Relevant is the offset at the connector! The load values are calculated using 10.9 bolts.

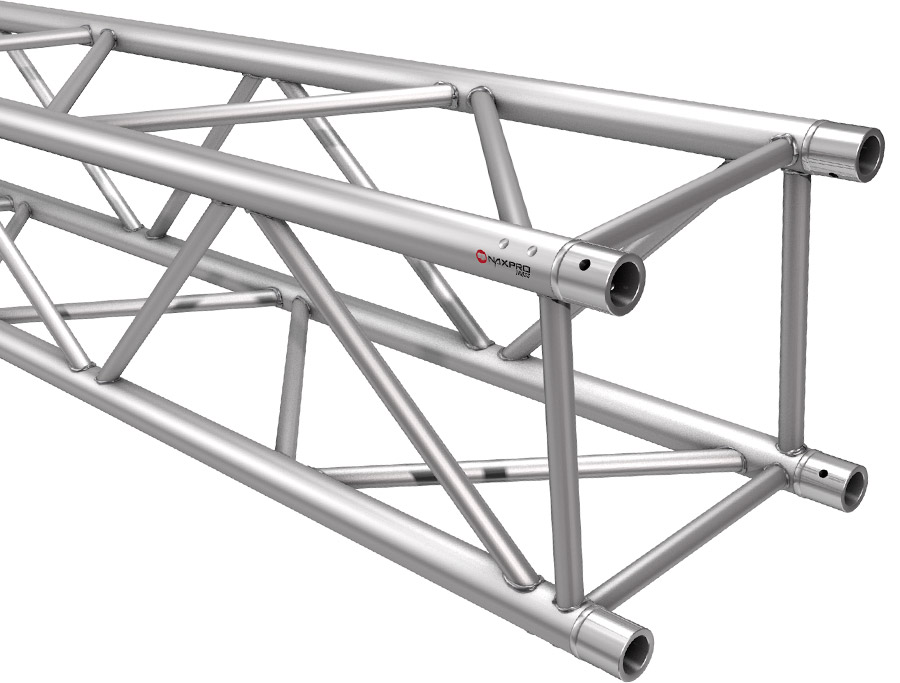

Straights, Corners and Elements GD 44
|
| Length | Weight | Art.-No. | Length | Weight | Art.-No. |
| cm | kg | cm | kg | ||
| 50 | 5,00 | 304480500 | 250 | 25,00 | 304482500 |
| 100 | 10,00 | 304481000 | 300 | 30,00 | 304483000 |
| 150 | 15,00 | 304481500 | 350 | 35,00 | 304483500 |
| 200 | 20,00 | 304482000 | 400 | 40,00 | 304484000 |
 |
Incl. 8 connectors

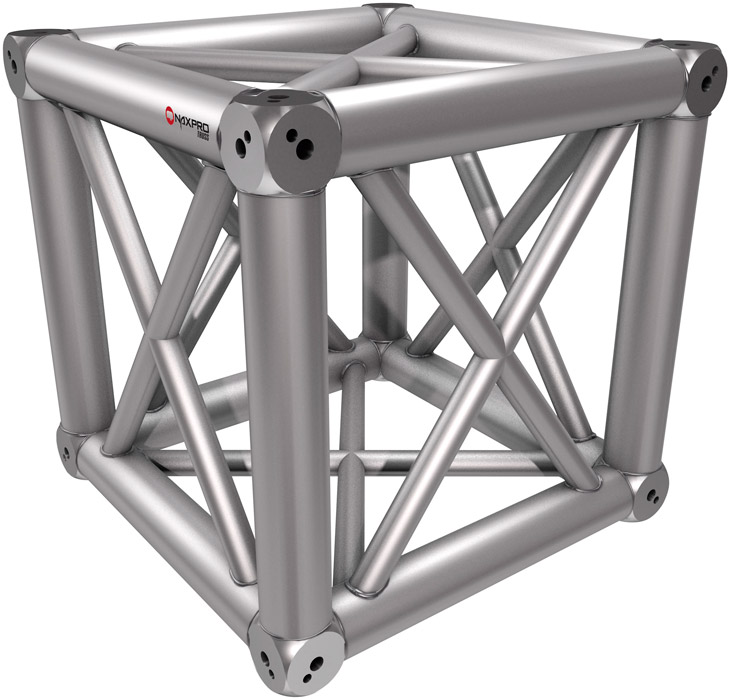

Side length: 400 mm
Weight: 12 kg
Truss Circles GD 44
