Exhibition stands
Introduction
When constructing high quality exhibition stands there are 3 essential factors that play a decisive role:
- Safety
- Mobility
- Attractiveness
Safety
It is of prime importance that the fabrication as well as the rigging of exhibition stands is executed with high diligence in order to ensure the safety of visitors and exhibitors. All Naxpro-Truss Trusses are systematically calculated and manufactured under the highest security relevant guidelines. Additionally all popular Naxpro-Truss-Systems fulfil the high safety technical requirements of TÜV-Nord and offer therefore the maximum amount of tested safety.
Mobility
Aluminium Trusses in contrast to other materials have the positive feature of being very light proportional to their load capacity. Therefore they can be transported economical as well as effort-saving and consequently offer a distinct logistic advantage. The simple handling and the modern cone-connection-system of the single components make the rigging and disassembling easy and guarantee unbeatable cost efficiency.
Attractiveness
Modern exhibition stands made from Naxpro-Truss-Systems are always an optical highlight. The modules are combinable in multiple ways and thus enable a vast number of individual design possibilities. As a linear booth, corner booth, peninsula booth or as island booth the appealing designs of the Naxpro-Truss exhibition stands will draw the attention to the products and exhibitor.
Examples
|

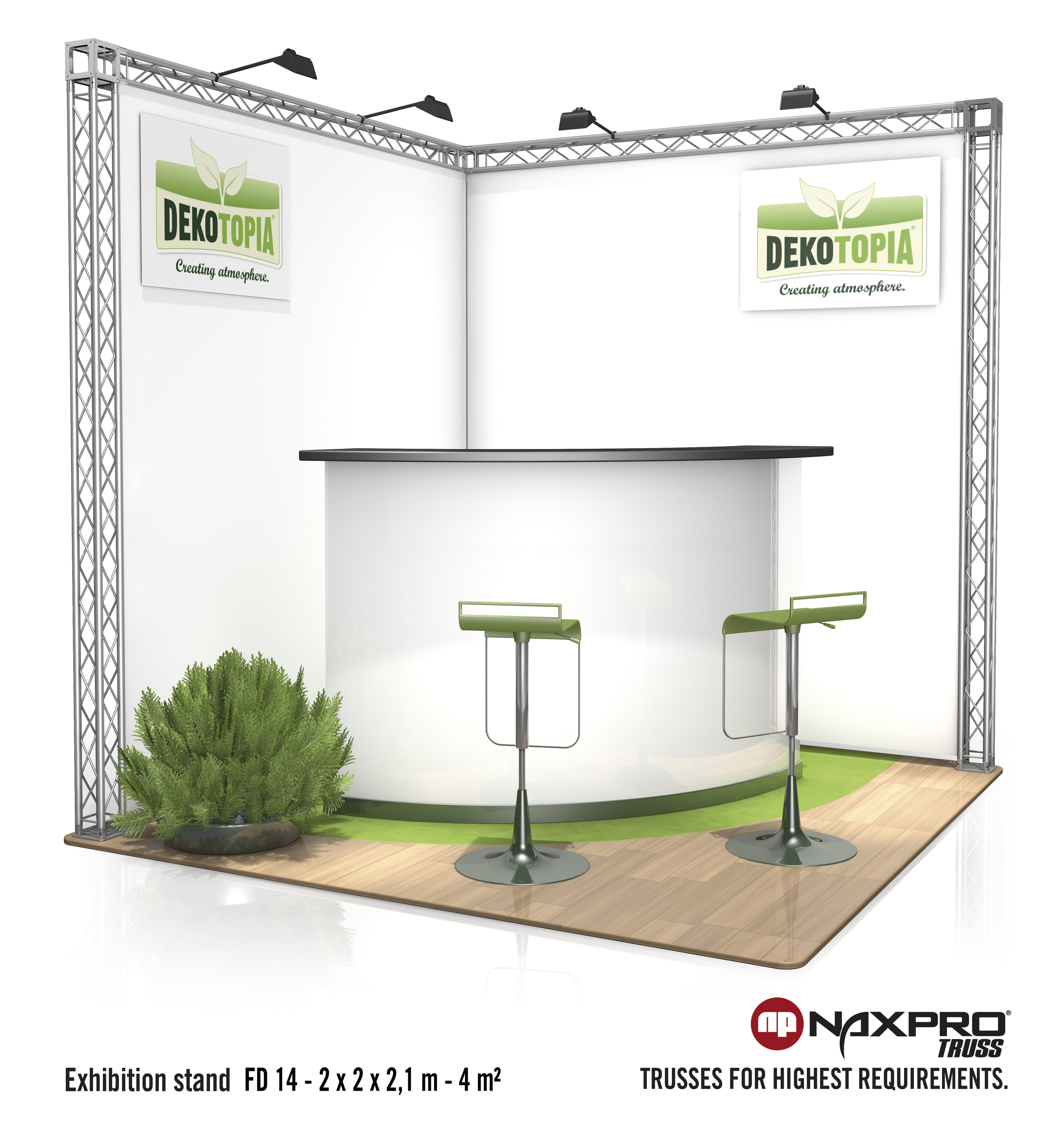

Exhibition Stand FD 14 - 2 x 2 x 2,1 m (LxWxH) - 4 m²
Contains:
3 x Naxpro-Truss FD 14 Straight 200 cm
2 x Naxpro-Truss FD 14 Straight 180 cm
3 x Naxpro-Truss FD 14 Boxcorner
3 x FD 14 Base plate
Technical Data:
Dimensions: approx. 200 x 200 x 210 cm (LxWxH)
Total area: approx. 4 m²
|

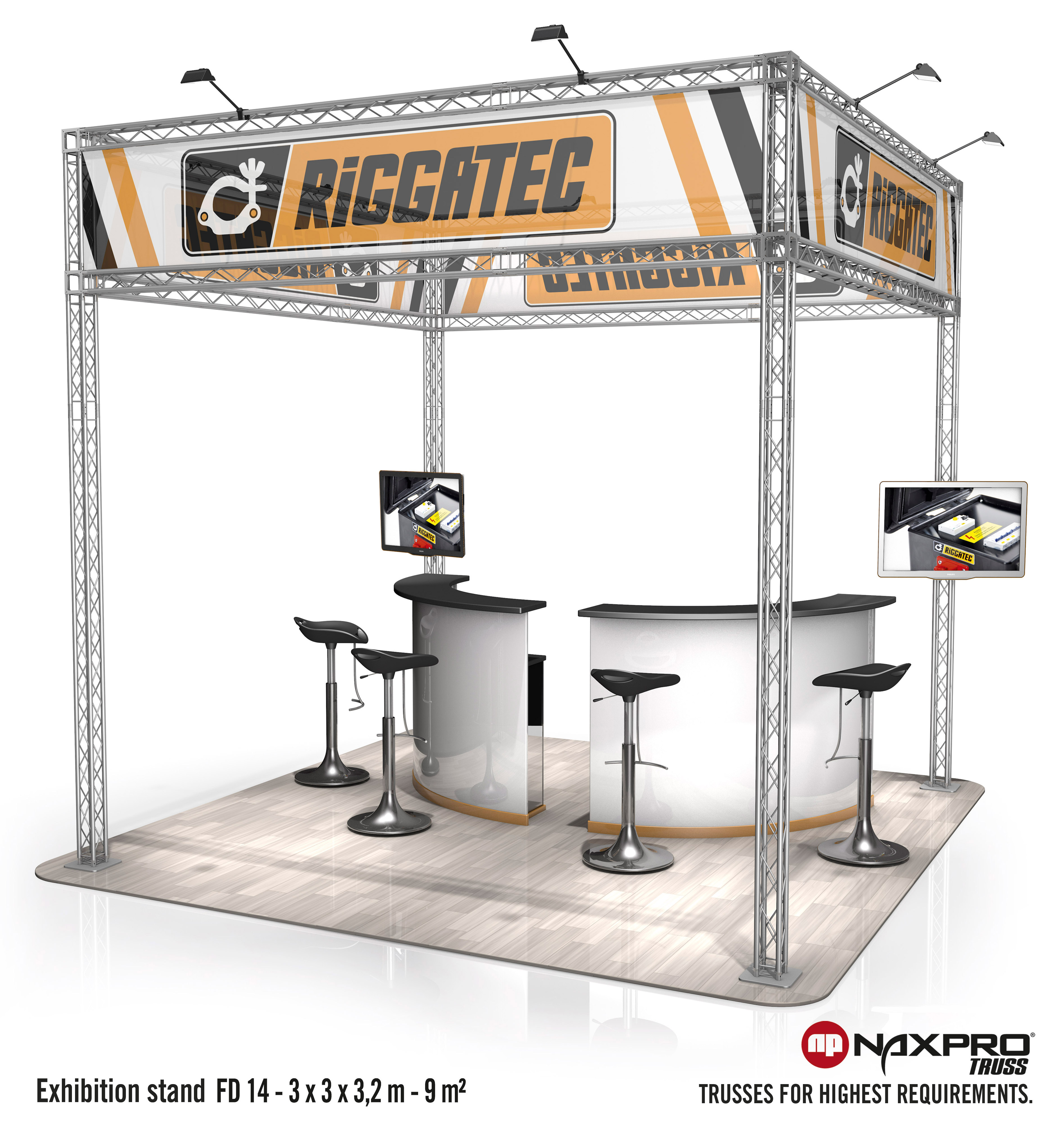

Exhibition Stand FD 14 - 3 x 3 x 3,2 m (LxWxH) - 9 m²
Contains:
12 x Naxpro-Truss FD 14 Straight 200 cm
8 x Naxpro-Truss FD 14 Straight 80 cm
4 x Naxpro-Truss FD 14 Straight 50 cm
8 x Naxpro-Truss FD 14 Boxcorner
32 x Naxpro-Truss FD 14 Half connector
4 x FD 14 Base plate
Technical Data:
Dimensions: approx. 300 x 300 x 320 cm (LxWxH)
Total area: approx. 9 m²
Total weight: approx. 81 kg
|

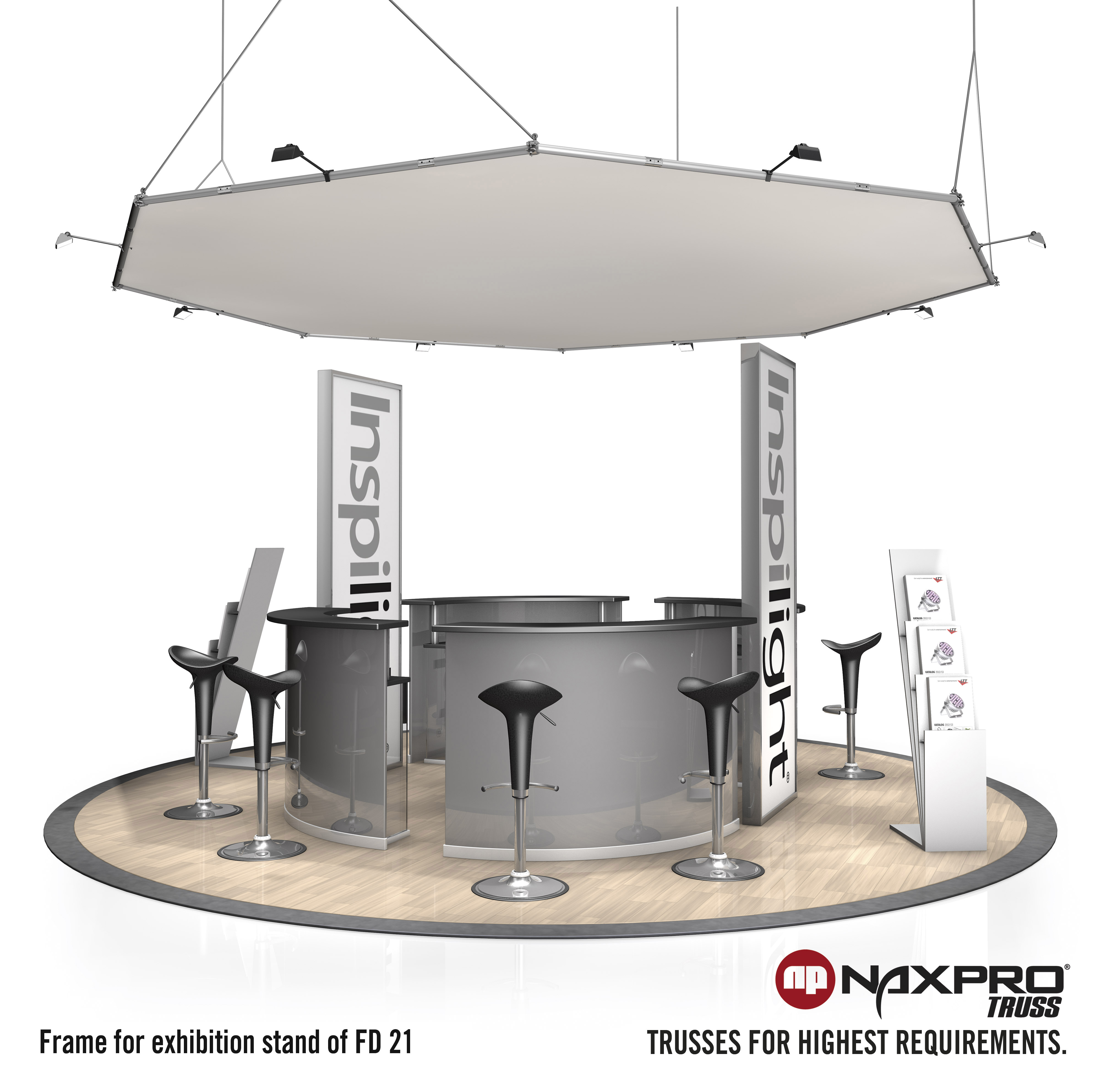

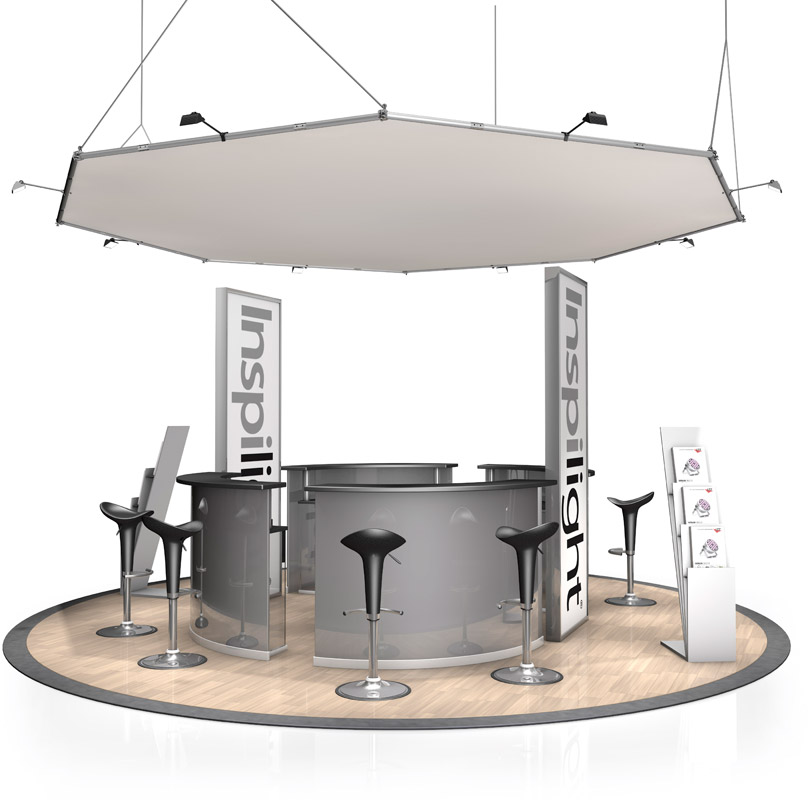

Frame for exhibition stand of FD 21
Contains:
8 x Naxpro-Truss FD 21 Straight 100 cm
8 x Naxpro-Truss FD 21 C23 135° 2 Way Corner
Technical Data:
Total area: approx. 20 m²
|

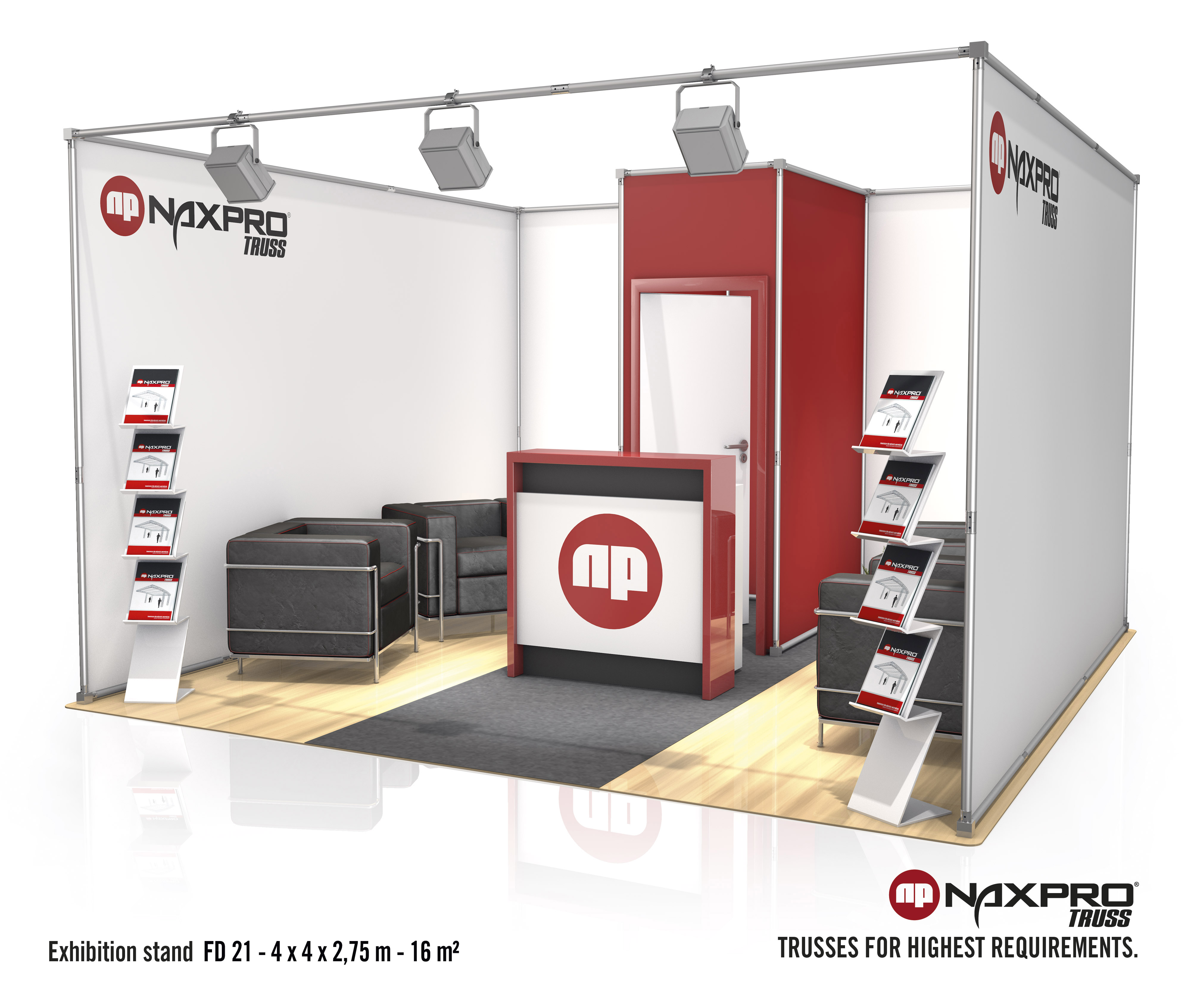

Exhibition Stand FD 21 - 4 x 4 x 2,57 m (LxWxH) - 16 m²
Contains:
16 x Naxpro-Truss FD 21 Boxcorner with 2 Connectors
16 x Half Connector M12 for Boxcorner
26 x Naxpro-Truss FD 21 Straight 150 cm
8 x Naxpro-Truss FD 21 Straight 100 cm
5 x Naxpro-Truss FD 21 Straight 93 cm
3 x Naxpro-Truss FD 21 Straight 86 cm
Technical Data:
Dimensions: approx. 400 x 400 x 257 cm (LxWxH)
Total area: approx. 16 m²
Total weight: approx. 44 kg
|
Exhibition Stand FD 22 - 4 x 4 x 2,5 m (LxWxH) - 16 m²
Contains:
4 x Naxpro-Truss FD 22 Straight 200 cm
4 x Naxpro-Truss FD 22 Straight 125 cm
4 x Naxpro-Truss FD 22 C21H 90° 2 Way Corner
1 x Naxpro-Truss FD 22 C41V 90° 3 Way Corner
4 x Naxpro-Truss FD 22 Base Plate
Technical Data:
Dimensions: approx. 400 x 400 x 250 cm (LxWxH)
Total area: approx. 16 m²
Total weight: approx. 28.3 kg
|

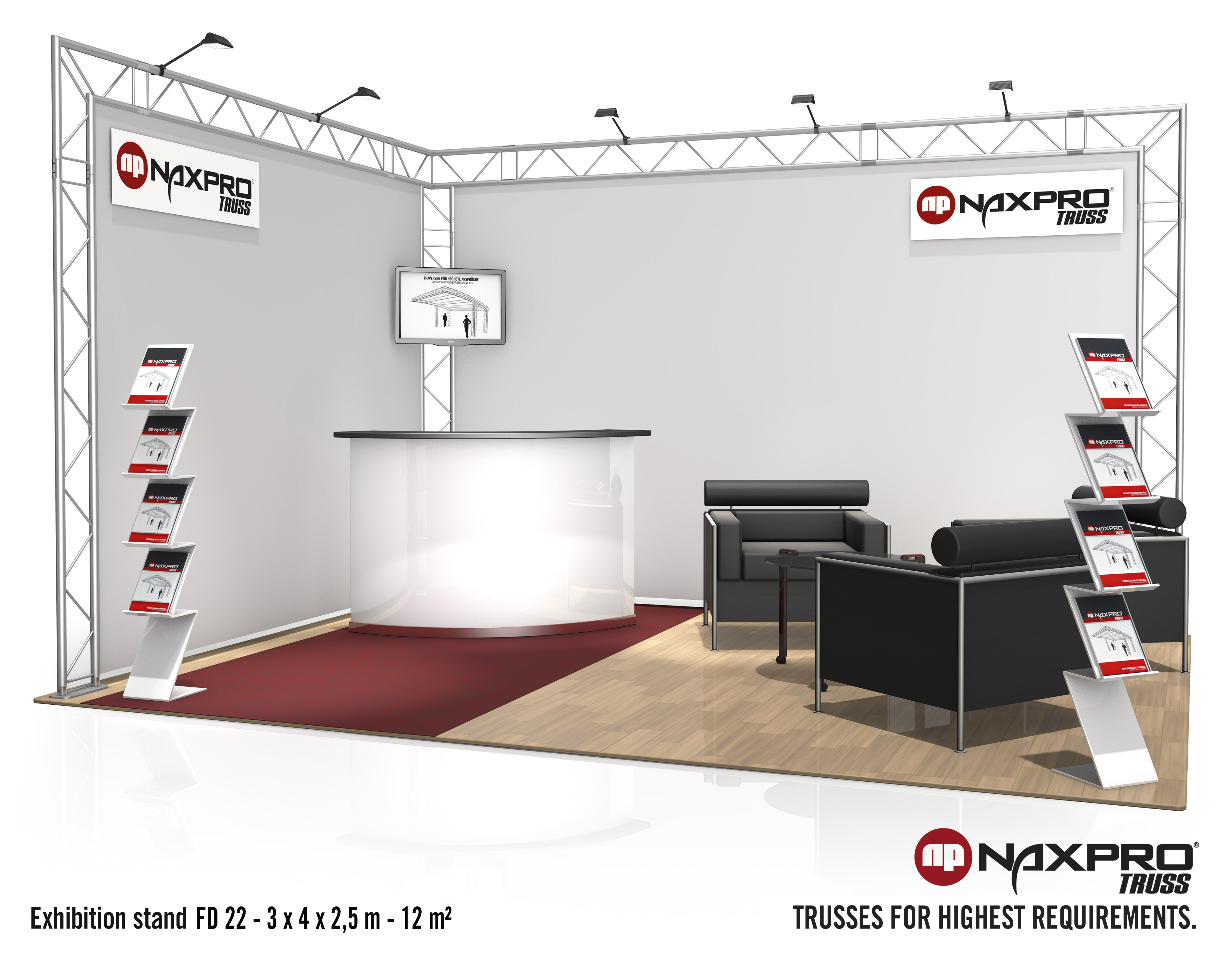

Exhibition Stand FD 22 - 3 x 4 x 2,5 m (LxWxH) - 12 m²
Contains:
5 x Naxpro-Truss FD 22 Straight 200 cm
1 x Naxpro-Truss FD 22 Straight 100 cm
2 x Naxpro-Truss FD 22 C21H 90° 2 Way Corner
2 x Naxpro-Truss FD 22 C31V 90° 3 Way Corner
3 x FD 22 Base plate
Technical Data:
Dimensions: approx. 300 x 400 x 250 cm (LxWxH)
Total area: approx. 12 m²
|

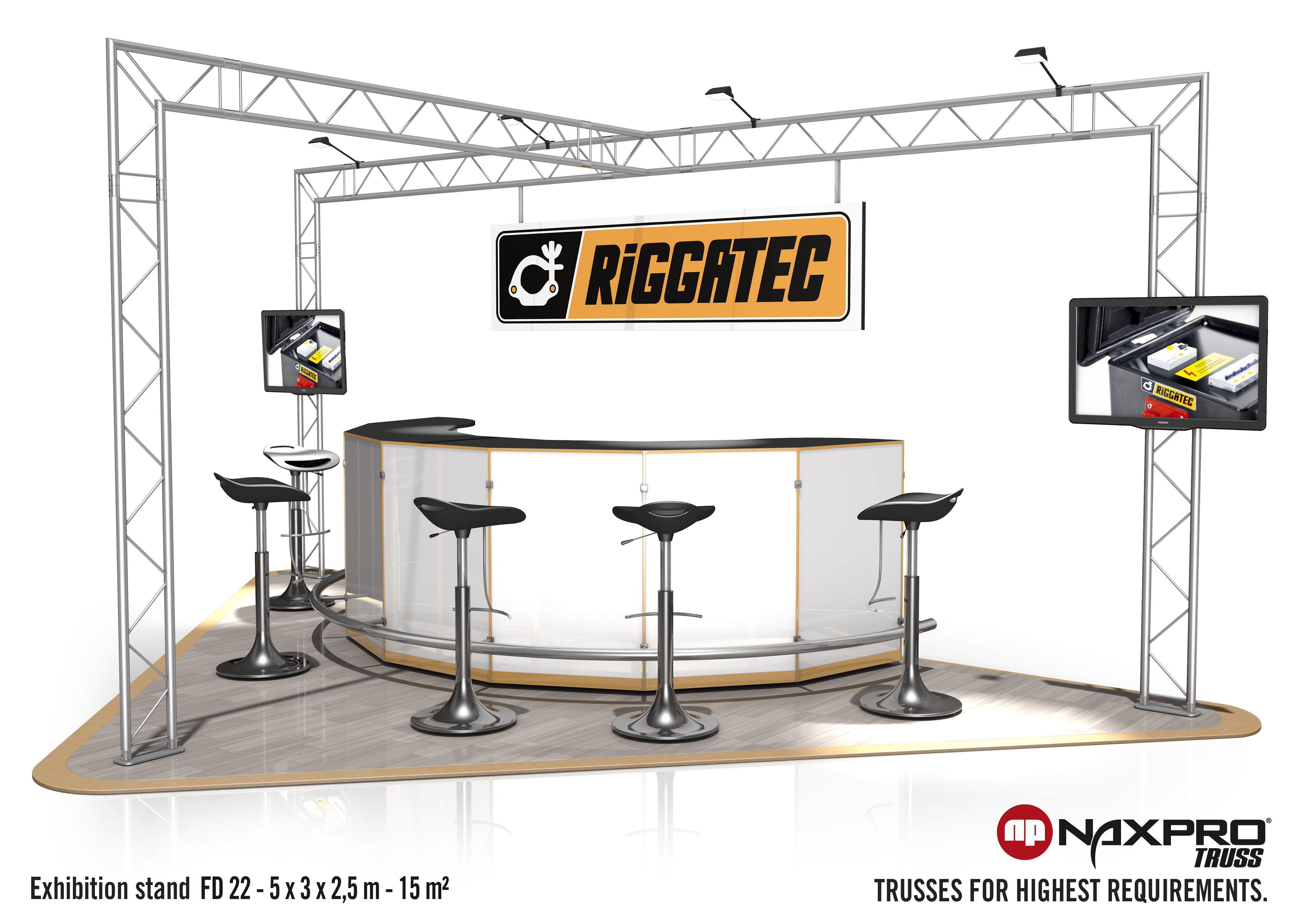

Exhibition Stand FD 22 - 5 x 3 x 2,5 m (LxWxH) - 15 m²
Contains:
4 x Naxpro-Truss FD 22 Straight 200 cm
2 x Naxpro-Truss FD 22 Straight 175 cm
3 x Naxpro-Truss FD 22 C21H 90° 2 Way Corner
1 x Naxpro-Truss FD 22 C35V 90° 3 Way Corner
3 x Naxpro-Truss FD 22 Base Plate
Technical Data:
Dimensions: approx. 500 x 300 x 250 cm (LxWxH)
Total area: approx. 15m²
Total weight: approx. 29 kg
|

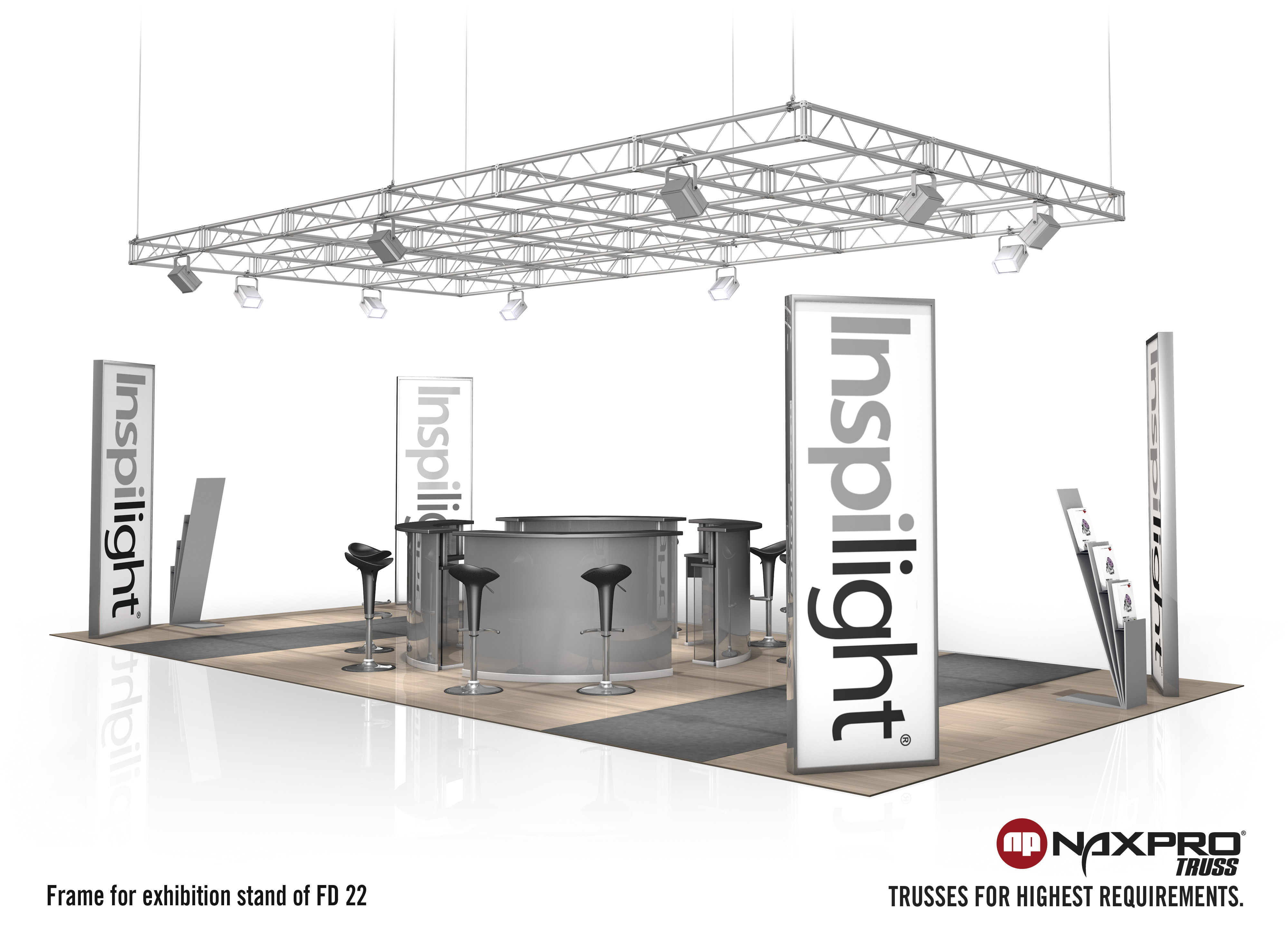

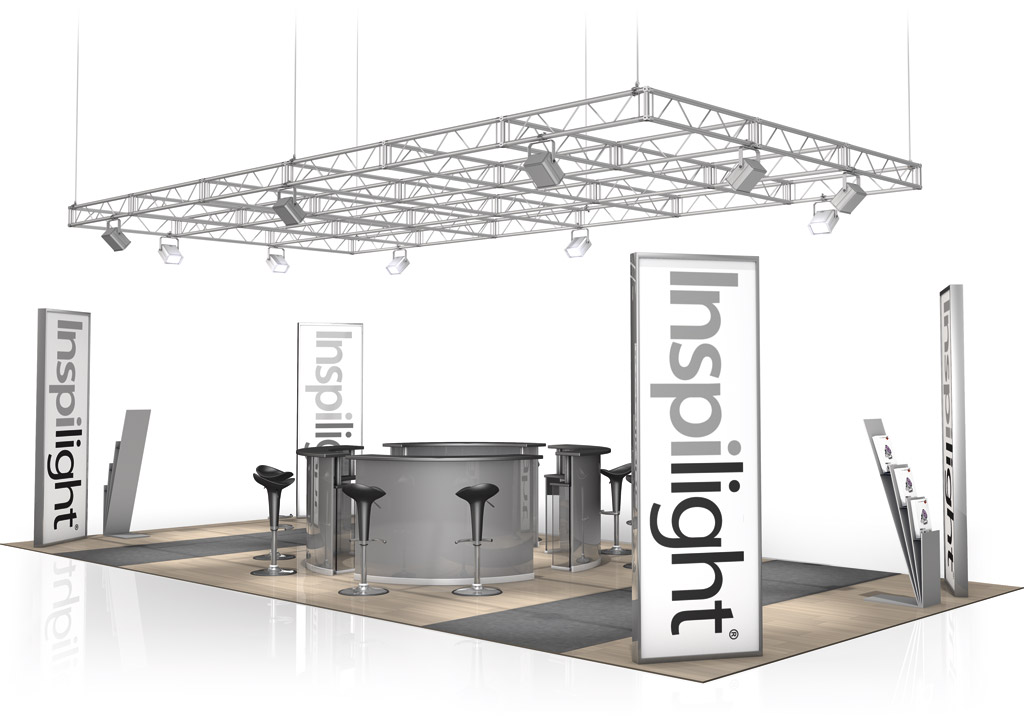

Frame for Exhibition Stand of FD 22
Contains:
28 x Naxpro-Truss FD 22 Boxcorner with 4 Half Connectors
45 x Naxpro-Truss FD 22 Straight 125 cm
68 x Half Connectors M12 for Boxcorner
Technical Data:
Dimensions: approx. 775 x 389 cm (LxWxH)
Total area: approx. 30 m²
|

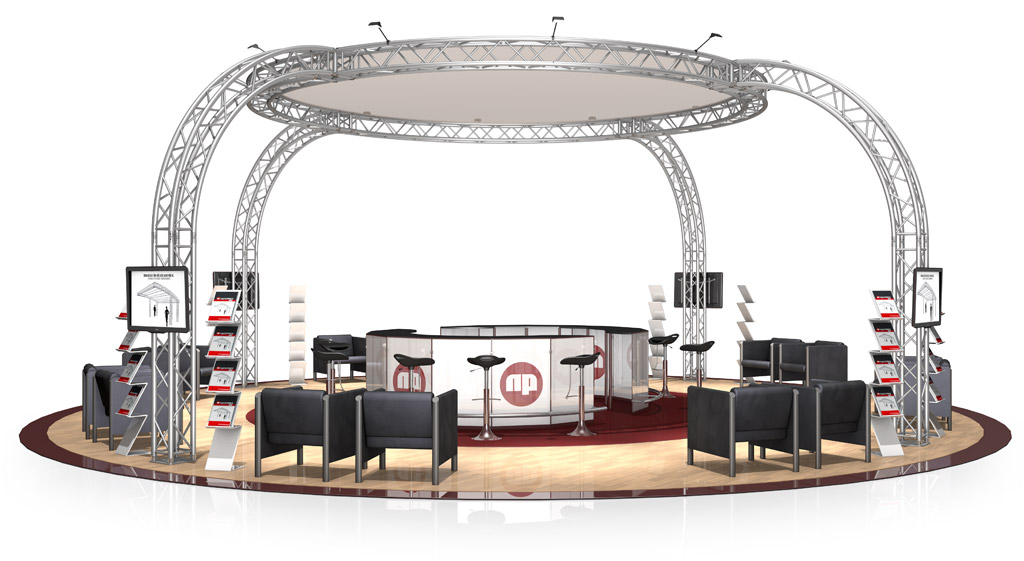

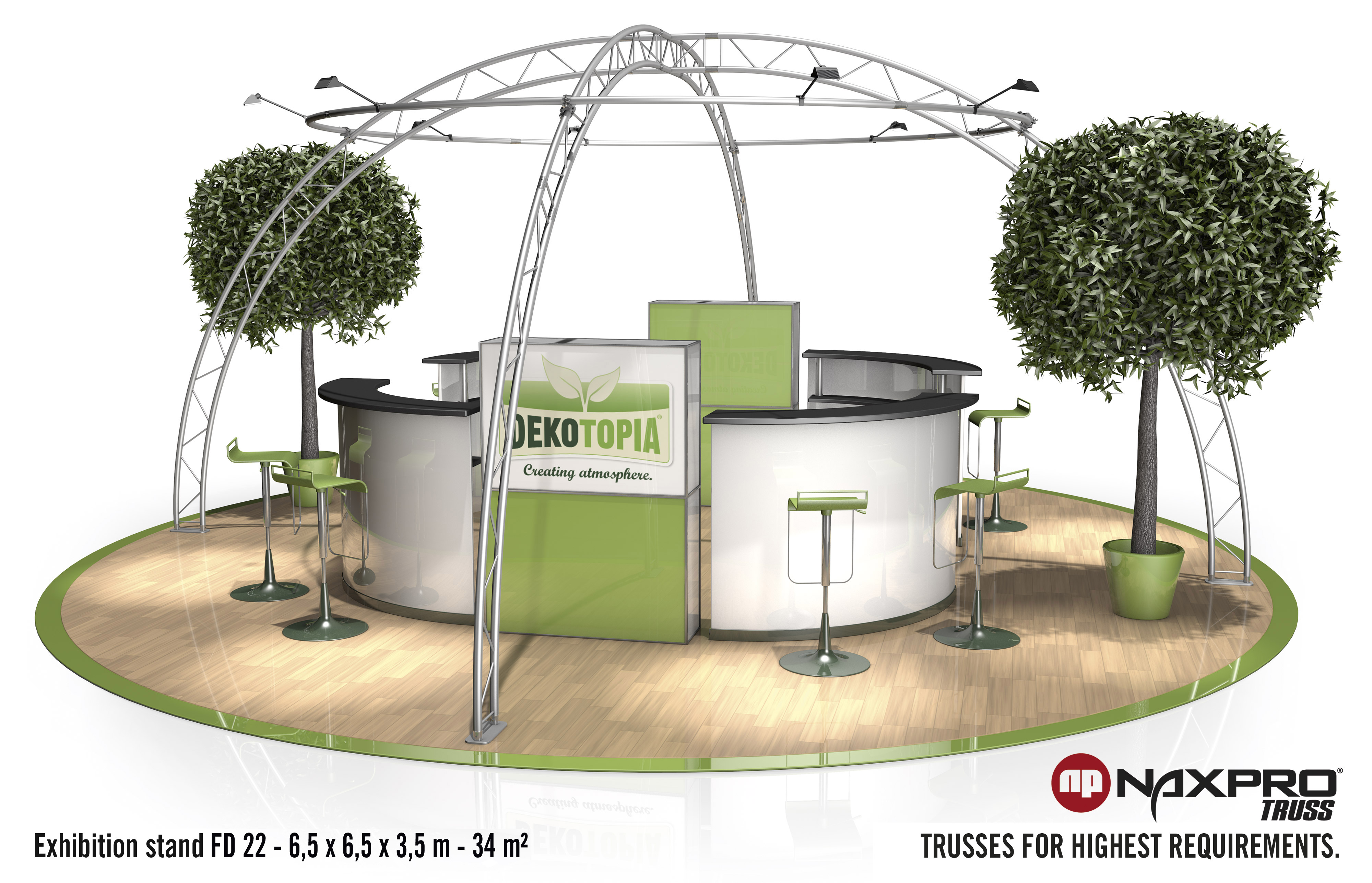

Exhibition Stand FD 22 - 6,5 x 6,5 x 3,5 m (LxWxH) - 34 m²
Contains:
1 x Naxpro-Truss FD 22 C41V 90° 4 Way Corner
1 x Naxpro-Truss FD 22 Truss circle 6 m horizontal
1 x Naxpro-Truss FD 21 Truss circle 4 m turned-up
4 x FD 22 Base plate
Technical Data:
Dimensions: approx. 600 x 600 x 350 cm (LxWxH)
Total area: approx. 34 m²
|

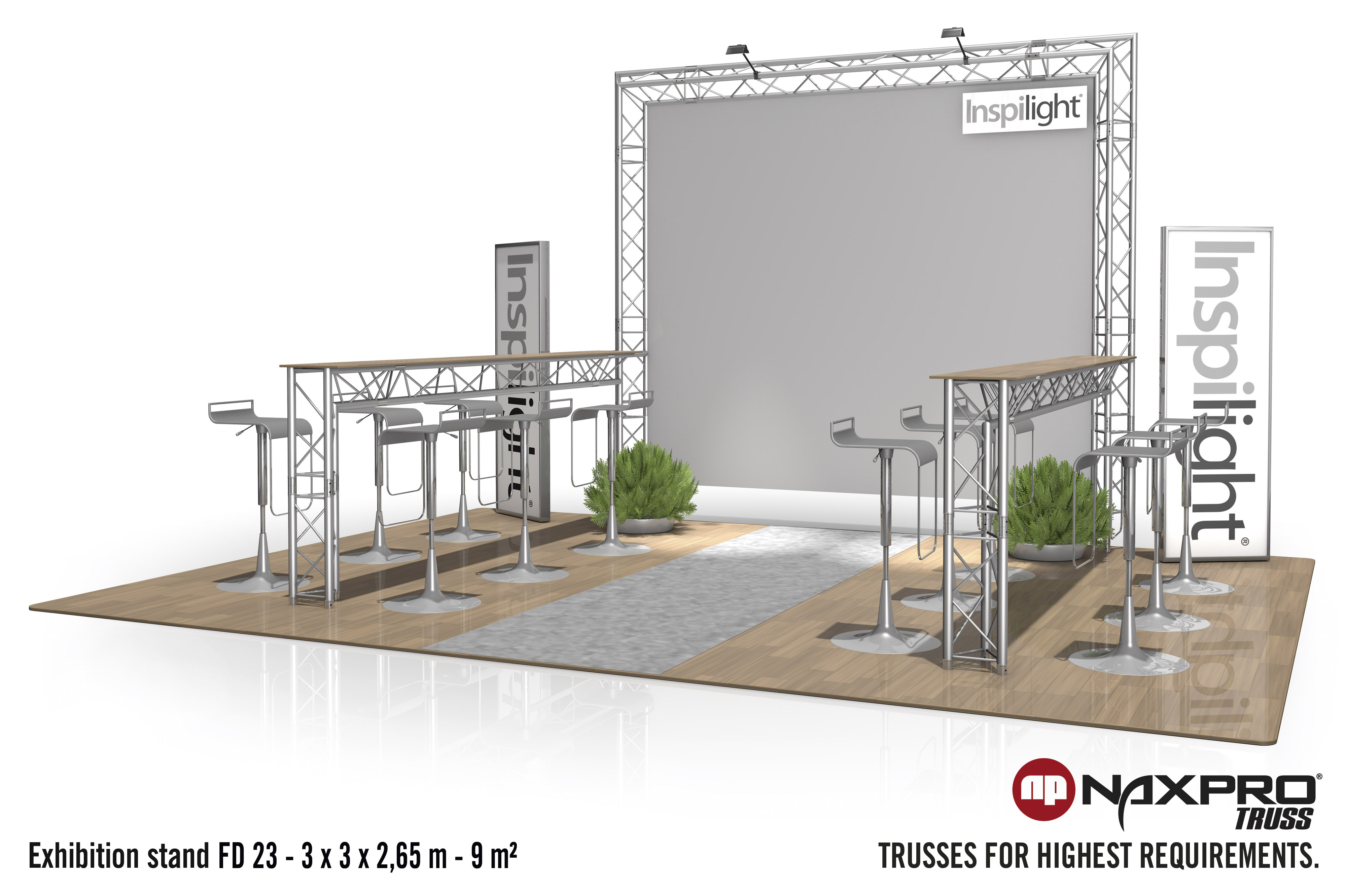

Exhibition Stand FD 23 - 3 x 3 x 2,65 m (LxWxH) - 9 m²
Contains:
3 x Naxpro-Truss FD 23 Straight 200 cm
2 x Naxpro-Truss FD 23 Straight 100 cm
4 x Naxpro-Truss FD 23 Straight 50 cm
6 x Naxpro-Truss Spacer 15 cm
6 x Naxpro-Truss Connecting Set
2 x Naxpro-Truss FD 23 C21 90° 2 Way Corner
2 x Naxpro-Truss FD 23 C25 90° 2 Way Corner
2 x Naxpro-Truss FD 23 C38 90° 3 Way Corner
4 x FD 23 Base plate
Technical Data:
Dimensions: approx. 300 x 300 x 265 cm (LxBxH)
Total area: approx. 9 m²
|

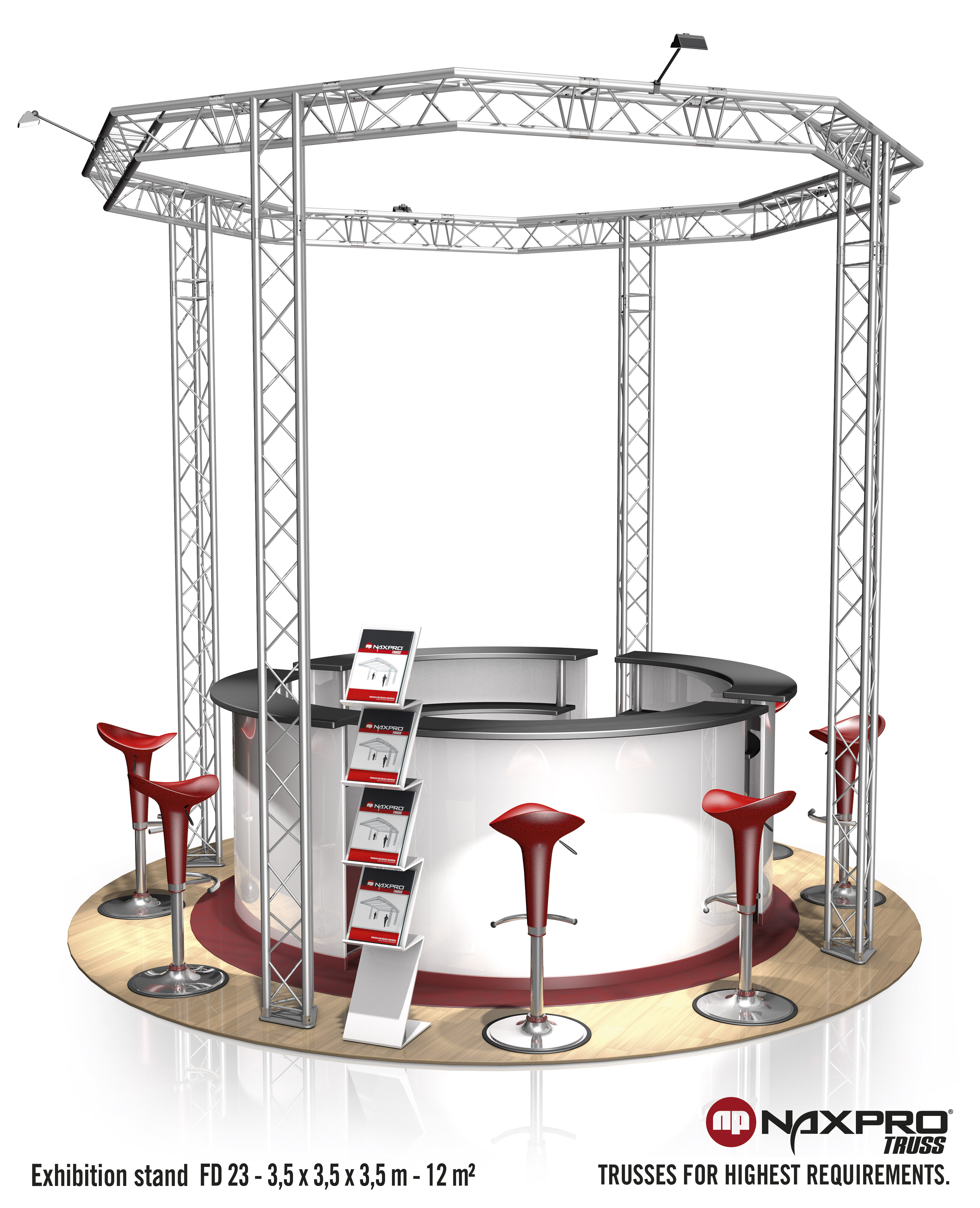

Exhibition Stand FD 23 - 3,5 x 3,5 x 3,5 m (LxWxH) - 12 m²
Contains:
4 x Naxpro-Truss FD 23 Straight 300 cm
4 x Naxpro-Truss FD 23 Straight 50 cm
8 x Naxpro-Truss FD 23 C23 135° 2 Way Corner
4 x Naxpro-Truss FD 23 C35 90° 3 Way Corner
4 x FD 23 Base Plate
Technical Data:
Dimensions: approx. 350 x 350 x 350 cm (LxWxH)
Total area: approx. 12 m²
Total weight: approx. 69 kg
|

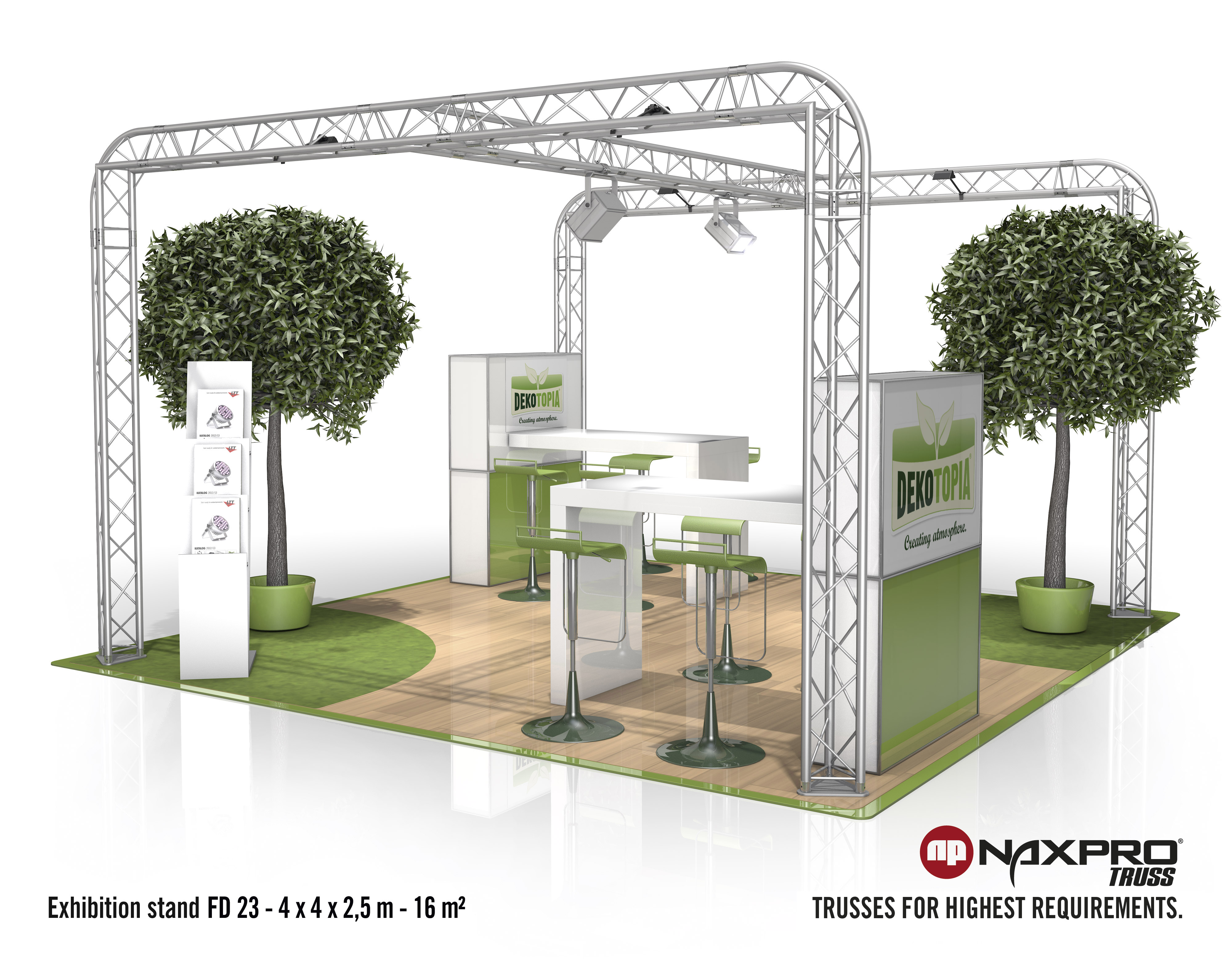

Exhibition Stand FD 23 - 4 x 4 x 2,5 m (LxWxH) - 16 m²
Contains:
5 x Naxpro-Truss FD 23 Straight 200 cm
4 x Naxpro-Truss FD 23 Straight 125 cm
1 x Naxpro-Truss FD 23 Straight 100 cm
4 x Naxpro-Truss FD 23 C24R 90° 2 Way Corner Round
2 x Naxpro-Truss FD 23 C36 90° 3 Way Corner
4 x FD 23 Base Plate
Technical Data:
Dimensions: approx. 400 x 400 x 250 cm (LxWxH)
Total area: approx. 16 m²
Total weight: approx. 52 kg
|

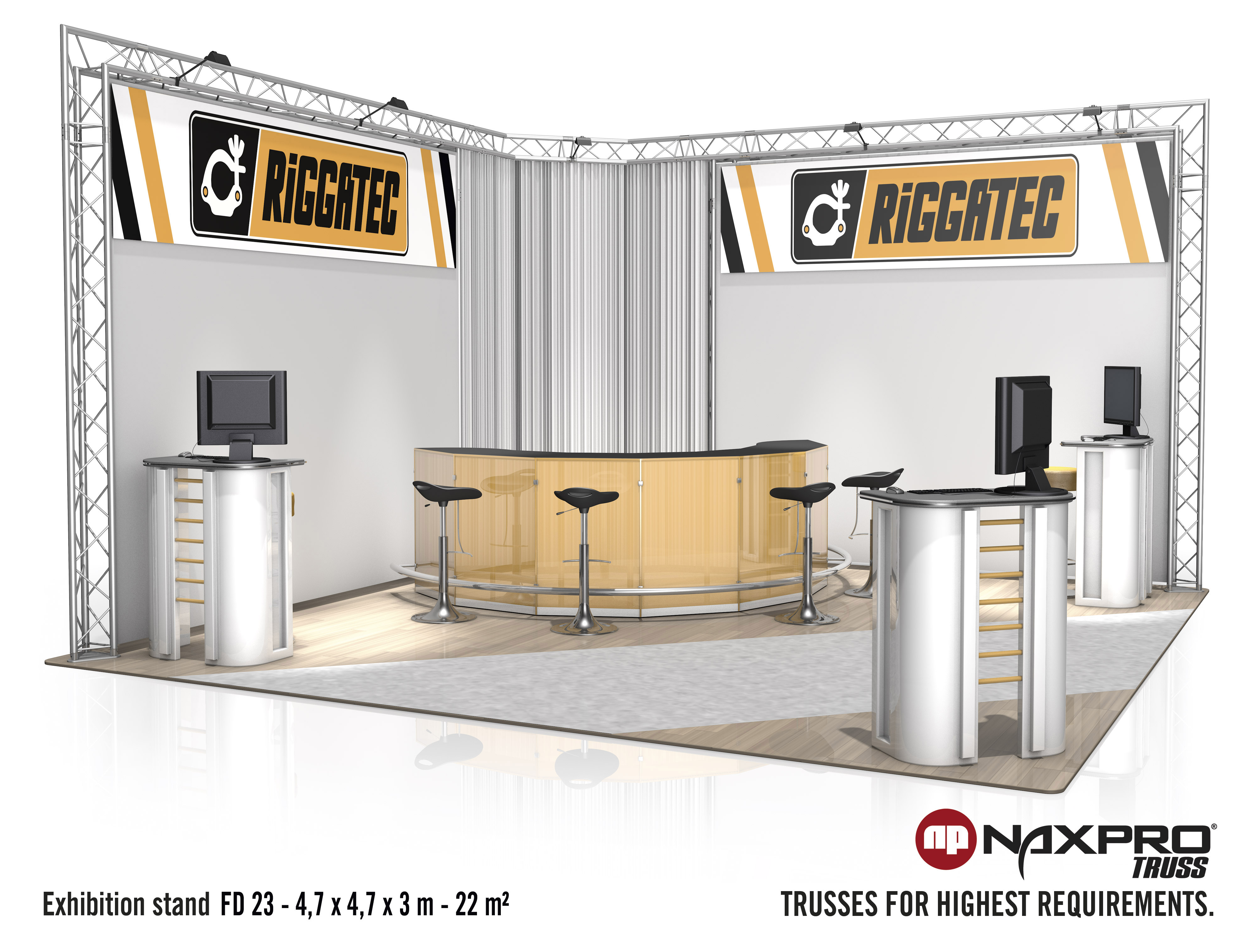

Exhibition Stand FD 23 - 4,7 x 4,7 x 3 m (LxBxH) - 22 m²
Contains:
6 x Naxpro-Truss FD 23 Straight 250 cm
2 x Naxpro-Truss FD 23 C23 135° 2 Way Corner
2 x Naxpro-Truss FD 23 C24 90° 2 Way Corner
2 x Naxpro-Truss FD 23 C37 90° 3 Way Corner
4 x FD 23 Base plate
Technical Data:
Dimensions: approx. 470 x 470 x 300 cm (LxBxH)
Total area: approx. 22 m²
|

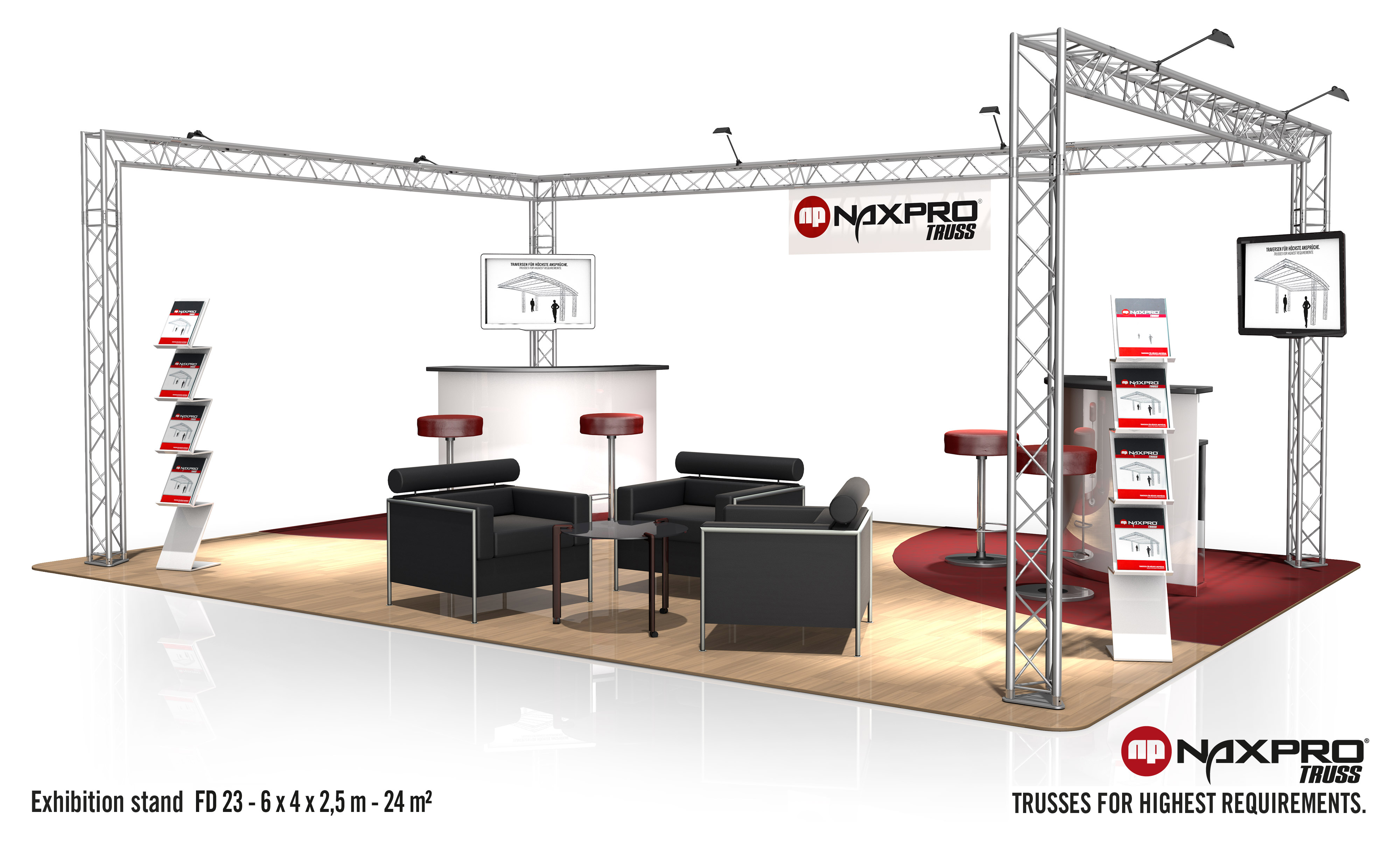

Exhibition Stand FD 23 - 6 x 4 x 2,5 m (LxWxH) - 24 m²
Contains:
8 x Naxpro-Truss FD 23 Straight 200 cm
3 x Naxpro-Truss FD 23 Straight 100 cm
2 x Naxpro-Truss FD 23 C25 90° 2 Way Corner
1 x Naxpro-Truss FD 23 C33 90° 3 Way Corner
1 x Naxpro-Truss FD 23 C34 90° 3 Way Corner
4 x Naxpro-Truss FD 23 Base Plate
Technical Data:
Dimensions: approx. 600 x 400 x 250 cm (LxWxH)
Total area: approx. 24 m²
Total weight: approx. 59 kg
|

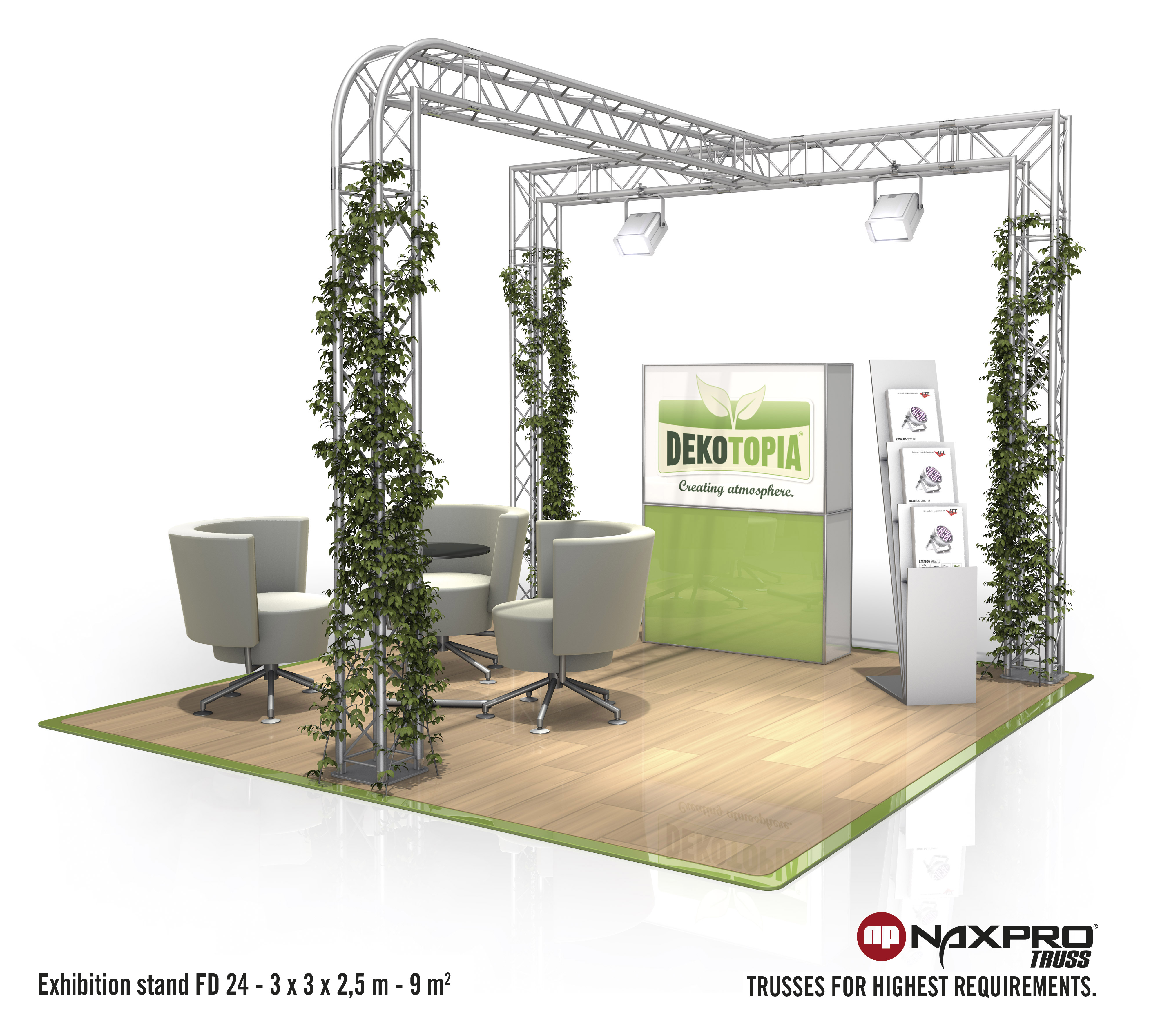

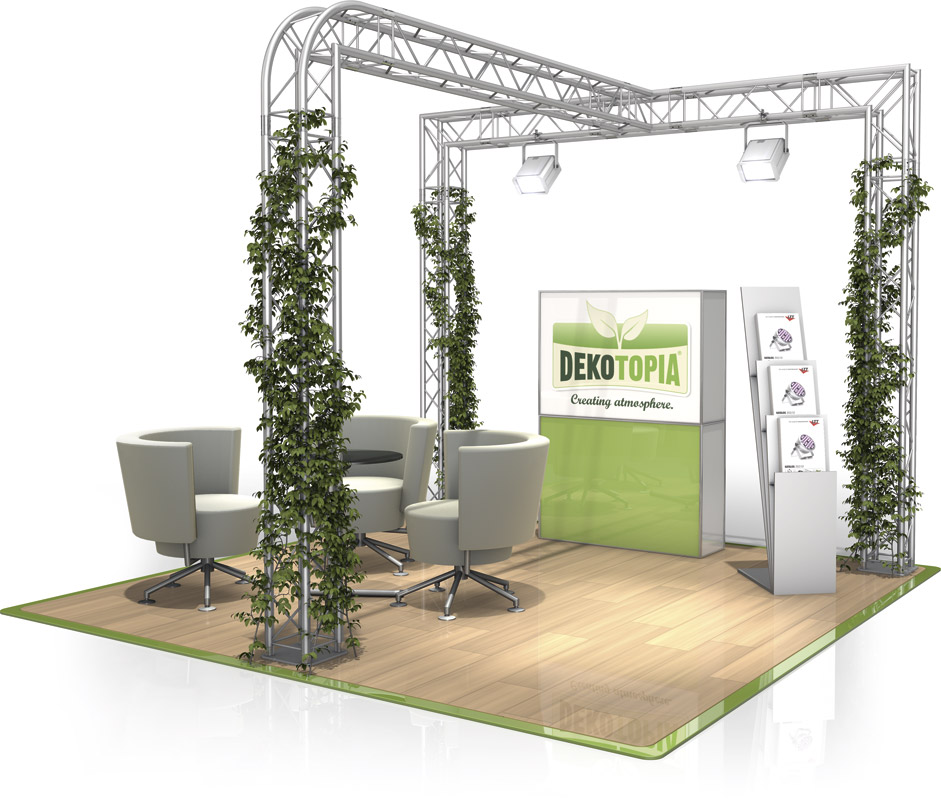

Exhibition Stand FD 24 - 3 x 3 x 2,5 m (LxWxH) - 9 m²
Contains:
4 x Naxpro-Truss FD 24 Straight 200 cm
2 x Naxpro-Truss FD 24 Straight 75 cm
2 x Naxpro-Truss FD 24 C21 90° 2 Way Corner
1 x Naxpro-Truss FD 24 C21R 90° 2 Way Corner Round
1 x Naxpro-Truss FD 24 C35 90° 3 Way Corner
3 x FD 24 Base Plate
Technical Data:
Dimensions: approx. 300 x 300 x 250 cm (LxWxH)
Total area: approx. 9 m²
Total weight: approx. 41 kg
|

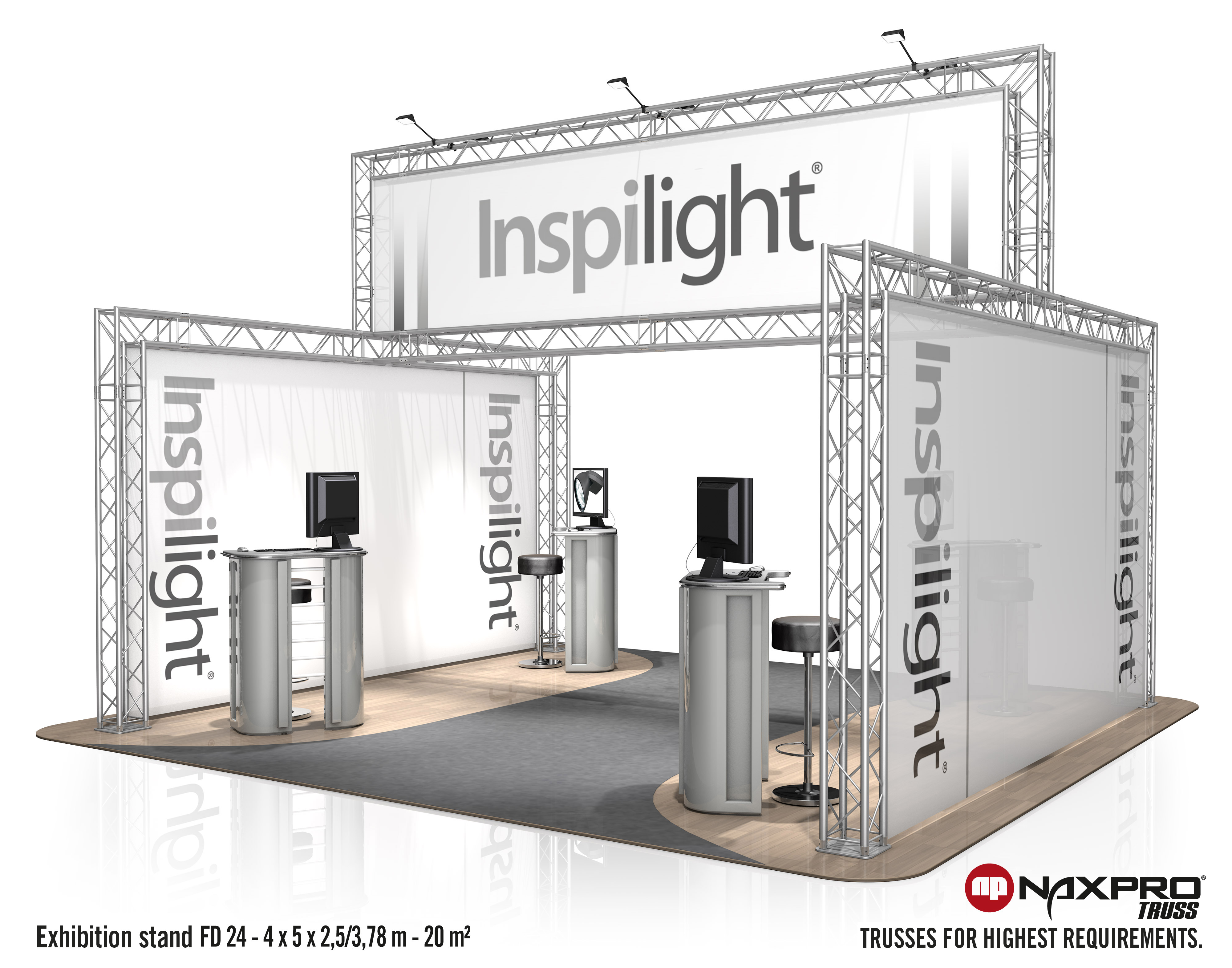

Exhibition Stand FD 24 - 4 x 5 x 2,5/3,78 m (LxWxH) - 20 m²
Contains:
8 x Naxpro-Truss FD 24 Straight 200 cm
4 x Naxpro-Truss FD 24 Straight 125 cm
2 x Naxpro-Truss FD 24 Straight 50 cm
6 x Naxpro-Truss FD 24 C21 90° 2 Way Corner
2 x Naxpro-Truss FD 24 C40 90° 4 Way Corner
4 x FD 24 Base Plate
Technical Data:
Dimensions: approx. 400 x 500 x 250/378 cm (LxWxH)
Total area: approx. 20 m²
Total weight: approx. 88.40 kg
|

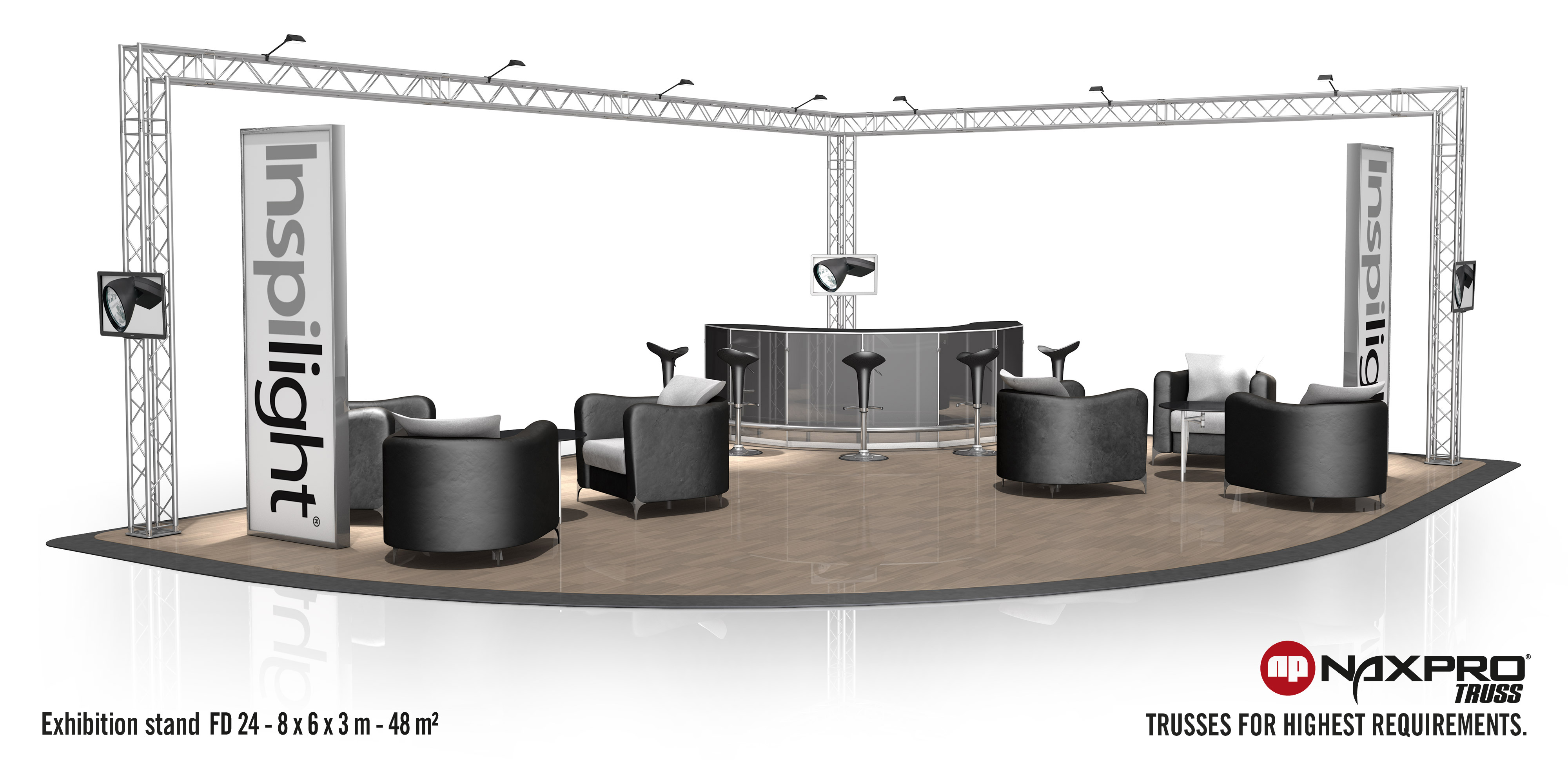

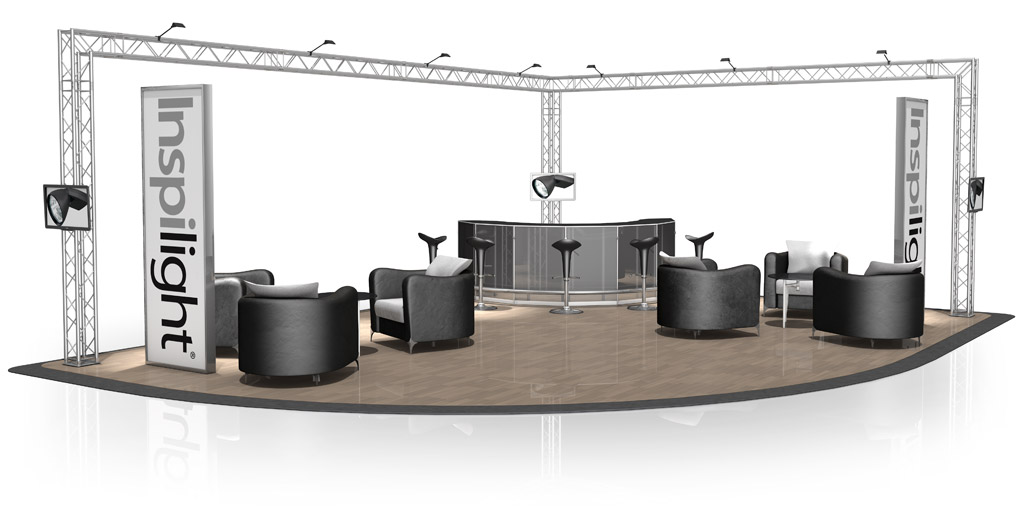

Exhibition Stand FD 24 - 8 x 6 x 3 m (LxWxH) - 48 m²
Contains:
3 x Naxpro-Truss FD 24 Straight 250 cm
5 x Naxpro-Truss FD 24 Straight 200 cm
2 x Naxpro-Truss FD 24 Straight 100 cm
2 x Naxpro-Truss FD 24 C21 90° 2 Way Corner
1 x Naxpro-Truss FD 24 C30 90° 3 Way Corner
3 x FD 24 Base Plate
Technical Data:
Dimensions: approx. 800 x 600 x 300 cm (LxWxH)
Total area: approx. 48m²
Total weight: approx. 59 kg
|

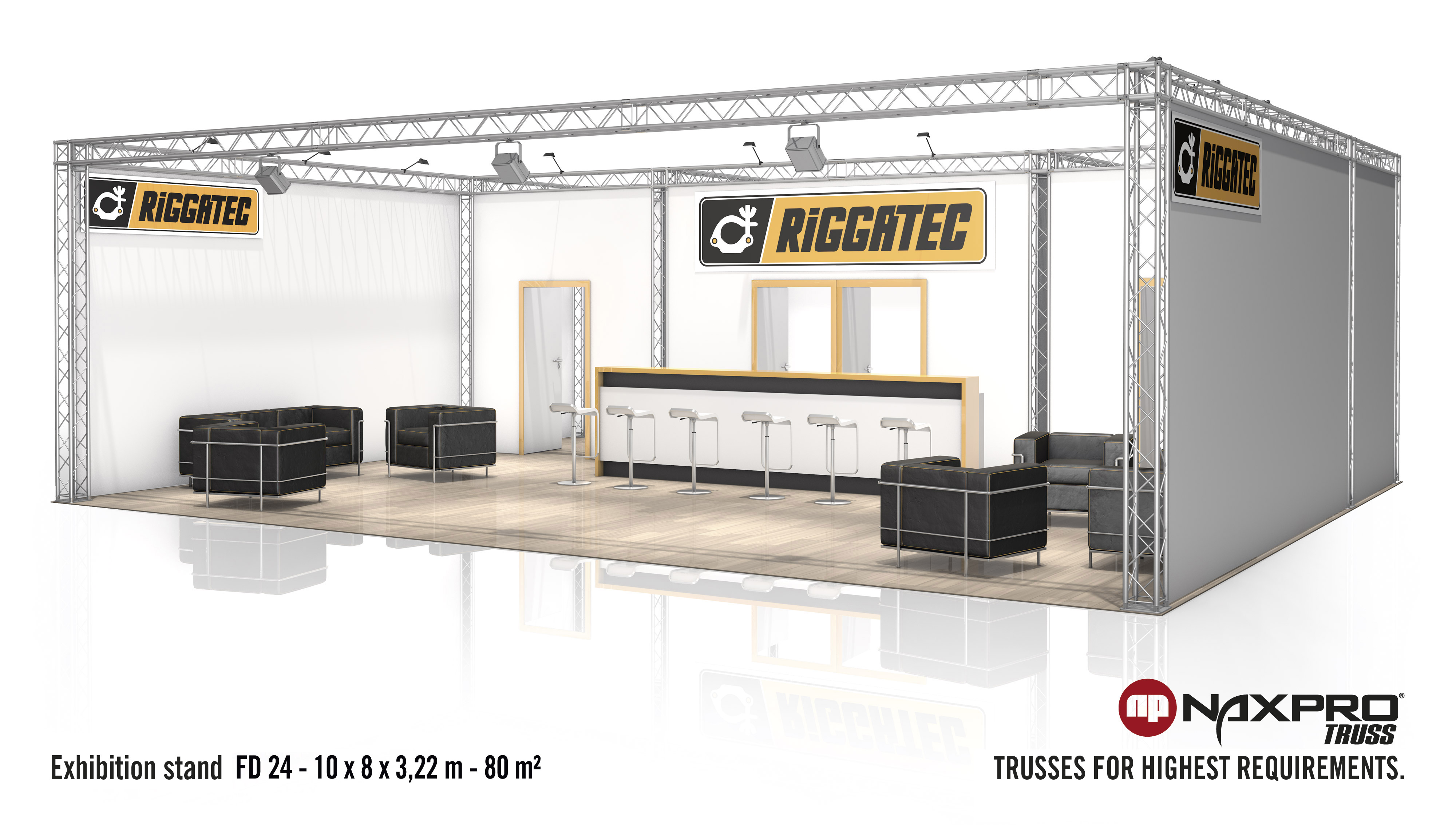

Exhibition Stand FD 24 - 10 x 8 x 3,22 m (LxWxH) - 80 m²
Contains:
15 x Naxpro-Truss FD 24 Straight 300 cm
4 x Naxpro-Truss FD 24 Straight 250 cm
8 x Naxpro-Truss FD 24 Straight 200 cm
2 x Naxpro-Truss FD 24 Straight 175 cm
3 x Naxpro-Truss FD 24 Straight 56 cm
8 x Spacer 12 cm
8 x Spacer 3 cm
10 x Naxpro-Truss FD 24 Boxcorner with 8 Half Connectors
64 x Half Connectors M12 for Boxcorner
10 x FD 24 Base Plate
Technical Data:
Dimensions: approx. 1000 x 800 x 322 cm (LxWxH)
Total area: approx. 80 m²
Total weight: approx. 207 kg
|

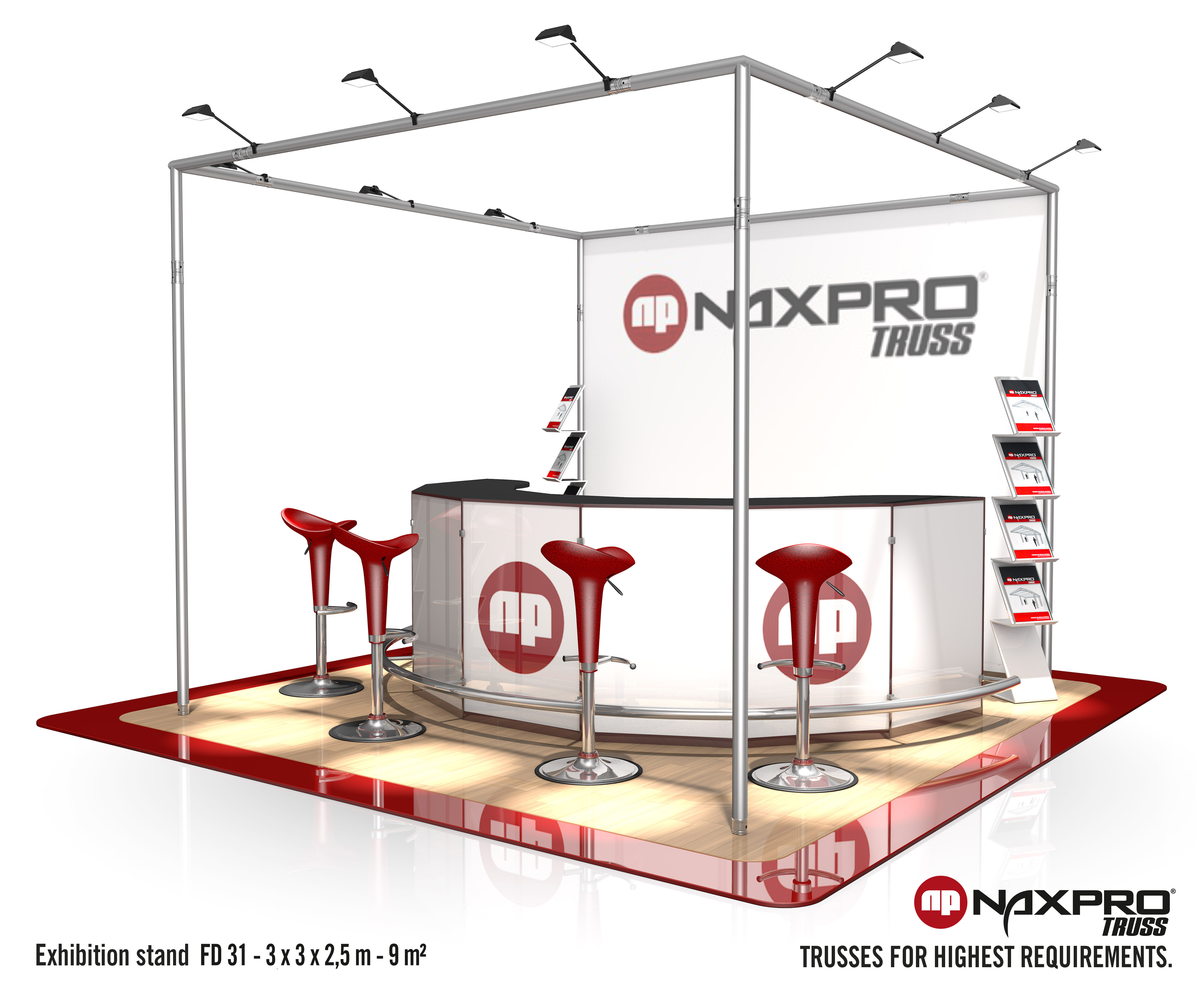

Exhibition Stand FD 31 - 3 x 3 x 2,5 m (LxWxH) - 9 m²
Contains:
8 x Naxpro-Truss FD 31 Straight 200 cm
4 x Naxpro-Truss FD 24 C30 90° 3 Way Corner
Technical Data:
Dimensions: approx. 300 x 300 x 250 cm (LxWxH)
Total area: approx. 9 m²
Total weight: approx. 23.20 kg
|

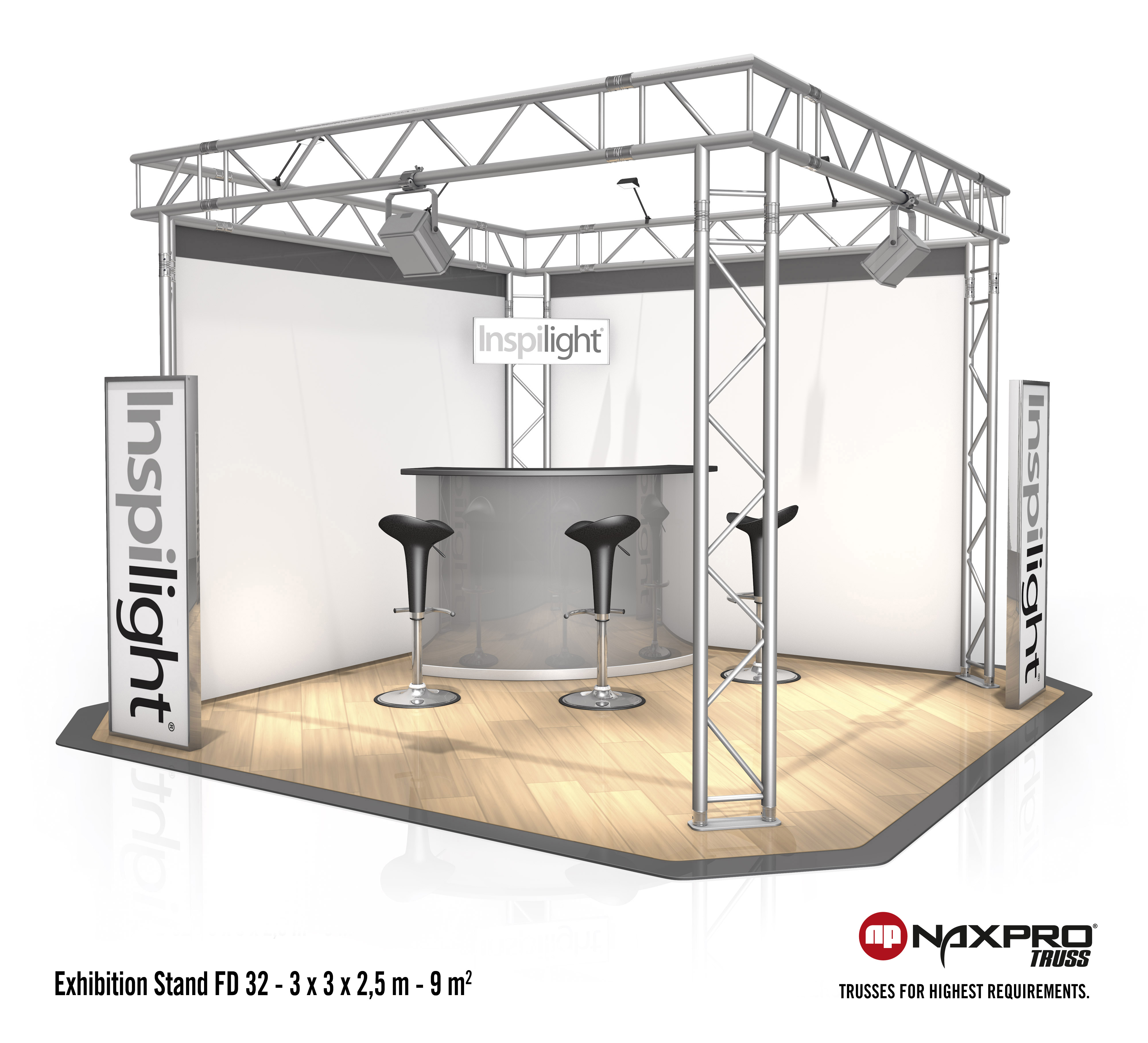

Exhibition Stand FD 32 - 3 x 3 x 2,5 m (LxWxH) - 9 m²
Contains:
8 x Naxpro-Truss FD 32 Straight 200 cm
4 x Naxpro-Truss FD 32 C31V 90° 3 Way Corner
4 x FD 32 Base Plate
Technical Data:
Dimensions: approx. 300 x 300 x 250 cm (LxWxH)
Total area: approx. 9 m²
Total weight: approx. 62 kg
|

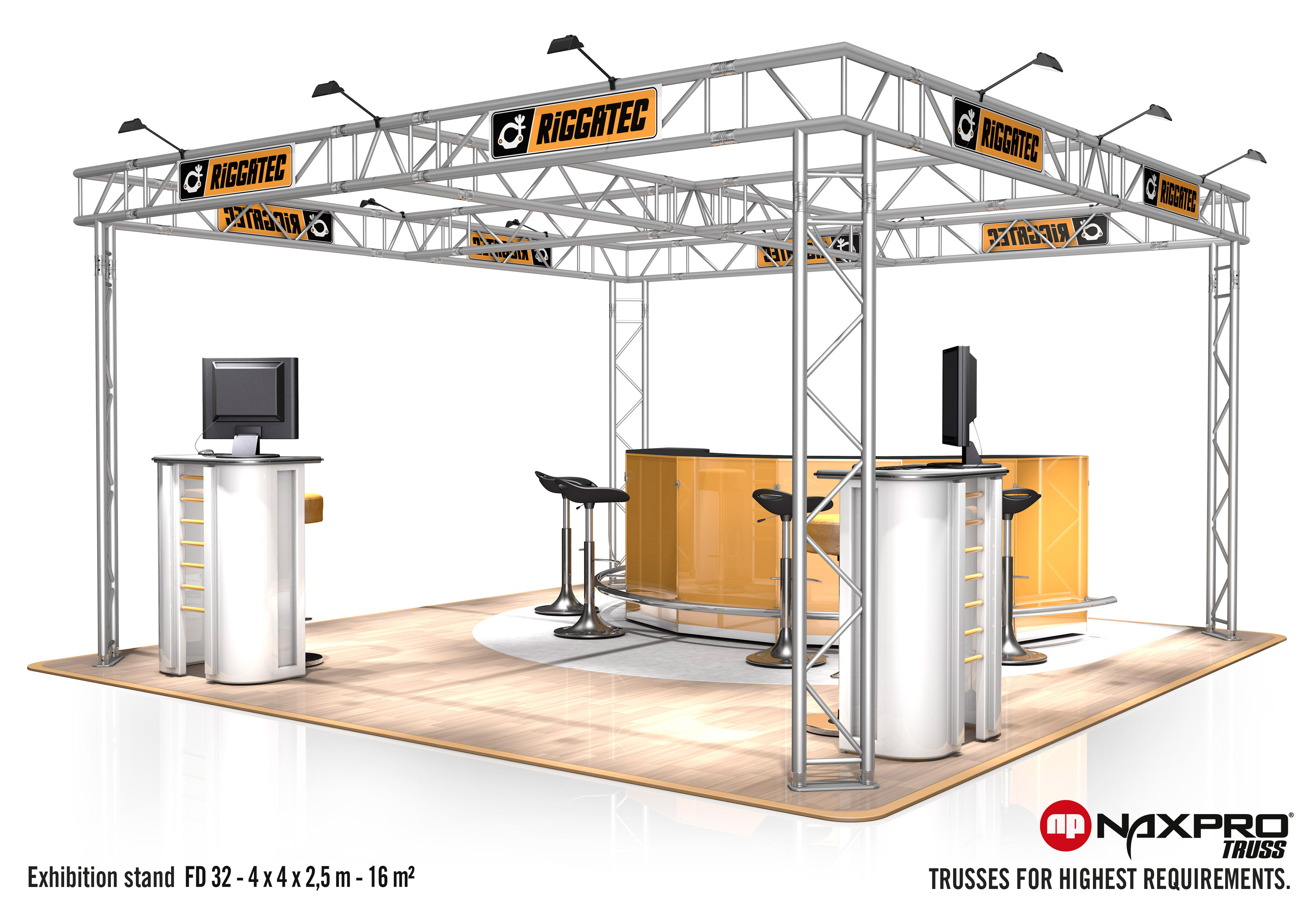

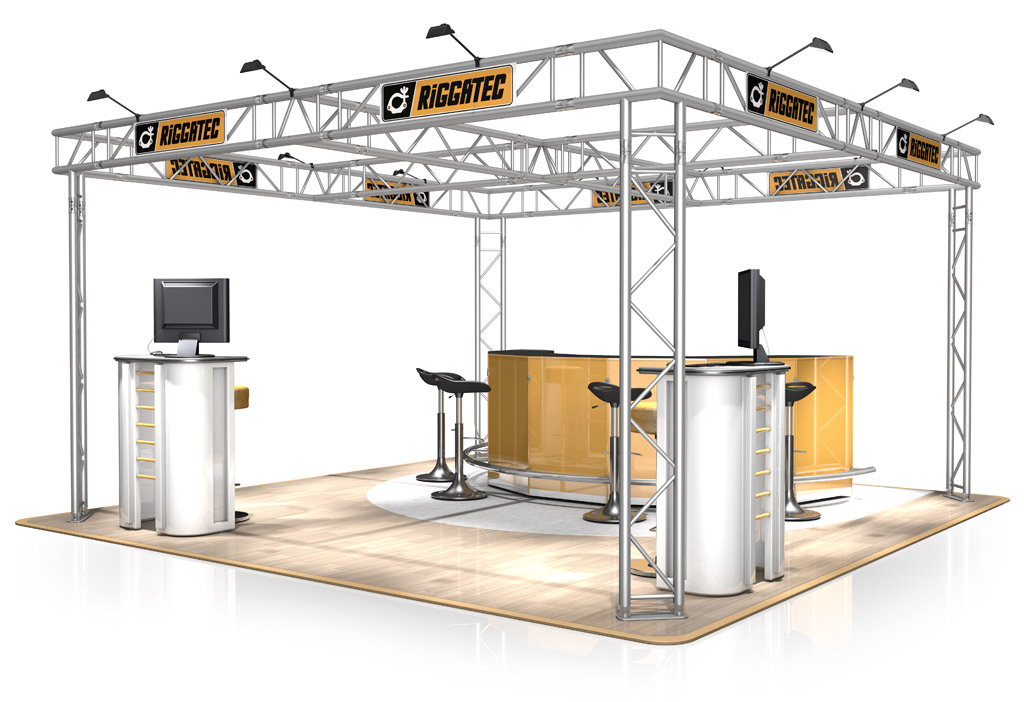

Exhibition Stand FD 32 - 4 x 4 x 2,5 m (LxWxH) - 16 m²
Contains:
4 x Naxpro-Truss FD 32 Straight 200 cm
12 x Naxpro-Truss FD 32 Straight 125 cm
4 x Naxpro-Truss FD 32 C31V 90° 3 Way Corner
4 x Naxpro-Truss FD 32 C35V 90° 3 Way Corner
1 x Naxpro-Truss FD 32 C41V 90° 4 Way Corner
4 x Naxpro-Truss FD 32 Base Plate
Technical Data:
Dimensions: approx. 400 x 400 x 250 cm (LxWxH)
Total area: approx. 16m²
Total weight: approx. 101.6
|

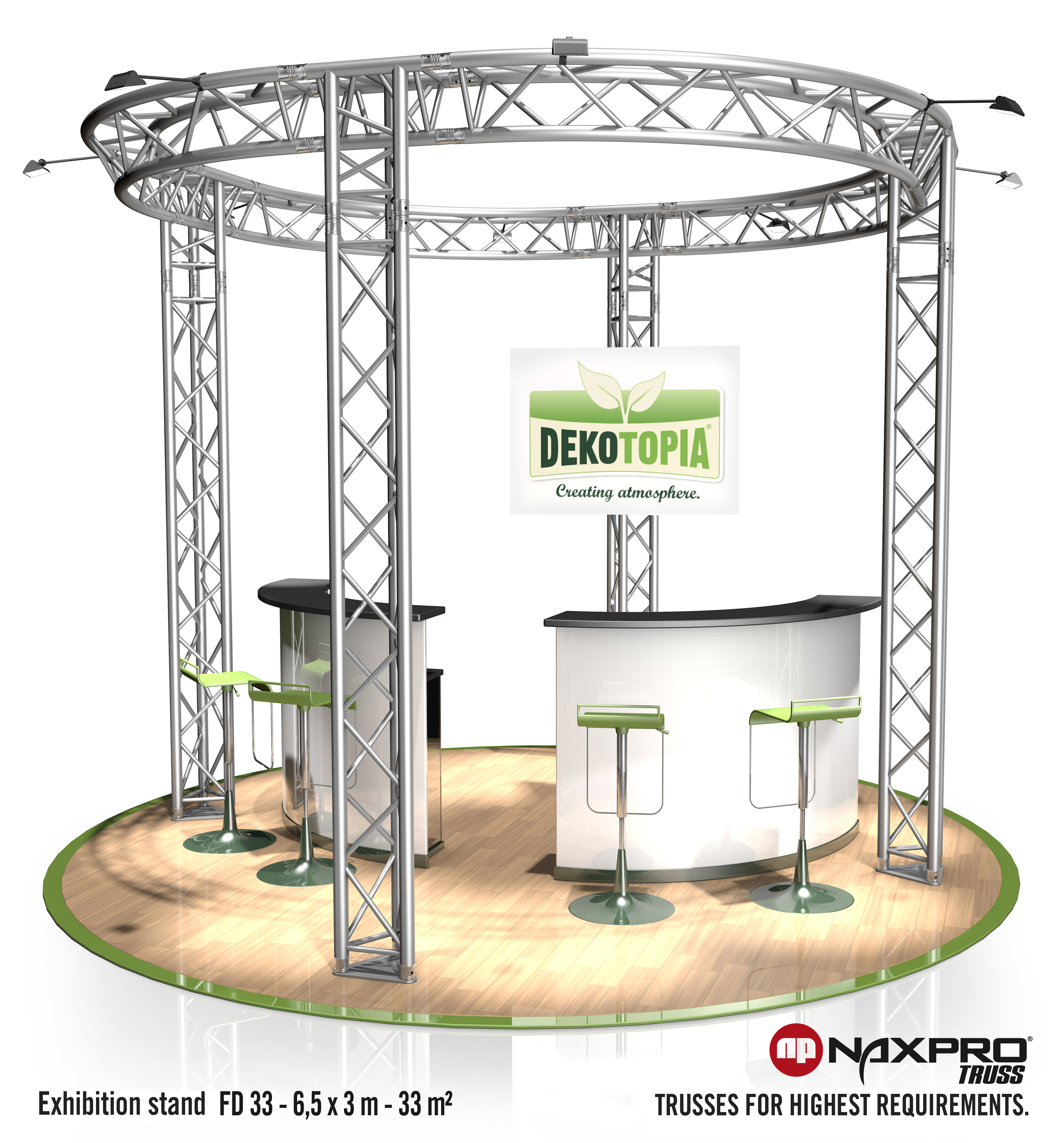

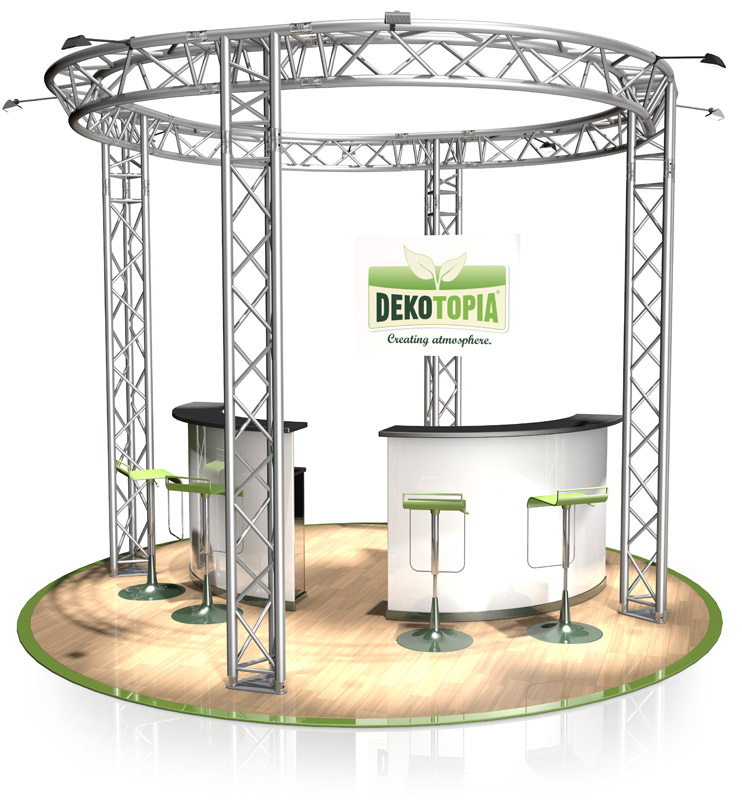

Exhibition Stand FD 33 - 6,5 x 3 m (DxH) - 33 m²
Contains:
1 x Naxpro-Truss FD 33 Truss Circle 6 m Tip Up/Down
4 x Naxpro-Truss FD 33 Straight 250 cm
4 x Naxpro-Truss FD 33 C35 90° 3 Way Corner
4 x FD 33 Base Plate
Technical Data:
Dimensions: approx. 650 x 300 cm (DxH)
Total area: approx. 33 m²
Total weight: approx. 150 kg
|

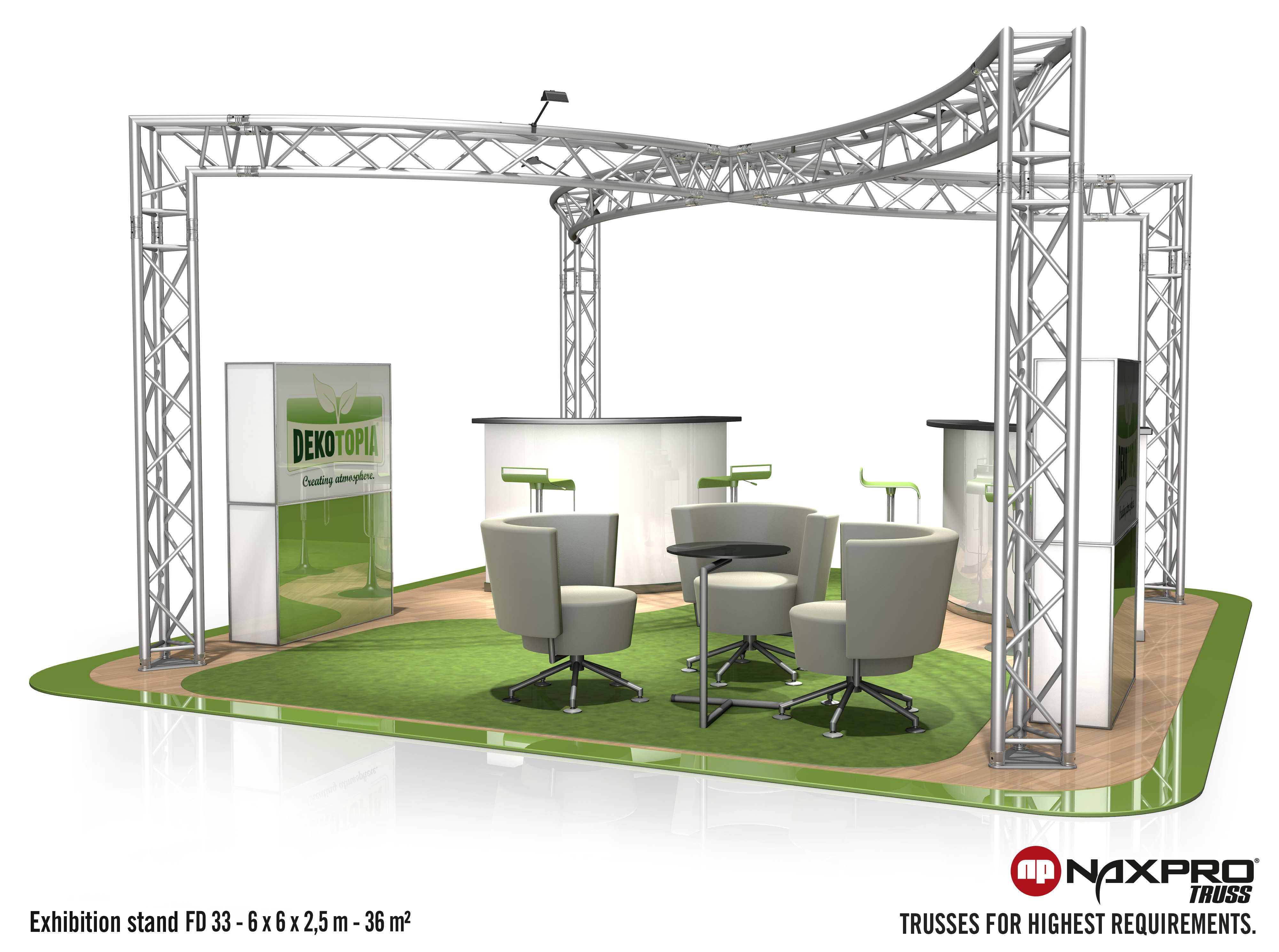

Exhibition Stand FD 33 - 6 x 6 x 2,5 m (LxWxH) - 36 m²
Contains:
4 x Naxpro-Truss FD 33 Straight 200 cm
1 x Naxpro-Truss FD 33 Truss Circle 5 m Tip Up/Down
4 x Naxpro-Truss FD 33 C25 90° 2 Way Corner
1 x Naxpro-Truss FD 33 C41 90° 4 Way Corner
4 x Naxpro-Truss FD 33 Base Plate
Technical Data:
Dimensions: approx. 600 x 600 x 250 cm (LxWxH)
Total area: approx. 36m²
Total weight: approx. 130 kg
|

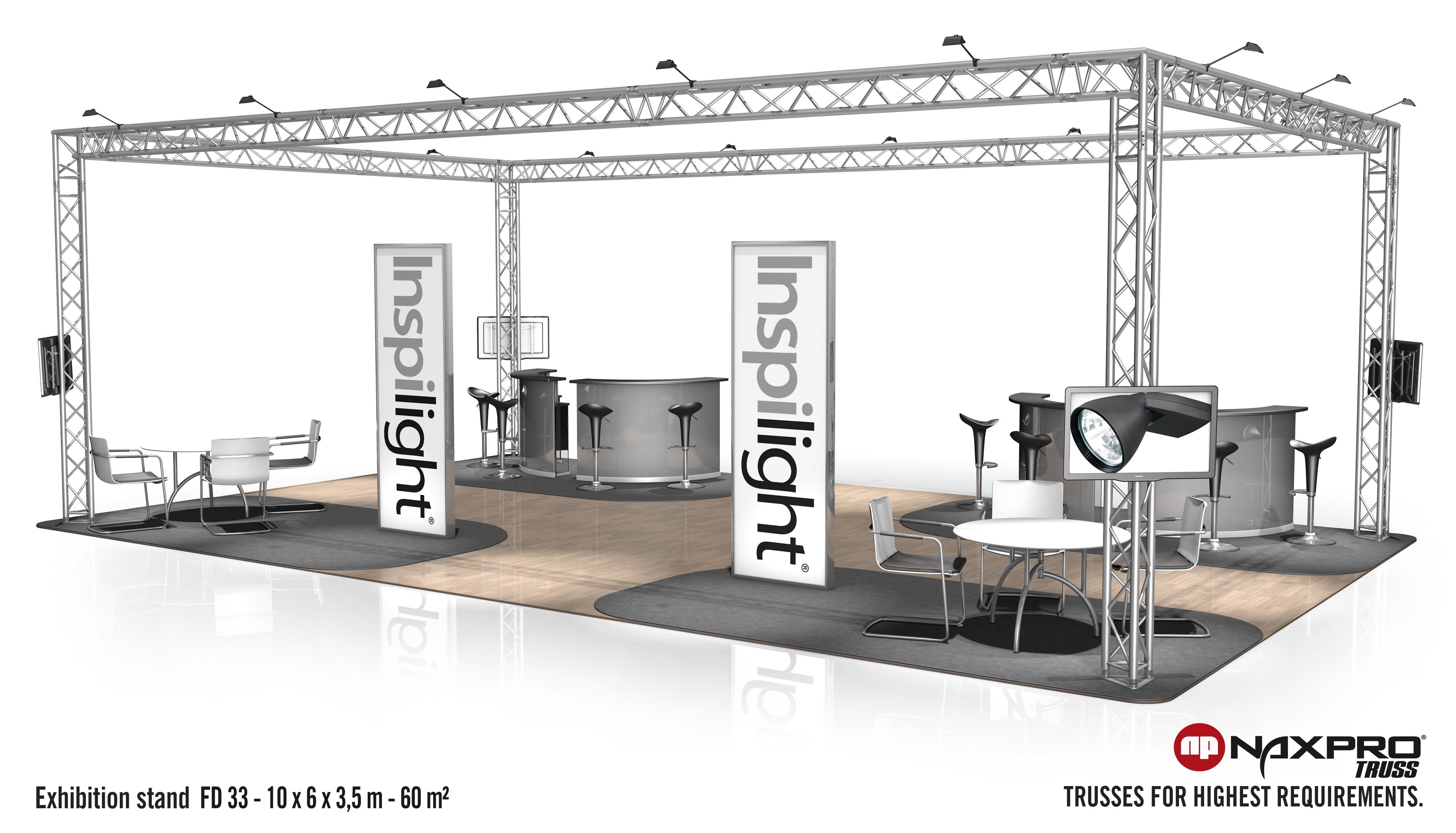

Exhibition Stand FD 33 - 10 x 6 x 3,5 m (LxWxH) - 60 m²
Contains:
12 x Naxpro-Truss FD 33 Straight 300 cm
2 x Naxpro-Truss FD 33 Straight 200 cm
2 x Naxpro-Truss FD 33 C33 90° 3 Way Corner
2 x Naxpro-Truss FD 33 C34 90° 3 Way Corner
4 x FD 33 Base plate
Technical Data:
Dimensions: approx. 1000 x 600 x 350 cm (LxWxH)
Total area: approx. 60 m²
Total weight: approx. 190 kg
|

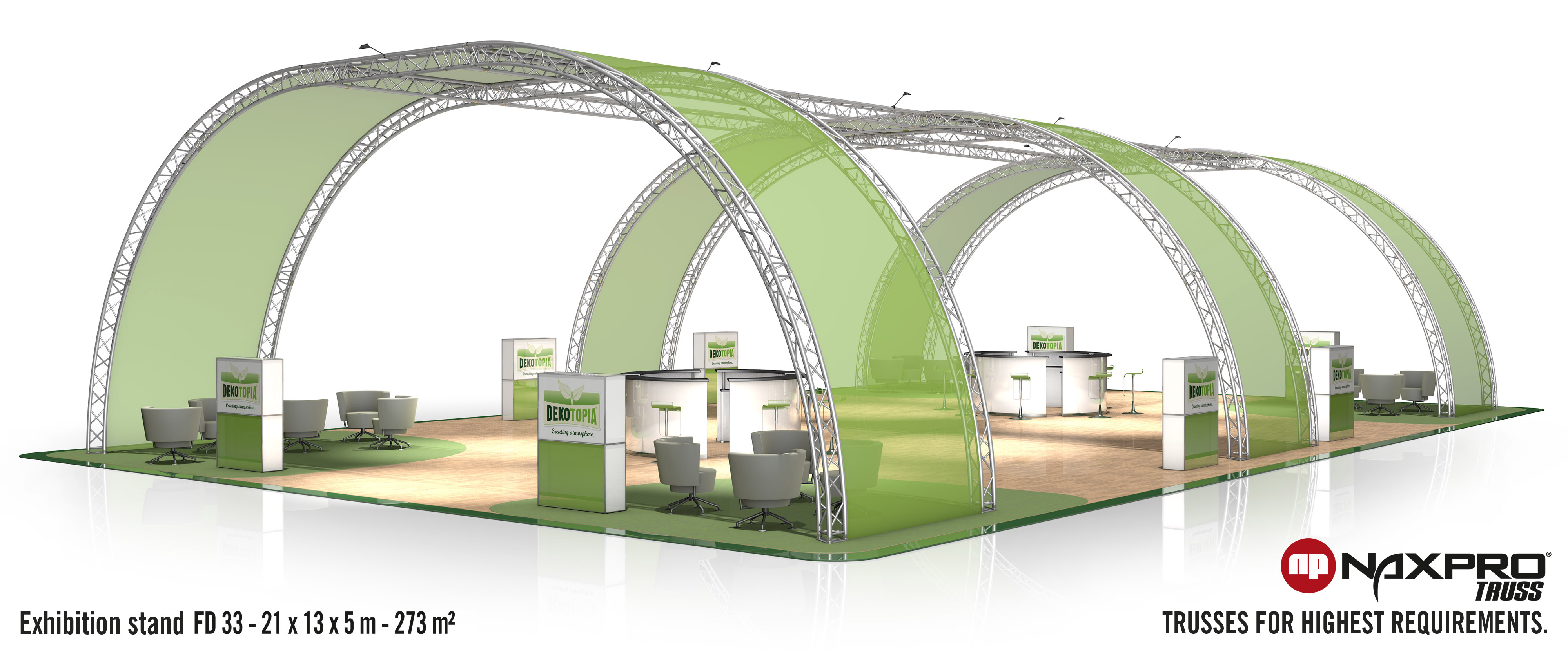

Exhibition Stand FD 33 - 21 x 13 x 5 m (LxWxH) - 273 m²
Contains:
8 x Naxpro-Truss FD 33 Straight 300 cm
12 x Naxpro-Truss FD 33 Straight 200 cm
3 x Naxpro-Truss FD 33 Truss Circle 10 m Tip Inside
4 x Naxpro-Truss FD 33 C36 90° 3 Way Corner
8 x Naxpro-Truss FD 33 C41 90° 4 Way Corner
6 x Naxpro-Truss FD 33 Base Plate
Technical Data:
Dimensions: approx. 2100 x 1300 x 500 cm (LxWxH)
Total area: approx. 273 m²
Total weight: approx. 656 kg
|

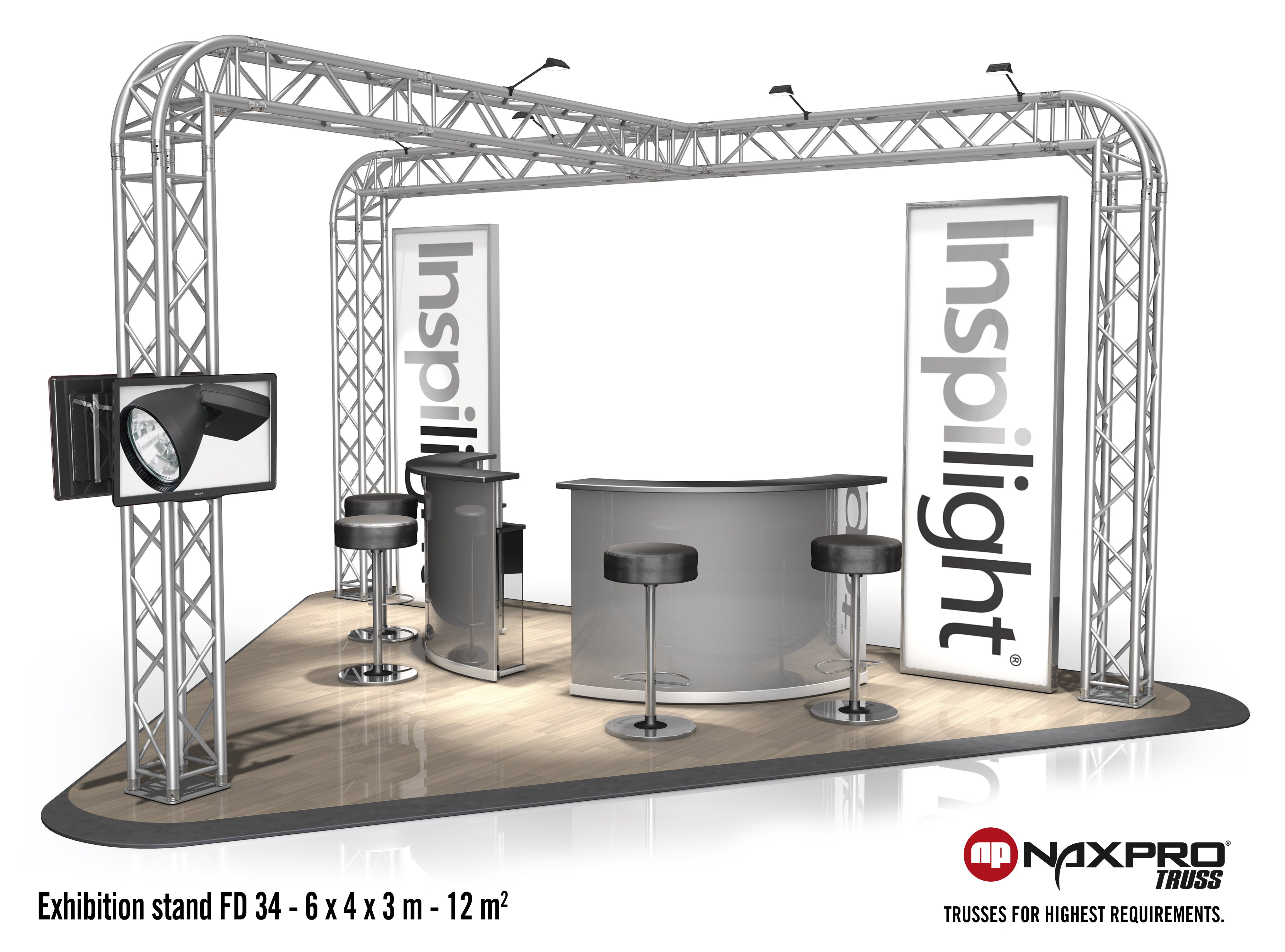

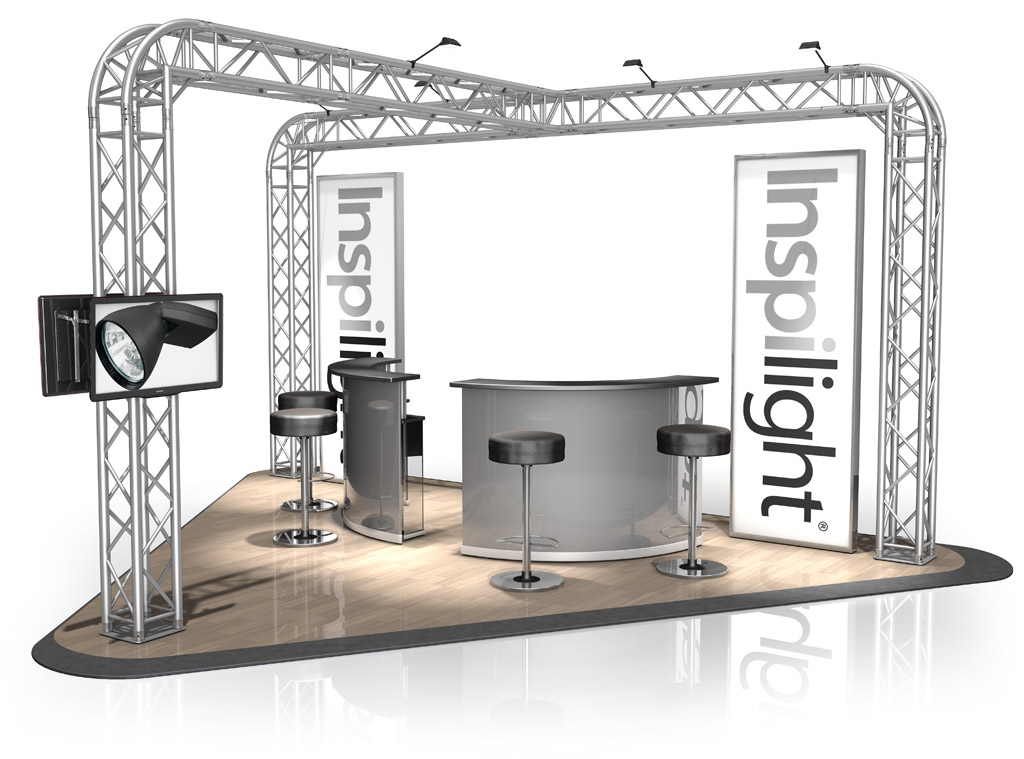

Exhibition Stand FD 34 - 6 x 4 x 3 m (LxWxH) - 12 m²
Contains:
3 x Naxpro-Truss FD 34 Straight 250 cm
2 x Naxpro-Truss FD 34 Straight 225 cm
1 x Naxpro-Truss FD 34 Straight 200 cm
1 x Naxpro-Truss FD 34 Straight 100 cm
3 x Naxpro-Truss FD 34 C21 90° 2 Way Corner Round
1 x Naxpro-Truss FD 34 C35 90° 3 Way Corner
3 x FD 34 Base Plate
Technical Data:
Dimensions: approx. 600 x 400 x 300 cm (LxWxH)
Total area: approx. 12 m²
Total weight: approx. 110 kg
|

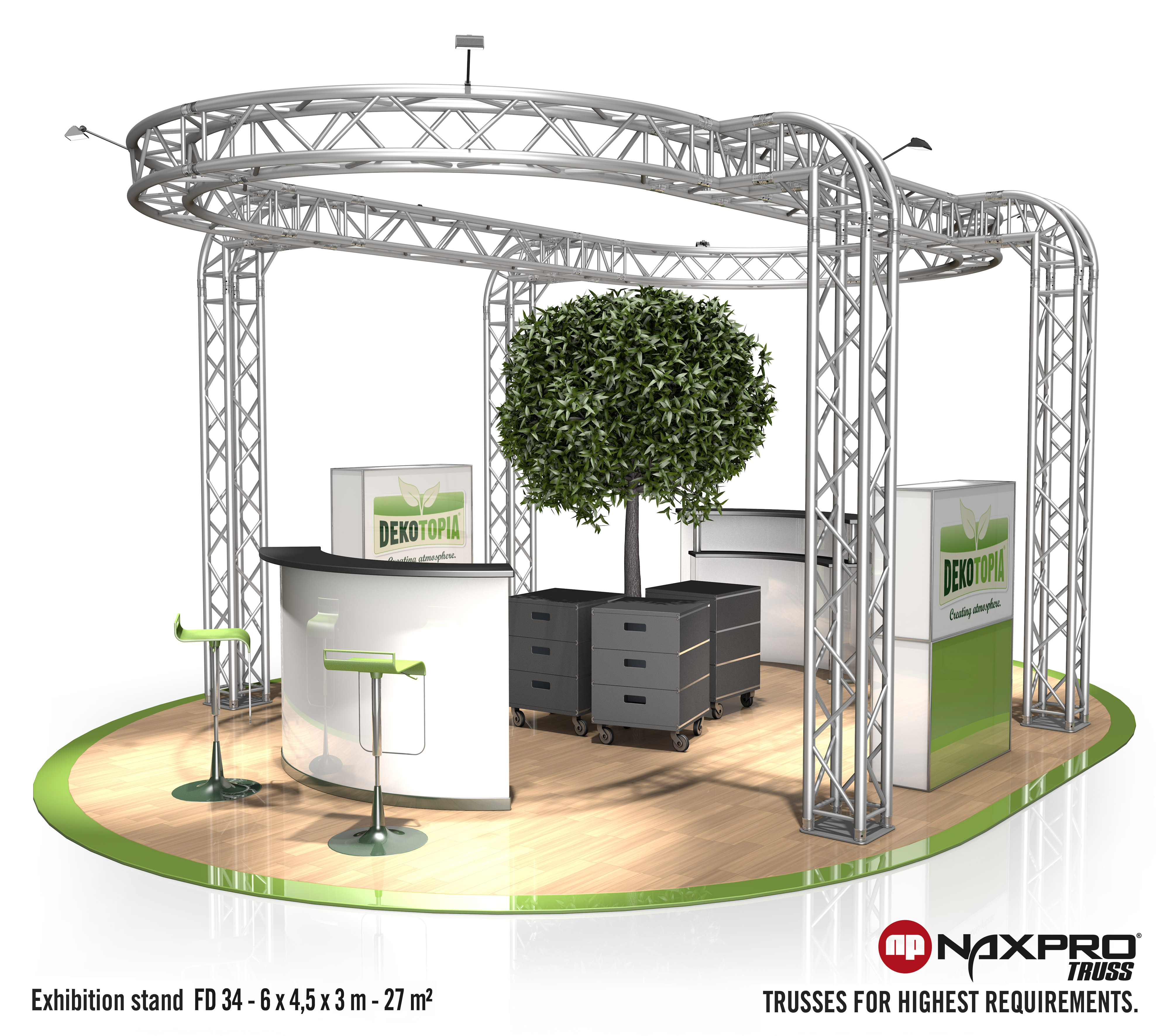

Exhibition Stand FD 34 - 6 x 4,5 x 3 m (LxWxH) - 27 m²
Contains:
4 x Naxpro-Truss FD 34 Straight 250 cm
2 x Naxpro-Truss FD 34 Straight 200 cm
4 x Naxpro-Truss FD 34 C21 90° 2 Way Corner Round
4 x Naxpro-Truss FD 34 C35 90° 3 Way Corner
1 x Naxpro-Truss FD 34 Truss Circle 3 m
4 x FD 34 Base Plate
Technical Data:
Dimensions: approx. 600 x 442 x 300 cm (LxWxH)
Total area: approx. 27 m²
Total weight: approx. 145 kg
|

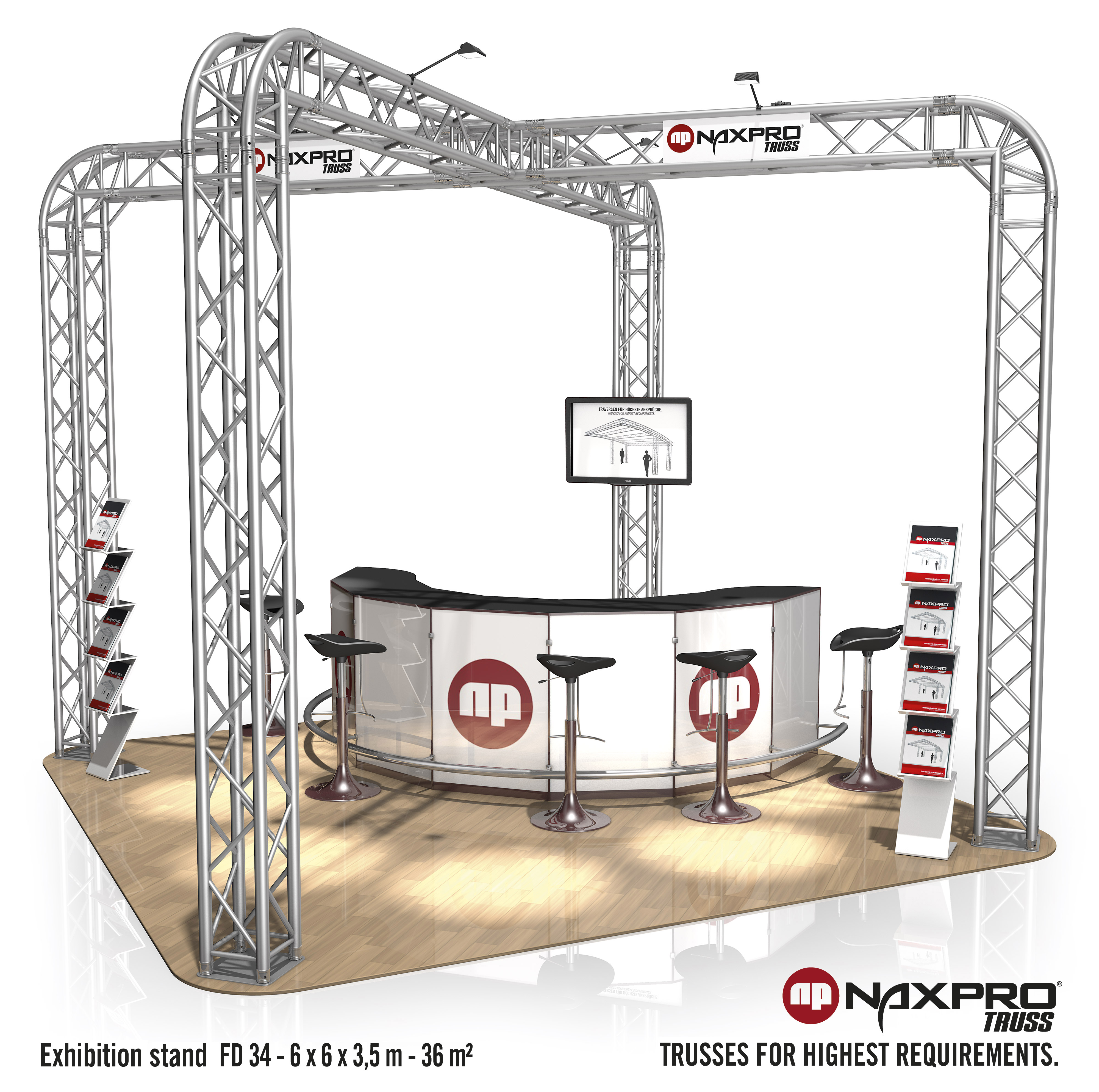

Exhibition Stand FD 34 - 6 x 6 x 3,5 m (LxWxH) - 36 m²
Contains:
4 x Naxpro-Truss FD 34 Straight 300 cm
4 x Naxpro-Truss FD 34 Straight 225 cm
4 x Naxpro-Truss FD 34 C21 90° 2 Way Corner Round
1 x Naxpro-Truss FD 34 C41 90° 4 Way Corner
4 x FD 34 Base Plate
Technical Data:
Dimensions: approx. 600 x 600 x 350 cm (LxWxH)
Total area: approx. 36 m²
Total weight: approx. 155 kg
|

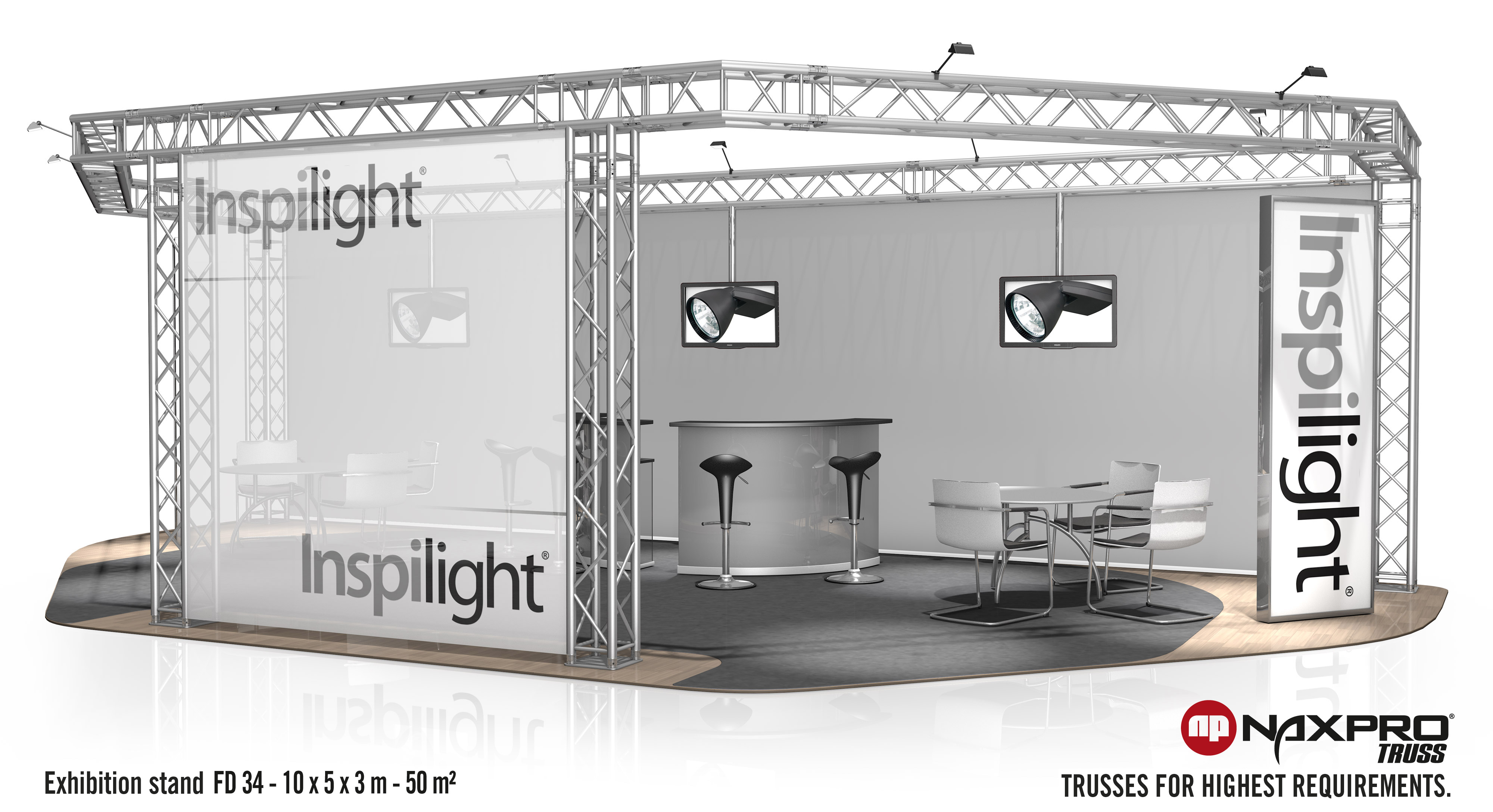

Exhibition Stand FD 34 - 10 x 5 x 3 m (LxWxH) - 50 m²
Contains:
5 x Naxpro-Truss FD 34 Straight 300 cm
4 x Naxpro-Truss FD 34 Straight 250 cm
1 x Naxpro-Truss FD 34 Straight 200 cm
2 x Naxpro-Truss FD 34 Straight 100 cm
4 x Naxpro-Truss FD 34 C23 90° 2 Way Corner
2 x Naxpro-Truss FD 34 C30 90° 3 Way Corner
2 x Naxpro-Truss FD 34 C35 90° 3 Way Corner
4 x FD 34 Base Plate
Technical Data:
Dimensions: approx. 1000 x 500 x 300 cm (LxWxH)
Total area: approx. 50 m²
Total weight: approx. 230 kg
|

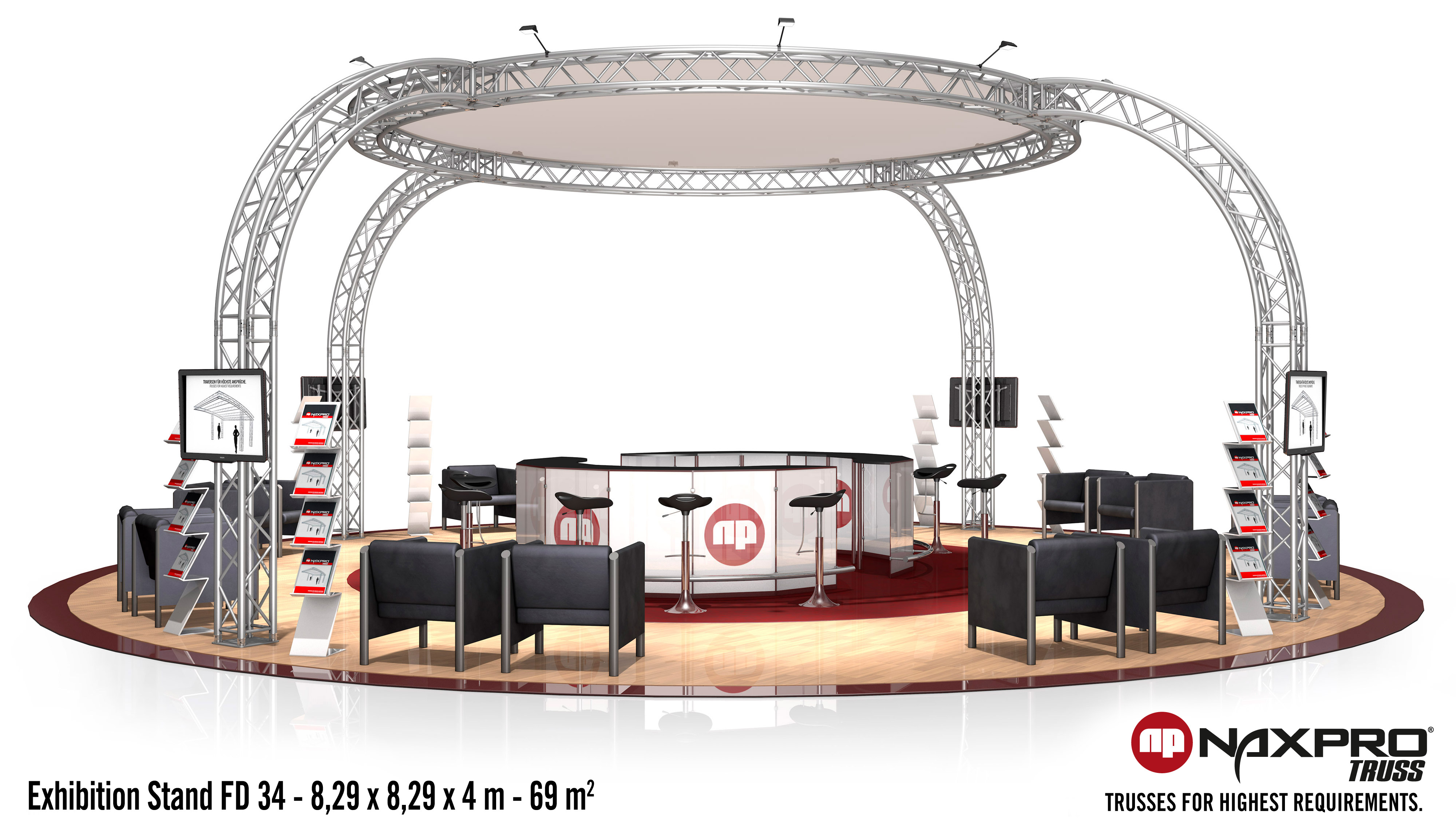

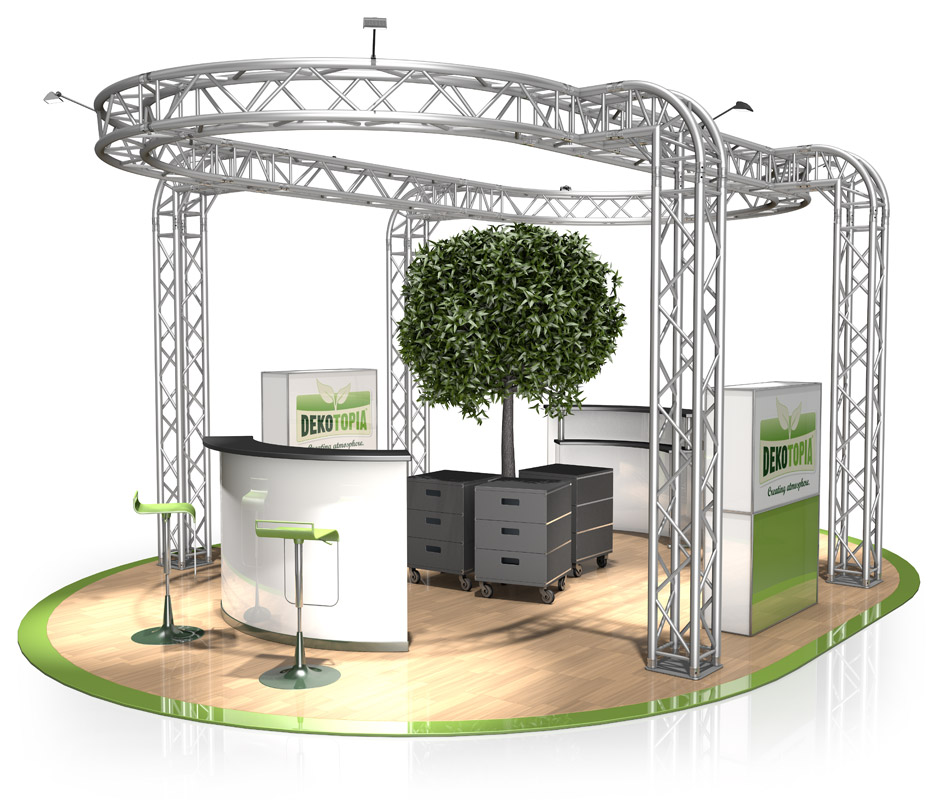

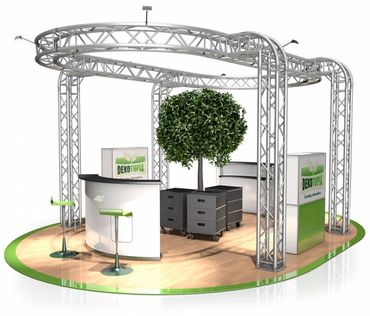

Exhibition Stand FD 34 - 8,29 x 8,29 x 4 m (LxWxH) - 69 m²
Contains:
4 x Naxpro-Truss FD 34 Straight 200 cm
2 x Naxpro-Truss FD 34 Truss Circle 4 m
4 x Naxpro-Truss FD 34 Boxcorner incl. 8 connectors
16 x Naxpro-Truss Halfconnector for box corner M12
4 x FD 34 Base Plate
Technical Data:
Dimensions: approx. 829 x 829 x 400 cm (LxWxH)
Total area: approx. 69 m²
Total weight: approx. 215 kg
|

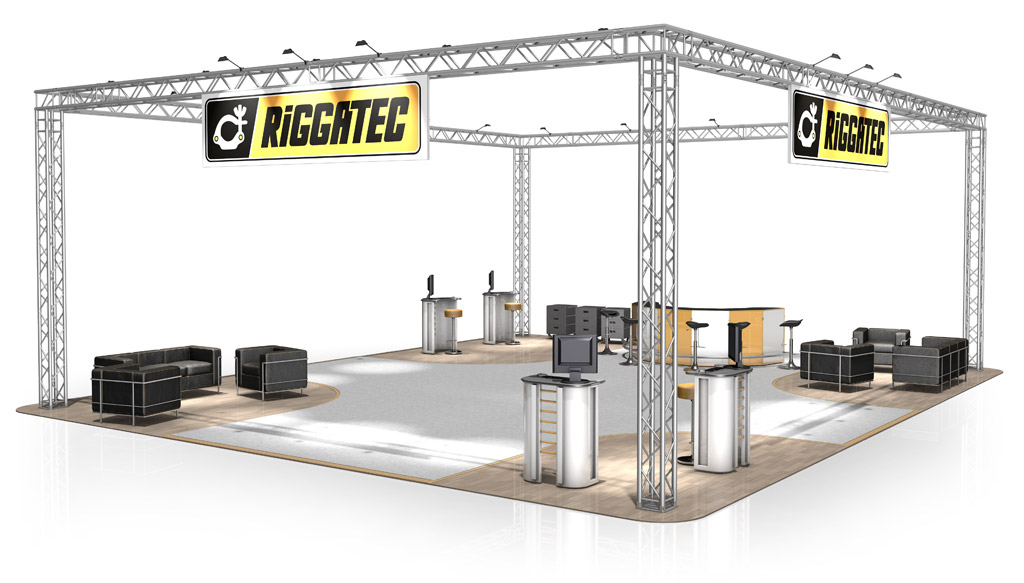

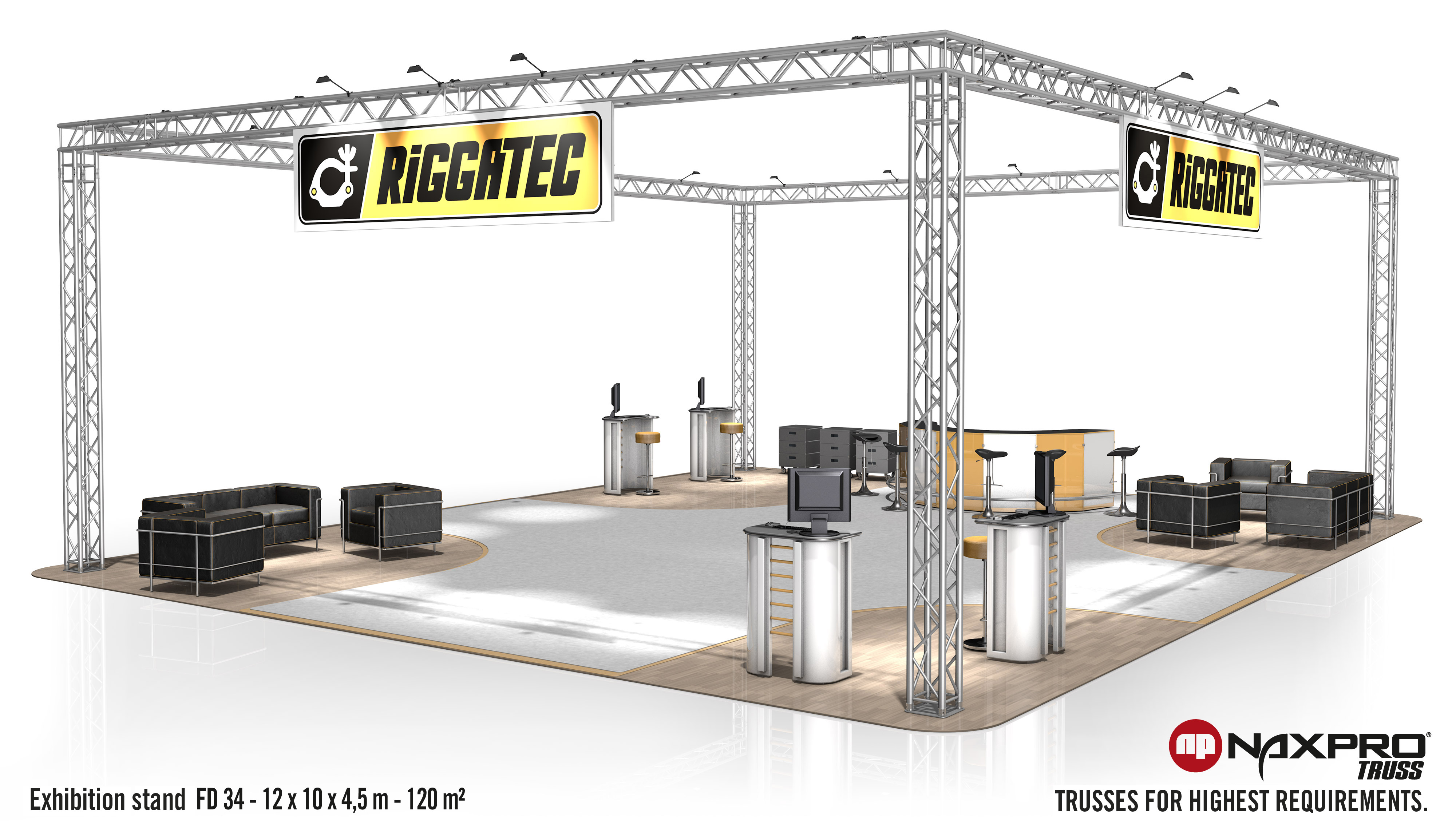

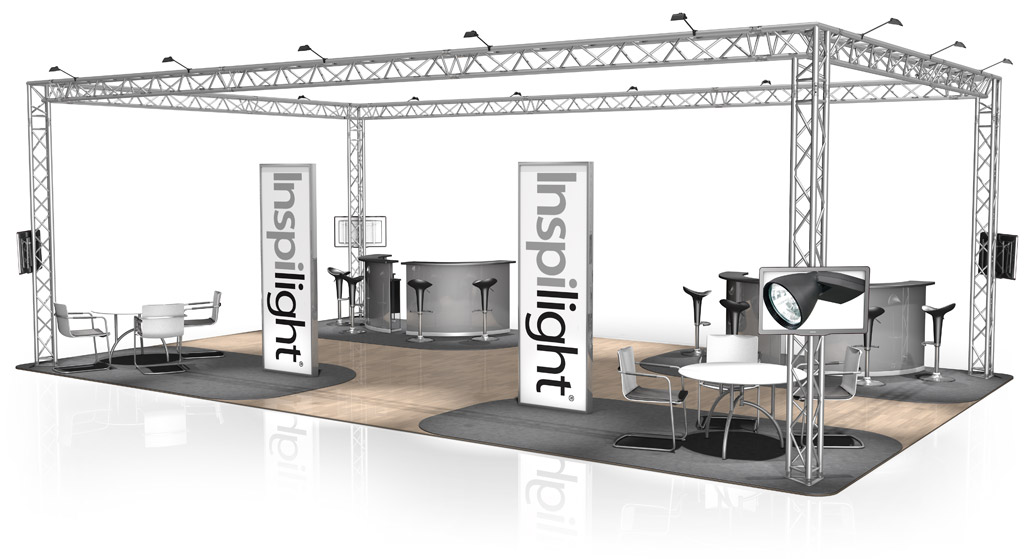

Exhibition Stand FD 34 - 12 x 10 x 4,5 m (LxWxH) - 120 m²
Contains:
12 x Naxpro-Truss FD 34 Straight 400 cm
2 x Naxpro-Truss FD 34 Straight 300 cm
2 x Naxpro-Truss FD 34 Straight 100 cm
4 x Naxpro-Truss FD 34 C30 90° 3 Way Corner
4 x FD 34 Base Plate
Technical Data:
Dimensions: approx. 1200 x 1000 x 450 cm (LxWxH)
Total area: approx. 120 m²
Total weight: approx. 309 kg
|

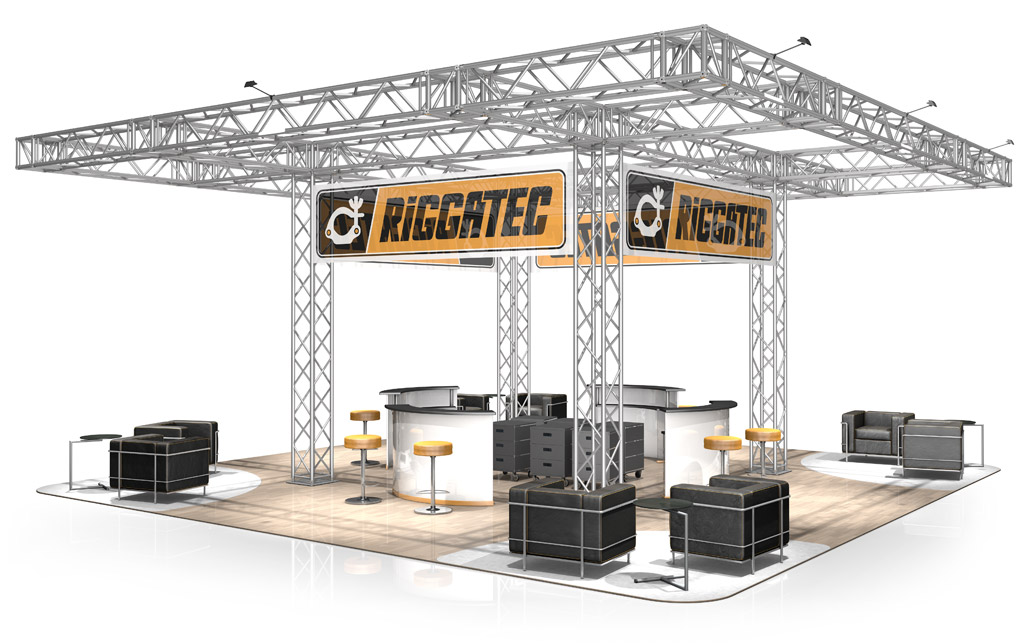

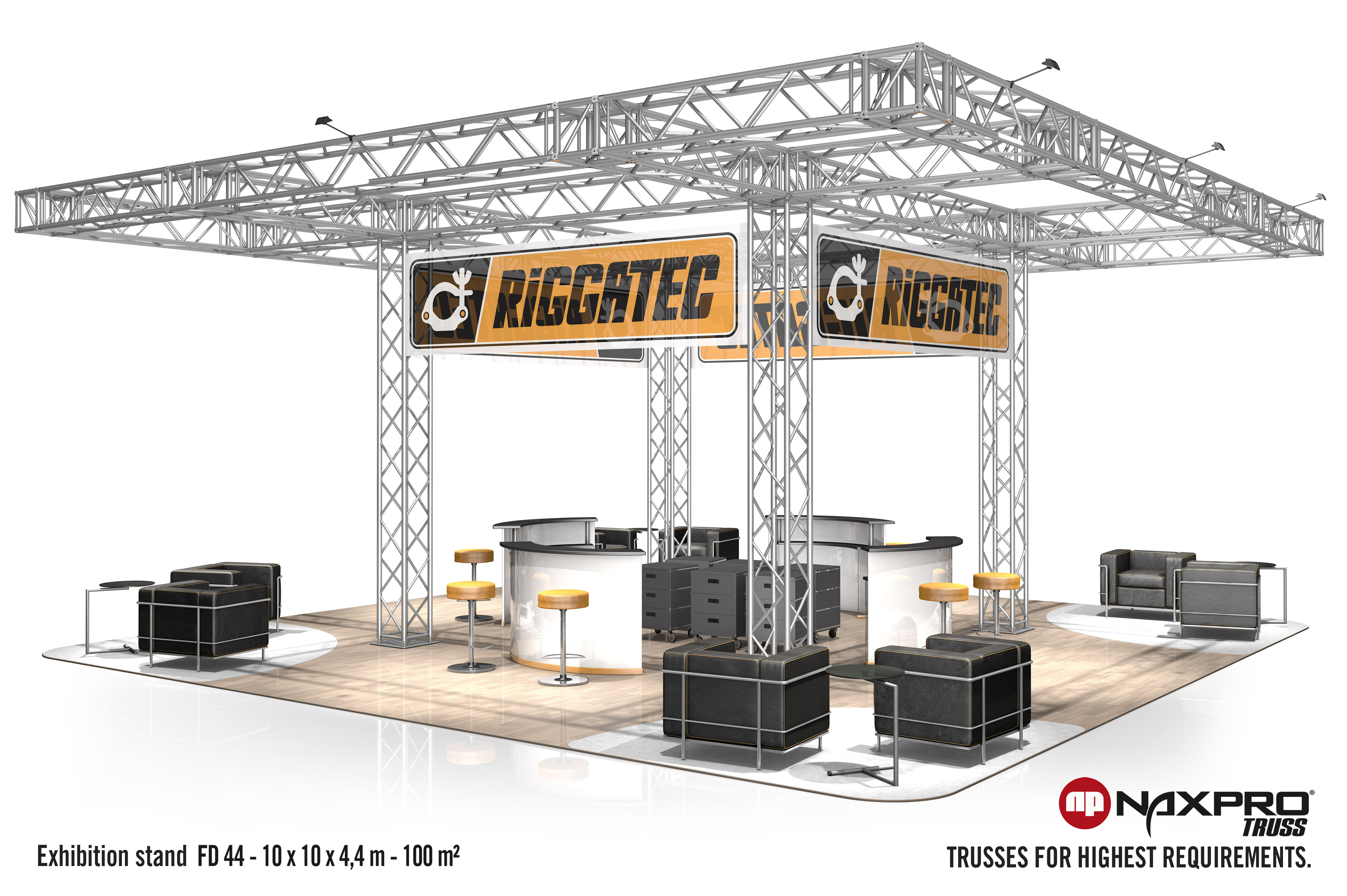

Exhibition Stand FD 44 - 10 x 10 x 4,4 m (LxWxH) - 100 m²
Contains:
12 x Naxpro-Truss FD 44 Straight 400 cm
16 x Naxpro-Truss FD 44 Straight 200 cm
16 x Naxpro-Truss FD 44 Boxcorner incl. 8 connectors
80 x Naxpro-Truss Halfconnector for box corner M12
4 x FD 44 Base Plate
Technical Data:
Dimensions: approx. 1000 x 1000 x 440 cm (LxWxH)
Total area: approx. 100 m²
Total weight: approx. 780 kg
